In the evolving landscape of modern manufacturing, 5-axis CNC machining stands out as a revolutionary technology that has redefined the boundaries of precision and complexity in part production. By enabling simultaneous movement across five axes (three linear axes X, Y, Z and two rotational axes typically A and C), this advanced machining method has become indispensable across various industries, from aerospace to automotive, medical devices to mold manufacturing.

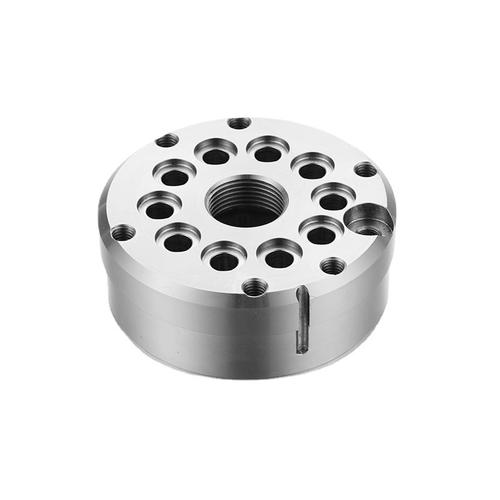

The Fundamental Advantages of 5-Axis CNC Machining

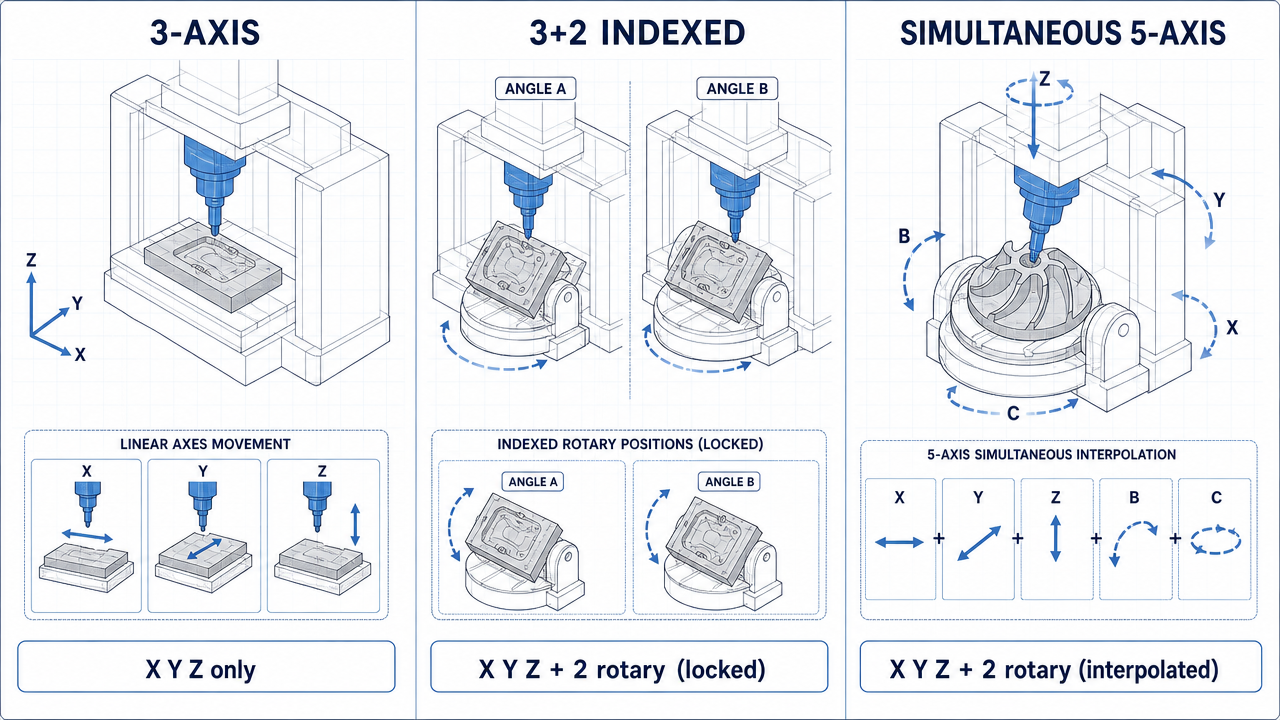

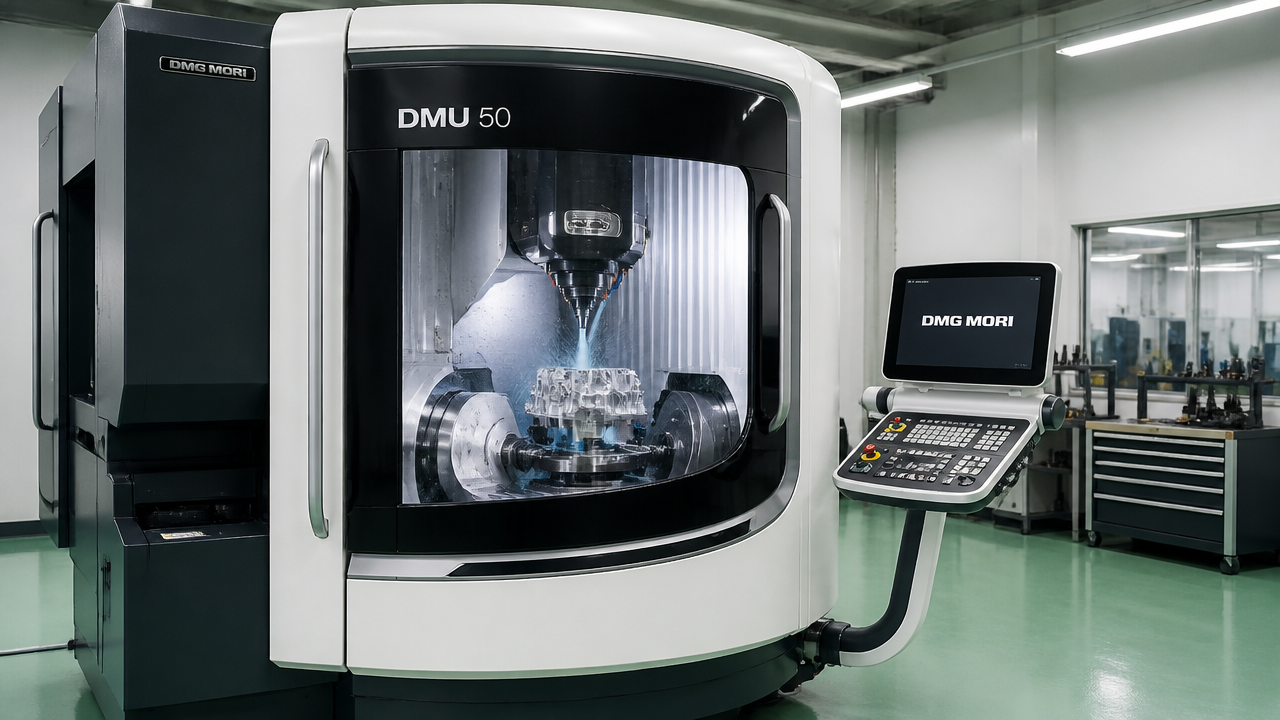

At its core, 5-axis CNC machining addresses the limitations of traditional 3-axis machining by introducing two additional rotational axes. This key innovation allows the cutting tool to approach the workpiece from virtually any angle, eliminating the need for multiple setups and significantly reducing cumulative errors. Modern high-end 5-axis CNC machines can achieve positioning accuracy of ±0.001mm and repeatability of ±0.0005mm, setting new standards for manufacturing precision.

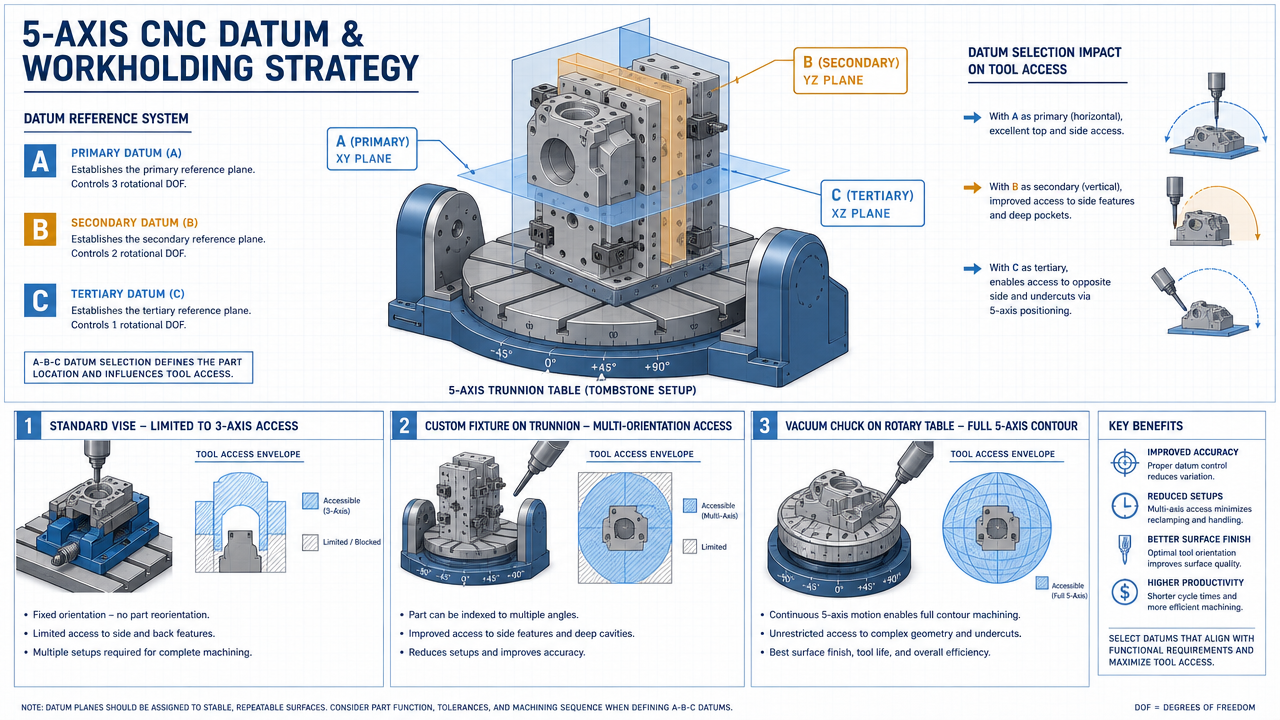

One of the most significant benefits is the ability to complete complex parts in a single setup. This not only improves accuracy by minimizing setup errors but also dramatically reduces production time. For example, in automotive mold manufacturing, 5-axis technology has reduced production cycles from 15 days to just 5 days, representing a 66% efficiency improvement. Similarly, aerospace component manufacturers have reported up to 60% reduction in machining time for complex parts like turbine blades.
Material Versatility in 5-Axis Machining
5-axis CNC machining demonstrates exceptional versatility across a wide range of materials, each presenting unique machining challenges and requirements:
Aluminum alloys, particularly 6061 and 7075, are widely used in automotive and aerospace applications due to their favorable strength-to-weight ratios. 5-axis machining excels with these materials, achieving cutting speeds of 200-500m/min and material removal rates as high as 16,400 cm³/min. This efficiency has made it the preferred method for manufacturing lightweight components like new energy vehicle battery trays, where one manufacturer reported reducing defect rates from 25% to 5% while increasing daily output.
Mold steels such as H13 and P20 require different approaches due to their high hardness (42-48HRC for H13 after heat treatment). 5-axis machining employs a layered strategy with carbide or CBN tools, operating at 30-80m/min cutting speeds to achieve surface finishes of Ra 0.4-0.8μm, significantly reducing post-processing requirements.
Magnesium alloys, prized for their lightweight properties (density of 1.74g/cm³), demand special handling due to fire risks. With proper cooling systems (minimum 20L/min cutting fluid flow), 5-axis machines can safely process these materials at 100-300m/min, as demonstrated in the production of transmission housings that achieved 40% weight reduction.
Stainless steels, including 304 and 430 grades, present challenges with work hardening. Using PCBN tools at 80-150m/min cutting speeds, 5-axis machining maintains precision while extending tool life by up to 300% compared to traditional methods, making it ideal for exhaust system components and fuel lines.
Industry-Specific Applications
Aerospace Industry

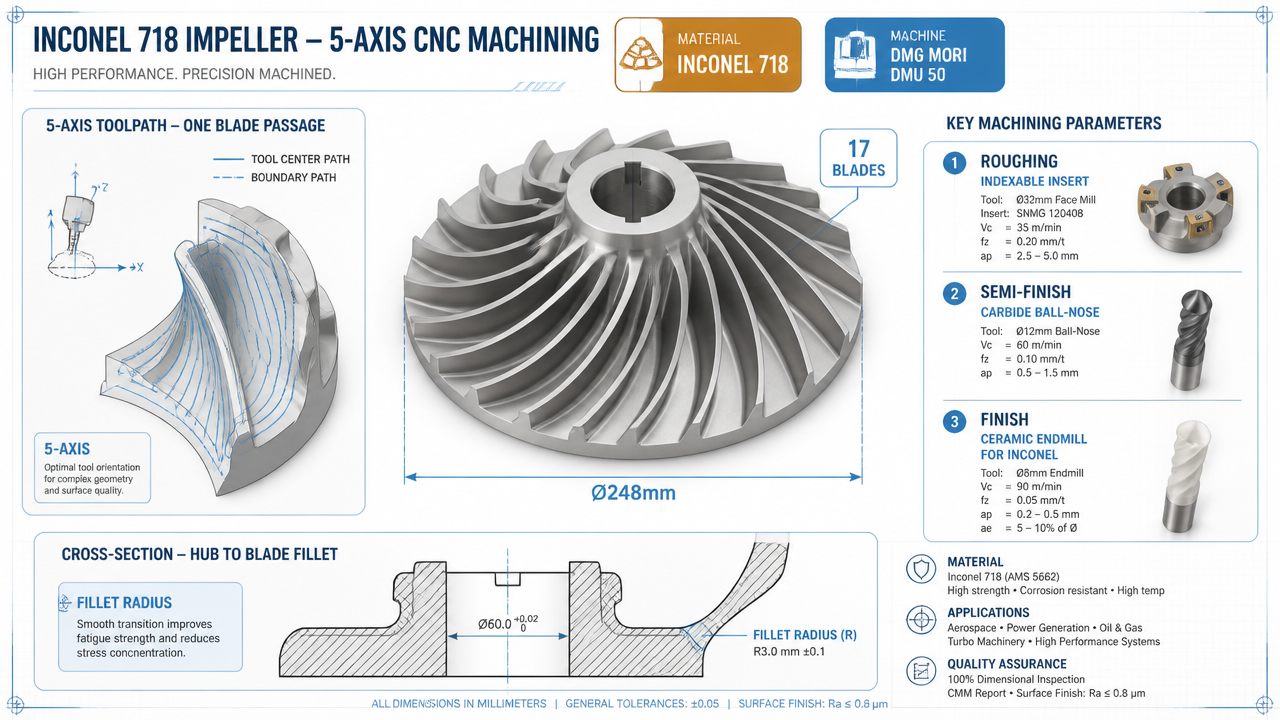

The aerospace sector benefits immensely from 5-axis capabilities, particularly in manufacturing turbine blades, integral blisks, and structural frames from challenging materials like titanium alloys and Inconel. These components require tight tolerances (±0.005mm) and superior surface finishes (Ra 0.4μm). 5-axis machining has improved processing qualification rates for composite components to 99.2% while reducing engine casing machining errors by 40%.
Automotive Manufacturing
Automotive applications range from engine blocks and cylinder heads to transmission components and custom molds. 5-axis technology has enabled manufacturers to achieve ±0.01mm precision in engine components while reducing production times. For example, one new energy vehicle manufacturer reduced battery tray defects by 20% and increased 产能 by 30% using 5-axis machining for aluminum components.
Medical Device Production
In medical manufacturing, 5-axis machining produces custom implants and surgical instruments with micron-level precision (±5μm). Titanium alloy spinal fixators and dental implants benefit from improved material utilization (15-25% increase) and superior surface finishes that reduce post-processing requirements, with one orthopedic manufacturer reporting yield improvements from 82% to 98%.
Mold and Die Industry
5-axis machining has transformed mold production by enabling complex cavity geometries with superior surface quality. By reducing or eliminating the need for EDM processes, manufacturers have cut electrode costs by 60% while achieving mirror finishes directly from the machine, significantly reducing polishing requirements.
Key Process Considerations
Successful 5-axis machining relies on several critical factors:

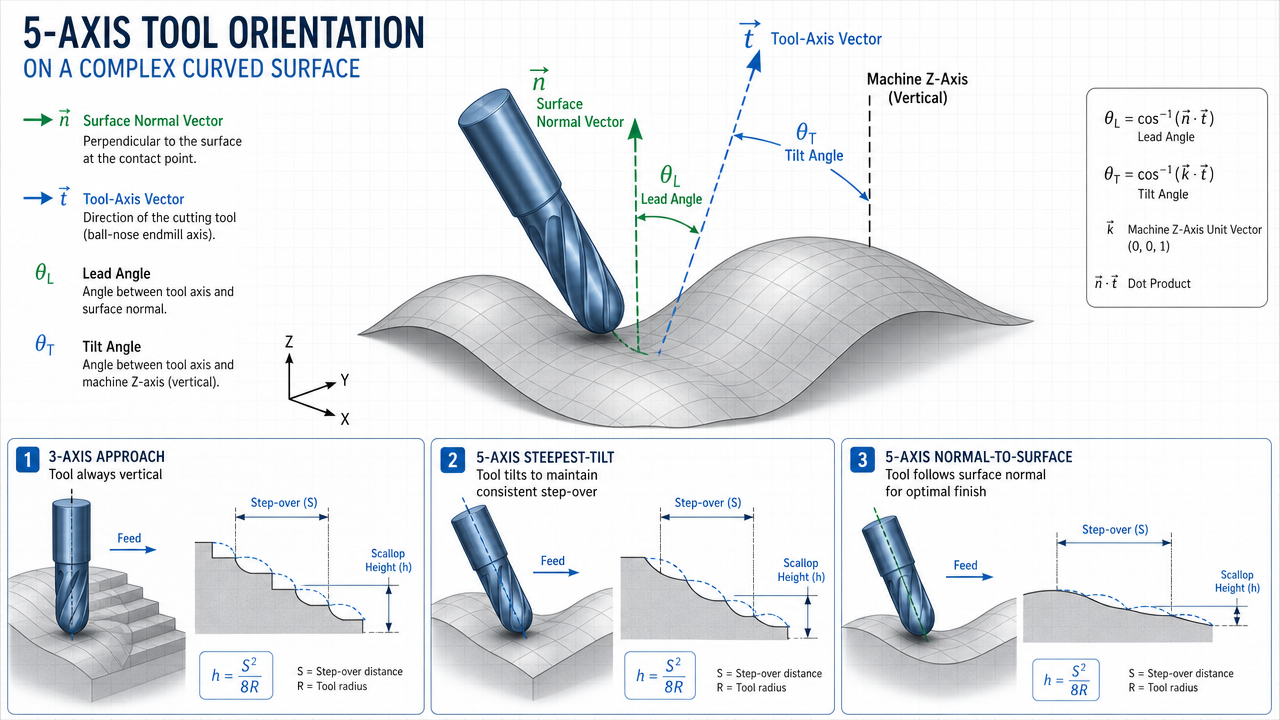

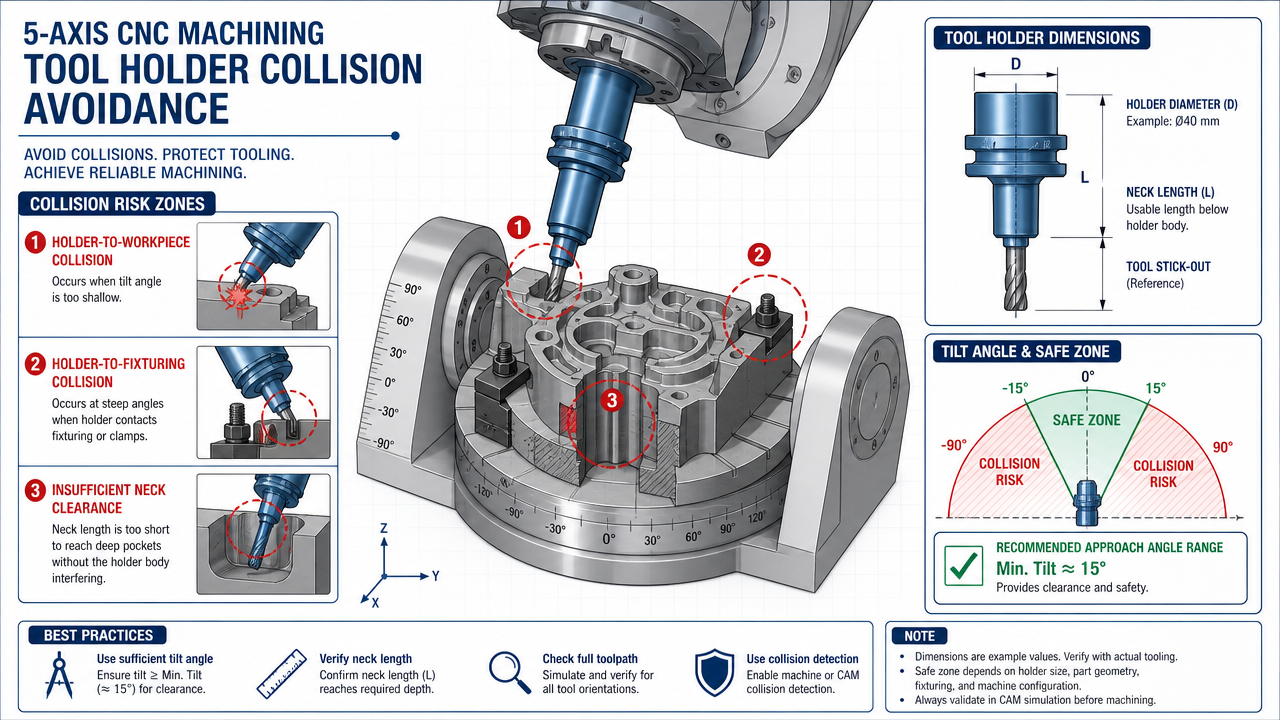

Tool path optimization is fundamental, with curvature-based adaptive strategies adjusting spacing according to surface complexity. This approach ensures uniform material removal while maintaining precision, particularly important for complex surfaces like turbine blades and automotive body panels.
Cutting parameter selection varies by material, with feed rates ranging from 0.05mm/r for hard steels to 0.3mm/r for aluminum alloys. These parameters must be carefully balanced to minimize tool wear while maximizing efficiency.
Cooling systems play a vital role, with specialized setups required for materials like magnesium alloys. Proper cooling not only extends tool life but also maintains dimensional stability by controlling thermal expansion.

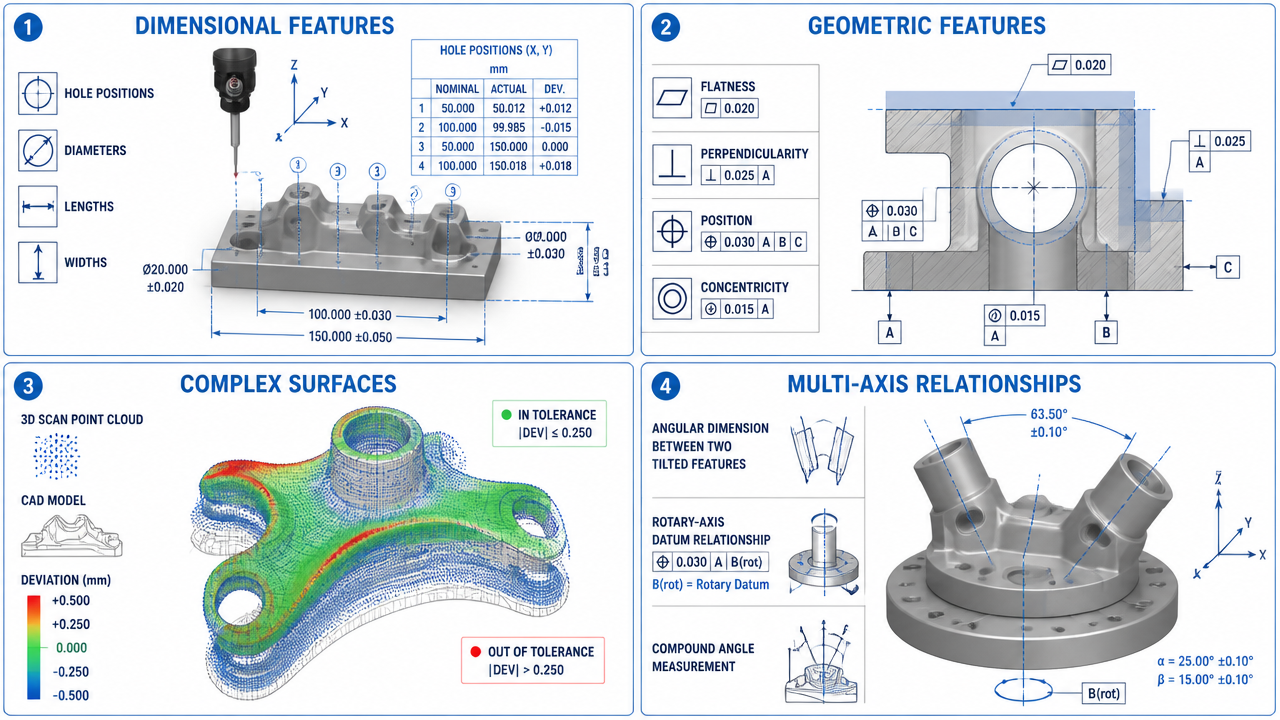

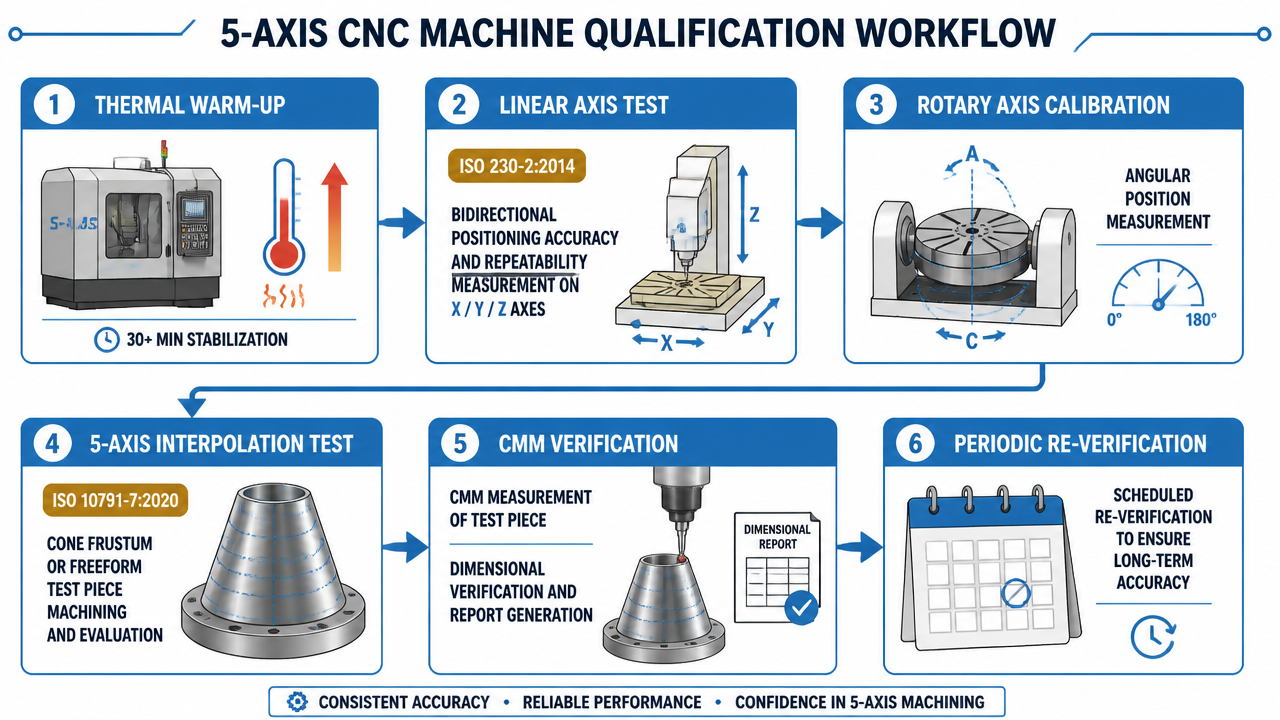

Workflow integration from design to inspection ensures quality throughout the process. CAD/CAM software generates precise tool paths that are verified through simulation before machining, while post-process inspection with coordinate measuring machines confirms dimensional accuracy.
Common Questions and Practical Considerations
Tool selection for different materials
Aluminum alloys perform best with high-speed steel or coated carbide tools, while mold steels require carbide or CBN tools. Stainless steels benefit from PCBN tools, and magnesium alloys require specialized geometries to manage chip formation and fire risk.
Surface quality assurance
Achieving optimal surface finishes requires balancing cutting parameters, tool selection, and cooling. For mold steels, 5-axis machining can consistently achieve Ra 0.4-0.8μm finishes, reducing polishing requirements by 50% compared to traditional methods.
Efficiency comparisons
5-axis machining typically reduces production times by 40-60% for complex parts compared to 3-axis methods. Material removal rates for aluminum are 2-3 times higher, while setup time reductions of 70% further enhance productivity.
Cost-effectiveness for small batches
Despite higher initial investment, 5-axis machining is cost-effective for small batches by eliminating multiple setups and reducing fixture costs. This makes it ideal for custom automotive components and new product development where flexibility and precision are paramount.
5-axis CNC machining continues to push manufacturing boundaries, offering unprecedented precision, efficiency, and flexibility across diverse industries. Its ability to handle complex geometries and challenging materials while maintaining tight tolerances has made it an indispensable technology in modern manufacturing, driving innovation and performance improvements in countless applications.
