What Is Aluminum CNC Machining Tolerance

CNC machining tolerance refers to the allowable deviation from the specified dimension in a machined part. It represents the precision with which a part can be manufactured, ensuring that components fit and function correctly in their intended applications.

Tolerance is crucial in manufacturing because it directly affects part performance, assembly, and cost. Properly specified tolerances ensure that parts work together as designed while balancing manufacturing costs and production feasibility.

CNC Machining Process

CNC machining of aluminum components with precision tolerances

Typical CNC Machining Tolerance for Aluminum

Precision Levels Overview

Precision Level Typical Tolerance Applications
Standard ±0.1 mm (±0.004 in) General purpose parts, non-critical assemblies
Precision ±0.01 mm (±0.0004 in) High-performance components, critical fits
Ultra Precision ±0.005 mm (±0.0002 in) Aerospace components, medical devices, precision instruments

Precision Levels Chart

Precision levels and tolerance ranges for aluminum CNC machining

CNC Process Tolerance Chart

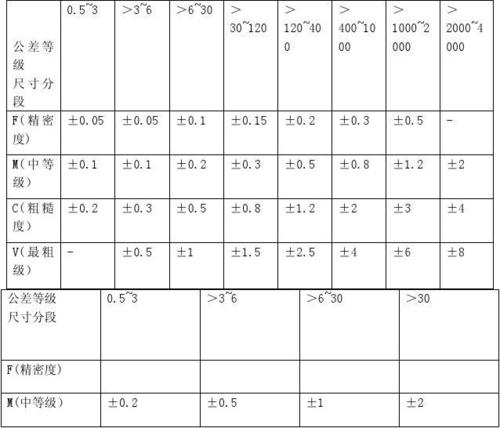

CNC Process Comparison

Different CNC processes and their tolerance capabilities

Tolerance by Machining Process

CNC Process Typical Tolerance Best Applications
CNC Milling ±0.02–0.05 mm Complex shapes, pockets, contours
CNC Turning ±0.025 mm Round parts, shafts, cylinders
Drilling ±0.08 mm Hole making, threading
Grinding ±0.002 mm Surface finishing, tight tolerance features

Tolerance Capability by Aluminum Alloy

Machining Characteristics

Alloy Machining Stability Achievable Tolerance Key Properties
6061-T6 Excellent ±0.015 mm Good strength, corrosion resistance
7075-T6 Good ±0.02 mm High strength, fatigue resistance
5052-H32 Very Good ±0.01 mm Excellent corrosion resistance
2024-T3 Fair ±0.025 mm High strength, good fatigue resistance

Aluminum Alloy Samples

Common aluminum alloy samples used in CNC machining

ISO Tolerance Standards for CNC Machining

GD&T Technical Drawing

GD&T technical drawing with geometric tolerance symbols

Key International Standards

ISO 2768 – General Tolerances

ISO 2768 specifies general tolerances for linear and angular dimensions without individual tolerance indications. It has two main classes:

  • ISO 2768-m (medium): ±0.1 mm for dimensions up to 100 mm
  • ISO 2768-f (fine): ±0.05 mm for dimensions up to 100 mm

ASME Y14.5 – Geometric Dimensioning and Tolerancing (GD&T)

ASME Y14.5 provides a standardized system for defining and communicating geometric tolerances. It uses symbols to specify form, orientation, location, and runout tolerances.

ISO 1101 – Geometric Tolerancing

ISO 1101 is the international equivalent to ASME Y14.5, specifying the principles of geometric tolerancing for features of size, form, orientation, location, and runout.

Tolerance vs Cost in CNC Machining

Cost Impact of Tighter Tolerances

  • Standard tolerance (±0.1 mm): Base cost = 100%
  • Precision tolerance (±0.01 mm): Cost increase = 200-300%
  • Ultra-precision tolerance (±0.005 mm): Cost increase = 500-1000%

Factors Contributing to Higher Costs

  • More precise machine tools with higher capital costs
  • Better quality cutting tools and tool holders
  • Additional inspection and quality control steps
  • Slower machining speeds and more passes
  • Increased setup time and fixturing complexity
  • Higher scrap rates during production

Cost vs Tolerance Chart

Cost increase relative to tighter tolerance requirements

Design Guidelines for Aluminum CNC Parts

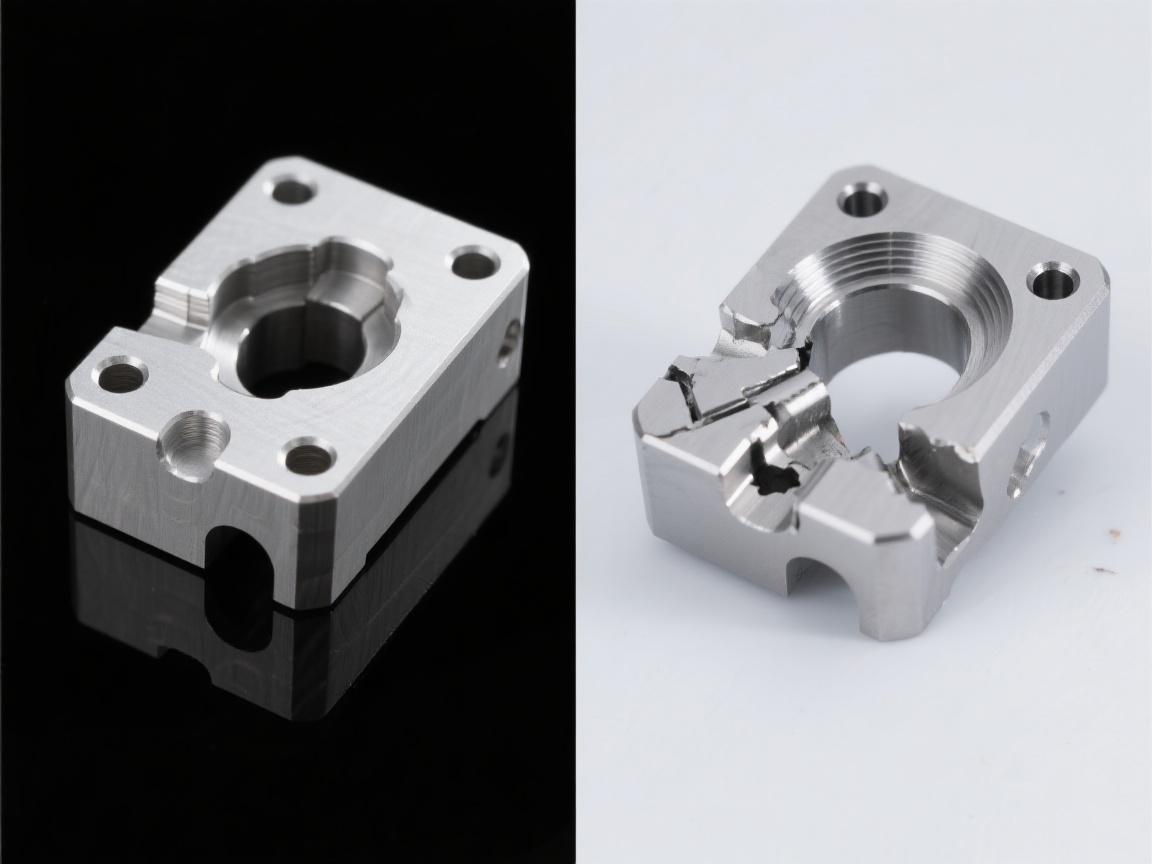

CNC Design Examples

Proper and improper design examples for CNC machining

Key Design Principles

1. Wall Thickness Considerations

Avoid thin walls less than 1mm thick in aluminum parts, as they can vibrate during machining and cause dimensional inaccuracies. Minimum recommended wall thickness is 1.5mm for most applications.

2. Deep Cavities and Pockets

Limit depth-to-width ratios for cavities to 4:1 or less. Deeper cavities require longer tools which are more prone to deflection, reducing tolerance capability.

3. Unsupported Structures

Avoid long, unsupported features that can flex during machining. Use ribs or gussets to add rigidity while maintaining material efficiency.

4. Fillets and Chamfers

Include fillets (internal radii) and chamfers (external bevels) to reduce stress concentrations and improve machining accessibility. Minimum fillet radius should be 0.5mm.

5. Hole Design

For holes requiring tight tolerances, specify a minimum diameter of 3mm. Smaller holes may require special tooling and have limited tolerance capabilities.

Common Applications of High Precision Aluminum Parts

Industry Applications

Aerospace Components

Aerospace applications require extremely tight tolerances (±0.005 mm) to ensure safety and performance. Aluminum parts such as brackets, structural components, and engine parts must meet strict FAA and ISO standards.

Robotics Components

Robotic arms, joints, and precision gears require tight tolerances (±0.01 mm) to ensure accurate positioning and repeatability. Aluminum’s lightweight properties make it ideal for robotic applications.

Medical Devices

Medical devices such as surgical instruments, diagnostic equipment, and implant components require biocompatible aluminum alloys with tight tolerances (±0.008 mm) to ensure safety and precision.

Electronic Enclosures

Electronic components often require precise tolerances for proper fit and heat dissipation. Aluminum enclosures for computers, servers, and communication equipment typically use ±0.05 mm tolerances.

Precision Aluminum Components

High precision aluminum components for various industries
