CNC Machining of Medical Titanium Alloy Parts

In the medical device industry, where precision, biocompatibility, and mechanical excellence are non-negotiable, titanium alloy parts have become the material of choice for critical applications ranging from orthopedic implants to minimally invasive surgical tools. CNC (Computer Numerical Control) machining has emerged as the definitive technology for manufacturing these components, offering unmatched accuracy, repeatability, and adaptability to the unique challenges of titanium alloys. This article explores the technical capabilities, material expertise, manufacturing processes, quality assurance, and industry applications of CNC-machined medical titanium alloy parts.

I. Technical Excellence: Mastering Titanium’s Unique Machining Requirements

(A) Micron-Level Precision for Critical Fit

• Dimensional Tolerance: ±0.005mm for critical features (e.g., implant screw threads, joint surfaces)
• Surface Roughness: Ra ≤ 0.2μm for osseointegration surfaces, promoting bone cell adhesion
• Repeatability: ±0.01mm across all axes, ensuring consistent quality in batch production

(B) Complex Geometry Machining

• Porous Structures: Lattice frameworks (50–90% porosity) for spinal fusion cages, created via trochoidal milling to enhance bone ingrowth (ISO 10993-compliant)
• Thin-Wall Components: Wall thicknesses as low as 0.3mm in laparoscopic trocars, machined with vibration-damping fixtures to prevent deformation
• Multi-Feature Integration: Single-setup machining of dental implants with integrated microthreads (pitch tolerance ±0.003mm) and anti-rotation features

(C) Process Optimization for Titanium Alloys

1. Cryogenic Cooling: Liquid nitrogen cooling (–196°C) at the cutting edge reduces tool wear by 40% and minimizes heat-induced dimensional changes in Ti-6Al-4V ELI (Extra Low Interstitial) alloy
2. High-Precision Tooling: Polycrystalline diamond (PCD) end mills with 0.001mm edge radius for finishing implant surfaces, achieving Ra ≤ 0.1μm without post-processing
3. In-Process Metrology: Laser scanning during machining verifies complex curved surface profiles in real time, ensuring compliance with ASME Y14.5 medical device tolerancing standards

II. Material Expertise: Selecting the Right Titanium Alloy

(A) Medical-Grade Titanium Alloys

(B) Material Traceability

• Spectroscopic Analysis: Verification of alloy composition (e.g., Al: 5.5–6.5%, V: 3.5–4.5% for Ti-6Al-4V ELI)
• Microstructural Examination: Metallographic analysis to ensure α+β phase balance, critical for fatigue resistance in load-bearing implants

III. End-to-End Manufacturing Process

(A) Design Collaboration & Simulation

1. Medical Device-Specific CAD/CAM: Using software like Siemens NX with medical device libraries, we convert 3D models into toolpaths optimized for biocompatibility and sterilization requirements
2. FEA Validation: Simulate cyclic loading (up to 10 million cycles) for hip stems to ensure fatigue strength >500 MPa, exceeding ISO 7206 standards
3. Rapid Prototyping: 3D-printed titanium prototypes for fit testing, reducing design iteration time by 30%

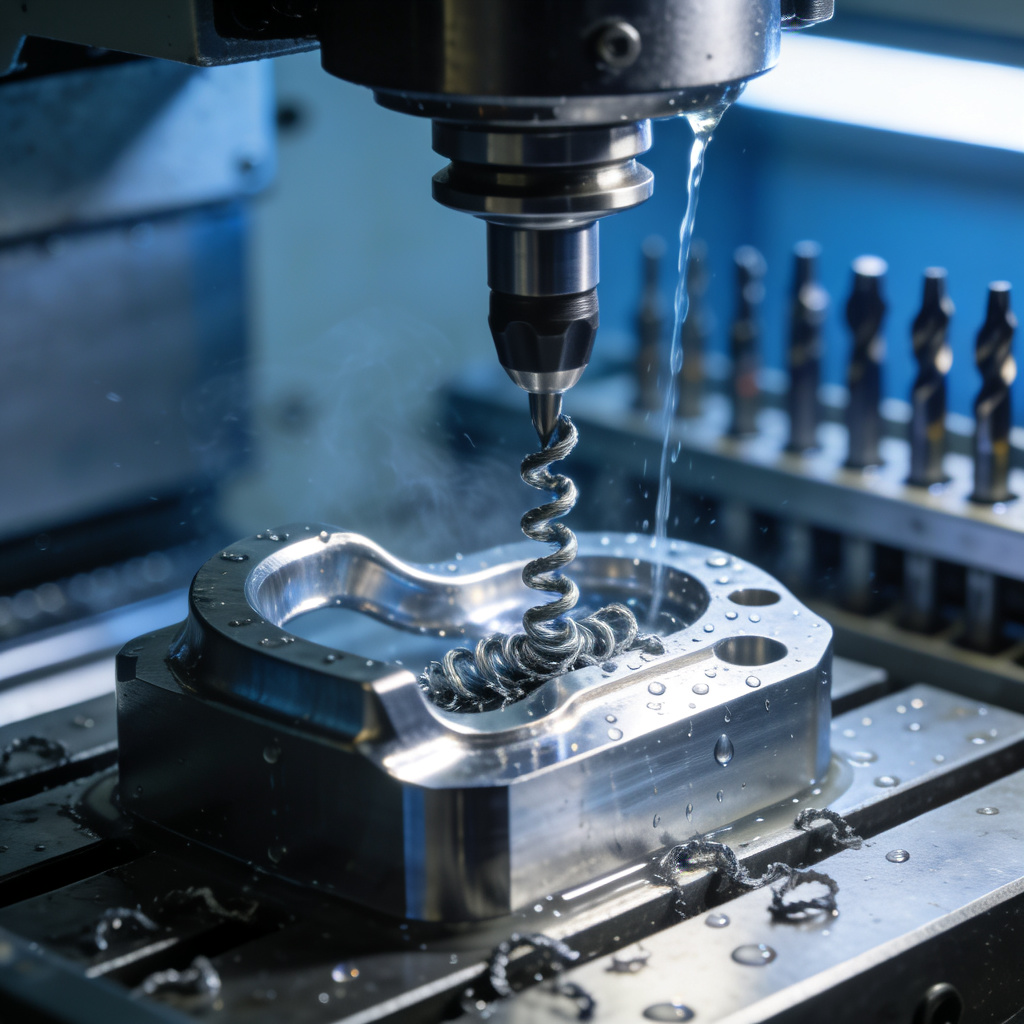

(B) Precision Machining Stages

1. Roughing: High-speed machining (12,000 RPM) with carbide end mills to remove 90% of material while maintaining 0.5mm stock for finishing
2. Finishing: Five-axis contouring with PCD tools, achieving ±0.005mm accuracy on implant surfaces that require direct bone contact
3. Surface Treatment:
   • Electropolishing: Removes machining marks, reduces surface roughness to Ra ≤ 0.15μm (critical for bacterial resistance)
   • Anodizing: Creates oxide layers (5–10μm thick) for corrosion resistance in intraoral devices

(C) Sterilization-Ready Processing

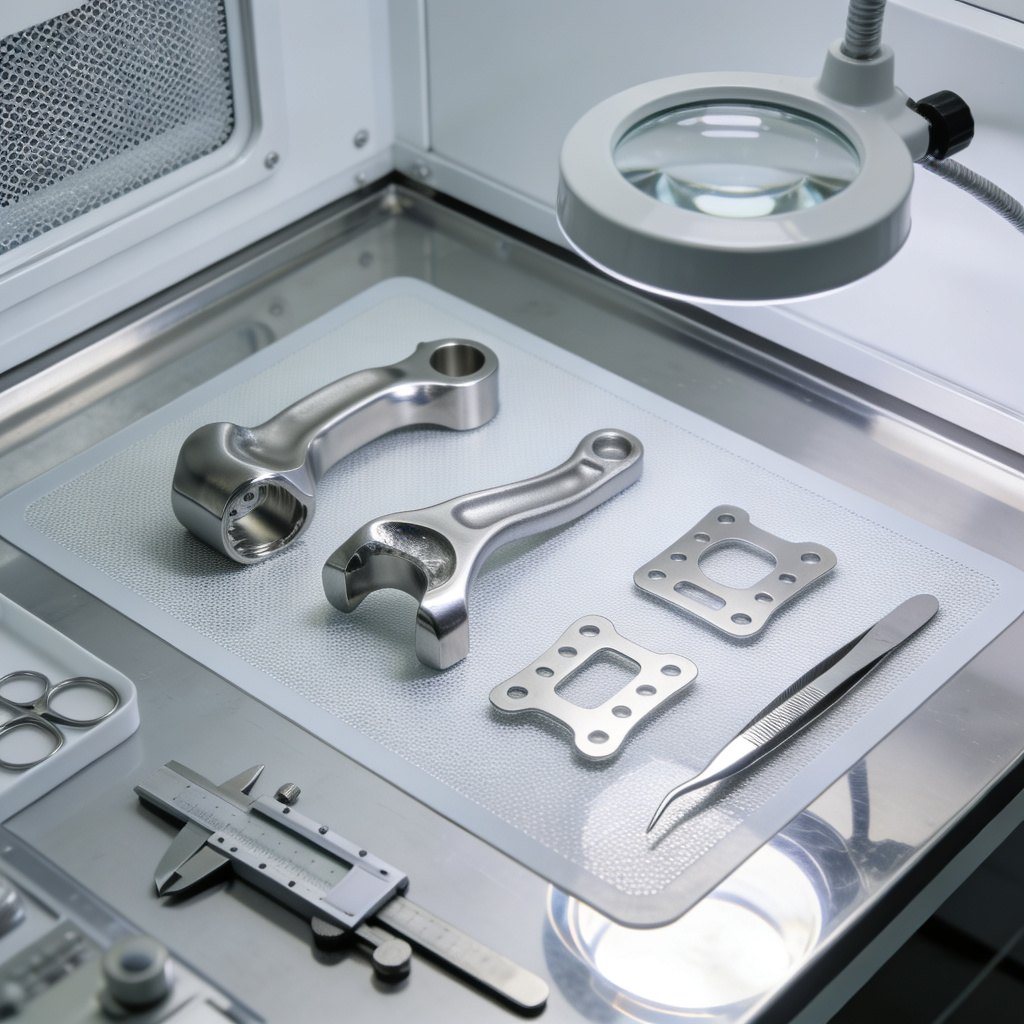

• Cleanroom Machining: Operations performed in ISO Class 8 cleanrooms to minimize particulate contamination
• Passivation: Citric acid treatment (ASTM A967) to enhance corrosion resistance, followed by validated packaging for terminal sterilization (e.g., ethylene oxide, gamma irradiation)

IV. Stringent Quality Assurance for Medical Compliance

(A) Multi-Stage Inspection Protocol

1. Raw Material Certification: Complete traceability from ingot to finished part, including mill test reports (MTR) and biocompatibility test certificates
2. In-Process Controls:
   • Statistical Process Control (SPC) for critical dimensions, with sampling frequency increasing to 10% for implantable components
   • Automated vision systems for 100% thread inspection (e.g., pitch, flank angle, root radius)
3. Final Testing:
   • Biocompatibility: Cytotoxicity (ISO 10993-5), hemocompatibility (ISO 10993-4), and pyrogen tests (USP <151>)
   • Mechanical Testing: Tensile strength (ASTM E8), hardness (Rockwell C), and fatigue testing (ASTM E466)
   • Sterility Assurance: Final parts tested for endotoxin levels (<0.5 EU/mL) and packaging integrity (bubble leak test)

(B) Regulatory Compliance

• Quality Management System: Certified to ISO 13485, with full batch traceability for 10 years
• FDA Submissions: Technical files supporting 510(k) and PMA applications, including machining validation reports and material certifications

V. Industry Applications: Advancing Medical Innovation

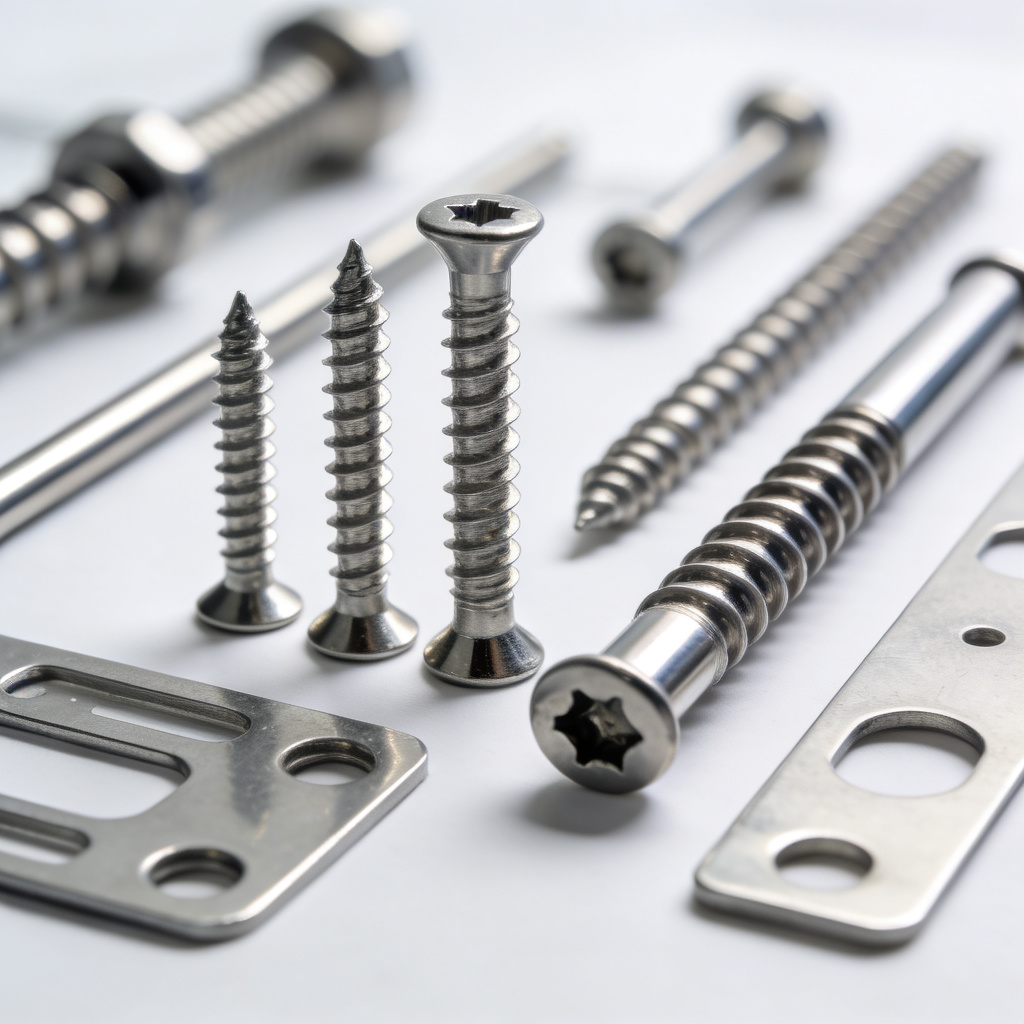

(A) Orthopedic Implants

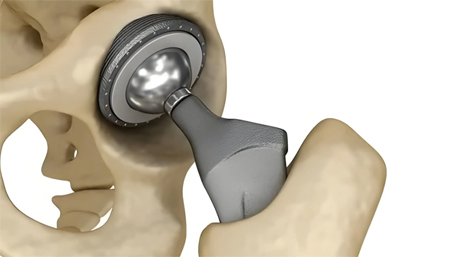

• Total Joint Replacements: CNC-machined Ti-6Al-4V ELI acetabular cups with trabecular surface textures, achieving 95% osseointegration within 12 weeks (vs. 16 weeks for traditional implants)
• Spinal Fixation Systems: Pedicle screws with variable angles (±1° tolerance) for minimally invasive surgery, reducing operative time by 20%

(B) Surgical Instruments

• Robotic Surgery Tools: Titanium alloy end effectors (Ti-6Al-7Nb) with integrated force sensors, machined to ±0.005mm for precise tissue manipulation
• Microsurgical Forceps: Lightweight (30% lighter than stainless steel) with ergonomic CNC-machined handles, improving surgeon dexterity in ophthalmic procedures

(C) Dental Implants

• Zygomatic Implants: Long-length implants (30–50mm) with tapered threads (lead angle ±0.5°), machined from Ti-6Al-7Nb to withstand 450 N/cm² bite forces
• Implant Abutments: Custom-milled to match intraoral scans, achieving ±0.01mm marginal fit to prevent microgap corrosion

VI. Frequently Asked Questions (FAQ)

(A) What is the typical precision for implantable titanium parts?

(B) Can you machine porous titanium structures?

(C) How do you ensure biocompatibility?

(D) What is the lead time for custom medical parts?

• Prototypes: 5–7 days
• Sterilized production batches: 10–15 days (including biocompatibility testing and packaging)
• Expedited service: 48-hour turnaround for emergency cases

(E) Do you offer design assistance for regulatory submissions?

Yes—our engineers provide DFM (Design for Manufacturability) reports and technical documentation compliant with FDA, EU MDR, and ISO 13485 requirements.

VII. Customer Testimonials

VIII. Partner with a Leader in Medical Titanium Machining
