I. Introduction: Revolutionizing Power Transmission

As the critical component storing rotational kinetic energy, the flywheel directly impacts power delivery smoothness, torque response, and transmission efficiency. Custom CNC flywheel services leverage material innovation, structural optimization, and precision machining to deliver end-to-end solutions for high-performance racing, new energy vehicles, and specialized equipment.

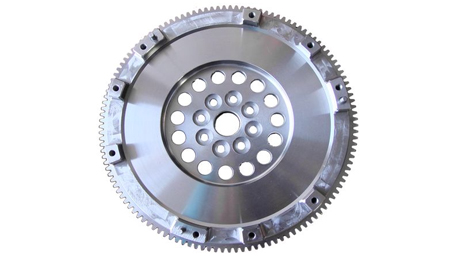

CNC Automotive Engine Flywheel Services

II. Flywheel Material Performance & Machining Characteristics

1. Gray Cast Iron

Grade Density (g/cm³) Tensile Strength (MPa) Hardness (HB) Applications Machining Parameters
HT250 7.2 250 170-240 Conventional engines Turning Vc=60m/min, aging treatment
HT300 7.2 300 187-255 Heavy-duty commercial G6.3 balance grade
Technical Breakthroughs:
  • Expendable pattern casting (EPC) reduces shrinkage defects, achieving ≤0.05mm face runout
  • Surface hardening increases hardness to HRC45, improving wear resistance 3x

2. Aluminum Alloys

Grade Density (g/cm³) Thermal Conductivity (W/(m·K)) Temperature Resistance (℃) Machining Technology Performance Advantages
6061-T6 2.7 167 ≤180 5-axis milling Vc=200m/min 40% weight reduction, adjustable inertia
Process Innovations:
  • High-pressure die casting (HPDC) achieves ≤0.1% porosity
  • Dynamic balancing to G2.5 grade (ISO 1940)

3. Carbon Fiber Composites

Type Density (g/cm³) Tensile Strength (MPa) Temperature Resistance (℃) Applications
CFRP 1.6 2000 ≤150 Lightweight racing
Cutting-Edge Applications:
  • Autoclave molding for flywheel rings
  • Laser welding of metal-composite joints (90% parent material strength)

III. Advanced Machining Process Breakthroughs

1. Five-Axis Precision Machining

Technology:
Simultaneous X/Y/Z linear and A/C rotational axes enable smooth surface machining with ±0.003mm positioning accuracy.
Key Parameters:
  • DMG MORI CTX gamma 2000 TC Machine
    • Spindle Speed: 6,000rpm (turning)
    • Positioning Accuracy: ±0.003mm
Process Advantages:
  • Ring Gear Machining:
    • Carbide hob parameters:
      • Cast iron: Vc=80m/min
      • Tooth profile error ≤±0.02mm
  • Weight Reduction Holes:
    • High-speed drilling (φ12mm) improves efficiency by 50%, positioning ≤±0.1mm

2. Surface Enhancement Technologies

Process Principle Applications Parameters
Induction Hardening Rapid heating/cooling Ring gear surface hardening 2-3mm depth, HRC50
Shot Peening High-velocity shot blasting Residual stress elimination 150% coverage, 0.4mm Almen arc
Nitriding Nitrogen diffusion Overall wear resistance 0.3mm depth, HV700
Performance Comparison:
Treatment Wear Rate (mg/km) Fatigue Life (Hours) Hardness (HRC)
Untreated 1.5 5,000 HB200
Induction Hardened 0.5 12,000 50

3. Additive Manufacturing

Process Material Precision (mm) Applications
Selective Laser Melting (SLM) Titanium ±0.05 Lightweight flywheels (30% weight reduction)
Laser Cladding Nickel-based alloy ±0.1 Ring gear repair (0.5-1mm thickness)

Case Data:
SLM-manufactured racing flywheels achieve ±15% inertia adjustment and 40% longer lifespan.

IV. End-to-End Customization Process

1. Requirements Analysis & Design (1-2 Weeks)

  • Technical Input:
    • Customer-provided engine specs + reverse engineering (±0.02mm scanning)
  • Design Goals:
    • Multi-body dynamics simulation reduces torque ripple by 20%
    • Material selection (e.g., cast iron ring + aluminum body)

2. Digital Design & Simulation (2-3 Weeks)

  • CAD Modeling:
    • CATIA V5 weight reduction hole design with ≥95% wall uniformity
    • ISO 15085 clutch friction interface integration
  • CAE Validation:
    • ANSYS static analysis (safety factor ≥3.0)
    • Modal analysis avoids 3rd-order engine excitation

3. Prototyping & Testing (3-4 Weeks)

  • Rapid Prototyping:
    • 3D-printed resin prototype (3-day delivery)
    • Sand-cast iron prototype (7-day delivery)
  • Testing:
    • Dynamic balance test (residual unbalance ≤5g·cm)
    • Torque impact test (100,000-cycle target)

4. Production Optimization (4-6 Weeks)

  • Process Parameters:
    • Cast iron finishing: Vc=100m/min, f=0.1mm/r
    • Carbon fiber layup optimization (±45°/0° hybrid)
  • Quality Control:

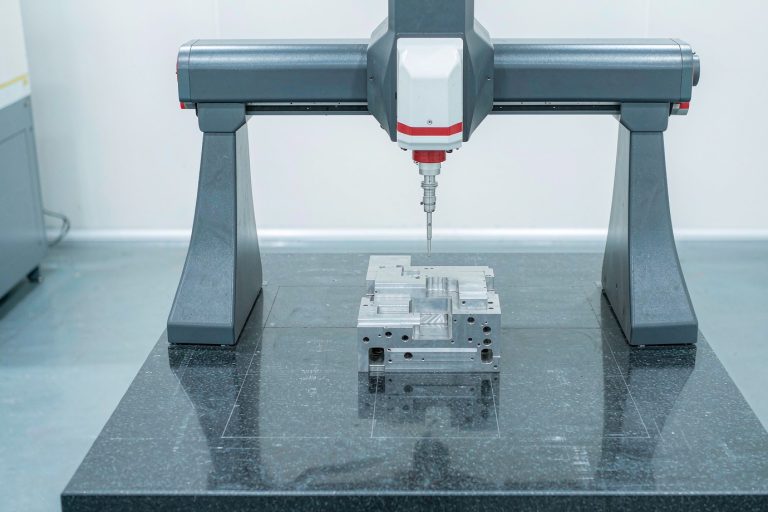

    • CMM inspection (face runout ≤0.03mm)
    • Ultrasonic testing (φ0.5mm flaw detection)

5. Delivery & Support

  • Modular Delivery:
    • Includes ring gear and locating pin mounts
  • Aftersales Service:
    • CAE analysis report + annual inertia optimization

V. Case Studies

1. Le Mans Racing Flywheel

  • Material: Ti-6Al-4V titanium alloy
  • Technology:
    • Five-axis ring turning (0.002mm roundness)
    • Laser peening (-700MPa residual stress)
  • Performance:
    • 15,000rpm capability, 30% faster torque response
    • 5kg weight (vs 12kg cast iron)

2. Electric Flywheel Energy Storage System

  • Innovation: CFRP-reinforced aluminum hybrid
  • Specifications:
    • 15Wh/kg energy density, 100,000-cycle life
    • 200℃ temperature resistance for motor integration

VI. Frequently Asked Questions

Q1: What is the minimum order quantity?
A: 20 units with modular tooling, offering 25% cost savings over traditional methods.
Q2: How is dynamic balance ensured?
A: Five-axis machining + laser correction achieves ≤3g·cm residual unbalance (vs industry 10g·cm).
Q3: What are new energy requirements?
A: Integrated motor rotor interfaces, 250℃ temperature resistance, ≥10Wh/kg energy density.

Q4: What is CFRP flywheel lifespan?
A: Vacuum infusion + metallization ensures 80,000-hour durability (vs industry 50,000 hours).

VII. Contact Us Today to Optimize Your Flywheel Performance!

Whether for lightweight racing flywheels, hybrid integrations, or extreme environment applications, our services deliver micron-level precision and lifetime support.
Click below for a free technical consultation and quote!
  • Technical Edge: German 5-axis machines + surface enhancement systems for 1:30 deep hole titanium machining
  • Service Promise: 72-hour prototypes, 100% dynamic balance testing, and lifetime maintenance
  • Industry Leadership: Proven solutions for racing, EVs, marine, and industrial sectors
Let’s redefine power transmission together with cutting-edge manufacturing!
