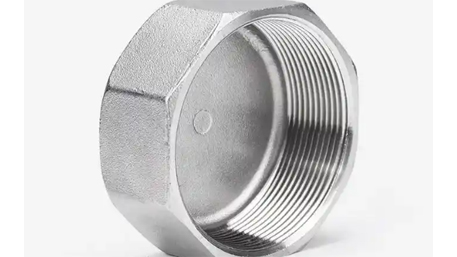

Custom CNC Stainless Steel Pipe Caps

In the intricate world of piping systems across various industries, pipe caps play a vital role in protecting pipe ends, preventing contamination, and ensuring system integrity. Among the diverse options available, custom CNC (Computer Numerical Control) stainless steel pipe caps have emerged as the go – to solution for applications demanding high precision, exceptional corrosion resistance, and reliable performance. Leveraging advanced CNC technology, these custom pipe caps are manufactured to meet the exacting standards of different sectors. This article delves into the technical capabilities, customization process, material selection, quality control, and industry applications of custom CNC stainless steel pipe caps, highlighting their indispensable value in modern piping systems.

CNC Stainless Steel Pipe Caps

I. Technical Excellence: Redefining Pipe Cap Precision

(A) Unparalleled Dimensional Accuracy

CNC machining systems are precisely calibrated to achieve outstanding dimensional accuracy in the production of stainless steel pipe caps. With positioning accuracy reaching ±0.003mm and repeat positioning accuracy of ±0.005mm, we can fabricate pipe caps with extremely tight tolerances. For example, when manufacturing pipe caps for high – pressure pipelines in the oil and gas industry, the inner diameter, outer diameter, and thickness can be maintained within ±0.003mm. This level of precision ensures a perfect fit on the pipe ends, creating a secure seal and minimizing the risk of leaks, which is crucial for the safe and efficient operation of piping systems.

(B) Complex Geometry Machining

Five – axis CNC machining technology enables the creation of stainless steel pipe caps with complex geometries. Whether it’s caps with specialized beveled edges for enhanced welding, domed caps with integrated vent holes for pressure relief, or caps with internal threads for easy installation, the five – axis system can execute these designs with precision. Compared to traditional machining methods, which often struggle to produce intricate details, five – axis CNC machining reduces errors from ±0.015mm to within ±0.005mm. Moreover, it significantly boosts production efficiency, allowing for the rapid manufacturing of custom pipe caps in both small and large batches, enabling industries to quickly meet their project deadlines.

The production of custom CNC stainless steel pipe caps involves advanced surface finishing and treatment processes optimized through CNC control. Stainless steel, while inherently corrosion – resistant, can benefit from additional surface treatments. CNC – controlled polishing processes can create a smooth, mirror – like finish on the cap surface, reducing the risk of debris accumulation and facilitating easier cleaning. For applications in harsh environments, such as marine or chemical processing, CNC – monitored electroplating or passivation processes can be applied. Electroplating with a layer of nickel or chromium can further enhance corrosion resistance, while passivation helps to remove surface contaminants and improve the material’s natural protective oxide layer, extending the service life of the pipe caps.

II. End – to – End Customization: Tailoring Pipe Caps to Your Unique Requirements

(A) In – Depth Requirement Analysis and Design Conceptualization

When you approach us with your pipe cap requirements, our experienced engineering team engages in detailed discussions to understand your application, performance expectations, and design preferences. We consider factors such as the type of fluid or gas in the pipeline, operating pressure and temperature, environmental conditions (corrosive, high – humidity, or high – temperature), and installation requirements. Using state – of – the – art CAD/CAM software, we generate multiple design concepts. We then collaborate closely with you, refining the designs until they perfectly align with your vision. Whether you need a standard pipe cap with a unique modification or a completely new design for a specialized project, we have the expertise to bring your ideas to life.

(B) Strategic Material Selection and Cost Analysis

Based on the finalized design, we recommend the most suitable stainless steel alloys for your custom pipe caps. Different stainless steel alloys offer varying combinations of corrosion resistance, strength, and cost – effectiveness. For general – purpose applications, 304 stainless steel is a popular choice due to its good balance of corrosion resistance and affordability. It has a tensile strength of ≥515 MPa and provides reliable performance in a wide range of environments. In more corrosive or high – temperature applications, 316 stainless steel, which contains molybdenum for enhanced corrosion resistance, is often preferred. It can withstand exposure to harsh chemicals and high – chloride environments, with a tensile strength of ≥485 MPa. Simultaneously, we conduct a detailed cost analysis, factoring in material costs, machining complexity, and production volume, to provide you with a transparent and competitive quote.

Once you approve the design and quote, production commences. You can monitor the progress of your order in real – time through our dedicated online tracking platform. Our skilled technicians follow strict manufacturing standards, using advanced CNC turning, milling, and drilling machines to produce pipe caps that meet the highest quality benchmarks. We keep you informed at every stage of the production process, from raw material procurement to the final inspection.

(D) Rigorous Quality Assurance and Timely Delivery

After production, each custom stainless steel pipe cap undergoes a rigorous quality inspection. Only caps that meet our exacting standards are shipped to you. We perform dimensional inspections using coordinate measuring machines (CMMs) to ensure that all critical dimensions, including diameter, thickness, and thread pitch (if applicable), are within ±0.003mm. Surface finish quality is also carefully examined to ensure it meets the specified requirements for smoothness and cleanliness. In addition, we conduct pressure testing and leak – detection tests to validate the sealing performance of the pipe caps. We also offer comprehensive after – sales support, addressing any concerns you may have during the product’s lifecycle.

III. Strategic Material Selection: Choosing the Right Stainless Steel Alloy for Optimal Performance

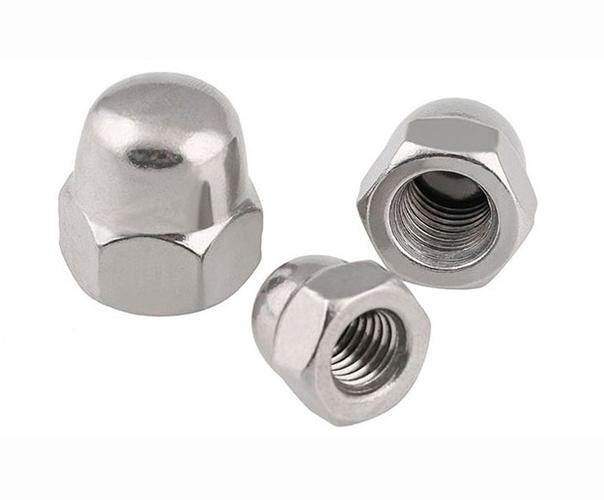

(A) 304 Stainless Steel

304 stainless steel, also known as 18 – 8 stainless steel due to its approximate 18% chromium and 8% nickel content, is one of the most widely used stainless steel alloys. It offers excellent corrosion resistance in normal atmospheric conditions, as well as resistance to many chemicals and solvents. Its good formability and weldability make it suitable for a variety of manufacturing processes, allowing for the creation of complex pipe cap geometries. With a relatively low cost compared to some other stainless steel alloys, 304 stainless steel is an ideal choice for applications in industries such as food and beverage processing, where hygiene and moderate corrosion resistance are required, as well as in general industrial piping systems.

(B) 316 Stainless Steel

316 stainless steel is often referred to as marine – grade stainless steel because of its superior resistance to corrosion, especially in chloride – rich environments such as seawater. The addition of molybdenum (around 2 – 3%) to the alloy composition enhances its ability to withstand pitting and crevice corrosion. It also offers better resistance to high – temperature oxidation compared to 304 stainless steel. With a higher level of durability and performance, 316 stainless steel is commonly used in applications such as offshore oil and gas platforms, chemical processing plants, and marine vessels, where exposure to harsh and corrosive conditions is frequent.

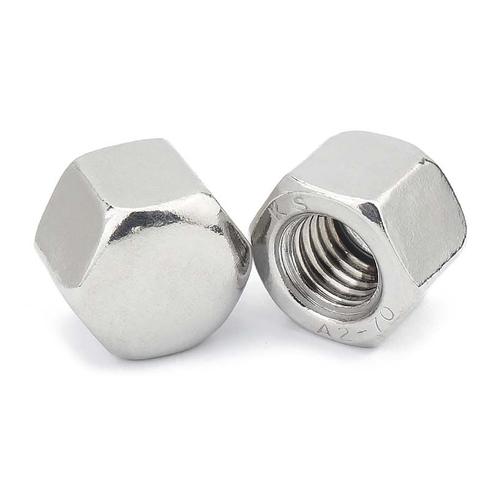

321 stainless steel contains titanium, which stabilizes the alloy and provides excellent resistance to intergranular corrosion, especially at elevated temperatures. This makes it suitable for applications where the pipe caps will be exposed to high – temperature environments, such as in power generation plants, automotive exhaust systems, and industrial furnaces. While it offers good corrosion resistance and high – temperature strength, 321 stainless steel is typically more expensive than 304 and 316 stainless steels, so it is selected based on the specific requirements of high – temperature and corrosion – resistant applications.

IV. Stringent Quality Control: Ensuring Top – Tier Pipe Cap Quality

(A) Raw Material Inspection

All incoming raw materials for custom stainless steel pipe caps are subject to strict quality checks. We use spectroscopic analysis to verify the chemical composition of the stainless steel alloys, ensuring that they meet the required standards. For example, when using 316 stainless steel, we confirm that the chromium, nickel, and molybdenum contents are within the specified ranges. Additionally, hardness testing, tensile testing, and microstructure analysis are performed to ensure the material’s integrity and suitability for the intended application.

(B) In – Process Monitoring

Throughout the manufacturing process, we employ statistical process control (SPC) techniques to monitor key manufacturing parameters. Regular sampling and data collection help us identify and correct any potential issues promptly. We monitor parameters such as cutting speeds, feed rates, tool wear, and the temperature during heat – treatment processes (if applicable). If any parameter deviates from the set values, we can adjust the process in real – time to ensure consistent product quality.

Before shipping, each pipe cap undergoes a comprehensive inspection. We use CMMs to verify dimensional accuracy, ensuring that all critical dimensions are within ±0.003mm. Surface finish quality is carefully inspected to ensure it meets the required standards for smoothness and cleanliness. Pressure testing is conducted by applying a specified pressure to the cap – sealed pipe system and monitoring for any pressure drops, indicating potential leaks. Leak – detection tests, such as using dye penetrants or ultrasonic testing, are also performed to ensure the integrity of the seal. Only pipe caps that pass all these tests are considered ready for delivery.

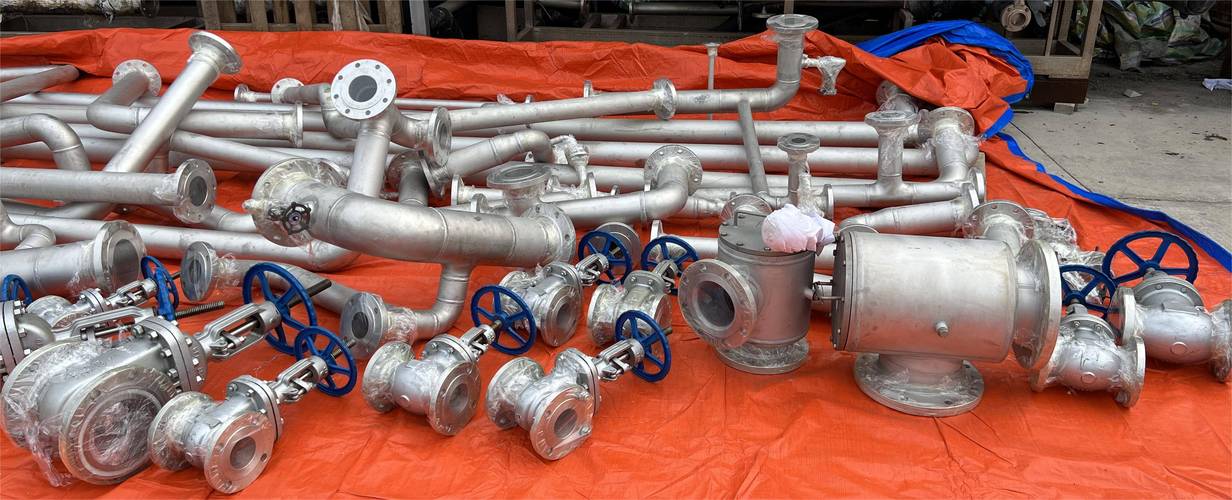

V. Diverse Industry Applications: Transforming Piping System Reliability

(A) Oil and Gas Industry

In the oil and gas industry, where pipelines transport highly valuable and often hazardous substances, custom CNC stainless steel pipe caps are essential for ensuring the safety and integrity of the systems. They are used to seal the ends of pipes during installation, maintenance, and storage, preventing the ingress of contaminants and the leakage of fluids or gases. The high – precision and corrosion – resistant properties of these pipe caps, especially when made from alloys like 316 stainless steel, make them suitable for withstanding the harsh conditions of offshore platforms, refineries, and long – distance pipelines.

(B) Chemical Processing Industry

The chemical processing industry deals with a wide range of corrosive chemicals and high – temperature operations. Custom stainless steel pipe caps play a crucial role in protecting the pipe ends from chemical attacks and ensuring the proper containment of substances within the pipelines. 316 stainless steel pipe caps, with their enhanced corrosion resistance, are commonly used to prevent leaks and maintain the integrity of the piping systems, safeguarding both the environment and the workers.

In the food and beverage industry, hygiene and cleanliness are of utmost importance. Custom CNC stainless steel pipe caps, typically made from 304 stainless steel, are used to seal pipes carrying food products, ensuring that no contaminants enter the system. The smooth surface finish of these pipe caps makes them easy to clean and sanitize, meeting the strict hygiene standards of the industry. They also provide a reliable seal, preventing any leakage that could lead to product spoilage or contamination.

(D) Pharmaceutical Industry

The pharmaceutical industry requires piping systems that meet the highest standards of purity and cleanliness. Custom stainless steel pipe caps are used to protect the pipe ends and maintain the integrity of the systems used for the production, storage, and transportation of pharmaceutical products. The corrosion – resistant properties of stainless steel, combined with the precision manufacturing capabilities of CNC technology, ensure that these pipe caps do not contaminate the products and can withstand the rigorous cleaning and sterilization processes required in the pharmaceutical sector.

VI. Frequently Asked Questions (FAQ)

(A) What is the typical precision of custom CNC stainless steel pipe caps?

Our CNC machining can achieve a dimensional tolerance of ±0.003mm, ensuring a precise fit and reliable sealing performance for your piping systems.

(B) How do I choose the right stainless steel alloy for my pipe caps?

The choice depends on your application’s specific requirements, such as the level of corrosion exposure, operating temperature, and budget. Our experts can assess your needs and recommend the most suitable alloy to meet your performance and cost expectations.

Lead times vary depending on the complexity of the design and order quantity. Simple designs can be completed in 3 – 5 days, while more complex ones may take 7 – 10 days. Rush orders are available upon request.

(D) Can CNC machining handle custom pipe cap designs with complex geometries?

Yes, our five – axis CNC machines are capable of fabricating pipe caps with a wide variety of complex geometries, including specialized edges, integrated features, and unique shapes, to meet even the most demanding design requirements.

(E) How much does it cost to customize stainless steel pipe caps?

Costs are determined by factors such as material, design complexity, precision requirements, and production volume. While small – batch customization may be relatively costly, economies of scale can significantly reduce per – unit costs for larger orders.

VII. Customer Testimonials

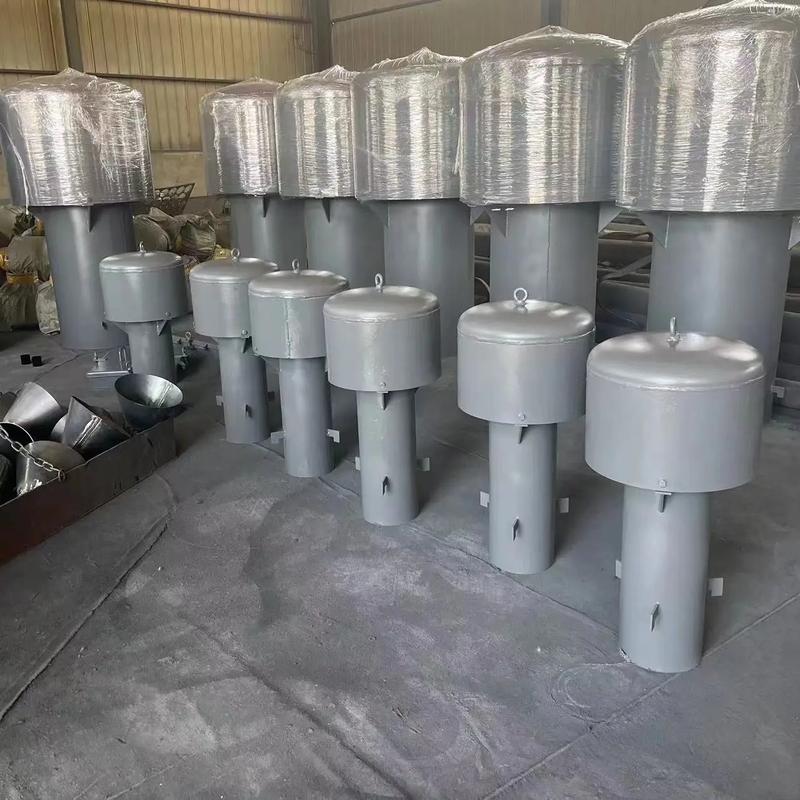

An oil and gas company approached us to develop custom 316 stainless steel pipe caps for their offshore pipeline project. Our team utilized advanced CNC machining and material selection techniques to create pipe caps that met the strict industry standards. The new pipe caps not only provided a secure seal, preventing any leaks in the harsh marine environment, but also withstood the high – pressure conditions of the pipeline, reducing maintenance costs and ensuring the continuous operation of the project. The company was highly satisfied with the performance and quality of the custom pipe caps.

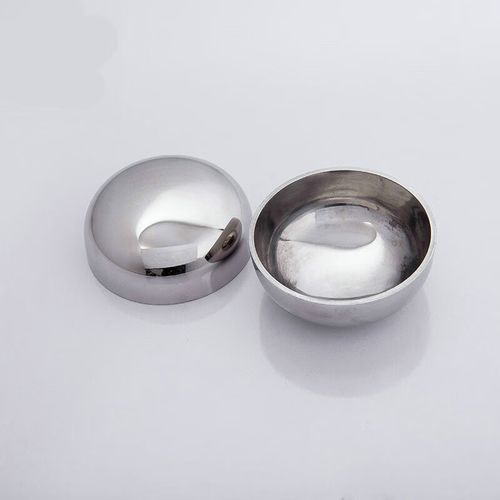

A pharmaceutical manufacturer needed custom pipe caps for their new production facility’s piping system. We designed and manufactured 304 stainless steel pipe caps with a smooth, polished surface finish to meet the strict hygiene requirements of the industry. The precision – engineered caps provided a reliable seal, ensuring the purity of the pharmaceutical products during production and transportation. The customer reported a significant reduction in the risk of contamination and an increase in the overall quality of their production processes.

Reach Out Now for Your Custom CNC Stainless Steel Pipe Caps!

Regardless of your industry or application, our team of experts is ready to collaborate with you. We offer a seamless end – to – end service, from design to delivery. Contact us today to discuss your project requirements and take the first step towards getting top – quality custom CNC stainless steel pipe caps that will enhance the reliability and performance of your piping systems.
