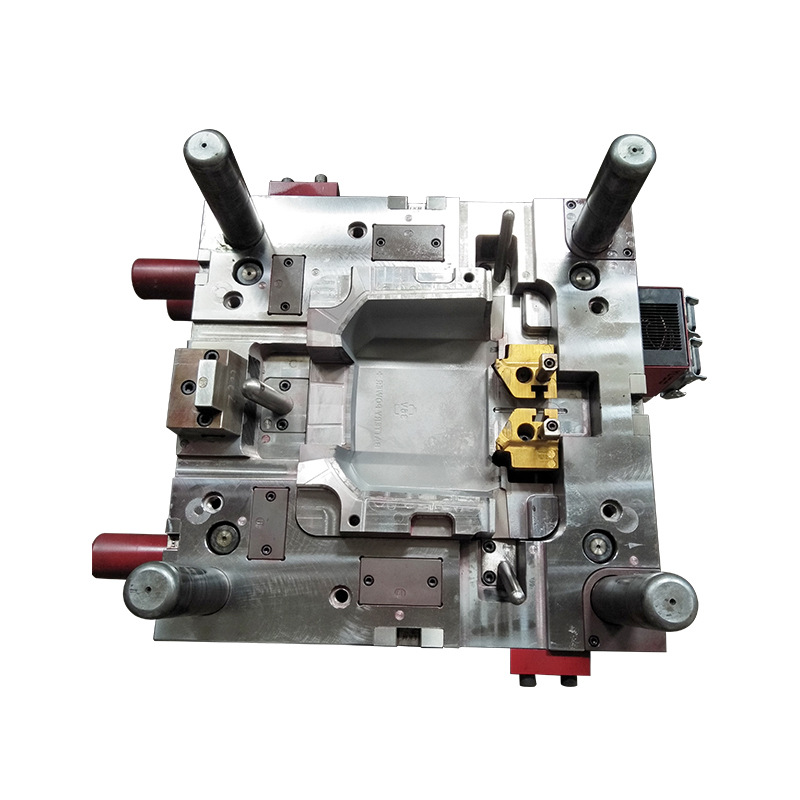

Custom Injection Mold Manufacturing Solutions for High-Precision Parts
We help engineers and sourcing managers design and manufacture high-precision injection molds with predictable cost, stable quality, and fast lead time, supporting your project from prototyping to mass production.
What Problems We Solve
- ✅ Warpage and shrinkage control: Solve deformation issues for precision plastic parts with advanced simulation
- ✅ Mold life instability: Ensure stable mold life up to 1M+ shots with proper material and heat treatment
- ✅ High tooling cost without optimization: Free DFM analysis to reduce unnecessary cost by up to 20%
- ✅ Long mold trial cycles: AI-driven optimization reduces trial runs from 5 to 2, shortening lead time
- ✅ Multi-material & insert molding challenges: Professional solution for complex overmolding and insert projects
Injection Mold Types We Offer
Prototype Mold
- Material: Aluminum / Soft P20
- Mold Life: 1k – 10k shots
- Lead Time: 5-10 days
- For: Low volume testing, prototyping
Production Mold
- Material: P20/718, H13, S136
- Mold Life: 300k – 1M+ shots
- Lead Time: 3-6 weeks
- For: Mass production, long-term use

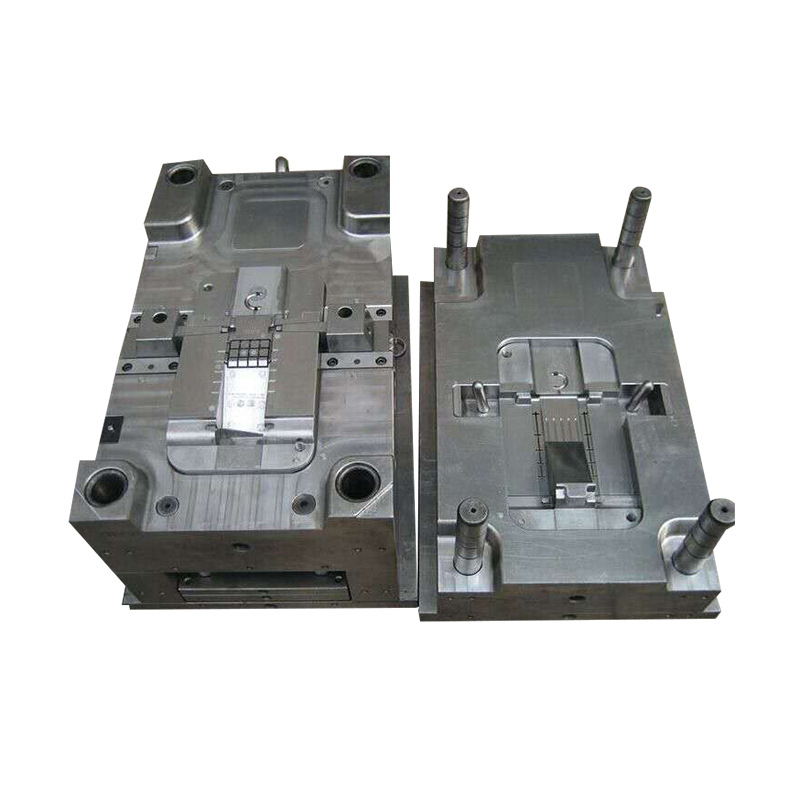

Multi-cavity Mold
- Up to 16+ cavities per mold
- Consistent part-to-part tolerance
- High production efficiency
- For: High volume small parts
Micro Injection Mold
- Tolerance: ±0.002mm
- Micro EDM & laser machining
- For: Medical, electronic micro parts
- Material: Medical grade plastic
Engineering Capability
Full Process Precision Control
We implement a full engineering validation process to ensure your mold meets all requirements before production:
- DFM Analysis: Free design for manufacturability review to optimize your part design, avoid potential manufacturing flaws and reduce cost.

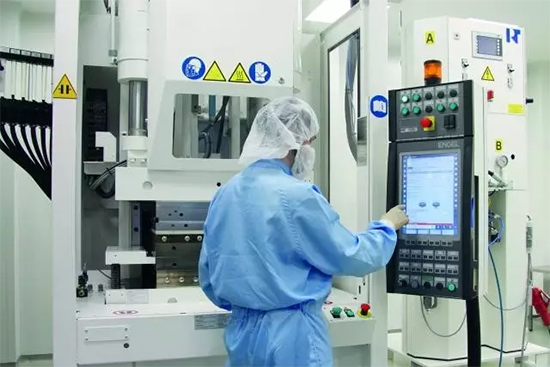

- Mold Flow Simulation: Professional mold flow analysis to predict filling, warpage and air trap before machining, eliminating trial-and-error cost.
- Precision Machining: 5-axis CNC + micro EDM machining, achieving cavity tolerance up to ±0.002mm, meeting IT5 grade standard.
- Trial Validation: Standard 2 times trial run, with full part inspection to validate mold performance before mass production.
Our AI-driven optimization further reduces trial runs from 5 to 2, helping cut tooling cost by 15% and shorten lead time by 20% *Data for reference only.
Cost & Lead Time
Prototype Mold
5-10 Days
Low cost for testing
Standard Production Mold
3-4 Weeks
Standard complexity
Complex Precision Mold
4-6 Weeks
Multi-cavity / Micro mold
Rush Service
2-3 Weeks
Urgent project support
Mold Cost Factors
The final mold cost depends on: Part complexity, mold material, cavity quantity, tolerance requirement, surface finish requirement, and production volume. Contact us for a free detailed cost estimate.
Case Study

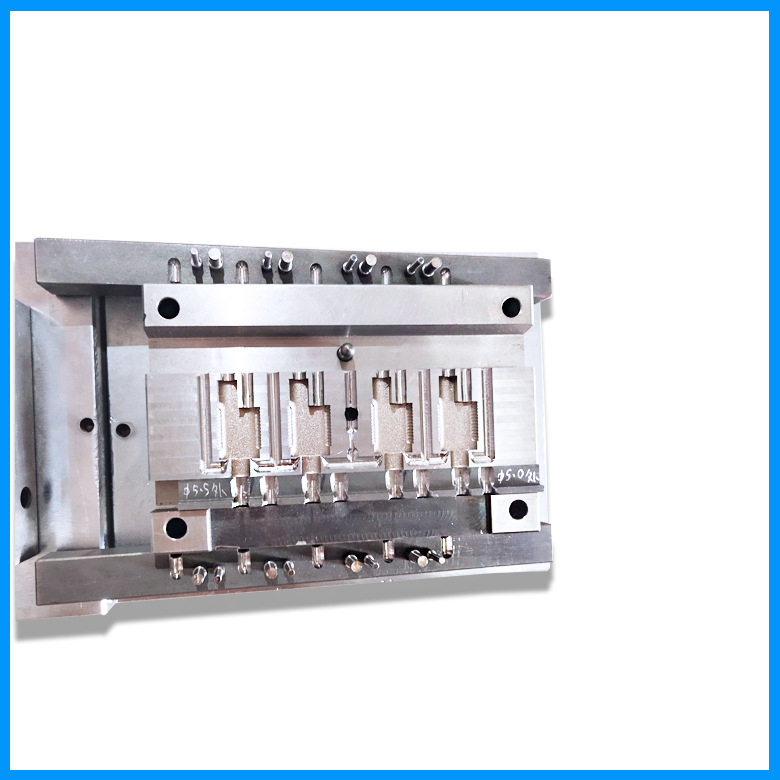

Automotive Connector Injection Mold
Client Challenge: A top automotive supplier needed a 8-cavity mold for LCP material connector, which had serious warpage issue in previous trial, leading to 25% defect rate and failed assembly.
Our Solution: We conducted full mold flow analysis, optimized the cooling system with conformal cooling channel, adjusted the gate location and filling parameters to balance the material flow and reduce internal stress.
Project Result
- Warpage controlled within 0.02mm, solved the client’s deformation issue
- Part defect rate reduced from 25% to 0.2%, 32% defect reduction *Data for reference only
- Mold life reached 500k+ shots, stable mass production
- Lead time shortened by 1 week compared to client’s expectation
Quality Control System
We implement full-process quality control to ensure every mold meets international standards: ISO 9001:2015, IATF 16949 for automotive, FDA for medical, and AQL 1.0 sampling standard.
- ✅ Incoming Material Inspection: Full material certification for all mold steel, ensuring material performance
- ✅ In-process Machining Inspection: Real-time dimension check during machining, CPK≥1.33 for critical dimensions *Data for reference only
- ✅ CMM Final Inspection: 3D coordinate measurement with accuracy up to ±0.003mm, full dimensional report
- ✅ Trial Run Validation: Full production trial run, 100% first article inspection to validate mold performance
- ✅ SPC Process Control: Statistical process control to ensure long-term stable production quality
Frequently Asked Questions
Q: How long does an injection mold last?
It depends on the mold material and part material. Aluminum prototype mold can last 1-10k shots, P20 steel mold can last 300-500k shots, H13 and S136 can last 500k-1M+ shots for high volume production.
Q: What tolerance can be achieved for injection molding?
For standard parts, we can achieve ±0.01mm tolerance. For high-precision micro parts, we can achieve up to ±0.002mm tolerance, with full CMM inspection to verify all dimensions.
Q: How can I reduce my injection mold cost?
We provide free DFM analysis to optimize your part design, avoid unnecessary tight tolerance or complex structure, which can reduce mold cost by up to 20%. We can also suggest proper mold material to match your production volume.
Q: What is the mold trial process?
We conduct standard 2 times trial run: first trial to test the mold filling and part dimension, adjust parameters if needed; second trial to validate the mass production stability, and provide first article inspection report before delivery.
Q: Can you support low-volume production after mold making?
Yes, we provide one-stop service, we can run low to medium volume production for you after the mold is finished, so you don’t need to arrange the production by yourself.
Ready to Get Your Custom Injection Mold?
Upload your part drawing now to get an instant quote, or contact our engineering team for free DFM analysis. We support NDA protection for your confidential design.
