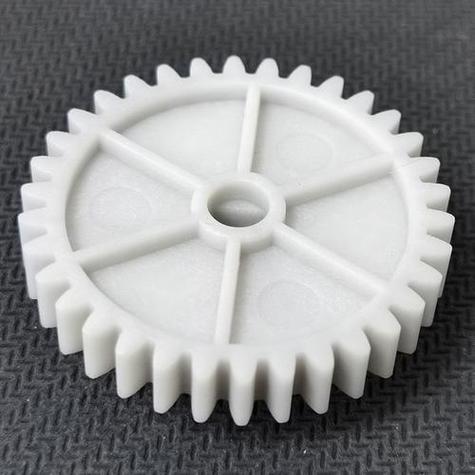

In the realm of precision drives, plastic gears have gained wide adoption in automotive electronics, smart home devices, and medical equipment due to their lightweight, low-noise, and self-lubricating properties. However, traditional standardized plastic gears often fail to deliver in complex scenarios, suffering from issues like tooth wear, declining transmission accuracy, and limited service life. Customized plastic gear components, by contrast, leverage data-driven design and precision manufacturing to transform from “functional” to “precise and durable.” This article dissects how to create high-accuracy, long-life plastic gear solutions through customization value, core processes, and quality control.
Ⅰ. Why Standard Plastic Gears Fall Short in Precision Drives
Q: What Defines the Core Advantages of Custom Plastic Gears?
Standard plastic gears, typically produced via generic injection molding, face three critical limitations:
Inadequate Tooth Precision: Mold precision (±0.05mm) and shrinkage variations (1%-2%) lead to module errors (±0.02mm) and tooth profile deviations (±0.03mm), reducing transmission efficiency by 5%-8% and increasing noise by over 10dB.
Poor Condition Adaptability: Lack of optimization for load (0.1-5N·m), speed (50-5000rpm), and temperature (-40°C to +120°C) causes issues like brittleness in nylon gears at low temperatures or deformation (>0.1mm) in POM gears at high temperatures.
Shortened Service Life: Ordinary injection-molded gears have a surface roughness of Ra≥1.6μm and a contact fatigue life of only 500 hours, failing to meet high-frequency operation demands (e.g., car sunroof gears operating 200 times daily).
Custom plastic gears focus on “data-defined transmission precision”:
Full-Condition Precision Adaptation:
High-Speed Scenarios (e.g., drone gearboxes): Using glass-fiber reinforced PA66 (tensile strength ≥120MPa) with surface hardening (surface hardness ≥HRR100) and tooth tip relief design to reduce impact, extending life to 3000 hours.
Precision Positioning Scenarios (e.g., medical devices): Optimizing pressure angles (14.5°-20°) and addendum clearances (0.05-0.1mm) via CAE simulation to achieve positioning accuracy of ±0.01° and repeatability error<0.02mm.
Data-Driven Design: By integrating transmission parameters (e.g., gear ratios 3:1-20:1, load torque curves), precise calculations of module (0.3-2mm), tooth count (12-80 teeth), and material composition (e.g., 15% glass fiber for 25% stiffness increase) ensure tooth root bending strength >30MPa and contact fatigue strength >50MPa.
Ⅱ. How Core Processes Achieve Micron-Level Precision Breakthroughs
1. Precision CNC Machining: Full-Dimension Control from Tooth Profile to Structure
High-accuracy machining of plastic gears relies on multi-axis CNC machines and specialized tools:
5-Axis Gear Milling: Using diamond-coated form tools (precision ±0.002mm) with A/C axis (±30° rotation) for involute tooth profiles, achieving cumulative pitch error ≤0.01mm and tooth profile tolerance ±0.005mm—5x higher precision than traditional injection molding.
High-Speed Finishing: For materials like POM and PEEK, 15,000-24,000rpm high-speed spindles with 2000mm/min feed rate, combined with nitrogen cooling (<50°C), control surface roughness at Ra≤0.8μm, eliminating injection molding marks that affect transmission.
Integrated Full-Process Machining: Zero-point positioning systems (repeatability ≤0.003mm) complete tooth machining, shaft hole boring (H7 tolerance), and positioning boss milling in one setup, avoiding coaxiality errors (>±0.05mm in traditional processes).
2. Material Modification & Surface Enhancement Technologies
Composite Formulation Optimization:
Wear-Resistant Scenarios: Adding 5% molybdenum disulfide (MoS₂) to PA6 reduces friction coefficient from 0.3 to 0.15, cutting wear by 40% (test conditions: 2N·m load, 1000rpm, 500 hours).
High-Temperature Scenarios: Carbon fiber-reinforced PEEK composites (CTI≥600V) enable long-term operation at 250°C with thermal deformation<0.05mm (150°C/24h test).
Surface Hardening Treatment: Plasma-chemical vapor deposition (PCVD) forms a 5-10μm wear-resistant coating (hardness ≥HV300) on tooth surfaces, boosting contact fatigue life by 200% while maintaining self-lubrication.
3. End-to-End CNC Machining Data Closed-Loop
Programming Phase: UG/CAM software simulates load distribution during gear meshing to optimize root fillet radii (R0.2-0.5mm), preventing stress concentration and fracture risks.
Machining Execution: Real-time monitoring of 20+ parameters (e.g., spindle torque ≤5N·m for plastic machining, feed vibration threshold 0.03mm) triggers automatic depth adjustments (minimum 0.01mm), increasing tool life by 50% and yield from 85% to 98%.
Inspection Phase: Gear measurement centers (precision ±0.001mm) scan tooth profile errors, lead deviations, and contact patterns, uploading data to MES for traceable records with 200+ parameters.
Ⅲ. Quality Control: Rigorous Full-Chain Verification from Material to Product
1. Multi-Dimensional Performance Testing
Material-Level Screening:
Nylon Gears: Test water absorption (≤1.5%), glass fiber content (10%-30%), and crystallinity (≥50%) via differential scanning calorimetry (DSC).
POM Gears: Measure melt flow rate (MFR 8-12g/10min) and formaldehyde emission (≤0.1mg/m³) to ensure compliance with food contact safety standards (e.g., FDA certification).
Finished Product Functional Tests:
Transmission Accuracy: Test backlash (empty travel error ≤0.05°) and efficiency (≥95%) on precision gear testers—medical device gears require positioning accuracy ±0.005°.
Life Testing: Simulate 100,000 load cycles (1.5x rated torque) with<0.01mm tooth wear and no root cracks.
Environmental Adaptability: After 100 cycles of high-low temperature (-40°C to +85°C), dimensional change ≤0.1% and torque efficiency drop<3%.
2. Intelligent Defect Prevention
First-Article Seven-Inspection System: A cross-functional team verifies 25 key dimensions (module ±0.005mm, pressure angle ±0.5°, tooth thickness ±0.01mm), intercepting micron-level deviations.
AI Visual Inspection: Linear array cameras scan tooth surfaces in 0.2 seconds, using deep learning to detect missing teeth, burrs (>0.02mm height), and weld lines (>1mm length) with a miss rate<0.001%, meeting automotive electronics’ zero-defect requirements.
Ⅳ. Balancing Efficiency and Precision in Small-Batch Customization
Q: Does High-Precision Customization Mean High Costs?
Three innovations achieve 40% shorter lead times and 30% cost reduction:
Parametric Process Library: Reusable modules for 10+ gear types (spur, helical, worm gears) reuse 80% of parameters, cutting programming time from 10 to 2 hours.
Automated Flexible Production: Truss robots with vacuum chucks (clamping deformation ≤0.01mm for 0.5-5mm thin-walled gears) enable quick changeovers (<5 minutes) for small batches (50-500 pieces), increasing equipment utilization to 90%.
Tool Life Prediction: Cutting force waveform analysis predicts carbide tool life (e.g., 200 pieces per edge), triggering automatic tool changes to avoid tooth profile deviations from wear.
Ⅴ. Key Considerations for Selecting Custom Plastic Gears
Data Transparency: Suppliers should provide CAE simulation reports, machining parameter logs, and full-dimension inspection reports (including 3D tooth profile deviation maps) for quantifiable performance verification.
Composite Technical Capabilities: Required expertise includes precision CNC machining (IT6 grade), material modification (glass/carbon fiber reinforcement), and surface coating (PTFE/PEEK coatings) to handle diverse conditions.
Response Speed & Adaptability: Sample delivery within ≤15 days supports synchronous development with OEMs; capability for micro gears (module ≤0.5mm) and large gears (diameter ≥200mm) meets full-scenario needs.
Conclusion
The value of custom plastic gear components lies in defining “transmission precision” with data and ensuring “operational reliability” with advanced processes. As equipment evolves toward lightweight and intelligent design, customized solutions featuring “data-driven tooth optimization + precision manufacturing” are becoming critical for enhancing drive system performance. From silent car sunroofs to precision surgical robots, custom plastic gears deliver “micron-level precision” for “10,000-cycle reliability,” ensuring every tooth mesh is a testament to efficient transmission.
(Contact us today for your exclusive plastic gear customization solution and free transmission performance simulation analysis)
