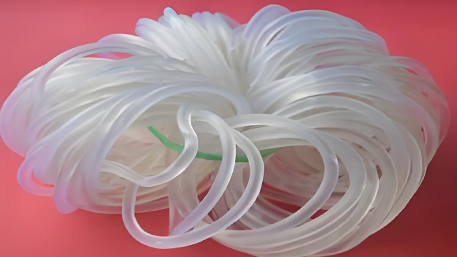

Gallon pail gaskets, as an important part of gallon pails, which are liquid storage and transportation containers, their main function is to ensure a tight seal on the lid and prevent leakage of the contents, while withstanding a certain level of pressure and external impact. These gaskets are widely used in many fields, such as chemical, food, agriculture, etc., and are vital for ensuring product safety, environmental protection and transportation efficiency.
1.Gallon drum gasket production process
Material Preparation: According to the design requirements, select suitable elastic materials, such as rubber, silicone, EPDM (EPDM), etc., to ensure that the material meets the standards of food safety, chemical resistance and corrosion.
Mold design and manufacturing: According to the size and shape of the mouth of the gallon bucket, design and manufacture a special mold to ensure that the size of the gasket is accurate and the shape matches.
Molding Processing: The prepared material is put into the mold and molded by injection, vulcanization or pressing to form the basic shape of the gasket.
Edge processing: Trimming the edges of the gaskets to ensure no burrs and no sharp corners to improve the safety and sealing of use.
Quality inspection: Strictly inspect the size, hardness and sealing performance of the finished products to ensure that each batch of gaskets meets the quality requirements.
Packing and shipping: Clean and pack the inspected gaskets with necessary instructions and labels, ready for shipping.
2.Gallon drum gasket customization
Demand communication: Communicate fully with customers to understand their specific use scenarios, liquid types, sealing requirements, etc., in order to develop personalized design solutions.
Design and development: according to the customer’s needs, design the size, shape, material selection, etc. of the gasket, if necessary, sample production and testing.
Mass production: After confirming that the samples meet the requirements, mass production will be carried out according to the number of orders to ensure production efficiency and quality stability.
After-sales service: Provide technical support and after-sales service, including instruction on the use of the gaskets, replacement suggestions and handling of any quality problems.
3.Gallon drum gasket material
Material:
Rubber (natural rubber, nitrile rubber)
Silicone
EPDM (EPDM rubber)
PTFE (polytetrafluoroethylene)
Characteristics:
Rubber: good elasticity and sealing, resistant to certain temperature changes and chemical corrosion, but some rubber materials may be sensitive to specific chemicals.
Silicone: excellent resistance to high and low temperatures, non-toxic and odorless, suitable for food-grade applications, but the cost is relatively high.
EPDM: high aging, ozone and chemical resistance, widely used for sealing in outdoor and harsh environments.
PTFE: extremely high chemical stability, good corrosion resistance to almost all chemicals, but poor elasticity, need to be used with other materials to enhance the sealing.
4. Different materials gallon bucket gasket characteristics
Product:
Rubber gallon pail gaskets
Silicone gallon drum gasket
EPDM gallon pail gasket
PTFE composite gallon pail washers
Data:
Rubber washers: hardness range typically Shore A 40-90, operating temperature -40°C to +80°C, resistant to most organic solvents.
Silicone gaskets: hardness range Shore A 30-70, operating temperatures -60°C to +200°C, non-toxic, meets FDA food grade standards.
EPDM gaskets: hardness range Shore A 50-90, operating temperature -50°C to +120°C, ozone and UV resistant, suitable for outdoor environments.
PTFE composite gaskets: combining the high chemical stability of PTFE with the sealing properties of other elastomers, operating temperatures up to +260°C, suitable for extreme chemical environments.
Customized Gallon Drum Gaskets FAQ
Q1: How to choose the right gallon bucket gasket material?
A1: When choosing a gasket material, you need to consider factors such as the chemical nature of the fluid, temperature range, whether it will come into contact with food, and cost. For example, for food-grade applications, silicone is ideal; for chemical resistance, EPDM or PTFE are more appropriate.
Q2: How is the sealing performance of gallon pail gaskets ensured?
A2: The sealing performance of a gasket is primarily ensured by precise dimensional control, proper material hardness, and edge treatment. In addition, the correct installation method and moderate tightening force are also critical.
Q3: What is the service life of a gallon bucket gasket?
A3: The service life of a gasket depends on a variety of factors, including the environment in which it is used, the type of fluid, temperature and pressure. In general, quality materials and proper maintenance can extend the life of a gasket.
With the above introduction, I hope it can help you better understand the information about customized gallon pail gaskets. If you have any questions or needs, please feel free to contact us.
