How to Inspect the Precision of CNC Parts?

Detailed Analysis of CNC Part Precision Inspection

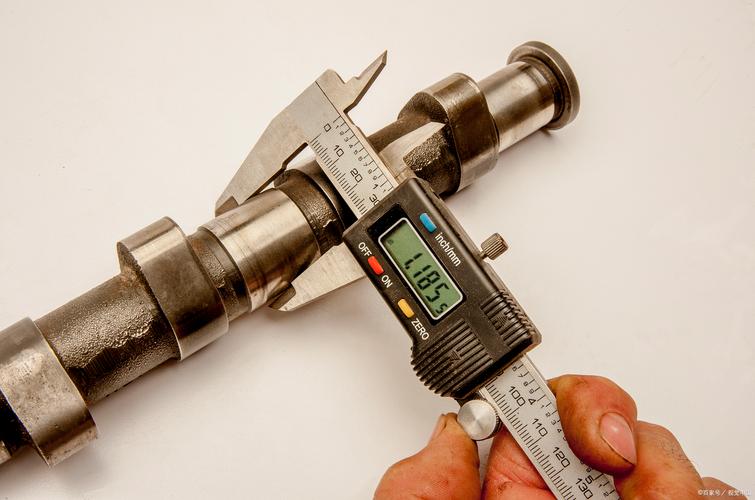

1. Core Inspection Technologies & Tools

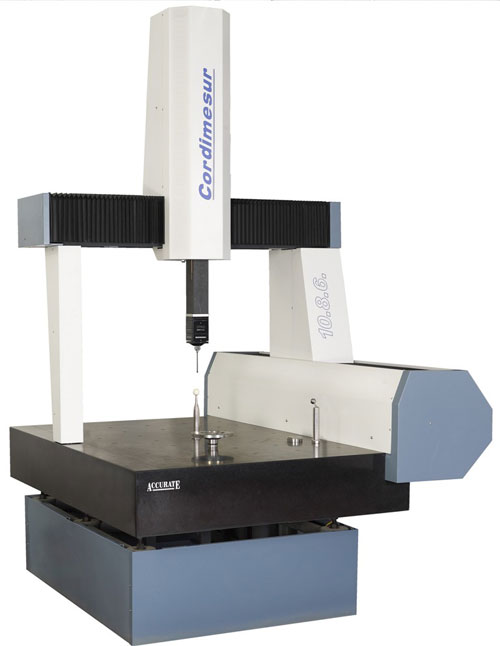

• Coordinate Measuring Machines (CMMs):
  These are gold standards for dimensional accuracy, using touch probes or laser scanners to measure 3D coordinates. Bridge-type CMMs (accuracy ±0.0005mm) handle small to medium parts (up to 2m), while gantry CMMs suit large components (e.g., aerospace frames). They verify GD&T (Geometric Dimensioning and Tolerancing) features: flatness (±0.001mm), perpendicularity (±0.002mm/m), and positional tolerances (±0.003mm), critical for mating parts like engine brackets.
• Optical & Laser Systems:
  • Optical Comparators: Project 2D part profiles onto a screen, ideal for inspecting small features (e.g., hole diameters <5mm) with ±0.001mm accuracy. Useful for shafts, gears, and threaded components.

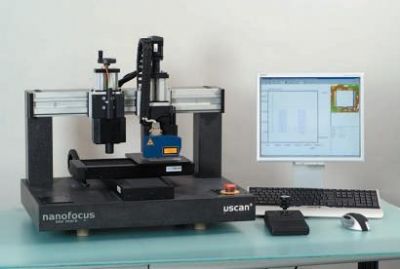

  • Laser Scanners: Capture millions of data points/second to create 3D models, perfect for complex free-form surfaces (e.g., turbine blades, mold cavities). Scanners with 0.001mm resolution detect deviations in curved profiles, ensuring aerodynamic or aesthetic compliance.
• Surface Metrology Tools:
  • Profilometers: Measure surface roughness (Ra, Rz) via stylus or optical sensors. For example, Ra <0.05μm is required for hydraulic valve spools to prevent leakage, while Ra 1.6μm suffices for non-sealing structural parts.
  • Interferometers: Check high-precision surfaces (e.g., optical lenses, mirror finishes) with nanoscale accuracy (±0.0001μm), detecting microscopic waviness.
• Specialized Gauges:
  • Pin Gauges/Ring Gauges: Verify hole diameters or shaft sizes quickly in mass production (e.g., automotive bolt holes, ±0.002mm tolerance).

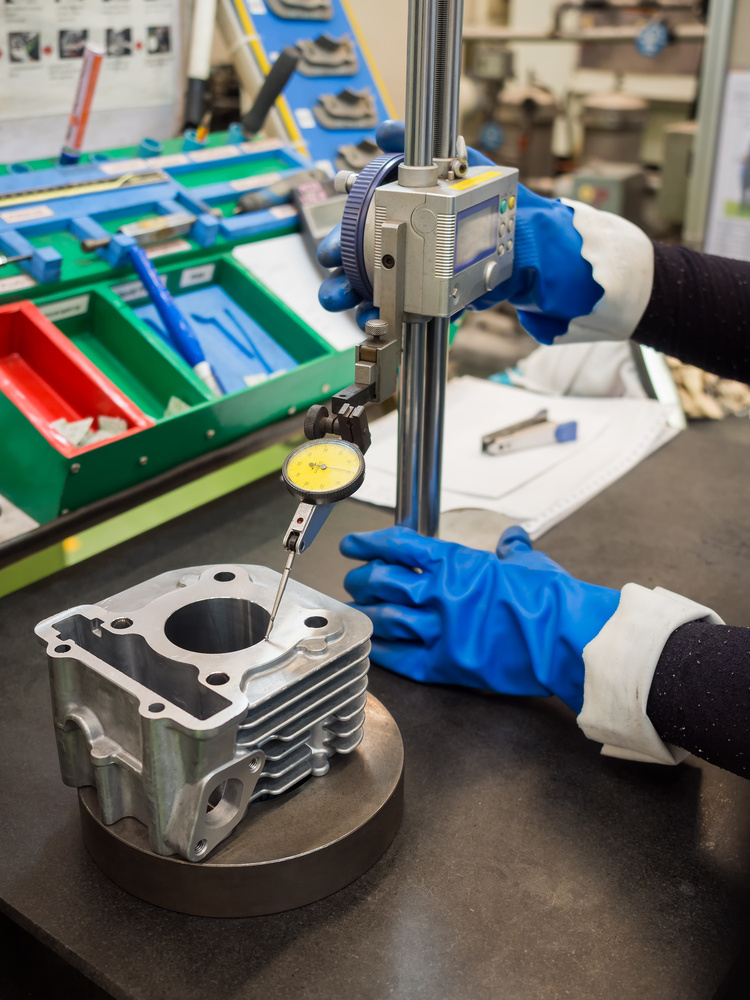

  • Dial Indicators: Measure runout (e.g., shaft concentricity, ±0.001mm) and flatness of large surfaces (e.g., machine beds).

2. Step-by-Step Inspection Process



1. Part Preparation:
   • Cleaning: Remove coolant, oil, or debris with ultrasonic cleaning (for small parts) or lint-free cloths (for large ones). Contaminants can skew measurements (e.g., a 0.005mm dust particle mimics a dimension error).
   • Secure Fixturing: Clamp parts gently to avoid deformation—use vacuum chucks for thin-walled aluminum parts (≤1mm thick) or custom jigs for irregular shapes (e.g., turbine blades). Fixtures must repeatably position parts within ±0.002mm.
   • Temperature Stabilization: Let parts acclimate to 20±2°C (standard lab temperature) for 2–24 hours (depending on material). Metals like steel expand ~0.012mm/m per °C; a 5°C shift can cause 0.06mm errors in a 1m part.
2. Define Inspection Criteria:
   • Extract critical features from CAD models: linear dimensions (length, diameter), geometric tolerances (parallelism, concentricity), and surface finish specs (Ra, Rz). For example, a CNC-machined gear requires checking tooth pitch (±0.003mm), profile (±0.002mm), and face runout (±0.001mm).
3. Select & Calibrate Tools:
   • Choose tools based on tolerance: CMMs for ±0.001mm, optical scanners for complex 3D shapes, and gauges for ±0.01mm.
   • Calibrate tools daily using certified standards (e.g., a 100mm master block with ±0.0001mm accuracy) to ensure measurements are traceable to international standards (ISO 10360).
4. Execute Measurements:
   • Dimensional Checks: For linear dimensions (e.g., hole depth), use CMM touch probes (accuracy ±0.0005mm). For geometric tolerances (e.g., flatness of a mold plate), scan the surface with a laser to collect 10,000+ data points, then analyze deviations from the ideal plane.
   • Surface Inspection: Run a profilometer stylus across critical areas (e.g., a bearing seat) to record Ra—reject parts with Ra >0.8μm if specs require <0.4μm.
   • Complex Features: For 3D contours (e.g., aerospace engine impellers), use 5-axis laser scanners to capture every curve, comparing to CAD with software like Geomagic Control X to highlight ±0.002mm deviations.
5. Data Analysis & Reporting:
   • Compare measurements to drawing tolerances. Flag out-of-spec features (e.g., a hole diameter 0.003mm over limit).
   • Generate reports with pass/fail status, trend charts (e.g., tool wear causing increasing diameter errors), and 3D visualizations of deviations for process improvement.

3. Impact of Material Properties



• Metals (Steel, Aluminum, Titanium):
  • High thermal conductivity requires strict temperature control (±1°C) to avoid expansion/contraction errors.
  • Hardness (e.g., 50HRC steel) allows precise stylus probing without surface damage, unlike soft metals (e.g., annealed aluminum, 20HRC) which need lighter probe forces (≤0.1N) to prevent indentation.
• Plastics (ABS, PC, PEEK):
  • Low rigidity means fixturing must minimize clamping force—over-tightening can distort dimensions by 0.01–0.05mm.
  • Hygroscopic plastics (e.g., PA6) absorb moisture, swelling 0.1–0.3%—inspect after 24-hour drying to ensure accuracy.
• Composites (Carbon Fiber, Glass Fiber):
  • Anisotropic properties (different expansion in fiber vs. resin directions) require multi-directional measurements.
  • Rough cut edges may scatter laser light, so use touch probes for critical dimensions instead of optical scanners.

4. Part-Specific Inspection Focus



• Precision Gears & Sprockets:
  • Key checks: tooth pitch (±0.002mm), cumulative pitch error (≤0.005mm/10 teeth), and backlash (±0.001mm). Use gear testers with rotary encoders for high accuracy.
• Mold Cavities & Cores:
  • Inspect surface finish (Ra <0.1μm for glossy 塑件) and profile accuracy (±0.003mm) to ensure molded parts match CAD. 3D scanners compare cavity geometry to the original part design.
• Aerospace Structural Parts:
  • Large components (e.g., wing ribs) require portable CMMs or laser trackers (accuracy ±0.005mm at 10m) to check hole positions (±0.01mm) and flange flatness (≤0.005mm/m).
• Electronic Connectors:
  • Tiny features (pin diameter 0.3mm, pitch 0.5mm) need optical comparators or micro-CMMs (accuracy ±0.0005mm) to verify pin straightness and spacing.

5. Industry-Specific Standards & Scenarios



• Aerospace & Defense:
  • Tolerances as tight as ±0.001mm for engine components (e.g., fuel injectors). Use CMMs with environmental controls (temperature, humidity) and traceable to NIST standards. Critical features undergo 100% inspection.
• Automotive:
  • Mass-produced parts (e.g., brake calipers) use automated gauging stations (cycle time <10 seconds) to check key dimensions (bore diameter ±0.01mm). Sampling (1 in 50 parts) with CMMs validates process stability.
• Medical Devices:
  • Surgical instruments (e.g., scalpel handles) require Ra <0.02μm to prevent bacterial adhesion. Inspect surface finish with white light interferometers, and verify hole concentricity (±0.002mm) for fluid flow.
• Electronics:
  • PCB housings need tight dimensional control (±0.05mm) for component fit. Use vision systems with 0.001mm/pixel resolution to inspect hundreds of features in seconds.

6. Common Challenges & Solutions

• Thermal Variability: Mitigate with climate-controlled labs (20±1°C, 50±5% humidity) and thermal compensation software in CMMs.
• Complex Geometries: Use 5-axis scanners for undercuts or deep cavities; for internal features (e.g., threaded holes), deploy articulating probes.
• Surface Reflectivity: Shiny metals (e.g., polished stainless steel) can scatter laser light—use matte sprays (temporary, 0.001mm thick) to improve scan accuracy.
• High-Volume Inspection: Automate with robotic loaders for CMMs or inline vision systems to balance speed and precision.
