What Is Precision CNC Machining? Let’s Break It Down
CNC Machining 101 – The Basics
Bro, CNC stands for Computer Numerical Control. It’s like having a super smart robot that can cut metal with micron-level precision!
Traditional machining requires a human operator to control the machine, but CNC machines follow computer programs to make exact cuts every time.
This means:
- Consistency: Every part is identical – no human error!
- Precision: Tolerances as tight as ±0.005mm
- Complexity: Can make shapes humans could never do by hand
- Efficiency: Runs 24/7 with minimal supervision
Precision vs Regular CNC – What’s the Difference?
Tolerance: ±0.1mm
Surface Finish: Ra 6.3μm
For general parts
Tolerance: ±0.005mm
Surface Finish: Ra 0.4μm
For critical applications
Precision CNC machining is like the Formula 1 of manufacturing – it’s all about speed, accuracy, and pushing the limits of what’s possible!
The CNC Machining Process – Step by Step
Dude, it all starts with a 3D CAD model! Our engineers work with your design to make sure it’s manufacturable.
- CAD software: SolidWorks, AutoCAD, CATIA
- DFM analysis (Design for Manufacturing)
- Tolerance specification
- Material selection guidance
This is where the magic happens! CAM software converts the CAD model into machine code.
- Toolpath generation
- Cutting parameter optimization
- Simulation to catch errors
- G-code generation (machine language)
Our technicians prep the machine for production.
- Workpiece fixturing
- Tool selection and installation
- Zero point setting
- First part test run
The CNC machine takes over and starts cutting the part!
- Multi-axis simultaneous machining
- Real-time monitoring
- Adaptive cutting technology
- Coolant management
No part leaves our shop without passing inspection!
- CMM measurement
- Surface finish testing
- Dimensional verification
- Quality documentation
Final touches before your parts are ready to ship!
- Deburring and cleaning
- Surface treatments (anodizing, plating)
- Packaging and labeling
- Shipping and tracking
Fun Fact About CNC Machining
A typical 5-axis CNC machine can position the tool with an accuracy of 0.001mm – that’s 10 times thinner than a human hair!
Advanced CNC Technologies We Use
5-Axis Machining
Bro, 5-axis machining is like having a Swiss Army knife for metal cutting! The machine can move the part or tool in 5 different directions at the same time.
Benefits:
- Complex geometries in one setup
- Better surface finish quality
- Reduced setup time (50% faster)
- Improved accuracy (no repositioning errors)
Perfect for: Aerospace components, medical implants, turbine blades
High-Speed Machining (HSM)
Dude, high-speed machining is all about going fast while maintaining precision! We’re talking spindle speeds up to 40,000 RPM.
Benefits:
- Up to 3x faster material removal
- Superior surface finish (Ra 0.2μm)
- Less tool wear (cooler cutting)
- Reduced thermal distortion
Perfect for: Aluminum, plastics, titanium alloys
Micro Machining
Bro, micro machining is where we get really tiny! We can make features as small as 0.1mm with micron precision.
Capabilities:
- Minimum feature size: 0.1mm
- Hole diameters: 0.05mm – 1mm
- Surface finish: Ra 0.1μm
- Tolerance: ±0.002mm
Perfect for: Medical devices, electronics, micro components

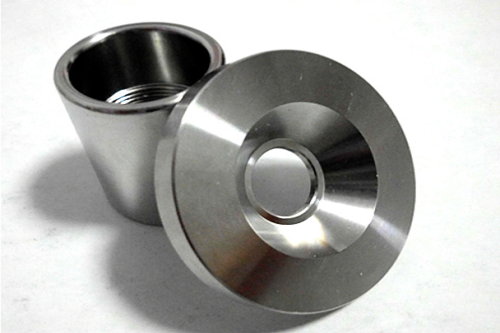

Our CNC Parts – Built for Perfection
Why Our CNC Parts Are Game-Changers
Dude, these aren’t your average machined parts! We use state-of-the-art CNC machines that can hit tolerances as tight as ±0.005mm.
Perfect for:
- Aerospace Components: Jet engine parts that need micron precision
- Medical Devices: Surgical instruments that save lives
- High-Tech Equipment: Electronics that push the boundaries
- Industrial Machinery: Parts that run 24/7 without failure
Fun fact: Our surface finishes can reach Ra 0.4μm – that’s smoother than a baby’s bottom!
Materials – We Use The Good Stuff
Aluminum Alloys – The Lightweight Champ
Bro, aluminum is like the superhero of metals! Lightweight, strong, and perfect for CNC machining.
Popular Alloys:
- 6061-T6: Versatile, good strength-to-weight ratio
- 7075-T6: Super strong, aerospace grade
- 2024-T3: High strength, excellent fatigue resistance
- 5052-H32: Corrosion resistant, good formability
Best for: Aerospace, automotive, electronics, consumer products
Stainless Steel – The Tough Guy
Dude, stainless steel is like the bodybuilder of metals! Strong, corrosion-resistant, and built to last.
Popular Grades:
- 304: General purpose, good corrosion resistance
- 316: Marine grade, excellent in saltwater
- 416: Free machining, easy to machine
- 17-4 PH: Precipitation hardening, high strength
Best for: Medical, food processing, marine, chemical equipment
Titanium & Exotics – The Premium Choices
Bro, titanium is like the Rolls-Royce of metals! Super strong, lightweight, and biocompatible.
Specialty Materials:
- Titanium Grade 5 (Ti-6Al-4V): Aerospace standard
- Inconel 718: High temperature superalloy
- Brass & Bronze: Excellent electrical conductivity
- Engineering Plastics: Lightweight, corrosion free
Best for: Aerospace, medical implants, high-temperature applications
Our CNC Process – We Don’t Cut Corners
CAD Design
3D modeling & engineering analysis
CAM Programming
Toolpath generation & simulation
Machine Setup
Fixture design & tool selection
Precision Machining
Multi-axis CNC machining
Quality Inspection
CMM measurement & testing
Pro Tip From The Pros
Bro, the CAM programming step is where the magic happens! We use advanced software that simulates the entire machining process before we even touch the metal. This catches potential issues early and ensures your parts come out perfect every time.
Standards & Certifications – We Play By The Rules
Industry Standards We Follow
- ISO 2768: General tolerance limits for CNC parts
- ISO 13485: Medical device quality management
- ASME Y14.5: Dimensioning and tolerancing standard
- ISO 9001: Quality management systems
- NADCAP: Aerospace special processes certification
- ASTM: Material testing and specifications
Pro tip: Always check if your CNC supplier follows the right standards – quality matters, am I right?
Our Certifications
These aren’t just fancy certificates – they’re proof that our products meet the highest international standards.
Every part undergoes rigorous testing to ensure compliance with all relevant standards.
Test Data – The Proof Is In The Numbers
DISCLAIMER: All test data below is for reference only. Actual results may vary based on specific application conditions.
Accuracy & Precision Test
| Measurement | Our Capability | Industry Average |
|---|---|---|
| Positioning Accuracy | ±0.005mm | ±0.015mm |
| Repeatability | ±0.002mm | ±0.008mm |
| Surface Roughness (Ra) | 0.4μm | 1.6μm |
| Circularity Error | 0.003mm | 0.012mm |
CMM Measurement Results
| Test Feature | Measurement | Tolerance |
|---|---|---|
| Hole Diameter | 10.002mm | ±0.005mm |
| Position Tolerance | 0.003mm | 0.008mm |
| Flatness | 0.001mm | 0.003mm |
| Parallelism | 0.002mm | 0.006mm |
Quality You Can Trust
- Dimensional Accuracy: ±0.005mm (critical features)
- Surface Finish: Ra 0.4μm – 6.3μm (various options)
- Material Certification: 100% traceability
- First Article Inspection: 100% for new parts
- In-Process Inspection: Every 25 parts
- Final Inspection: 100% of all parts
Key Features – Why Our CNC Parts Rock
Ultra Precision
±0.005mm tolerance for critical dimensions
Fast Turnaround
Prototype in 3 days, production in 7-10 days
High Strength
Materials that withstand extreme conditions
Complex Geometry
5-axis machining for intricate designs
Quality Assurance
100% inspection with CMM measurement
Eco-Friendly
Sustainable manufacturing processes
Applications – We Do It All
Aerospace
Engine parts, structural components
Medical
Surgical tools, implant components
Automotive
Performance parts, engine components
Electronics
Heat sinks, chassis, connectors
Industrial
Machine parts, tooling fixtures
Scientific
Laboratory equipment, instruments
Why Choose Us? – Let Us Count The Ways
26 Years of CNC Expertise
Bro, we’ve been making CNC parts since 1999! That’s not just experience – that’s mastery.
We’ve seen it all, solved it all, and we keep getting better.

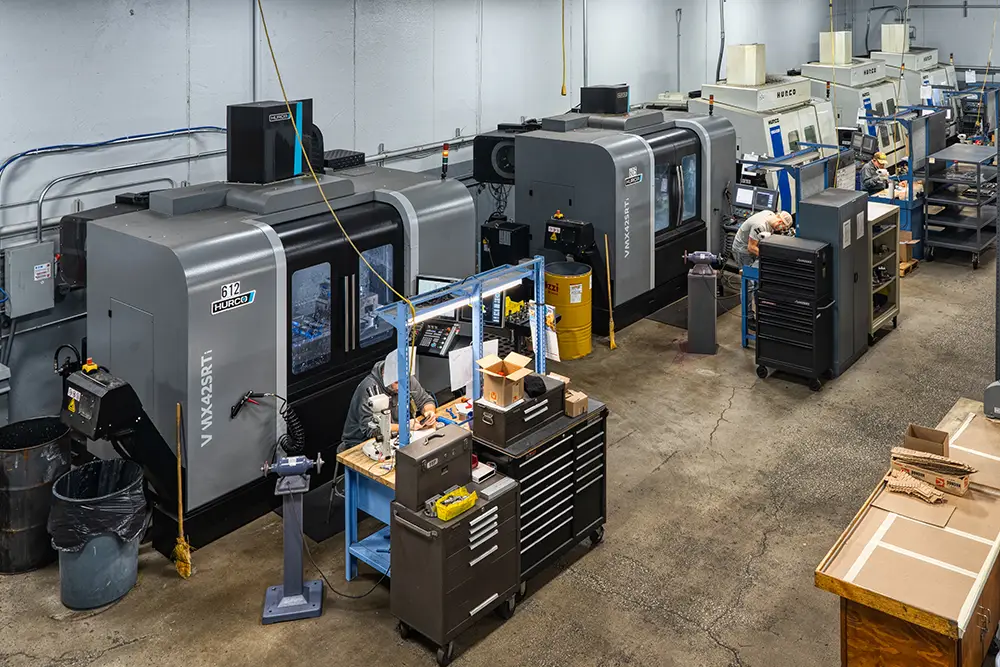

State-of-the-Art Equipment
Our 5-axis CNC machines can handle the most complex geometries with micron precision.
We invest in the latest technology to give you the best possible results.
Customization Experts
Need a specific material, finish, or tolerance? We can make it happen.
Our team works with you to create exactly what you need – no compromises.
