Processing Capabilities: Capable of processing complex curved surfaces and irregular structural parts. Five – sided machining can be completed in one clamping, improving processing efficiency and accuracy.
Processing Precision: The positioning accuracy is ±0.005 mm, meeting the processing requirements of high – precision components and ensuring product consistency.
Equipment Configuration: Equipped with internationally renowned brand five – axis CNC machining centers, enabling high – speed and efficient cutting.
Applicable Materials: Compatible with a variety of metallic and non – metallic materials such as aluminum alloy, stainless steel, titanium alloy, and engineering plastics, meeting the application needs of different industries.
Surface Treatment: A variety of surface treatment processes such as anodizing, electroplating, sandblasting, and polishing are provided to enhance the appearance and performance of products.
-
| Attribute |
Specifications |
| Work Envelope |
X/Y/Z Travel: ≥1000×600×500mm (Expandable to 3000mm) |
| Positioning Accuracy |
±0.005mm (VDI 3441 Standard) |
| Rotary Axes Range |
A-axis: ±120°; C-axis: 360° Continuous Rotation |
| Material Compatibility |
Aluminum/Titanium/Stainless Steel/Tool Steel/Nickel Alloys/Engineering Plastics/Composites |
| Max Workpiece Size |
Ø800×600mm (Irregular Shapes Supported) |
| Surface Roughness |
Ra 0.4μm (Mirror Finishing: Ra 0.1μm) |
| Tool System |
HSK-63A Tool Holders, 40-Tool ATC (Tool Range: 0.1-32mm) |
| Coordinate System |
RTCP (Rotational Tool Center Point) Technology for Dynamic Machining |
| In-Process Inspection |
On-machine Probing (IP67) with Real-time Error Compensation |
| Min Feature Size |
0.2mm Micro-holes / 0.3mm Narrow Slots |
| Tolerance Class |
IT6 (ISO 2768-mK) |
| Surface Treatment |
Anodizing/Passivation/Sandblasting/Polishing/Nickel Plating/PVD Coating |
| Certifications |
AS9100D (Aerospace), ISO 13485 (Medical), NADCAP (Special Processes) |
| Lead Time |
Prototypes: 3-7 days; Production Runs: 10-25 days |
-
Place of Origin : XiaMen, China
Brand : JSD
Model : CNC-34
Material : Aluminum/alloy/brass/copper/stainless steel/iron, etc.
Type : Broaching, drilling, etching/chemical machining, etc.
Material Capability : Aluminum, Brass, Bronze, Copper, Tungsten Carbide, etc.
Micro-machining or non-micro-machining
Certification : ISO9001
Applications : Machinery, electronic components, automotive, medical equipment, motors
Surface Finishing : Anodized, nickel plated, zinc plated, polished, etc,
Tolerance : +/-0.01 mm

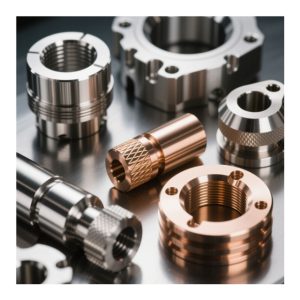

Name : CNC Service CNC machined parts
