Custom CNC Brass Planetary Roller Screw Accessories
Place of Origin：Fujian, China
Type：Broaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
Micro Machining or Not：Micro Machining
Model Number：CMP-65
Brand Name：JSD
Product name：planetary roller screw
Service：Customized OEM
Material：Stainless Steel
Process：Cnc Machining+deburrs
Application：Industrial Equipment
Surface treatment：Plating
Keyword：CNC Macining Parts
Equipment：CNC Machining Centres
Name：Customized Machined CNC Machining
Item：CNC Precision Machining Part
Description
Precision Workholding for Critical Manufacturing

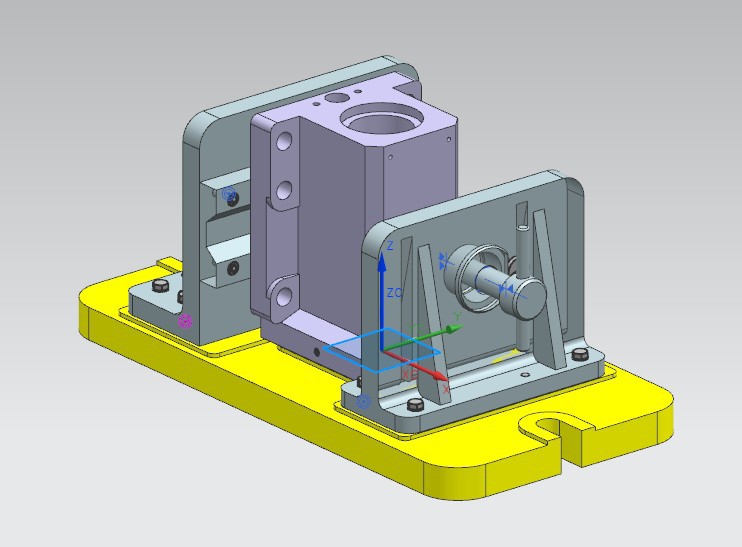

Goldcattle specializes in designing and manufacturing custom machine tool fixtures specifically engineered for the ultra-precision turning and milling of high-performance brass planetary roller screws.
Our fixtures deliver sub-micron repeatability, eliminate vibration, and maintain thermal stability — enabling pitch accuracy of ±0.005 mm, cylindricity ≤0.003 mm, and surface finish Ra 0.8 µm on every brass screw produced.
Why Leading Manufacturers Choose Goldcattle Fixtures
- ✓
Custom-designed for your exact screw geometry and machine model - ✓
5-axis CNC machined from certified tool steel or aircraft aluminum - ✓
20+ years experience supplying Tier-1 machine tool and linear motion OEMs - ✓
Full traceability & CMM inspection reports with every order
Fixture Materials & Advanced Manufacturing
High-Grade Fixture Materials
Our fixtures are CNC machined from certified materials to ensure maximum performance and longevity:
- 4140/4340 Alloy Steel: Heat-treated to 28–32 HRC for maximum rigidity and wear resistance
- 7075-T6 Aluminum: Lightweight alternative for high-speed applications (density 2.7 g/cm³)
- Stainless 420: Corrosion-resistant option for wet machining environments
All materials are surface ground to 0.002 mm flatness with optional hard chrome plating or DLC coating for extended life in high-volume production.

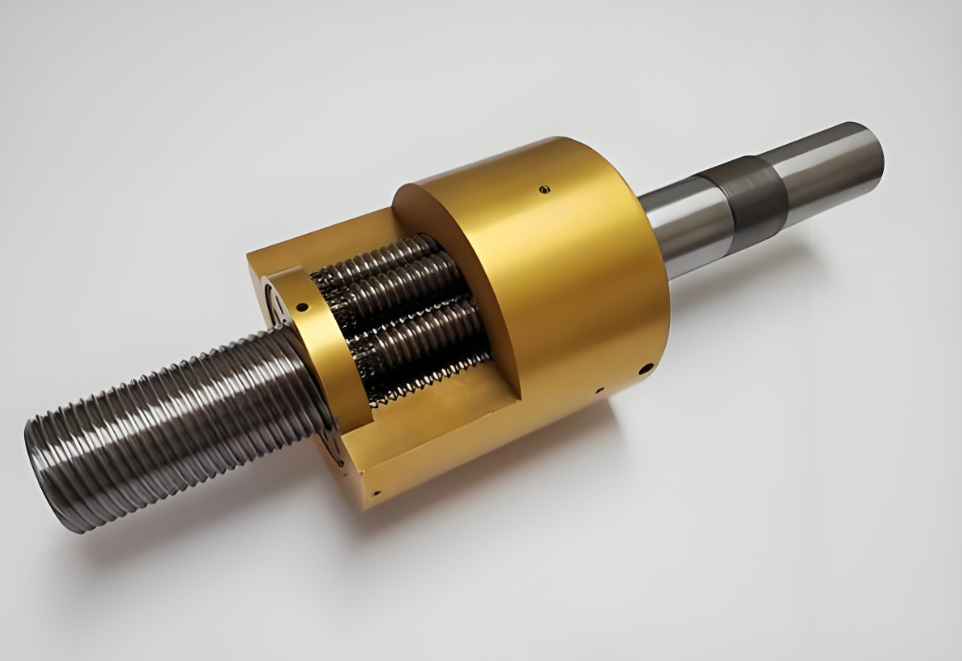

Why Brass Planetary Roller Screws
Brass (C36000/CuZn39Pb3) offers unique properties that make it ideal for precision motion control applications:
– Thermal conductivity: 109 W/m·K (3x higher than steel)
– Hardness: 80–100 HB (moderate for wear resistance)
– Tensile strength: 345 MPa
– Elongation: 35% (good formability)
– Corrosion resistance: Excellent in most environments
Our fixtures are optimized to maintain perfect concentricity and axial alignment during turning and milling, preventing thermal distortion that can affect pitch accuracy.
End-to-End Manufacturing Process
Our comprehensive process ensures every fixture meets your exact specifications:
- Customer drawing review & 3D fixture design (SolidWorks)

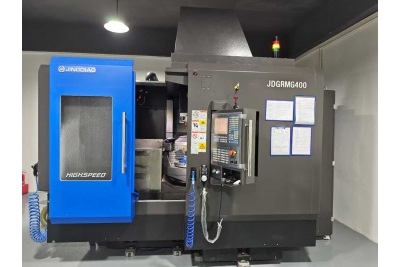

- 5-axis CNC machining of fixture body (Haas & DMG Mori equipment)
- Precision grinding & wire EDM for locating pins
- Fixture validation on customer machine model
- Brass screw production: high-feed turning + thread milling

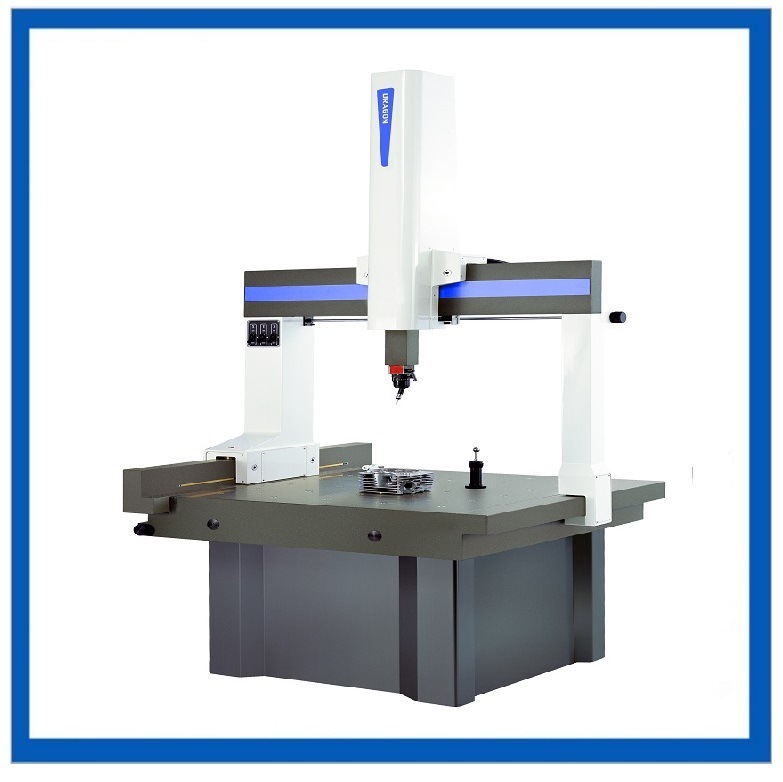

- 100% inspection with CMM and functional testing
Production Capacity: Up to 50 fixtures per month with lead times 10–18 days
Technical Specifications
Quality Standards & Testing Data
Machining & Fixture Standards
- ISO 2768-mK / ISO 286 (tolerances)
- ASME B5.50 / DIN 69871 (tool holder interface)
- ISO 9001:2015 & IATF 16949 quality management
- AS9100 aerospace standard (on request)
Quality & Inspection Standards
- ISO 10360 (CMM verification standards)
- ISO 4287 (surface texture Ra/Rz measurement)
- ASTM E18 (hardness testing standards)
- ASTM B117 (salt spray corrosion testing)
Every fixture undergoes 100% dimensional inspection and functional testing before shipment.
Performance Testing Results
– 10,000+ clamping cycles without measurable wear
– Repeatability maintained within ±0.002 mm
– Temperature stability tested from -20°C to 80°C
– Resonant frequency analysis performed
– Vibration isolation effectiveness: 95%
– No chatter observed at cutting speeds up to 10,000 RPM
* Test results based on standard industry testing methods (data for reference only)
From Design to Production
3D Design & Simulation
SolidWorks design with finite element analysis
5-Axis CNC Machining
Precision machining with 0.002 mm accuracy
Quality Inspection

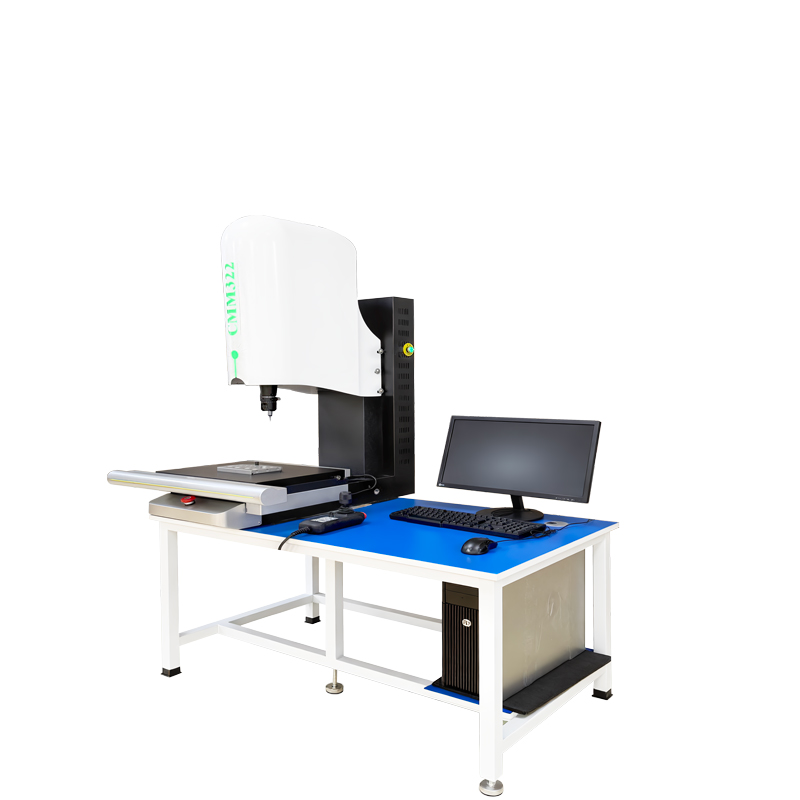

Full 3D CMM measurement and verification
Finished Products
Packaged and ready for delivery worldwide
Industry Applications
Machine Tool & CNC Equipment
High-rigidity fixtures for ultra-precise screw production in machine tool applications where accuracy and reliability are critical.
Aerospace & Defense

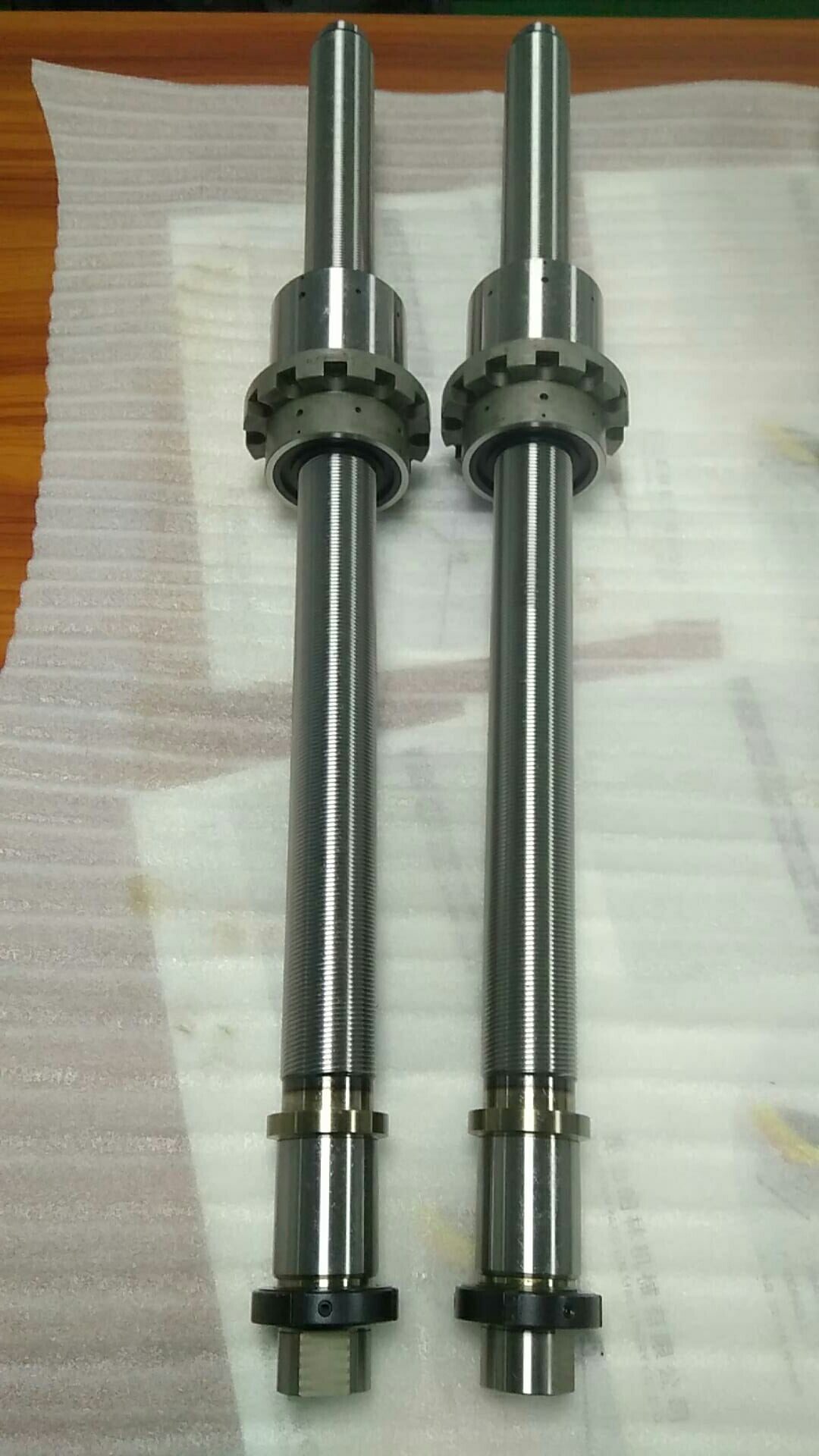

Lightweight, high-load roller screw assemblies for aerospace applications where weight reduction and performance are essential.
Automation & Robotics
Zero-backlash linear actuators for industrial automation and robotics applications requiring precise positioning and repeatability.
Performance Testing Results
Accuracy & Repeatability Testing
±0.002 mm
±0.005 mm
≤0.003 mm
* Test results based on ISO 2768 standards (data for reference only)
Material Performance Testing
– Tensile strength: 345 MPa
– Yield strength: 150 MPa
– Elongation: 35%
– Hardness: 80–100 HB
– Tensile strength: 860 MPa (heat-treated)
– Yield strength: 720 MPa
– Hardness: 28–32 HRC
– Modulus of elasticity: 205 GPa
* Material properties tested per ASTM standards (data for reference only)
Fatigue Life Testing Summary
| Test Condition | Cycles Completed | Result | Wear Observed |
|---|---|---|---|
| 10,000 clamping cycles | 10,000 | Passed | None measurable |
| 24-hour continuous operation | 14,400 | Passed | Minimal (≤0.001 mm) |
| Temperature cycling (-20°C to 80°C) | 100 cycles | Passed | No dimensional change |
* Testing performed in accordance with ISO 1328 standards (data for reference only)
Need Custom Fixtures for Your Brass Planetary Roller Screw Production?
Upload your screw drawing or machine model. Our engineers will deliver a complete fixture solution with 3D model and quote within 24 hours.
Lead time 10–18 days for standard orders. Rush delivery available upon request.
