Custom CNC Milling Machining Services Complex Parts
|
Service Item
|
Details
|
|
Service Type
|
Custom CNC Milling for Complex Parts
|
|
Processing Technology
|
3-axis / 4-axis / 5-axis CNC Machining
|
|
Design Support
|
DFM Analysis, 3D Modeling, Drawing Optimization
|
|
Prototype Service
|
Rapid Prototyping (48-hour turnaround)
|
|
Production Capacity
|
Prototyping to Mass Production (1-100,000 pieces)
|
|
Quality Certification
|
ISO 9001:2015, IATF 16949, ISO 13485
|
|
Technical Support
|
24-hour engineering support
|
|
Global Shipping
|
Worldwide delivery with tracking
|
Description

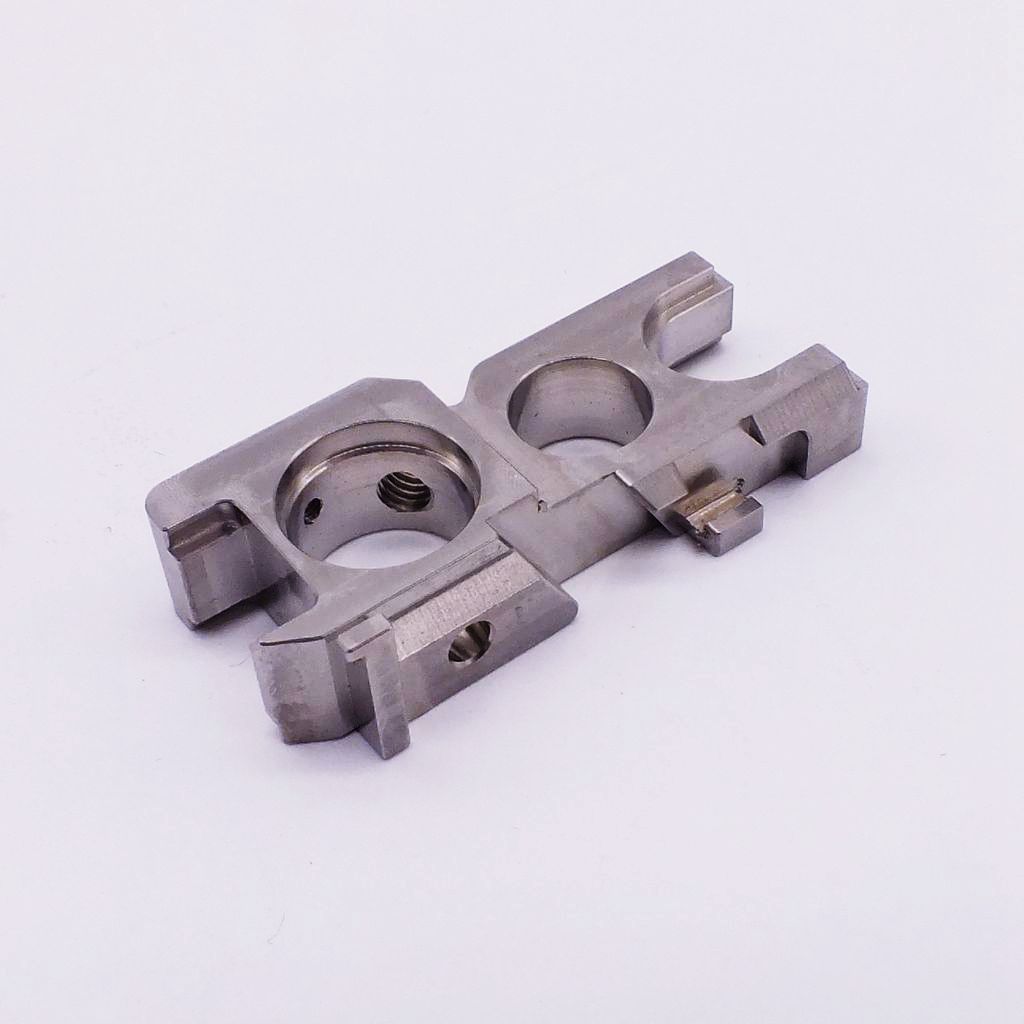

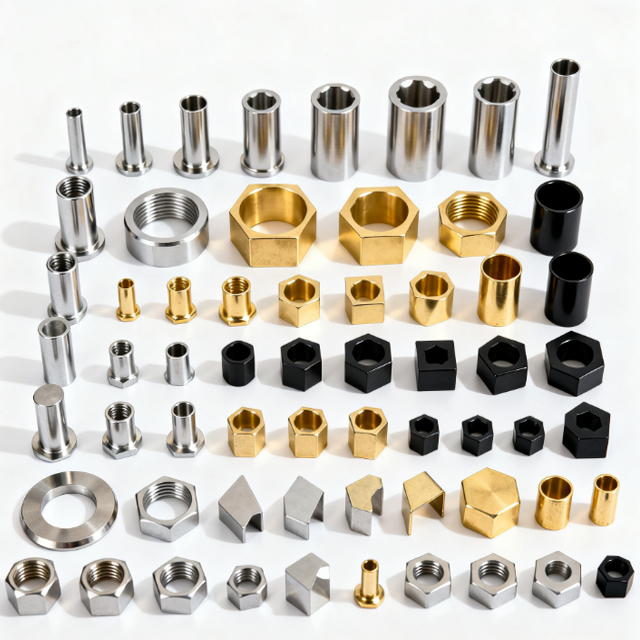

Product Display
Core Service Advantages
Core Technical Capabilities

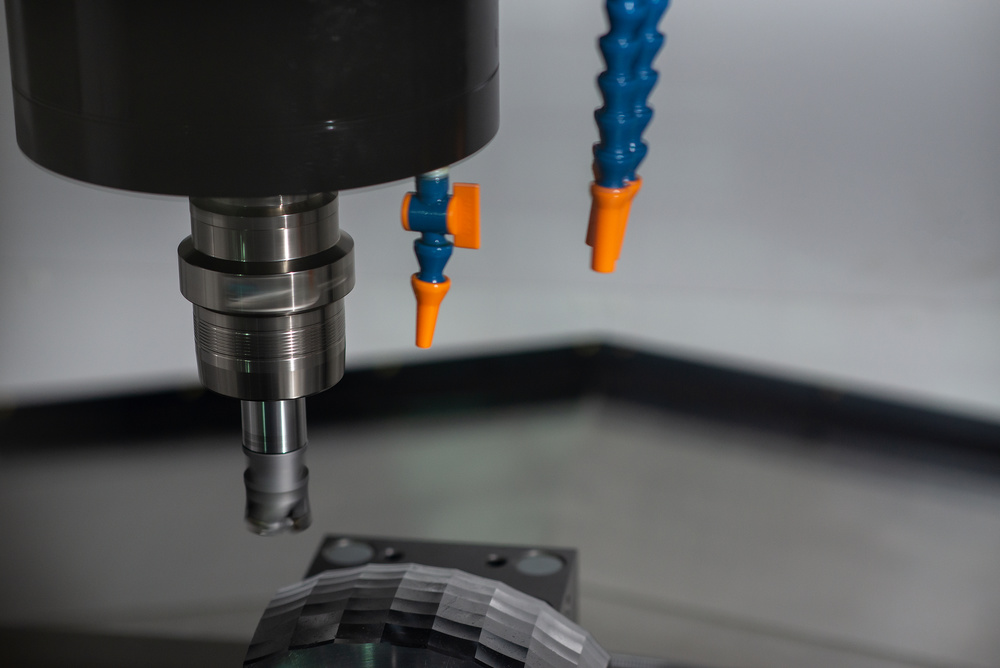

5-Axis CNC Milling Technology
specializes in high-precision CNC milling services for complex parts, utilizing advanced 5-axis machining technology to provide one-stop solutions from prototyping to mass production. Our 5-axis machining centers can complete complex geometries in a single setup, significantly improving machining accuracy and efficiency.
Technical Advantages
1. Ultra-High Precision Machining Capability
- Micron-level precision control: Machining accuracy up to ±0.005mm, meeting the most stringent precision requirements
- 5-axis simultaneous machining: X, Y, Z linear axes + A, C rotary axes for complex surface machining
- Intelligent toolpath optimization: Automatic generation of optimal tool paths to ensure machining quality

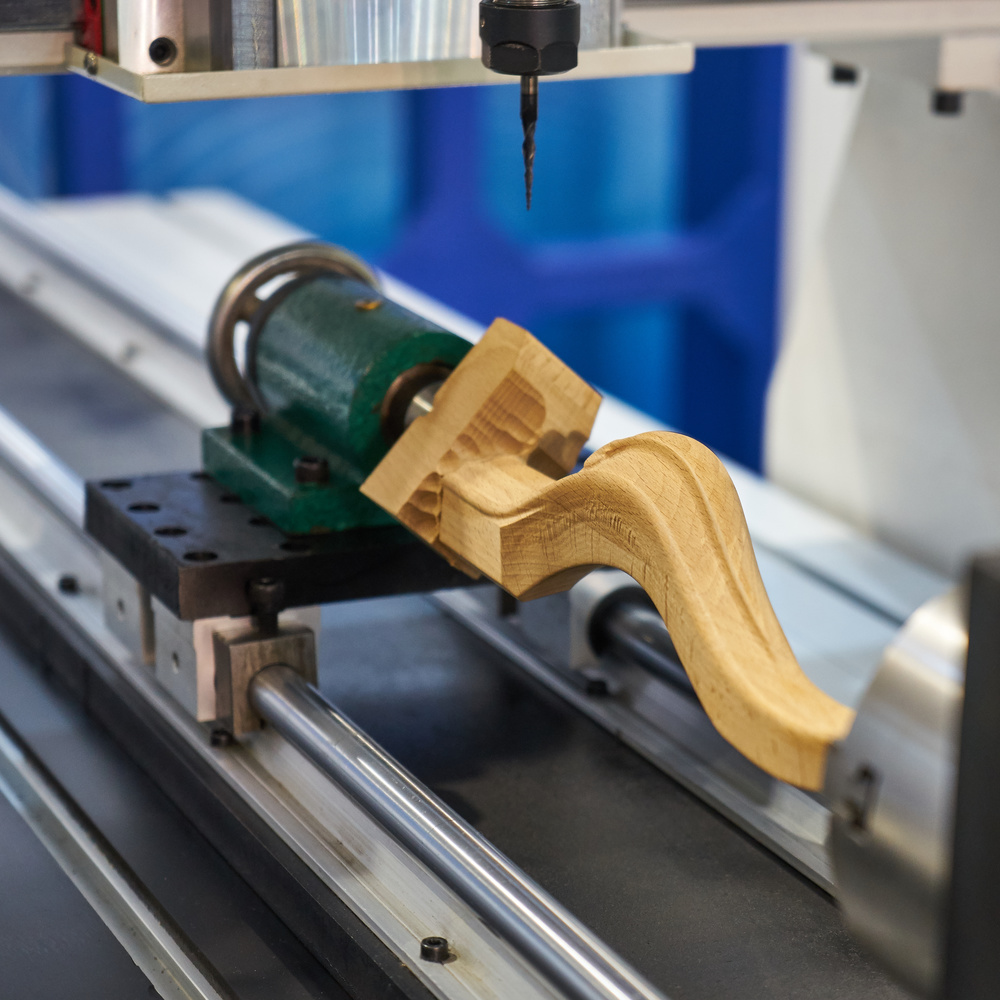

2. Complex Geometry Machining
- Single setup completion: Multi-face machining reduces setup errors and improves machining accuracy
- Complex surface machining: Supports free-form surfaces, compound angles, and internal cavity structures
- Deep cavity machining capability: Deep cavity parts can be machined up to 300mm in depth
3. Advanced Machining Technology
- High-speed spindle: Rotation speed up to 15,000-24,000 RPM
- Dynamic compensation system: Real-time monitoring and compensation of machining errors
Material Machining Capabilities
Metal Materials
|
Material Type
|
Material Grade
|
Characteristics
|
Application Scenarios
|
|
Aluminum Alloy
|
6061, 7075, 5052
|
Lightweight, corrosion-resistant, easy to machine
|
Aerospace, automotive parts
|
|
Stainless Steel
|
304, 316, 416
|
Corrosion-resistant, high strength
|
Medical devices, food equipment
|
|
Titanium Alloy
|
Ti-6Al-4V, Pure Titanium
|
High strength, biocompatible
|
Aerospace, medical implants
|
|
Alloy Steel
|
4140, 4340, H13
|
High strength, wear-resistant
|
Mold making, mechanical parts
|
Engineering Plastics
- PEEK: High temperature resistant, biocompatible
- PEI: High strength, flame retardant
- PPS: Corrosion resistant, insulating
- Nylon: Wear resistant, self-lubricating
Application Fields
Aerospace Industry
- Engine components: Turbine blades, combustion chambers, guide vanes
- Airframe structures: Wing spars, joints, landing gear parts
- Navigation equipment: Precision sensors, positioning devices
Medical Device Industry
- Implants: Artificial joints, dental implants, orthopedic instruments
- Surgical instruments: Precision surgical tools, endoscope parts
- Medical equipment: Imaging equipment parts, analytical instrument components
Automotive Manufacturing Industry
- Power systems: Engine blocks, crankshafts, connecting rods
- Transmission systems: Gearbox gears, drive shafts
- New energy vehicles: Battery housings, motor components
Robotics & Automation
- Robot joints: High-precision joint arms, actuators
- Automation equipment: Precision guide rails, fixtures
- Industrial robots: Complex structural components
The information on this service page is for reference only. Specific service content and prices are subject to actual consultation. We reserve the right to final interpretation of service information.
