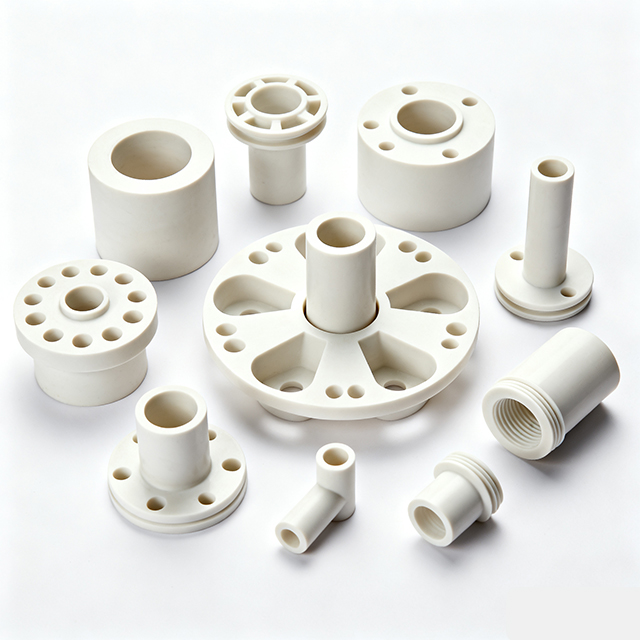

Custom Precision CNC Ceramic Parts
|
Attribute
|
Specification
|
|
Product Name
|
Custom Precision CNC Ceramic Parts
|
|
Product Type
|
Precision Ceramic Components
|
|
Processing Method
|
CNC Machining
|
|
Customization Service
|
Fully Customizable
|
|
Minimum Order Quantity
|
1 piece
|
|
Quality Certification
|
ISO 9001:2015
|
Description
Product Specification Sheet
Basic Information
|
Attribute
|
Specification
|
|
Product Name
|
Custom Precision CNC Ceramic Parts
|
|
Product Type
|
Precision Ceramic Components
|
|
Processing Method
|
CNC Machining
|
|
Customization Service
|
Fully Customizable
|
|
Minimum Order Quantity
|
1 piece
|
|
Quality Certification
|
ISO 9001:2015
|
Material Selection
|
Material Type
|
Purity
|
Characteristics
|
Application Scenarios
|
|
Alumina Ceramic
|
96%-99.8% Al₂O₃
|
High hardness, excellent insulation
|
Electronic insulation, structural support
|
|
Silicon Nitride
|
Si₃N₄
|
High strength, thermal shock resistance
|
High-temperature components, bearings
|
|
Silicon Carbide
|
SiC
|
Ultra-high hardness, good thermal conductivity
|
Wear parts, high-temperature components
|
|
Zirconia Ceramic
|
ZrO₂
|
High toughness, biocompatible
|
Medical devices, precision tools
|
|
Aluminum Nitride
|
AlN
|
High thermal conductivity, insulation
|
Semiconductors, LED substrates
|
Technical Parameters
|
Parameter
|
Standard Spec
|
Precision Spec
|
|
Machining Accuracy
|
±0.01mm
|
±0.5μm
|
|
Surface Roughness
|
Ra 0.8μm
|
Ra 0.1μm
|
|
Size Range
|
1mm-500mm
|
0.1mm-1000mm
|
|
Thickness Range
|
0.5mm-50mm
|
0.1mm-100mm
|
|
Roundness
|
±0.005mm
|
±0.001mm
|
Mechanical Properties
|
Property
|
Alumina
|
Silicon Nitride
|
Silicon Carbide
|
Zirconia
|
|
Hardness (HV)
|
1600-1700
|
1500
|
2800
|
1200
|
|
Flexural Strength (MPa)
|
350-450
|
800-1000
|
380-550
|
1000-1500
|
|
Compressive Strength (MPa)
|
3000
|
3000
|
3900
|
2000
|
|
Elastic Modulus (GPa)
|
360
|
300
|
430
|
200
|
|
Density (g/cm³)
|
3.9
|
3.24
|
3.15
|
6.0
|
Thermal Properties
|
Property
|
Alumina
|
Silicon Nitride
|
Silicon Carbide
|
Zirconia
|
|
Max Service Temperature (°C)
|
1600
|
1400
|
1900
|
2200
|
|
Thermal Expansion Coefficient (×10⁻⁶/°C)
|
8.5
|
3.0
|
4.0
|
10.0
|
|
Thermal Conductivity (W/m·K)
|
20
|
30
|
125
|
2
|
|
Thermal Shock Resistance
|
Medium
|
Excellent
|
Good
|
Excellent
|
Electrical Properties
|
Property
|
Alumina
|
Silicon Nitride
|
Silicon Carbide
|
Zirconia
|
|
Volume Resistivity (Ω·cm)
|
10¹⁴
|
10¹⁴
|
10²-10⁸
|
10¹⁶
|
|
Dielectric Strength (kV/mm)
|
15
|
10
|
5
|
20
|
|
Dielectric Constant
|
9.5
|
7.5
|
40
|
25
|
Product Description
Product Overview
Custom Precision CNC Ceramic Parts are high-precision ceramic components manufactured using advanced CNC machining technology. We specialize in providing customized precision ceramic solutions to customers worldwide, with products widely used in aerospace, medical devices, electronics semiconductors, industrial manufacturing and other high-end fields.
Core Advantages
1. Ultra-High Precision Machining
- Micron-level precision control: Machining accuracy up to ±0.5μm, meeting the most stringent precision requirements
- Advanced equipment guarantee: 5-axis CNC machining centers ensure precise manufacturing of complex geometries
- Strict quality inspection: Equipped with high-precision CMM coordinate measuring machines for full-process quality control
2. High-Quality Material Selection
- Diversified materials: Offering alumina, silicon nitride, silicon carbide, zirconia and other ceramic materials
- Excellent material properties: High hardness, wear resistance, high temperature resistance, chemical stability, good electrical insulation
- Customized formulations: Material composition and performance parameters can be adjusted according to customer requirements
3. Comprehensive Customization Service
- Design support: Professional engineering team provides design optimization and technical consultation
- Rapid prototyping: Supporting small-batch trial production and rapid prototype manufacturing
- Mass production: Capable of large-scale production to meet high-volume order requirements
Application Fields
Aerospace
- Engine high-temperature components
- Precision navigation instrument parts
- Lightweight structural components
Medical Equipment
- Artificial joints and dental implants
- Medical instrument precision components
- Biocompatible ceramic assemblies
Electronics & Semiconductors
- Semiconductor wafer carriers
- LED heat dissipation substrates
- Electronic insulation parts
Industrial Manufacturing
- High-precision bearings and seals
- Wear-resistant cutting tools
- High-temperature furnace components
Manufacturing Capabilities
CNC Machining Services
- 5-axis CNC milling: Complex 3D shape machining
- CNC turning: High-precision round parts
- CNC grinding: Ultra-precision surface machining
- Laser cutting: Precision cutting and engraving
Surface Treatment
- Precision grinding: Ra 0.1μm surface roughness
- Polishing treatment: Mirror polishing effect
- Metallization treatment: Surface metal coating
- Precision cleaning: Ultra-clean surface treatment
Quality Assurance
Quality Management System
- ISO 9001:2015 certification: Strict quality management system
- Full traceability: Complete quality records from raw materials to finished products
- Third-party testing: Authoritative agency testing and certification
Testing Equipment
- CMM coordinate measuring machine: 3D dimensional precision testing
- Hardness tester: Material hardness testing
- Surface roughness tester: Surface quality testing
- Microscopic analysis: Microstructure analysis
Service Commitment
Technical Support
- Professional consultation: Material selection and design recommendations
- Technical training: Product usage and maintenance training
- After-sales support: Technical support during product usage
Delivery Guarantee
- Quick quotation: Detailed quotation within 24 hours
- Fast delivery: 7-15 days delivery for standard products
- Global shipping: Supporting worldwide product distribution
Why Choose Us
- Technology leadership: Advanced CNC machining equipment and process technology
- Rich experience: Years of precision ceramic manufacturing experience serving global customers
- Reliable quality: Strict quality control system ensuring product quality
- Flexible customization: Fully customized services meeting special requirements
- Comprehensive service: Full-process service from design to delivery
Contact Us
If you are interested in our Custom Precision CNC Ceramic Parts or need customized precision ceramic components, please contact our professional team. We will provide you with detailed technical consultation and solutions.
The information on this product page is for reference only. Specific product specifications and prices are subject to actual quotations. We reserve the right to final interpretation of product information.
