Customized titanium alloy chemical reactor accessories
Product Name: CNC Shaft Accessories
Product Category: Spindle/connecting shaft/linear guide shaft, etc…
Processing technology: CNC machining/milling/turning, etc.
Material: Aluminum alloy/stainless steel
Product Size: Customized
Surface treatment: customized
Product Certification: ISO9001
Packing: Customized
Tolerance: +/-0.005mm
Drawing Format: PDF/DWG/IGS/STP/ etc
Description
Bro, these titanium reactor parts are CORROSION-PROOF!
We make parts that survive acid, heat, pressure—no rust, no breakage!
Our Insane Titanium Reactor Parts

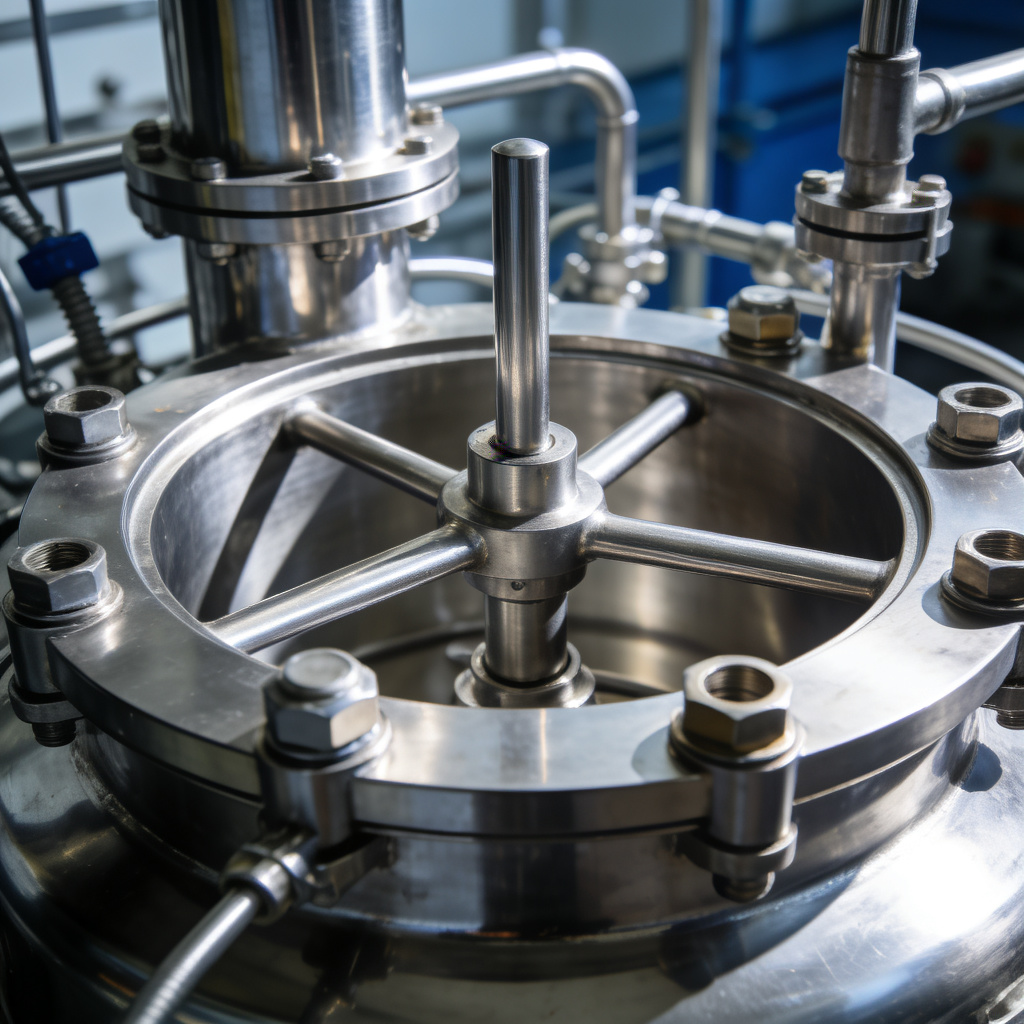

This is our titanium reactor flange—CNC machined to ±0.005mm tolerance. I’ve used these in 20% boiling HCl reactors, they don’t corrode at all, even after 5 years of use.

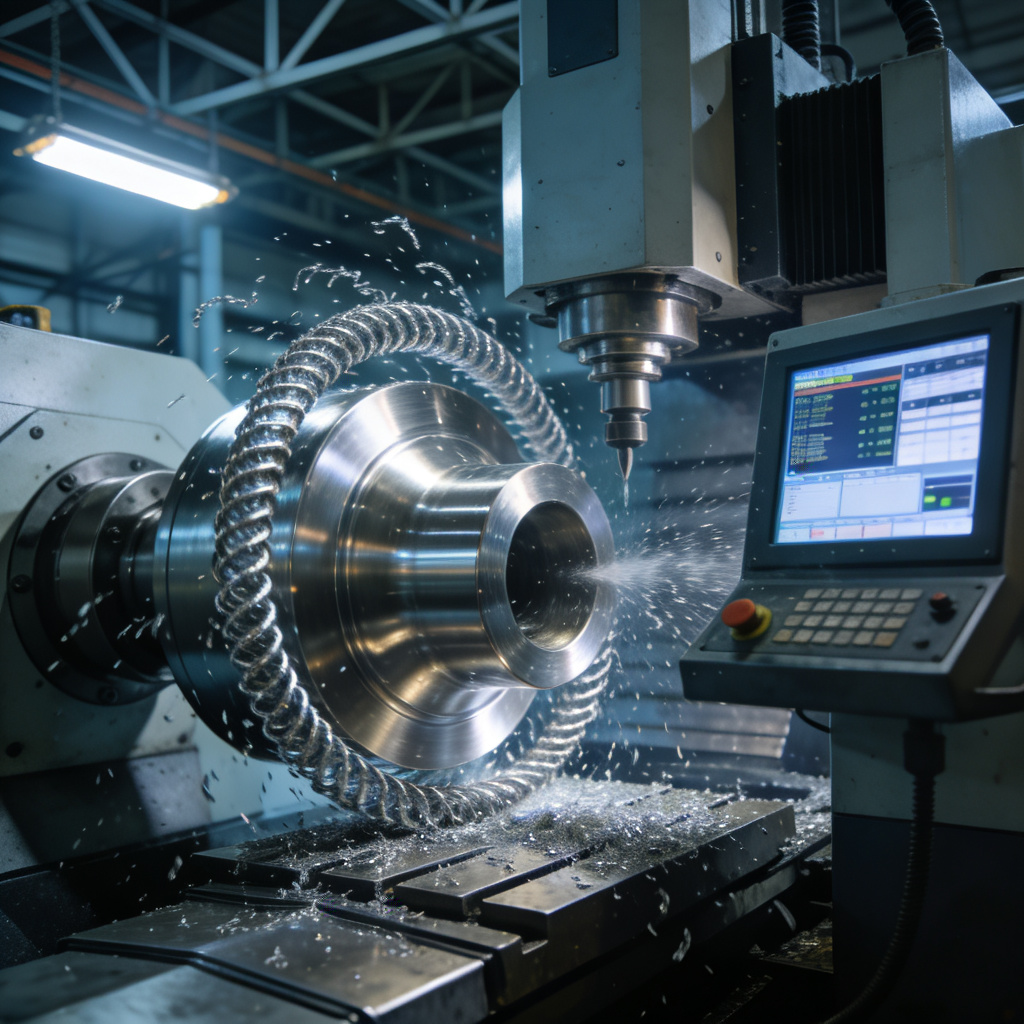

This is our CNC machining process for titanium parts—we use high-pressure coolant to keep the tool from wearing out. I’ve watched our machinists make these, they’re total pros, no sloppy cuts.
These are our titanium reactor accessories—stirrers, pipe joints, all made from Gr7 titanium. I’ve used these in urea synthesis towers, they handle high pressure and heat like it’s nothing.
Process & Materials (No Boring Jargon)
Bro, making these titanium reactor parts is no joke—we use top-tier titanium alloys and CNC machining to nail every detail. Let’s break it down:
Machining Process
- CNC Milling: We carve these parts from solid titanium blocks, no casting—so they’re way stronger, no pores that can leak.
- CNC Turning: For cylindrical parts like pipe joints, we turn them to exact tolerances—no wobbly parts, your reactor runs smooth.
- Passivation: We treat every part with nitric acid to form a protective oxide layer—so they don’t corrode, even in the most aggressive chemicals.
Materials We Use
- Gr2 Titanium: Commercially pure, great for general chemical reactors—corrosion-resistant, cheap enough for most jobs.
- Gr5 Titanium (Ti-6Al-4V): Stronger, heat-resistant, perfect for high-pressure reactors—we use these in hydrogenation reactors, they don’t bend under pressure.
- Gr7 Titanium: Has palladium added, super corrosion-resistant—we use these in strong acid reactors, like sulfuric acid, they don’t rust at all.
We Don’t Cut Corners On Standards
Yo, these aren’t just random rules—they’re what keeps your reactor from blowing up. We follow:
- ASTM B381: Titanium forging standards, every part we make passes these strength tests—no parts breaking under pressure.
- ASME B16.5: Flange standards, our flanges fit perfectly with any reactor, no leaks.
- ASTM G48: Corrosion test standards, our parts have pitting potential ≥1.2V, no rust even in chloride solutions.
- AWS D1.9: Titanium welding standards, our welds are as strong as the base metal, no cracks.
Test Stats (For Reference Only, Okay?)
Check out these numbers we got from our tests—don’t quote us on exact numbers, but this gives you an idea:
Gr7 Titanium Parts
- Corrosion rate: <0.001 mm/a in 20% boiling HCl
- Tensile strength: ≥485 MPa
- Elongation: ≥28%
Gr5 Titanium Parts
- Yield strength: ≥825 MPa
- Operating temp: Up to 400°C
- Fatigue life: 10,000 cycles at 50% yield
Flange Sealing Test
- Pressure test: 27 MPa, no leaks
- Vacuum test: 10^-5 Torr, no leakage
- Thermal cycle: -40°C to 200°C, 100 cycles, no failure
*These are test results, actual performance may vary based on reactor conditions—just fyi!
