Industrial-Grade 5-Axis CNC Precision Machining
| Category | Specifications |
|---|---|
| Machining Technology | 5-Axis CNC Milling/Turning Hybrid |
| Compatible Materials | Aluminum/Stainless Steel/Titanium/Engineering Plastics |
| Machining Precision | ±0.005mm – ±0.01mm |
| Max. Workpiece Size | Ø2000mm × 1500mm |
| Surface Treatment | Anodizing/Sandblasting/Plating/Painting |
| File Formats | STEP/IGES/SOLIDWORKS/AutoCAD |
| Certification | ISO 9001:2015 |
| Minimum Order | Prototype Orders Accepted (1 pc) |
Description
Industrial-Grade 5-Axis CNC Precision Machining
German-engineered DMG MORI machining centers delivering micron-level precision for aerospace, medical, and high-performance industrial applications
Tolerance Accuracy
Compatible Materials
Certified

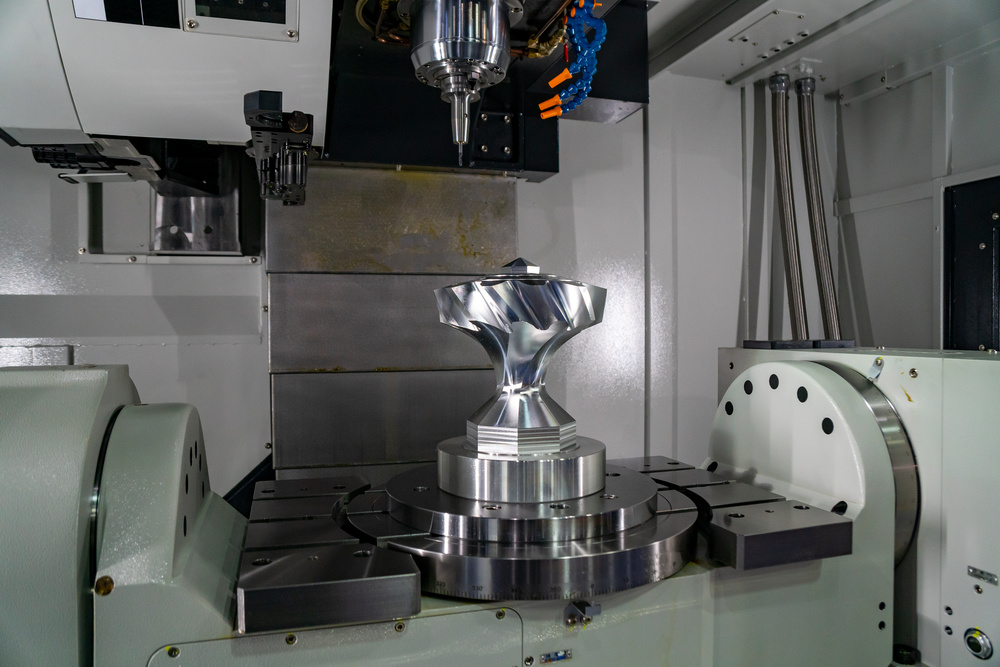

Advanced 5-Axis Machining Capabilities
Our 5-axis CNC machining centers enable simultaneous machining of complex geometries from multiple angles in a single setup, eliminating the need for multiple fixtures and reducing production time while maintaining exceptional precision.
Key Advantages
- Simultaneous 5-axis machining for complex contours and undercuts
- Single-setup processing reduces fixturing errors and lead times
- High-speed spindles (up to 24,000 RPM) for superior surface finishes
- Adaptive cooling systems for consistent thermal stability
Technical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Machining Technology | 5-Axis CNC Milling/Turning Hybrid | Simultaneous 5-axis capability |
| Positioning Accuracy | ±0.005mm | ISO 230-2 standard |
| Repeatability | ±0.003mm | Full 3D volume |
| Max Workpiece Size | Ø2000mm × 1500mm | Dependent on machine model |
| Spindle Speed | 12,000 – 42,000 RPM | High-speed options available |
| Tool Magazine | 40 – 120 tools | Automatic tool changer |
| Control System | Siemens 840D sl / Heidenhain iTNC 640 | Industry-leading controls |
Materials & Machining Processes
🔧
Compatible Materials
7075-T6, 6061-T6, 2024-T4
316L, 304, 17-4 PH
Ti-6Al-4V, Ti-5Al-2.5Sn
Inconel 718, Hastelloy
Incoloy, Monel
PEEK, PPS, Ultem
⚙️
Machining Processes
- 5-Axis Milling: Complex 3D geometries and contours
- Precision Turning: Cylindrical components with tight tolerances
- Drilling & Tapping: High-precision holes and threaded features
- Thread Milling: Internal and external threads
- Counterboring & Countersinking: Recessed fastener seats
- Deburring: Edge preparation and finishing
Surface Finishing Options
Quality Standards & Certifications
Our commitment to quality is backed by internationally recognized certifications and rigorous quality control processes
AS9100D
Aerospace Quality Management System
ISO 9001:2015
Quality Management System
NADCAP
National Aerospace and Defense Contractors Accreditation Program
Testing & Inspection Capabilities
Coordinate Measuring Machine (CMM)
3D dimensional inspection with ±0.001mm accuracy
Optical Comparator
Profile measurement and surface analysis
Hardness Testing
Rockwell, Brinell, and Vickers testing
Material Analysis
Spectrometry for material verification
Industry Applications
Standard Workflow
DFM Analysis
Design for Manufacturability review to optimize your design for production
Programming
CNC programming and toolpath simulation to ensure optimal cutting strategies
Machining
Precision 5-axis machining with in-process quality checks
Inspection
Comprehensive quality inspection using CMM and other precision tools
Delivery
Careful packaging and on-time delivery with full documentation
Ready to Start Your Project?
Our engineering team provides free DFM analysis and competitive pricing for your 5-axis CNC machining projects
First prototype samples available with fast turnaround (48-hour rush service available)
