Custom High-Pressure CNC Brass Threaded Hydraulic Fittings
Place of Origin : Xiamen,China
Name : CNC Brass Threaded Fittings
Model : CNC-19
Material : Brass/steel/stainless steel/aluminum alloy etc.
Application : Connectors/Fasteners
Size : Customized
Shape : Customized
Application : As per customer’s request
Surface treatment : According to customer’s requirement
Processing Technology : CNC Processing such as Turning / Milling
Certification : ISO9001
Description
Eliminate leaks & failures in hydraulic systems with our custom CNC machined brass fittings.
5000
PSI Burst Pressure
±0.005mm
Precision Tolerance
1000h+
Salt Spray Resistance
24h
Quote Response

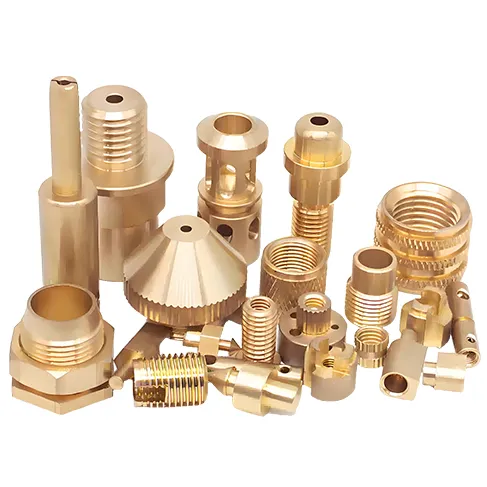

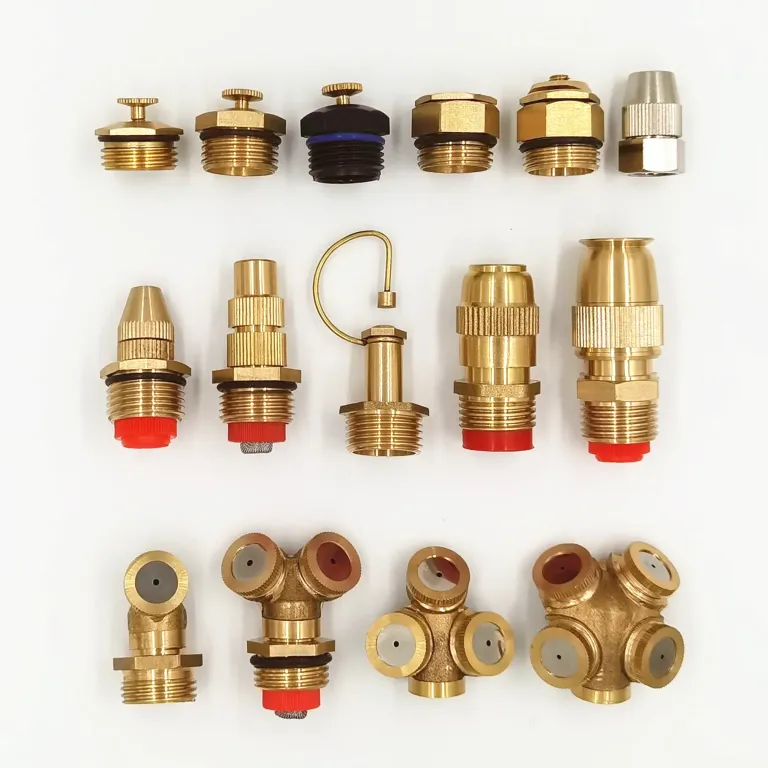

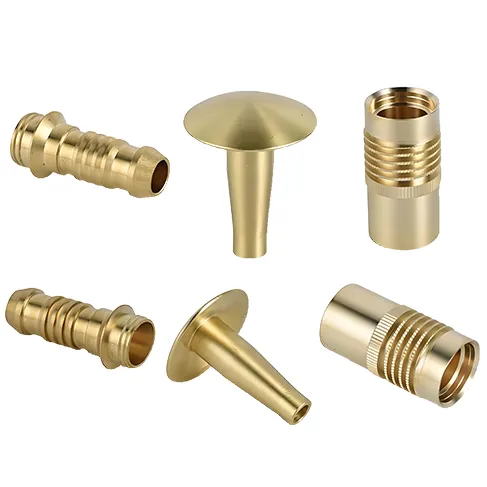

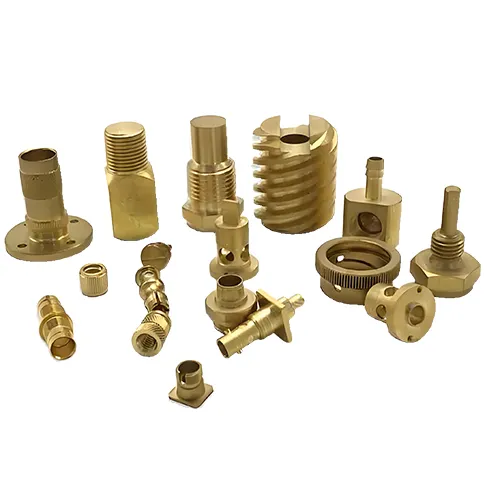

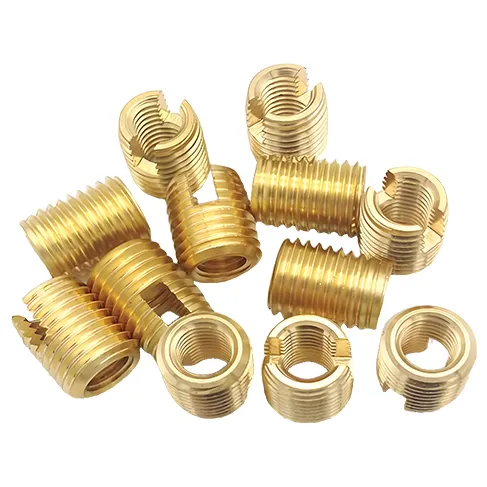

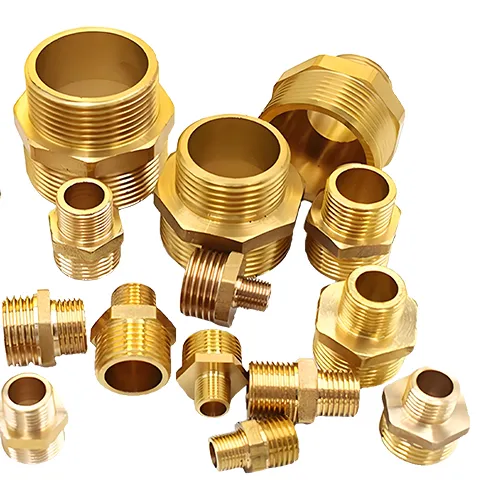

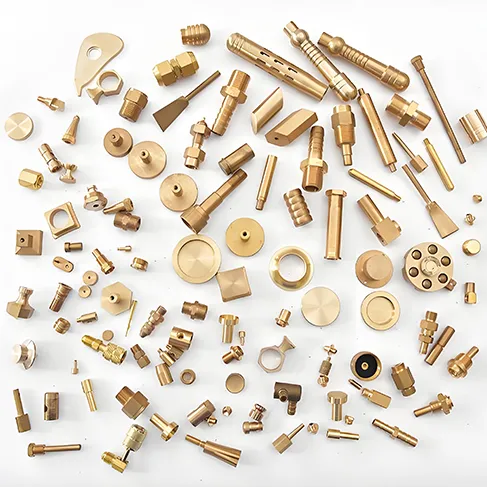

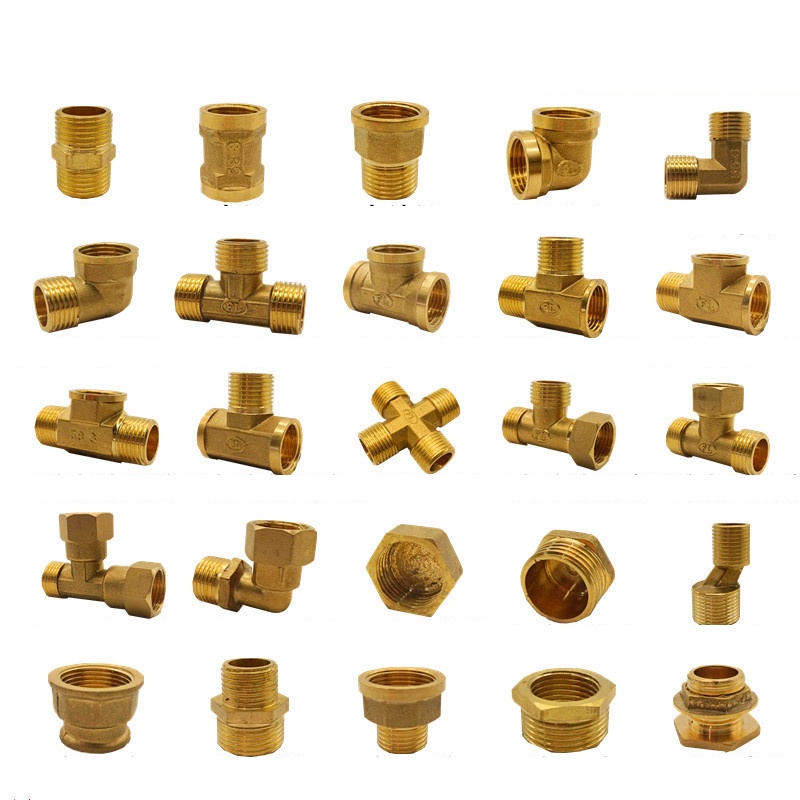

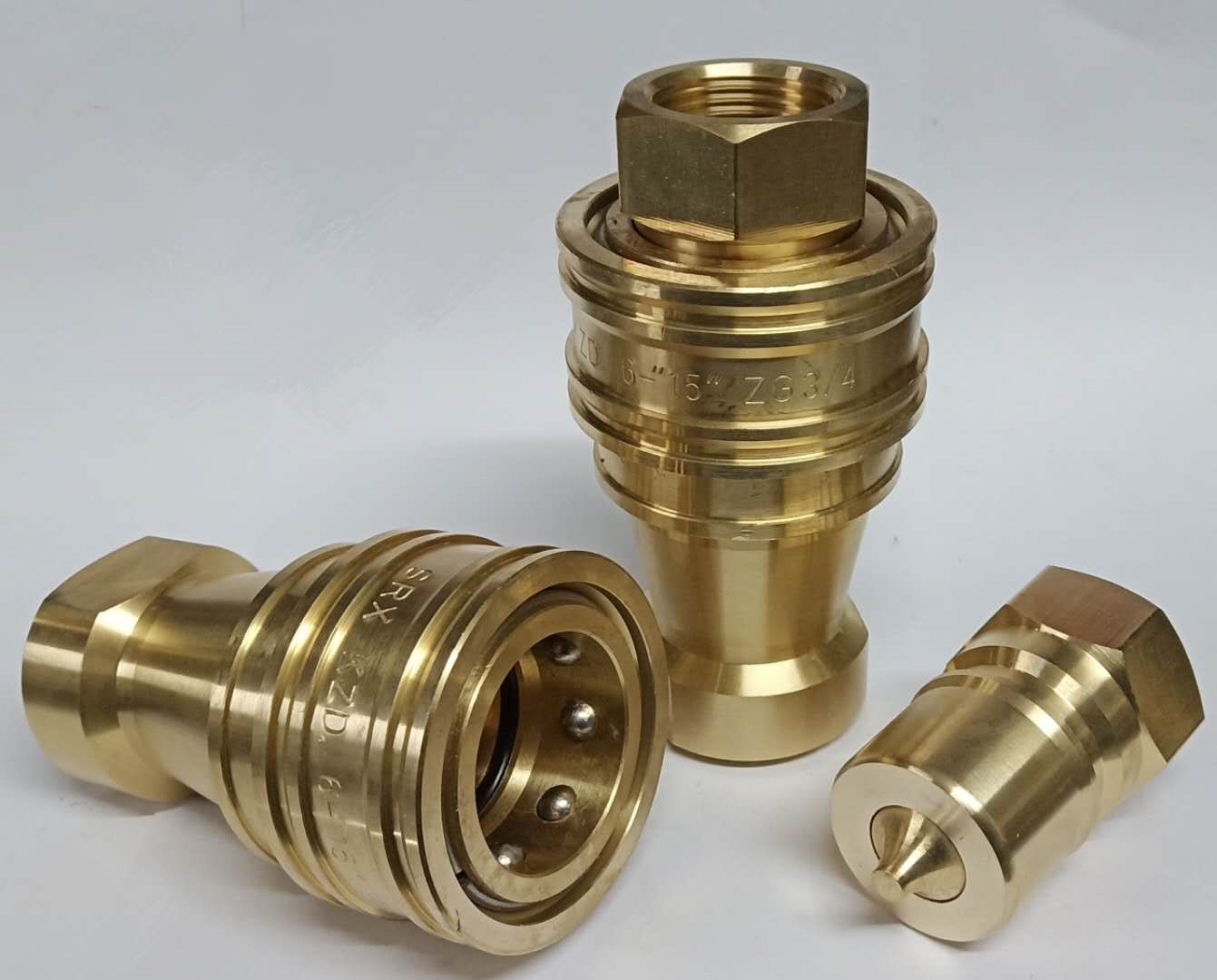

Product Gallery
Key Features
Exceptional Pressure Rating
- ✓
Working Pressure: 3000 PSI - ✓
Burst Pressure: 5000-10000 PSI - ✓
Proof Pressure: 4500 PSI (1.5x working)
Comprehensive Thread Standards
- ✓
NPT/BSPP/G/Metric UNF thread options - ✓
Sizes: 1/8″-2″ (M6-M48) - ✓
ISO 8434-1 Compliant
Premium Material Selection
- ✓
CW614N Brass (HPb59-3) - ✓
316 Stainless Steel option - ✓
Lead-free RoHS/REACH compliant
Technical Specifications
Applications
Automotive
Brake systems, power steering
Industrial
Machine tools, presses
Oil & Gas
Drilling equipment
Marine
Ship hydraulic systems
Frequently Asked Questions
What is the maximum pressure rating?
Our brass hydraulic fittings have a working pressure rating of 3000 PSI and a burst pressure rating of 5000-10000 PSI, depending on size and configuration.
What thread types are available?
We offer NPT (60°), BSPP/BSPT (55°), G, and Metric UNF threads in sizes from 1/8″ to 2″ (M6 to M48).
What materials do you offer?
Our standard materials are CW614N brass (HPb59-3) and 316 stainless steel. All materials are RoHS and REACH compliant.
