Titanium alloys experience severe work hardening during CNC machining, with 0.05-0.15mm thick surface layers and 40-60HV hardness increase, significantly raising cutting resistance and tool damage compared to stainless steel.
Machining Property Comparison
|
Property
|
Titanium Alloy
|
Stainless Steel
|
|
Thermal Conductivity (W/m·K)
|
6.7
|
16.2
|
|
Work Hardening Rate
|
Very High
|
Moderate
|
|
Chemical Reactivity
|
High
|
Moderate
|
|
Elastic Modulus (GPa)
|
110
|
206
|
|
Unit Cutting Force (N/mm²)
|
1300-1400
|
1800-2850
|
|
Surface Hardening Layer (mm)
|
0.05-0.15
|
0.02-0.08
|

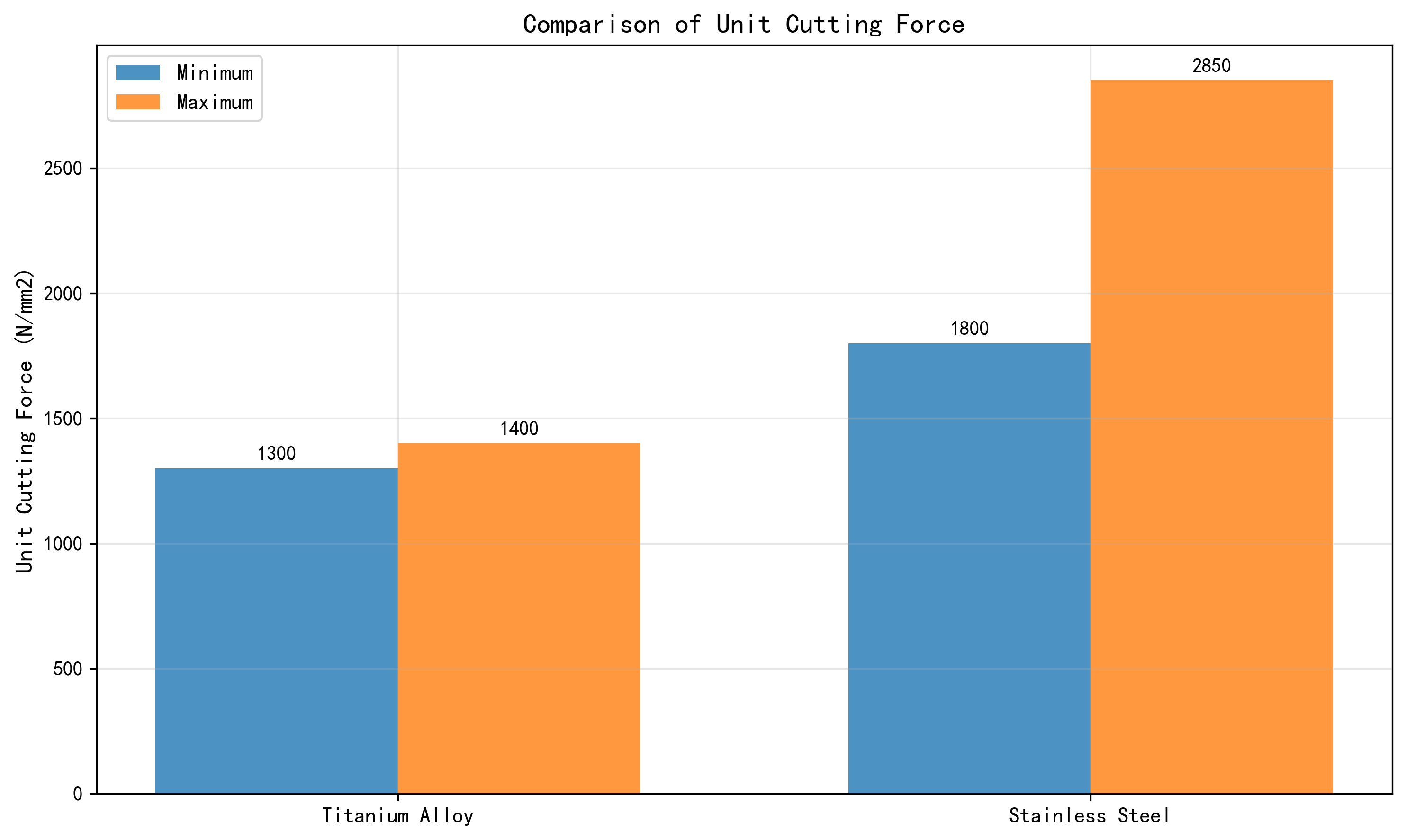

Cutting Force Comparison

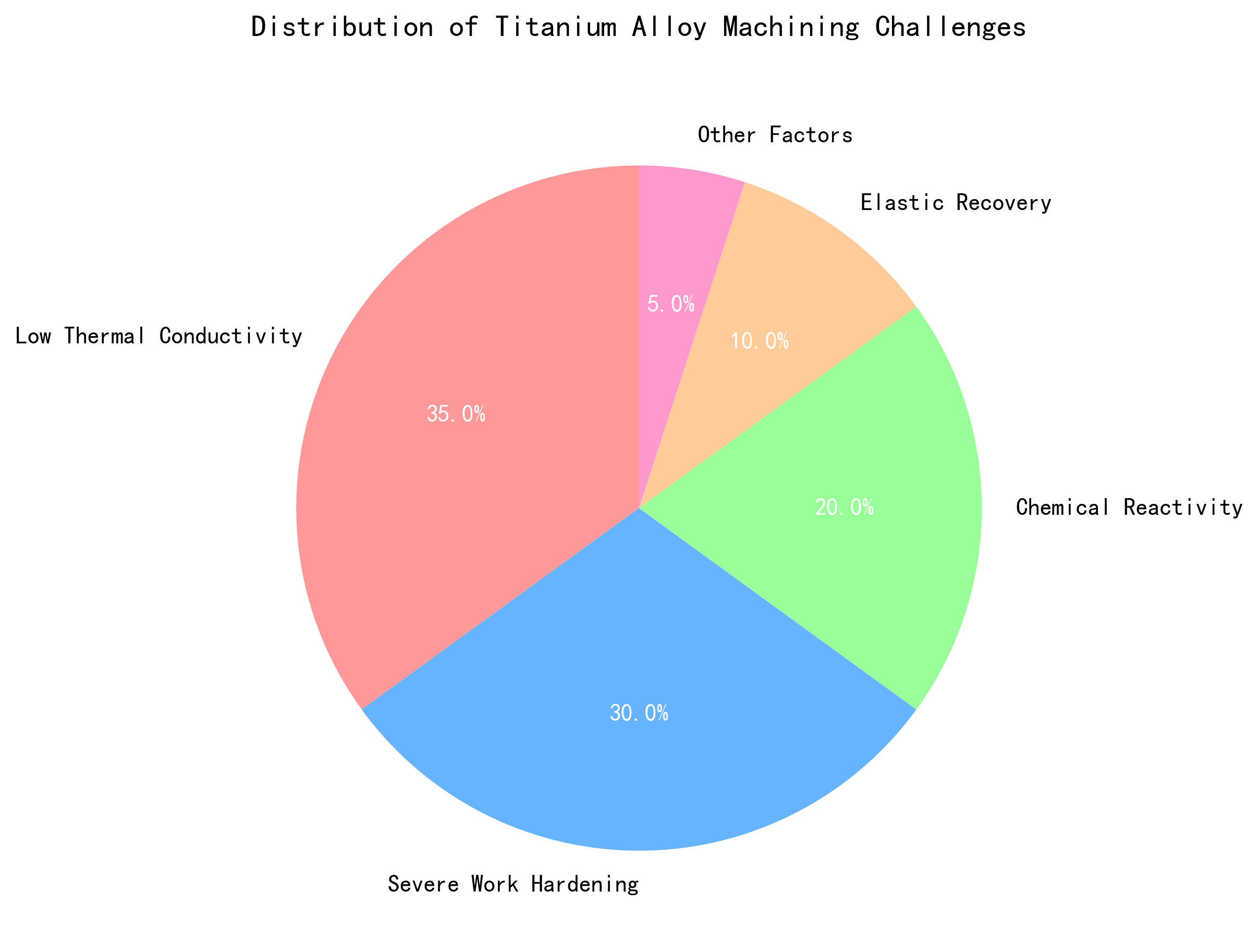

Machining Challenges Distribution
Titanium’s work hardening results from low thermal conductivity (16% of carbon steel), concentrating 80% of cutting heat at the tool edge. This thermal concentration, combined with high chemical reactivity and low elastic modulus, accelerates tool wear and reduces machining efficiency. The hardened surface layer creates a cycle where each pass encounters increasingly difficult material conditions.
