1. Core Cognition: Why CNC Drilling Aluminum Requires Specialized Methods

The physical properties of aluminum alloys (e.g., 6061, 7075) differ significantly from those of steel and stainless steel, directly requiring targeted process adjustments for CNC drilling. Its characteristics—low hardness (≈95HB for 6061-T6), high ductility, easy chip adhesion, and fast heat conduction—not only enable “high cutting efficiency” but also easily cause issues like chip sticking and rough hole walls.
Industry data shows that aluminum drilling accounts for 42% of CNC non-ferrous metal machining volume (Source: 2025 Aluminum CNC Machining Report), mainly used in aerospace (lightweight structural parts), automotive (aluminum alloy housings), and electronics (PCB brackets). Compared to steel drilling, CNC drilling of aluminum offers core advantages:
  • High Efficiency: Cutting speed can reach 3-5 times that of steel (3000-6000r/min vs. 800-1500r/min);
  • Low Energy Consumption: Cutting force for aluminum is only 1/3 of that for steel (a φ8mm drill requires 50N for aluminum vs. 150N for steel);
  • Easy Precision Machining: Hole wall roughness can easily reach Ra≤1.6μm (steel requires additional polishing).

2. Key Technologies for CNC Drilling Aluminum

A. Tool Selection: The Core of “Anti-Stick & High-Speed Cutting”

Aluminum is prone to chip adhesion (chips easily stick to the drill edge to form a “built-up edge”). Drills with low-friction coatings, wide chip flutes, and sharp cutting edges should be prioritized. Specific selection criteria are as follows:
Tool Feature
Aluminum-Dedicated Design
Reasoning
Material
Carbide (WC-Co) > High-Speed Steel (HSS)
Carbide has high hardness (HRC90+) and good thermal conductivity, preventing edge overheating and chip adhesion; HSS wears easily (service life is only 1/5 of carbide).
Coating
TiAlN (Titanium Aluminum Nitride) / ZrN (Zirconium Nitride) > Uncoated
TiAlN coating has a low friction coefficient (0.3 vs. 0.5) and high temperature resistance (800℃), reducing chip adhesion; ZrN is suitable for high-silicon aluminum (e.g., A356).
Flute Count
2 flutes (standard) / 3 flutes (high-speed)
2-flute drills have wide chip flutes (facilitating the discharge of large coiled chips); 3-flute drills are suitable for thin-walled aluminum parts (reducing vibration).
Point Angle
118° (standard) / 90° (thin aluminum <3mm)
118° edges are sharp (reducing cutting force); 90° angles prevent “collapsing” of thin aluminum parts (e.g., drilling smartphone housings).
Shank Type
Straight shank (φ≤10mm) / Taper shank (φ>10mm)
Straight shanks are suitable for high-speed drilling of small diameters (≤6000r/min); taper shanks enhance the rigidity of large-diameter drills (φ>10mm).
Practical Example: For drilling a φ5mm through-hole in 6061 aluminum, selecting a “2-flute carbide drill + TiAlN coating + 118° point angle” reduces chip adhesion by 60% and extends the drill service life to 800 holes per tool (vs. 150 holes for uncoated HSS).

B. Cutting Parameter Optimization: Balancing Speed and Quality

Aluminum conducts heat quickly (thermal conductivity 205W/(m·K), 5 times that of steel). Higher spindle speeds should be used to leverage “high-speed cutting heat dissipation,” while feed rates need to be controlled to avoid chip adhesion. Reference parameters for drills of different diameters (taking 6061-T6 as an example) are as follows:
Drill Diameter (d)
Spindle Speed (S)
Feed Rate (F)
Cutting Speed (Vc)
Key Note
φ1-3mm
5000-6000r/min
80-120mm/min
15-57m/min
High speed + low feed (prevents small drill breakage)
φ3-8mm
3000-5000r/min
120-200mm/min
28-125m/min
Balance efficiency and chip discharge (F=0.04-0.05×S)
φ8-15mm
2000-3000r/min
200-300mm/min
50-141m/min
Reduce speed to enhance rigidity (prevents large drill vibration)
φ15-25mm
1000-2000r/min
300-400mm/min
47-157m/min
Adopt “step feed” (retract every 5mm for chip discharge)
Parameter Logic: Small-diameter drills (φ<3mm) require high speeds (5000r/min+) to ensure cutting speed (Vc≥15m/min), avoiding rough hole walls caused by “low-speed extrusion”; large-diameter drills (φ>15mm) require reduced speeds (≤2000r/min) to prevent hole diameter deviation due to spindle vibration.

C. Cooling & Lubrication: Solving Adhesion and Overheating

The core cause of aluminum chip adhesion is “excessive temperature in the cutting zone + friction between chips and edges.” Cooling methods with low viscosity and high lubricity should be selected. Adaptation schemes for different scenarios are as follows:
Cooling Method
Application Scenario
Advantages
Disadvantages
Emulsified Coolant (5-8% concentration)
Mass production (e.g., automotive aluminum parts)
Good cooling effect (removes 80% of heat), low cost
Requires recycling (high environmental requirements)
Cutting Oil (Mineral Oil)
Precision drilling (e.g., aerospace aluminum)
Strong lubricity (Ra≤0.8μm), no corrosion
High viscosity (easily adheres to workpieces, requiring cleaning)
Mist Cooling (Air+Oil mixture)
Thin aluminum (e.g., PCB brackets <2mm)
No 积液 (avoids thin part deformation), smooth chip discharge
Limited cooling range (only suitable for φ≤8mm drills)
Data Support: Using 5% concentration emulsified coolant for drilling φ8mm aluminum holes reduces the cutting zone temperature from 280℃ to 120℃ and chip adhesion from 35% to 8% (Source: Aluminum Machining Cooling Study 2025).

D. Chip Evacuation: Preventing Hole Blockage

Aluminum chips are “continuous coiled chips,” which easily block chip flutes and cause drill overheating or breakage. Efficient chip discharge can be achieved through drilling cycle optimization. Core schemes are as follows:
  1. Peck Drilling (G83): Suitable for deep holes (depth >5×diameter). Retract the drill every 2-3×diameter drilled (Q value = 2-3d). For example, for a φ5mm hole with 25mm depth:
G83 X20 Y30 Z-27 R2 Q10 F150 // Q10=10mm (2×φ5), R2=safe distance
  1. High-Speed Pecking: For high-silicon aluminum (e.g., A356 with 7% silicon content), reduce the Q value to 1×diameter (e.g., Q5 for φ5mm) to reduce friction between chips and hole walls.
  1. Reverse Pecking: For blind holes, reverse the spindle rotation (M04) for 1 second after the final retraction to bring residual chips out of the hole (avoiding depth deviation caused by bottom chip accumulation).

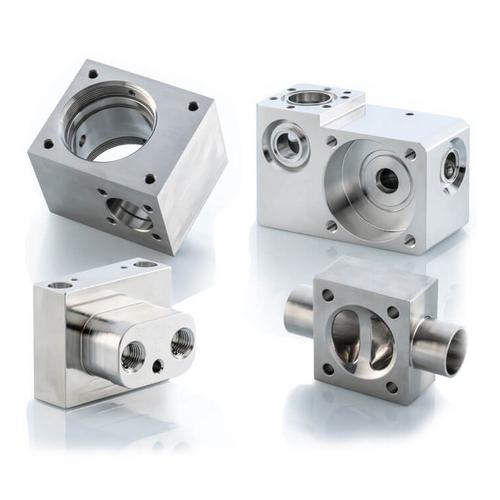

3. Practical Case: CNC Drilling 6061 Aluminum Bracket

(10×φ5mm×10mm through-holes in a 6061 aluminum bracket)
Part Specs: 6061-T6 aluminum bracket (150×80×10mm), 10 φ5mm through-holes (positions: (30,30), (30,60), (60,30)…(120,60)). Requirements: Hole diameter tolerance H8 (φ5+0.013/0), surface roughness Ra≤1.6μm, no chip adhesion.

Step 1: Process Planning

  1. Pre-Drilling: Drill 2mm-deep pilot holes with a φ3mm spot drill (118° point angle) to prevent φ5mm drill deflection.
  1. Final Drilling: Drill φ5mm×10mm through-holes with a φ5mm carbide drill (TiAlN coating, 2-flute) using G83 cycle for chip discharge.
  1. Deburring: Drill 0.5mm-deep chamfers with a φ6mm chamfer mill (45° edge) to remove hole edge burrs.

Step 2: Equipment & Tools

  • Machine: FANUC 0i-MF 3-axis milling center (max spindle speed 8000r/min);
  • Tools: T01 (φ3mm spot drill, HSS), T02 (φ5mm carbide drill, TiAlN coating), T03 (φ6mm chamfer mill);
  • Cooling: 8% concentration emulsified coolant (flow rate 25L/min, pressure 0.4MPa).

Step 3: Programming Snippet (FANUC System)

O0005 (6061 Aluminum Bracket Drilling Program)
G90 G54 G00 X0 Y0 Z15 // Absolute mode, G54 coordinate system, safe height
M08 M03 S8000 // Turn on emulsified coolant, spindle high-speed rotation (preheat for spot drill)
// 1. Pilot hole drilling (T01: φ3mm spot drill)
T0101 S6000 M03 // Spot drill speed: 6000r/min
G81 X30 Y30 Z-2 R2 F120 // Drill pilot hole at (30,30), depth 2mm
X30 Y60
X60 Y30
X60 Y60
X90 Y30
X90 Y60
X120 Y30
X120 Y60
G80 // Cancel drilling cycle
// 2. Final drilling (T02: φ5mm carbide drill)
T0202 S4000 M03 // Drill speed: 4000r/min (suitable for φ5mm)
G83 X30 Y30 Z-12 R2 Q10 F150 // Peck drilling: Q10=10mm (2×φ5), Z-12=through-hole + 2mm overcut
X30 Y60
X60 Y30
X60 Y60
X90 Y30
X90 Y60
X120 Y30
X120 Y60
G80
// 3. Deburring (T03: φ6mm chamfer mill)
T0303 S5000 M03 // Chamfer mill speed: 5000r/min
G82 X30 Y30 Z-0.5 R2 F100 // Counterboring cycle: chamfer depth 0.5mm
X30 Y60
X60 Y30
X60 Y60
X90 Y30
X90 Y60
X120 Y30
X120 Y60
G80
// Program end
G00 X0 Y0 Z50
M05 M09
M30

Step 4: Quality Verification

  • Aperture Check: Use a φ5H8 plug gauge (upper deviation +0.013); all 10 holes pass smoothly (no interference).
  • Surface Roughness: Measure hole walls with a roughness tester; Ra=1.2μm (meets requirements).
  • Chip Check: No residual chips in holes (effective chip discharge via emulsified coolant + G83 cycle).

4. Common Problems & Solutions for CNC Drilling Aluminum

1. Chip Adhesion (Sticky Chips on Drill)

  • Cause: Excessively low speed (cutting temperature >250℃), insufficient cooling, dull drill edges;
  • Solution:
    • Increase speed by 10-20% (e.g., from 3000r/min to 3600r/min for φ5mm);
    • Replace with high-lubricity coolant (e.g., emulsified coolant with 2% extreme pressure additive);
    • Re-grind drill edges with a diamond wheel (maintain sharpness, edge radius ≤0.02mm).

2. Hole Wall Roughness (Ra>3.2μm)

  • Cause: Excessively high feed rate (chip extrusion on hole walls), drill point angle deviation (118°±5°), poor chip discharge;
  • Solution:
    • Reduce feed rate by 15% (e.g., from 150mm/min to 127.5mm/min for φ5mm);
    • Calibrate drill point angle (check with an angle gauge, control deviation within ±2°);
    • Reduce the Q value of G83 (e.g., from 10mm to 8mm to increase chip discharge frequency).

3. Drill Breakage (Small Diameter <3mm)

  • Cause: Excessively high speed (excessive centrifugal force), feed rate fluctuation, unclamped workpiece;
  • Solution:
    • Reduce speed to 4000-5000r/min (for φ2mm drills);
    • Enable the “feed rate smoothing” function (set FANUC Parameter No. 1620 to 50);
    • Clamp thin aluminum parts with a vacuum chuck (avoid drill bending due to vibration).

4. Hole Deviation (Position Error >0.02mm)

  • Cause: Pilot hole deflection, spindle radial runout >0.003mm, workpiece thermal deformation;
  • Solution:
    • Use a spot drill with φ0.5×d (e.g., φ2.5mm pilot hole for φ5mm holes);
    • Calibrate spindle runout (replace angular contact bearings, control within ≤0.002mm);
    • Cool for 10 minutes after drilling before measurement (aluminum thermal expansion coefficient 23.1×10⁻⁶/℃, avoiding misjudgment due to thermal deformation).

5. Q&A: High-Frequency Questions About CNC Drilling Aluminum

Q1: How to drill deep holes in aluminum (depth >10×diameter, e.g., φ5mm×60mm)?

  • Key Steps:
    1. Pre-drill with a “step drill” (φ3mm→φ4mm→φ5mm) to reduce single cutting volume;
    1. Adopt “segmented peck drilling” (G83 Q5, retract 2mm every 5mm drilled) with a high-pressure internal cooling drill (coolant sprays from the drill core);
    1. Reverse the spindle (M04) for 1 second every 20mm drilled to remove residual chips;
  • Effect: Deep hole drilling time reduced by 30%, drill breakage rate reduced from 25% to 5%.

Q2: What’s the difference between drilling 6061 and 7075 aluminum?

  • 7075-T6 (hardness 150HB, high-strength aluminum) causes more drill wear than 6061. Adjust parameters as follows:
Parameter
6061-T6
7075-T6
Spindle Speed
3000-4000r/min (φ5mm)
2500-3000r/min (φ5mm)
Feed Rate
120-150mm/min
100-120mm/min
Tool Coating
TiAlN
AlCrN (higher temp resistance, 1100℃)
  • Reason: 7075 contains zinc (5.1-6.1%), which easily produces hard particles during cutting. Speed must be reduced to protect drill edges.

Q3: How to drill holes in thin aluminum sheets (<1mm, e.g., smartphone aluminum case)?

  • Anti-Deformation Tips:
    1. Clamp with a “rubber pad + vacuum chuck” (avoid workpiece indentation);
    1. Select a 90° point angle drill (reduce axial pressure), speed 5000-6000r/min, feed rate 80-100mm/min;
    1. Reduce feed rate by 50% when drilling through (avoid “jump” causing hole edge deformation);
  • Example: For drilling φ2mm holes in 0.8mm-thick 6061 aluminum cases, the above method reduces hole edge deformation rate from 18% to 2%.

Final Thought

The core of CNC drilling aluminum is not “copying steel drilling parameters” but adapting to aluminum’s “soft, sticky, fast heat-conducting” characteristics—balancing efficiency and quality through a combination of “specialized coated tools + high-speed low-feed + efficient cooling and chip discharge.” Whether drilling thin-walled parts, deep holes, or high-strength aluminum, the key lies in “targeted adjustment of process details” (e.g., pilot hole size, Q value setting, cooling method).
Have you encountered issues like chip adhesion or frequent drill breakage when drilling aluminum? Or do you need parameter guidance for drilling specific aluminum alloys (e.g., 7075, A356)? Feel free to share in the comments—I will provide customized solutions!
