Specialized high-temperature PEEK CNC machining service. We provide precision PEEK components that work stably in 250°C+ environments, with specialized process to overcome PEEK’s unique machining challenges, supporting prototype to low-volume production for aerospace, medical and semiconductor projects.
PEEK Material Capability for High-Temperature Applications
PEEK (Polyetheretherketone) is a high-performance engineering thermoplastic, designed for extreme working environments. As a specialized PEEK machining supplier, we process high-quality PEEK material that meets your strict requirements for high-temperature, high-stress applications.
High Temperature Resistance
Continuous working temperature up to 250°C, short-term peak temperature up to 315°C, ideal for high-temperature working environments.
Excellent Chemical Resistance
Resistant to most chemicals, solvents, acids and bases, works stably in harsh chemical environments, ideal for oil & gas applications.
Superior Electrical Insulation
Excellent dielectric properties even at high temperature, perfect for insulation components in semiconductor and high-voltage equipment.
Lightweight Alternative to Metal
70% lighter than stainless steel, with similar strength, helps to reduce the weight of your equipment, ideal for aerospace and robotics.
All our PEEK material complies with ASTM D6262 standard, and medical grade PEEK complies with ASTM F2026 standard for biocompatible applications.
The Unique Challenges of PEEK Machining
PEEK is a very difficult material to machine, compared with common metals or plastics. Many general CNC shops cannot handle it properly, because of its unique material properties, which leads to dimension deviation, surface defects and part failure. We understand these challenges deeply:
Heat Concentration Issue
PEEK has very low thermal conductivity, which means the heat generated during cutting cannot be dissipated quickly, leading to local overheating of the workpiece, which can cause material melting.
Thermal Expansion Issue
PEEK has much higher thermal expansion coefficient than metals. Local overheating during cutting will cause the workpiece to expand temporarily, leading to dimension drift after cooling, which makes it hard to hold tight tolerance.
Surface & Tool Issue
Overheating during cutting will cause PEEK to melt and smear on the cutting edge, leading to poor surface finish and burrs. Also, the semi-crystalline nature of PEEK causes faster tool wear than common plastics.
Our Specialized Solutions for PEEK Machining
With 10+ years of experience in high-performance plastic machining, we have developed specialized processes to overcome all these PEEK machining challenges, to deliver stable, precision parts that work perfectly in high-temperature environments:
Optimized Cutting Parameters
We use customized cutting speed, feed rate and depth of cut parameters specifically optimized for PEEK, to minimize heat generation during the cutting process, avoiding local overheating.
Dedicated PEEK Tooling
We use specialized carbide tools with polished cutting edges, which are optimized for PEEK machining, to reduce tool wear and avoid material smearing, ensuring smooth surface finish.
Temperature Controlled Machining
We use precision air cooling and MQL (Minimum Quantity Lubrication) strategy during machining, to keep the workpiece temperature stable below 80°C, effectively eliminating thermal expansion error.
Stress Relief Process
We perform standardized annealing stress relief process after machining, to eliminate internal stress of PEEK parts, ensuring long-term dimension stability even in high-temperature working environments.
Post-machining Dimension Calibration
We wait for the workpiece to cool down to room temperature before final inspection and finishing, to ensure that the final dimension is exactly what you need, no dimension drift after cooling.
Process Monitoring
We monitor the machining process in real time, to ensure that all parameters are kept within the optimized range, to deliver consistent quality for every part, even for large batch orders.
Internal Test Data (For Reference Only): In our PEEK machining test, our temperature control strategy reduced the workpiece temperature rise from 45°C to 12°C during cutting, and the dimension deviation was controlled within ±0.015mm, which is far lower than the industry average of ±0.03mm.
Our Precision PEEK Machining Capability

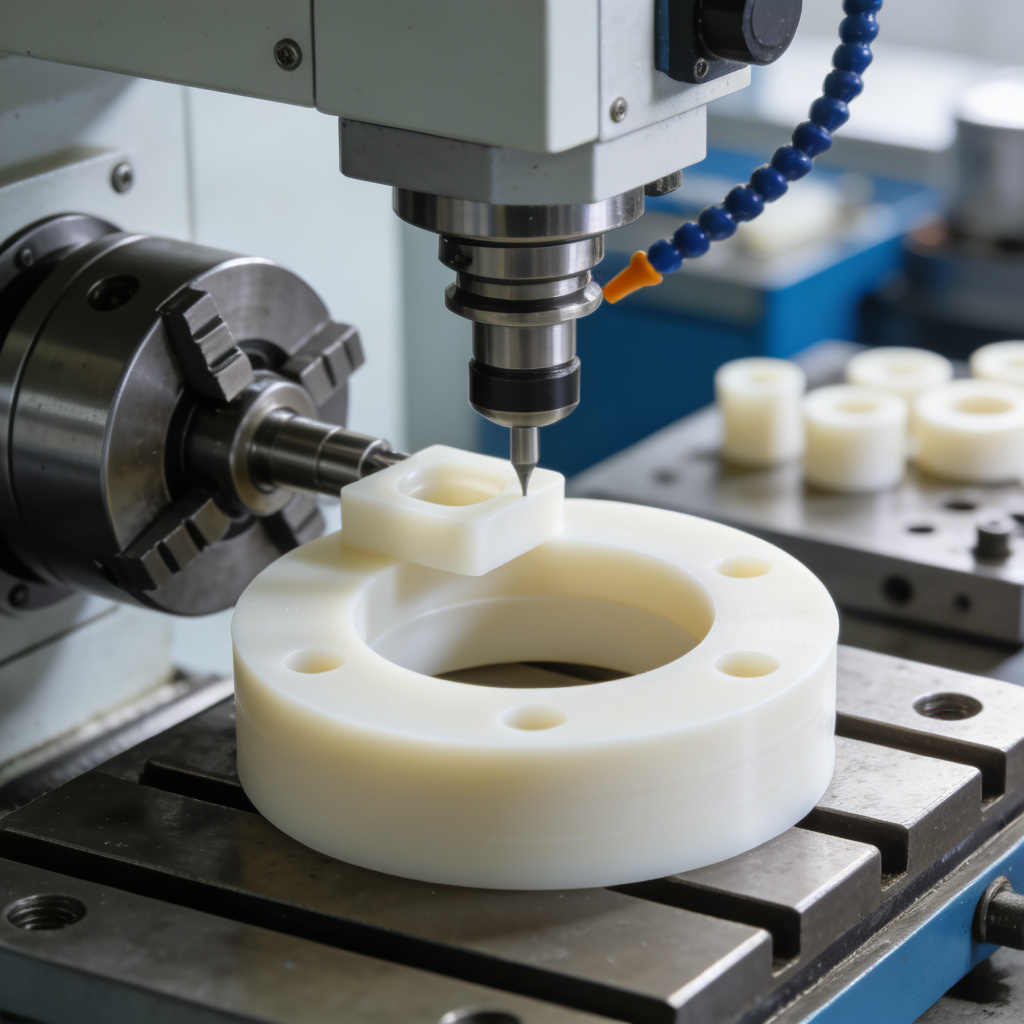

Equipped with advanced 3-axis, 4-axis and 5-axis simultaneous CNC machining centers, we can handle all types of PEEK parts, from simple flat parts to highly complex multi-face components, to meet your most demanding requirements.
- Machining Process: CNC milling, CNC turning, CNC drilling, CNC boring, supporting complex geometry parts
- Axis Support: 3-axis, 4-axis, 5-axis simultaneous machining, for complex curved surfaces and multi-face parts
- Precision Control: Up to ±0.02mm tolerance for PEEK parts, complying with ISO 2768 fine precision standard
- Surface Finish: Up to Ra 0.8μm surface finish, meeting the strict requirements of medical and semiconductor industries
Internal Test Data (For Reference Only): Our 5-axis machining for PEEK achieves positioning accuracy of ±0.008mm within 500mm travel, which ensures that even the most complex PEEK parts can meet your strict precision requirements.

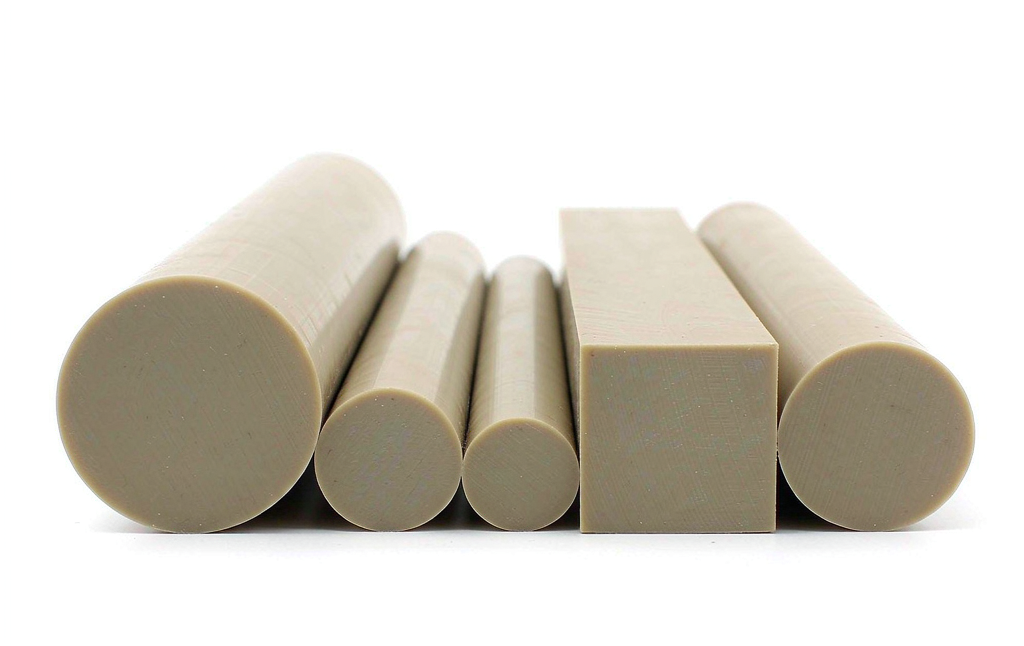

PEEK Material Grades We Process
We process all common PEEK material grades, to match your specific application requirements, whether you need general purpose, high strength, or wear resistant PEEK parts:
Virgin PEEK
Unfilled natural PEEK, with the best biocompatibility, ideal for medical devices, food equipment and general high-temperature applications.
Glass-filled PEEK
30% glass fiber filled PEEK, with higher stiffness and temperature resistance, ideal for structural components in high-temperature environments.
Carbon-filled PEEK
30% carbon fiber filled PEEK, with higher strength, wear resistance and lower thermal expansion, ideal for high-stress, high-wear applications.
Industry Applications We Serve
With our specialized high-temperature PEEK machining capability, we have served thousands of projects for high-end industries, we understand the specific requirements of different industries, to deliver parts that meet your strict standards:
Aerospace
Lightweight high-temperature components, insulation parts, aircraft interior components, AS9100 compliant aerospace parts.
Medical Devices
Biocompatible surgical instruments, medical device components, implantable parts, complying with medical grade standards.
Semiconductor Equipment
High-temperature wafer handling parts, insulation components, chamber parts, for semiconductor manufacturing equipment.
Oil & Gas
High-temperature downhole parts, chemical resistant components, valve parts, for harsh oil & gas working environments.
Full Quality Inspection & Documentation
For high-temperature PEEK parts, quality and stability are critical. We provide full inspection and documentation support, to ensure that your parts meet all your requirements, with full traceability:
- Material Certification: Full material certification for PEEK, to ensure the material meets your specification and temperature requirements

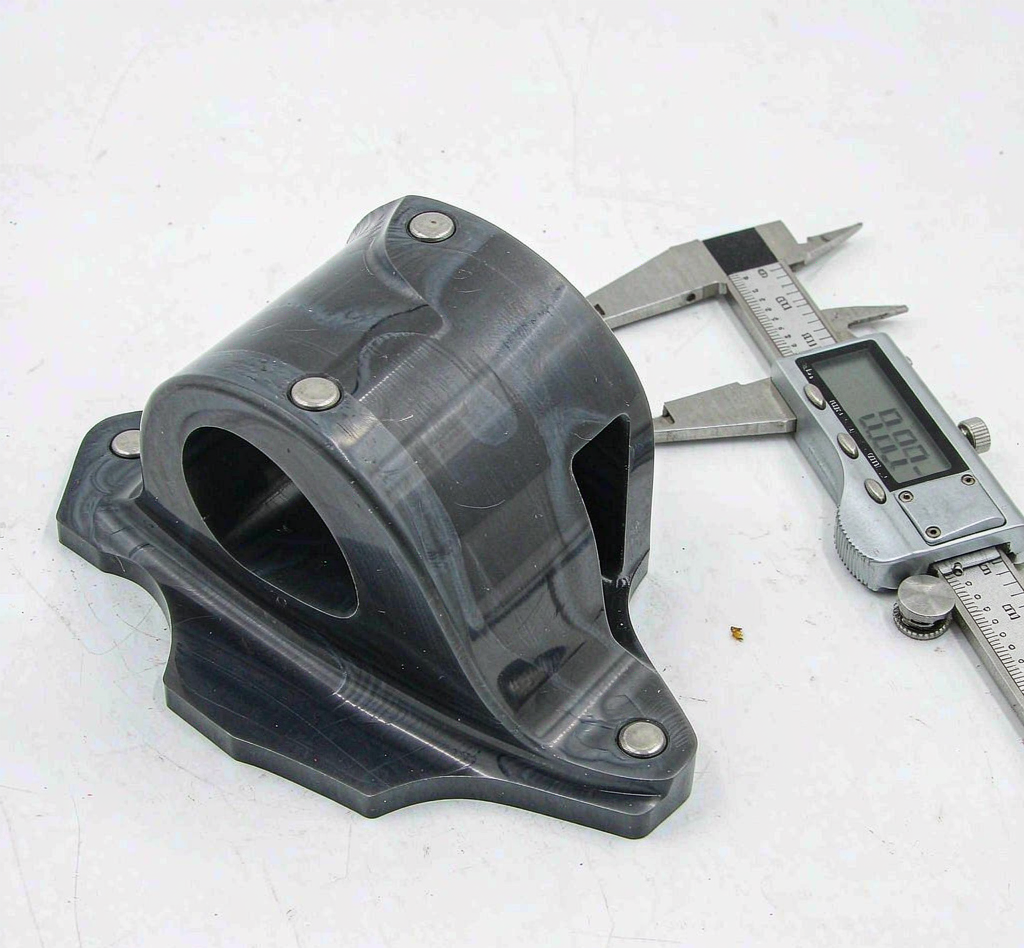

- CMM Inspection: Full CMM (Coordinate Measuring Machine) inspection for all critical dimensions, to verify the precision of your parts
- First Article Inspection: FAI report for first article parts, to confirm all requirements are met before mass production
- Process Documentation: Full process documentation, to ensure full traceability of your order, especially for aerospace and medical customers
Learn more about our precision control in our CNC Machining Tolerance Guide.
Flexible Order Support for Your High-Temp Project
We understand that high-end PEEK projects need flexible order options, so we provide fully flexible service to help you start with low risk, whether it is a prototype test or small batch production:
No MOQ Requirement
We have no minimum order quantity. You can order 1 piece prototype or 10,000+ mass production parts, exactly what you need.
Rapid Prototyping
We support fast prototype production, you can get your custom PEEK prototype in as fast as 3-7 days, to verify your design quickly.
Fast Lead Time
Prototype: 3-7 days, Small batch: 7-10 days. We also support rush order for your urgent project deadline.
Frequently Asked Questions
Can you machine PEEK for high-temperature environments?
Yes, we have specialized expertise in high-temperature PEEK machining. We can process PEEK parts that can work stably in up to 250°C continuous high-temperature environments, with strict dimension control to ensure long-term stability.
What tolerance can you achieve for PEEK parts?
We can achieve up to ±0.02mm tolerance for PEEK parts, with our specialized temperature control process, we effectively eliminate thermal expansion error, to ensure consistent precision.
How do you control deformation during PEEK machining?
We use optimized cutting parameters, specialized cooling strategy and post-machining stress relief process, to control the temperature and eliminate thermal expansion and internal stress, to avoid deformation.
Do you support small batch production for PEEK parts?
Yes, we support small batch production, and we have no minimum order quantity. You can order 1 piece prototype or 10,000+ mass production parts, exactly what you need.
What types of PEEK can you machine?
We can process all common PEEK grades, including virgin PEEK, glass-filled PEEK and carbon-filled PEEK, to match your specific application requirements.
Can you provide DFM suggestions for my PEEK design?
Yes, we provide free DFM (Design for Manufacturability) analysis for every order. Our engineers will check your design, give feedback to help you optimize the design for PEEK machining, reduce cost and avoid potential issues.
Can you support rush order for urgent project?
Yes, we support rush order service. We can prioritize your order to meet your urgent deadline, please contact us to discuss your specific requirement.
Can you provide material certification and inspection report?
Yes, we can provide full material certification, CMM inspection report, FAI report and other required documents, to ensure full traceability of your parts, especially for medical, aerospace and semiconductor customers.
