Looking for reliable CNC prototype machining aluminum steel services? At XiaMen GoldCattle, we deliver high-precision custom prototype parts with 3-7 days rapid turnaround, supporting 1-piece prototyping to low-volume production. Whether you need aluminum parts for lightweight design validation or steel components for functional strength testing, our 20+ years of CNC manufacturing expertise ensures your parts meet the strictest tolerance and quality requirements. We serve engineers, product developers, and procurement managers across the USA and Europe, providing end-to-end solutions from DFM analysis to final inspection.
What is CNC Prototype Machining?
CNC prototype machining is a subtractive manufacturing process that uses computer-controlled cutting tools to remove material from a solid block, creating precise custom parts from your CAD files. Unlike additive manufacturing or molding, this process uses real, production-grade materials, allowing you to fully test the mechanical properties, functionality, and fit of your design before mass production.
CNC vs. Other Prototyping Methods
CNC Machining vs. 3D Printing
While 3D printing is fast for concept models, it uses plastic or sintered materials with limited strength. CNC machining delivers production-grade aluminum and steel parts with true material properties, ideal for functional testing, load-bearing components, and high-precision assemblies. It also offers far better surface finish and dimensional accuracy for complex geometries.
CNC Machining vs. Casting
Casting requires expensive custom molds and long lead times, making it uneconomical for prototyping or low-volume orders. CNC machining requires no tooling costs, allowing you to get your parts in days instead of weeks. It also enables easy design iterations, so you can modify your CAD file and produce updated prototypes without re-investing in new molds.

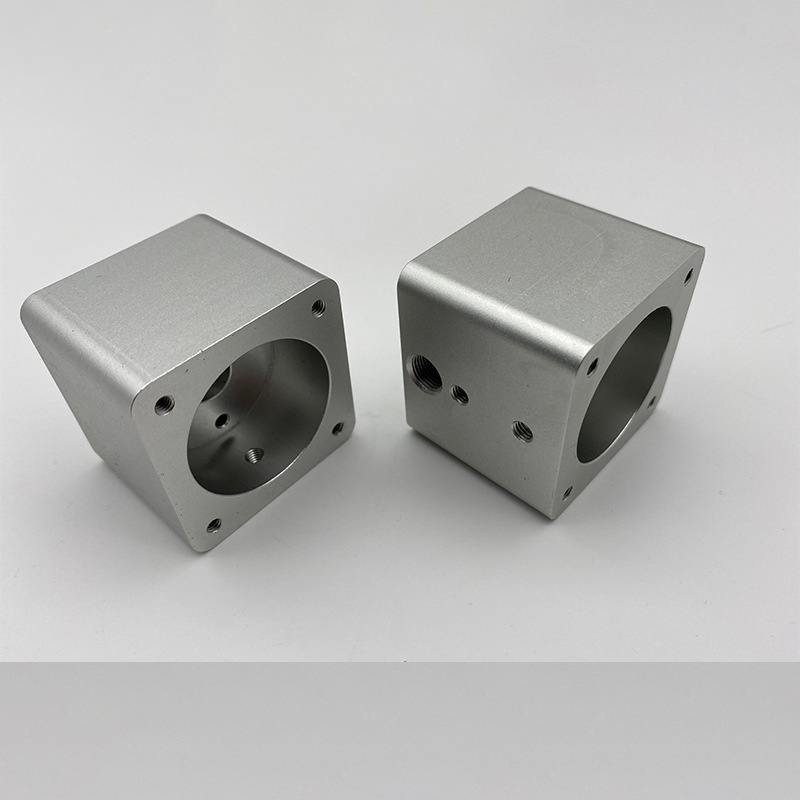

Aluminum vs Steel in CNC Prototyping
Choosing the right material is critical for your prototyping project. Aluminum and steel are the two most popular options, each with unique advantages for different applications. Below is a detailed comparison to help you make the right decision:
| Property | Aluminum | Steel |
|---|---|---|
| Weight | Light (2.7g/cm³) | Heavy (7.85g/cm³) |
| Machinability | Excellent (High cutting speed) | Medium (Requires optimized parameters) |
| Cost | Lower (Faster processing, lower material cost) | Higher (Slower processing, higher material cost) |
| Strength | Medium (310MPa tensile for 6061-T6) | High (600MPa tensile for 1045 steel) |
| Corrosion Resistance | Good (Natural oxide layer, can be anodized) | Depends on grade (Stainless steel offers excellent resistance) |
| Surface Finish | Superior (Ra up to 0.8μm easily achievable) | Good (Ra up to 1.6μm with fine finishing) |
Aluminum: Ideal for Rapid Design Validation
Aluminum is the most popular material for CNC aluminum prototyping due to its excellent machinability. It allows us to run high cutting speeds, reducing lead times and production costs. Aluminum parts are lightweight, making them perfect for aerospace, robotics, and electronics applications where weight reduction is critical. It also offers great corrosion resistance and can be easily anodized to add color, wear resistance, and corrosion protection.
Steel: Perfect for Functional Strength Testing
For parts that need to withstand high loads, wear, or high temperatures, steel is the ideal choice. CNC steel prototype machining delivers parts with exceptional strength and durability, allowing you to perform real functional testing that matches your final production parts. Whether you need carbon steel for high-strength structural parts or stainless steel for medical and food-grade applications, we can deliver precision parts that meet your requirements.
Procurement Tip: For prototype projects, we recommend aluminum for early-stage design validation to save cost and speed up iteration, and steel for late-stage functional testing to verify the performance of your final product.
Our CNC Prototype Machining Capabilities
As a professional rapid CNC prototyping services provider, we have the equipment, expertise, and process to handle all your custom prototype needs. Our capabilities ensure we can deliver parts that meet your strictest requirements:
Precision Accuracy
- Tight tolerance control: ±0.01mm for standard parts, ±0.005mm for high-precision components
- Surface roughness: Ra 0.8μm to Ra 3.2μm, with custom fine finishing available
- Compliant with ISO 2768 general tolerances and ASME Y14.5 geometric dimensioning standards
Advanced Equipment

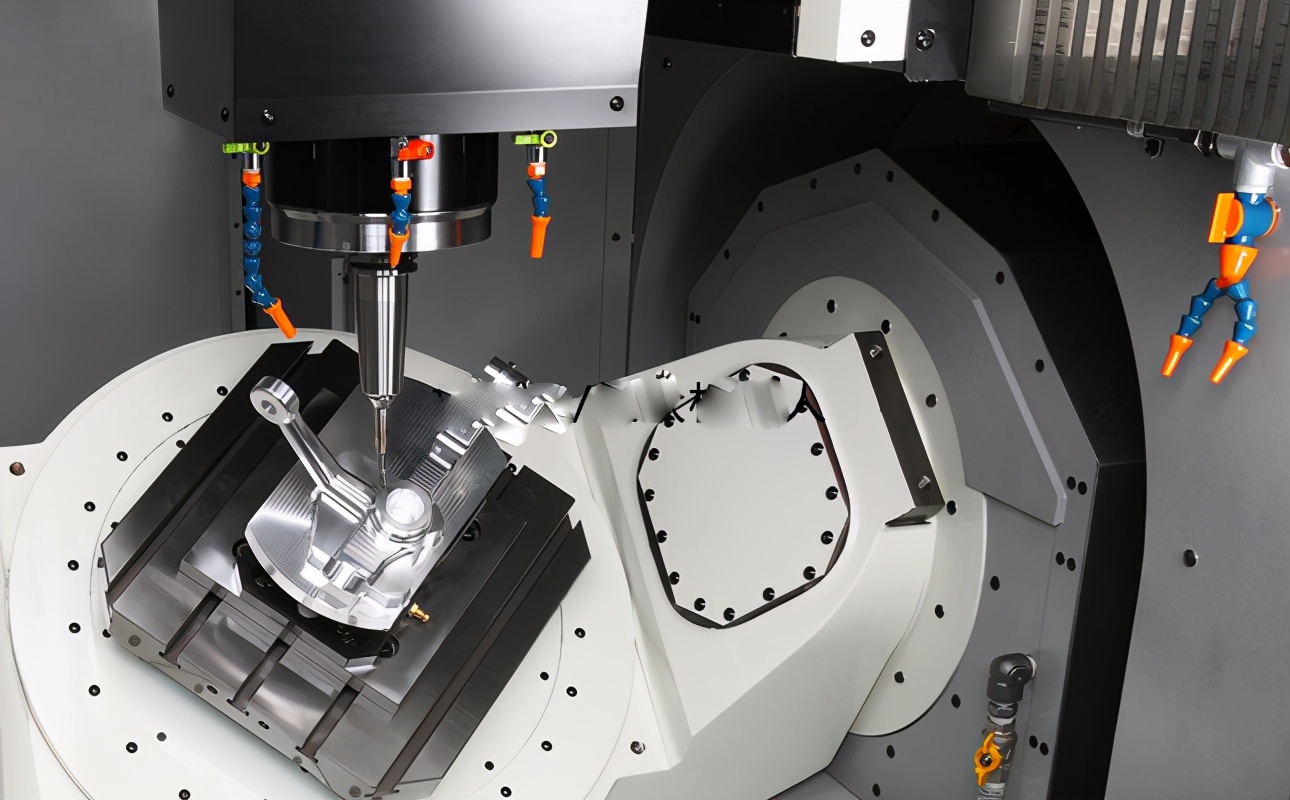

- 3-axis, 4-axis, and 5-axis CNC milling machines for complex 3D geometries
- CNC turning machines for rotational parts, with live tooling for mill-turn operations
- Automatic tool changers and in-process probing to ensure consistent accuracy
Volume Flexibility
- 1-100 pcs prototype orders, with no minimum order quantity
- Low volume CNC machining aluminum and steel production up to 10,000 pcs
- Flexible production lines to handle urgent orders and design changes
Fast Turnaround
- Standard lead time: 3-7 days for most prototype parts
- Expedited 24-hour emergency prototyping service for urgent projects
- 12-hour quotation turnaround for all standard CAD files
Available Materials
We work with a wide range of aluminum and steel alloys to match your application requirements:
Aluminum Alloys
- 6061-T6: General purpose alloy, perfect balance of strength, machinability, and cost. Ideal for most prototyping projects.
- 7075-T6: High-strength aerospace-grade alloy, for load-bearing structural components.
- 5052-H32: Excellent corrosion resistance, ideal for marine and outdoor applications.
Steel Alloys
- 1018 Cold Rolled Steel: Low carbon steel, easy to machine, good for general purpose parts.
- 1045 Carbon Steel: Medium carbon steel, high strength, good for wear-resistant parts.
- Stainless Steel 303/304/316: Excellent corrosion resistance, for medical, food, and chemical applications.

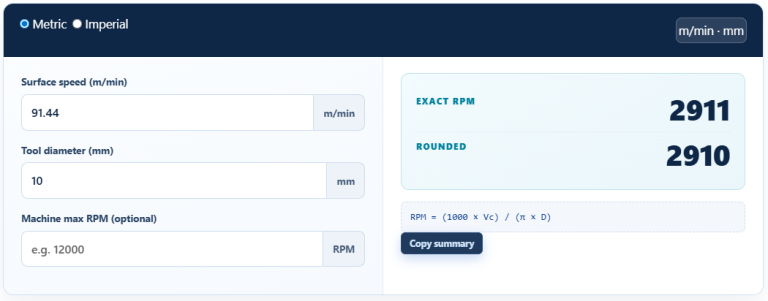

Internal Machining Test Data (For Reference Only): For 6061-T6 aluminum, we use φ10mm carbide end mills with 10,000-12,000 RPM spindle speed and 800-1500 mm/min feed rate, achieving tool wear less than 0.002mm after 100 parts. For 1045 steel, we optimize parameters to 3,000-3,500 RPM and 500-600 mm/min feed rate, ensuring stable dimensional accuracy within ±0.008mm.
Industry Applications

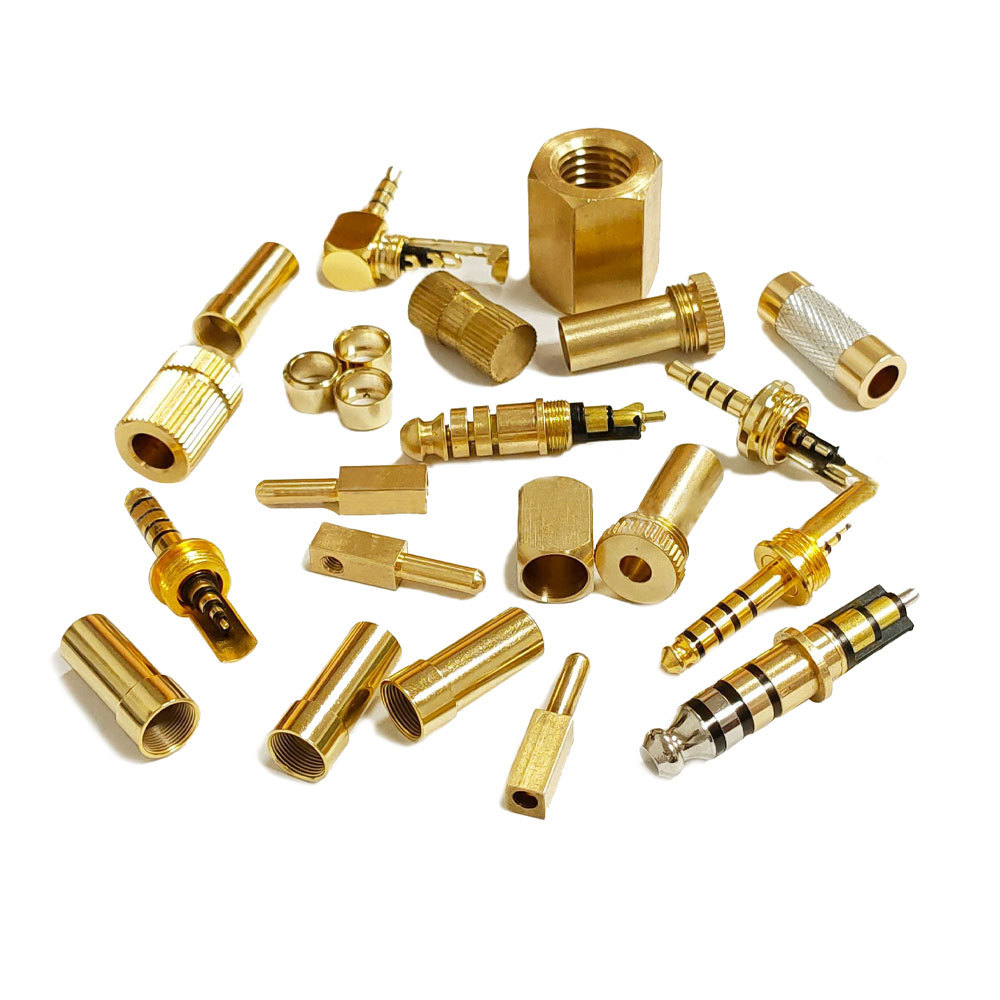

Our custom CNC prototype parts serve a wide range of industries across the USA and Europe, helping companies accelerate their product development cycles. We understand the specific requirements of each industry and deliver parts that meet their strict regulatory and performance standards:
Automotive Prototype Parts
We deliver precision aluminum and steel prototypes for electric vehicle components, including battery trays, motor housings, and structural parts. For one EV client, we reduced their battery tray production cycle from 30 days to 7 days, helping them accelerate their vehicle launch.
Aerospace Components
Our AS9100 compliant process delivers high-precision 7075 aluminum and stainless steel parts for aircraft and drone components. We supported a drone client with 24-hour emergency prototyping, helping them complete their flight test 3 weeks ahead of schedule.
Medical Device Prototypes
We produce ISO 13485 compliant stainless steel and aluminum parts for medical devices, including surgical instruments, diagnostic equipment components, and implantable parts. We helped a medical client cut their R&D cycle from 6 months to 3 months with our rapid prototyping service.
5G & Electronics Enclosures
For 5G communication equipment, we machined aluminum enclosures with tight tolerance control of ±0.0048mm, ensuring perfect assembly and signal shielding. The parts passed all environmental tests with 99.73% pass rate.
Robotics Parts
We deliver lightweight aluminum parts and high-strength steel components for robotic arms, grippers, and drive systems, combining precision and durability to meet the dynamic requirements of automated systems.
Industrial Equipment
From motor end covers to semiconductor equipment parts, we deliver custom prototypes that help industrial equipment manufacturers validate their designs before mass production, with consistent quality and fast delivery.
Why Choose CNC for Your Prototyping Project?
Ultra High Precision
CNC machining delivers unmatched dimensional accuracy and tight tolerances, perfect for complex assemblies that require perfect fit and function.
Real Material Testing
Use production-grade aluminum and steel to test the real mechanical properties, strength, and corrosion resistance of your design.
No Mold Cost
No upfront tooling or mold costs, making it extremely cost-effective for prototyping and low-volume production runs.
Fast Turnaround
Get your parts in 3-7 days, with emergency 24-hour service available to keep your project on schedule.
Easy Design Iteration
Modify your CAD file and produce updated prototypes in days, no need to rework molds or tooling for design changes.
Wide Material Options
Access a full range of aluminum and steel alloys, plus other metals, to match the exact material requirements of your project.
Surface Finishing Options
We offer a full range of surface finishing services to enhance the appearance, corrosion resistance, and wear resistance of your prototype parts, helping you meet your functional and aesthetic requirements:
For Aluminum Parts

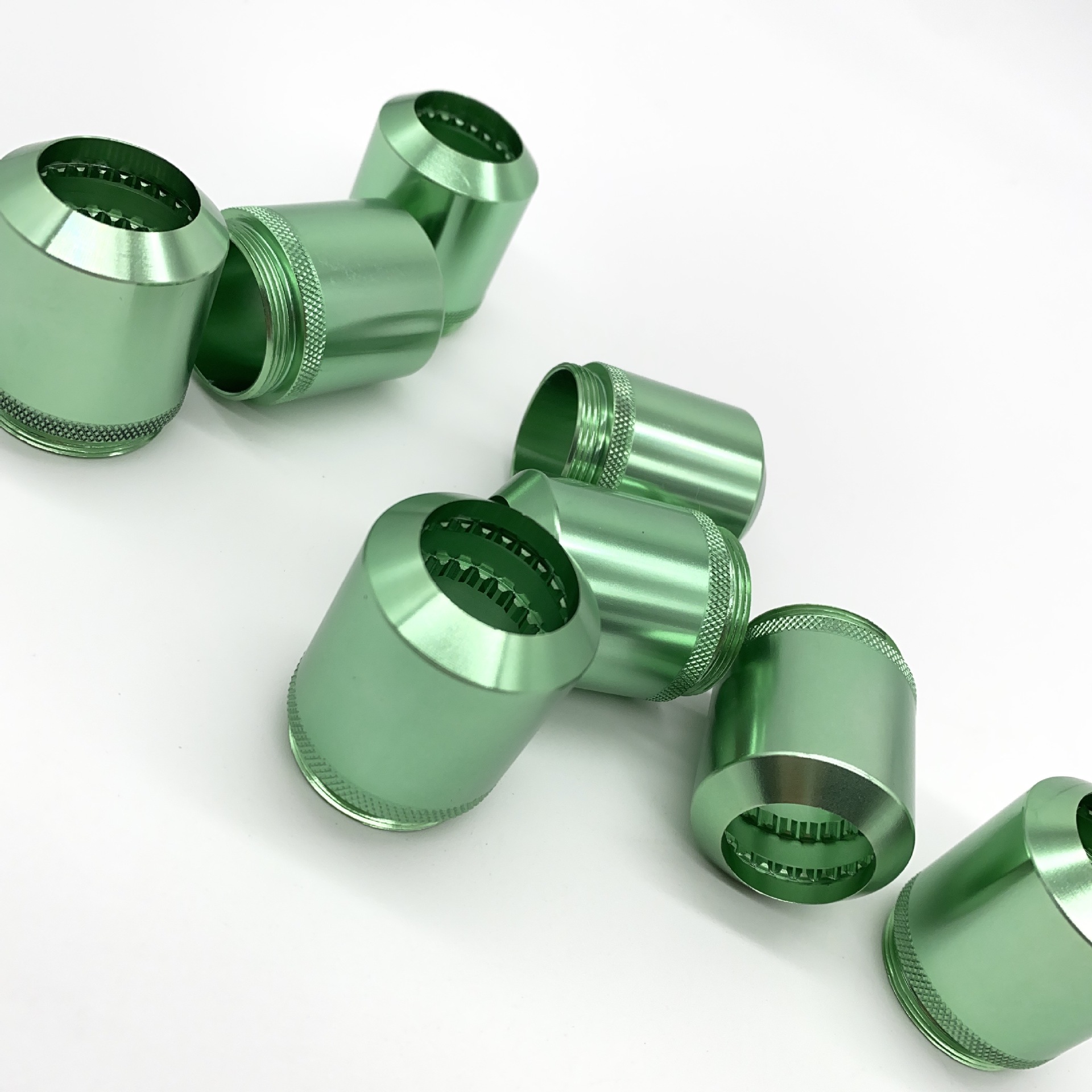

- Anodizing: Clear, color, or hard coat anodizing to improve corrosion resistance, wear resistance, and add custom color options.
- Sandblasting: Matte, uniform surface finish, removing machining marks and preparing parts for further finishing.
- Brushing: Decorative linear texture for aesthetic parts, common for electronics enclosures.
- Passivation: Improve corrosion resistance for aluminum parts used in harsh environments.
For Steel Parts
- Polishing: Mirror or brushed finish for decorative and sanitary parts, common for medical and food equipment.
- Electroplating: Zinc, nickel, or chrome plating to improve corrosion resistance and wear resistance.
- Black Oxide: Matte black finish, providing mild corrosion resistance and aesthetic appearance.
- Powder Coating: Durable protective coating with custom color options, for industrial and outdoor parts.
Strict Quality Control System
For European and American clients, quality and traceability are the top priorities. We have a complete quality control system to ensure every part we deliver meets your requirements:

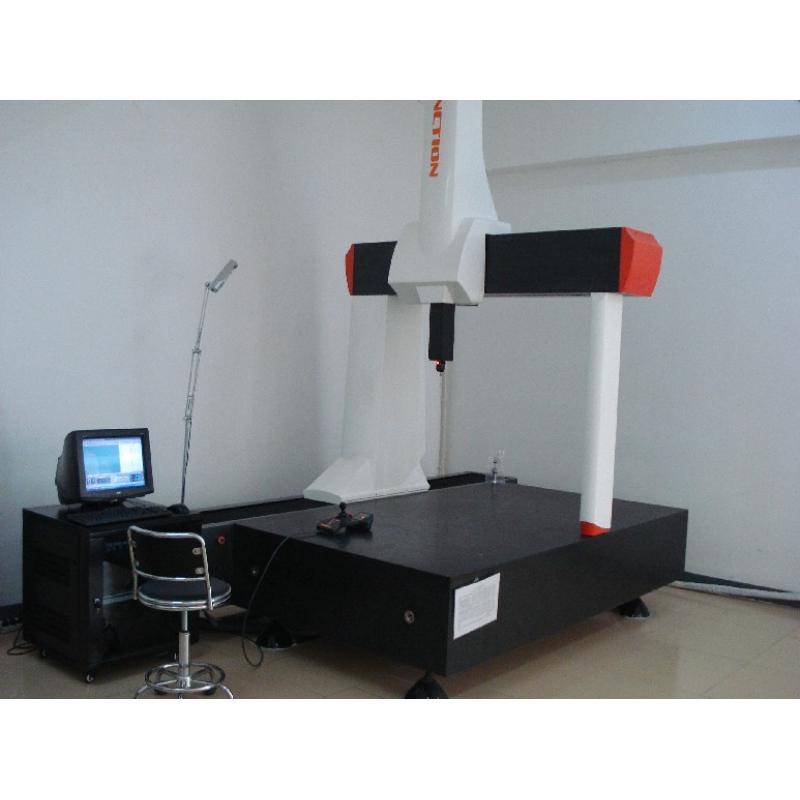

- CMM Inspection: We use high-precision coordinate measuring machines to perform full dimensional inspection on every production batch, ensuring all parts meet your tolerance requirements.
- Material Certification: We provide full material test reports (MTR) for all raw materials, ensuring traceability and compliance with industry standards.
- ISO Certified System: Our factory is certified with ISO 9001, ISO 13485, and AS9100, ensuring consistent quality management across all processes.
- Full Inspection Reports: We provide detailed first article inspection (FAI) reports and full inspection reports with every order, so you can verify the quality of your parts before assembly.
- In-Process Testing: We perform in-process testing and probing during machining to catch any issues early, ensuring zero defects in final parts.
Why Choose XM Gold Cattle as Your CNC Prototype Supplier?
20+
Years of CNC Manufacturing Experience
12h
Fast Quotation Turnaround
99.7%
On-Time Delivery Rate
1000+
Happy US/EU Clients
Unlike other suppliers, we don’t just machine parts. We act as your engineering partner:
- Free DFM (Design for Manufacturability) analysis within 1 hour of receiving your CAD file, helping you optimize your design to reduce cost and improve manufacturability.
- Professional material selection advice, helping you choose between aluminum and steel to match your project budget and requirements.
- 10+ years of export experience to the USA and Europe, handling all customs and shipping documentation to ensure smooth delivery.
- Dedicated project manager for every order, providing real-time updates and support throughout the production process.
Frequently Asked Questions
What is the best material for CNC prototyping?
For most general prototyping projects, 6061 aluminum is the best choice, offering a great balance of cost, machinability, and strength. For high-strength or corrosion-resistant applications, steel or stainless steel is recommended.
Aluminum vs steel for prototype machining, which one should I choose?
Choose aluminum if you need lightweight parts, fast turnaround, and lower cost for design validation. Choose steel if you need high strength, wear resistance, or functional testing for load-bearing parts.
What is your minimum order quantity?
We have no minimum order quantity. We can produce 1 piece prototype, or low volume production up to 10,000 pieces, to meet your different project needs.
How fast can you deliver prototypes?
Our standard lead time is 3-7 days for most prototype parts. We also offer expedited 24-hour emergency prototyping service for urgent projects.
Can you do surface finishing for prototype parts?
Yes, we offer a full range of surface finishing services, including anodizing, sandblasting, polishing, electroplating, and more, to meet your functional and aesthetic requirements.
What file formats do you accept?
We accept all common CAD file formats, including STEP, IGES, STL, SolidWorks, Pro/E, AutoCAD DXF/DWG, and PDF. We can also work with 2D drawings if needed.
Do you ship to USA and Europe?
Yes, we have 10+ years of export experience to the USA, Canada, Germany, UK, and other European countries. We handle all shipping and customs documentation to ensure smooth delivery to your door.
Ready to Get Your CNC Prototype Quote?
Upload your CAD file now, get a free quotation within 12 hours, and start your project in 24 hours.
