With 20 years of specialized experience in CNC manufacturing for difficult-to-machine materials, we have refined our processes to deliver consistent, repeatable high-precision titanium parts that meet the strictest industry standards. This comprehensive guide will walk you through everything you need to know about high tolerance titanium machining, from material properties and manufacturing processes to custom services, compliance standards, and real-world performance data.
Quick Overview
What is the tightest tolerance achievable for titanium parts?
With our specialized 5-axis machining processes and thermal compensation systems, we consistently achieve tolerances as tight as ±0.005mm (0.0002″) for titanium components, with surface finishes down to Ra 0.2μm for ultra-precision applications.
Our Core Capabilities:
- 5-axis simultaneous machining for complex geometries in single setup
- Full material traceability per ASTM/ISO international standards
- ISO 9001, AS9100D, ISO13485 certified quality management system
- End-to-end support from rapid prototyping to mass production
Titanium Material: Properties & Grades
Titanium is far more than just a lightweight metal. Its unique material properties make it ideal for high-precision, high-performance applications, but they also create unique machining challenges. Understanding these properties is the first step to achieving consistent high tolerance results.

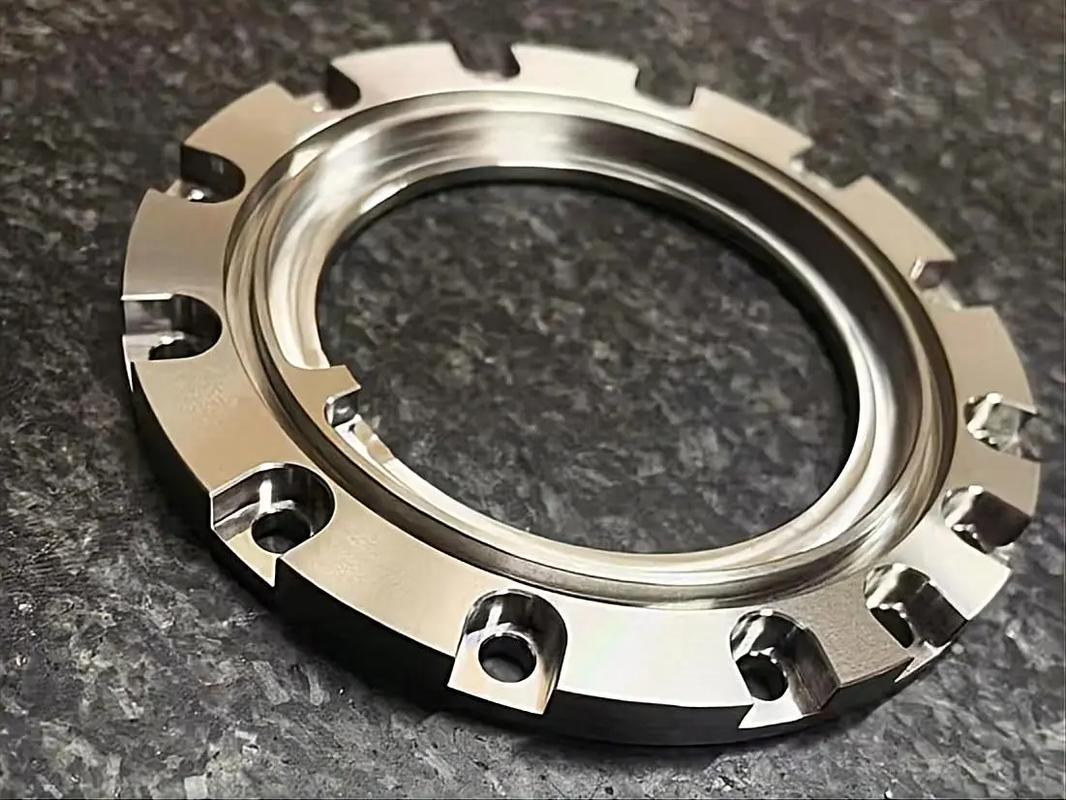

Custom high tolerance titanium machined components for aerospace applications
We work with all common titanium grades, each tailored to specific application requirements:
| Grade | Type | Key Properties | Typical Applications |
|---|---|---|---|
| Grade 1 | Commercially Pure | Excellent ductility, corrosion resistance | Chemical processing, marine components |
| Grade 2 | Commercially Pure | Balanced strength and formability | Heat exchangers, aerospace structures |
| Grade 5 (Ti-6Al-4V) | Alpha-Beta Alloy | High strength, heat treatable | Aerospace engine parts, medical implants |
| Grade 23 (Ti-6Al-4V ELI) | Extra Low Interstitial | Superior biocompatibility, high toughness | Surgical implants, dental components |
| Grade 9 (Ti-3Al-2.5V) | Alpha-Beta Alloy | Good weldability, medium strength | Aircraft hydraulic tubing, sports equipment |
High Precision Titanium Machining Process
Unlike aluminum or steel, titanium requires a specialized, step-by-step machining process to overcome its inherent challenges: low thermal conductivity, high chemical reactivity, and low modulus of elasticity. Our 20 years of experience has allowed us to refine this process to deliver consistent high tolerance results.
1. Pre-Machining Preparation

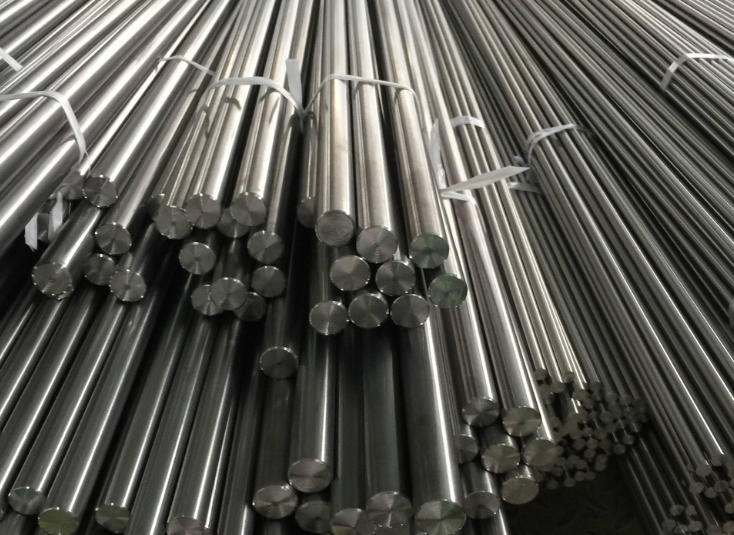

Before any cutting begins, we perform stress relief heat treatment on the raw titanium billet to eliminate internal residual stresses. This prevents part deformation during and after machining, a critical step for maintaining tight tolerances. We also conduct a full Design for Manufacturability (DFM) analysis to optimize your part design for precision and cost efficiency.

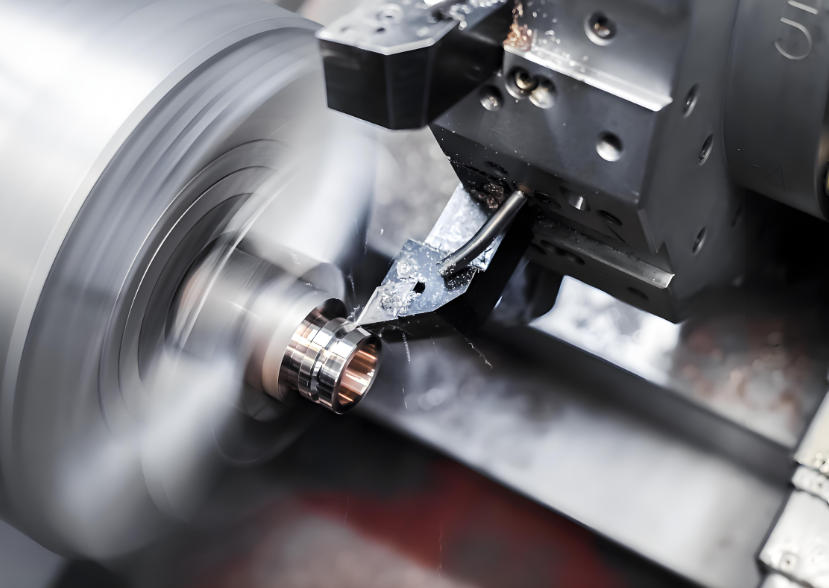

2. Rough Machining
We use trochoidal (dynamic) milling strategies for roughing to remove 80-90% of the excess material. This strategy maintains a constant tool engagement angle, preventing thermal spikes that cause rapid tool wear. We use high-pressure (1000+ PSI) through-spindle coolant to blast away chips and deliver cooling directly to the cutting edge, controlling heat buildup.
3. Semi-Finish Machining
This intermediate step prepares the part for final finishing. We leave a uniform 0.1-0.2mm stock layer for the final pass, and adjust for the natural deflection of titanium material under cutting forces. This ensures that the final cut will hit the exact target dimensions, rather than being offset by material springback.

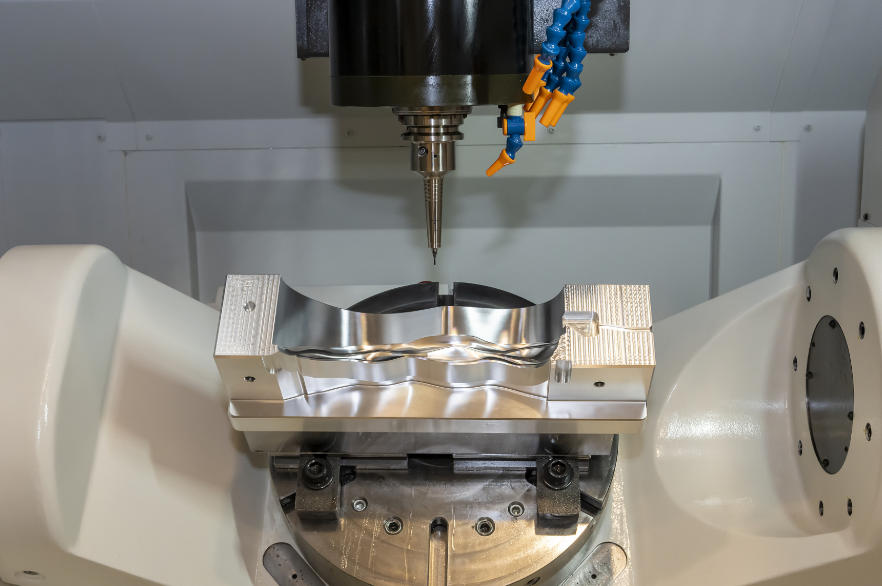

4. Finish Machining
For the final step, we use our 5-axis simultaneous CNC machines with sharp, AlTiN-coated carbide tools. The coating acts as a thermal barrier, protecting the tool from the extreme cutting temperatures. We use optimized cutting parameters: lower spindle speeds to avoid heat generation, and controlled feed rates to ensure clean, precise cuts. Our machines are equipped with real-time thermal compensation systems to counteract any minor temperature changes that could affect dimensional accuracy.

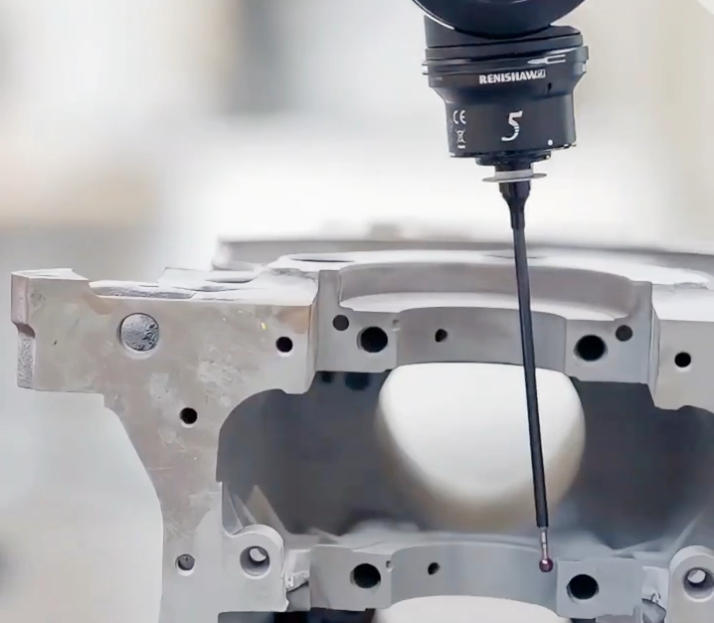

5. Post-Processing & Quality Inspection
After machining, we perform any required secondary operations such as heat treatment, passivation, or polishing. Every part then undergoes a full 100% inspection using our coordinate measuring machine (CMM) to verify that all dimensions meet the specified tolerances, with full documentation for traceability.
Custom High Tolerance Titanium Parts Services
We offer end-to-end custom titanium machining services tailored to your unique project requirements, from early-stage prototyping to full-scale mass production.
Rapid Prototyping
For your R&D and design validation stages, we offer rapid prototyping services with lead times as fast as 5-7 days. We can produce 1-10 custom titanium parts with the same high tolerance capabilities as our production parts, allowing you to test your design quickly and iterate efficiently.
Low-Volume Production
For small batch production runs (11-1000 parts), we offer flexible manufacturing solutions. We maintain a full inventory of certified titanium raw materials to reduce lead times, and our dedicated process engineers ensure consistent quality from the first part to the last. This is ideal for pre-production trials, custom equipment builds, or low-volume medical device projects.
Mass Production
For high-volume production (1000+ parts), we implement Statistical Process Control (SPC) to monitor and maintain process stability. We optimize tool paths and fixturing to reduce cycle times while maintaining micron-level tolerances. We can support continuous production runs with on-time delivery schedules, ensuring your supply chain remains uninterrupted.
One-Stop Custom Solutions
We handle every step of the process in-house: raw material procurement, precision machining, surface treatment (anodizing, passivation, polishing, etc.), quality inspection, and global shipping. This eliminates the need to coordinate with multiple vendors, reducing lead times and ensuring full accountability for quality.
Key Advantages of Custom High Precision Titanium Parts
Exceptional Strength-to-Weight
Titanium offers strength comparable to high-strength steel, while being 45% lighter. This allows you to reduce component weight without sacrificing structural integrity, critical for aerospace and automotive lightweighting.
Superior Corrosion Resistance
Titanium naturally forms a protective oxide layer, making it resistant to saltwater, acids, and extreme environmental conditions. This eliminates the need for expensive protective coatings in most cases, reducing long-term maintenance costs.
Full Biocompatibility
Titanium is non-toxic and fully compatible with human tissue and bone, making it the gold standard for medical implants, surgical instruments, and dental components. Our high tolerance machining ensures perfect fit for implantable devices.
High Temperature Stability
Titanium retains full mechanical properties at temperatures up to 600°C, making it ideal for engine components, exhaust systems, and other high-temperature applications where other metals would fail.
Micron-Level Precision
Our high tolerance machining ensures perfect fit and alignment of components, reducing assembly errors, minimizing wear, and extending the service life of your products. This is critical for mission-critical components where even a micron of deviation can cause failure.
Long-Term Durability
Titanium parts have exceptional fatigue resistance, allowing them to withstand millions of load cycles without failure. Combined with our precision machining, this results in parts that last decades even in the harshest operating environments.
Why Choose Us for Your High Tolerance Titanium Parts
With 20 years of specialized experience in titanium machining, we have the expertise, equipment, and quality systems to deliver the precision parts you need, on time and on budget.
- Specialized Titanium Expertise: Our team of engineers and machinists have decades of experience working exclusively with difficult-to-machine materials like titanium. We understand the unique challenges of titanium machining and have refined our processes to overcome them.
- Advanced 5-Axis Equipment: We operate a fleet of top-tier 5-axis CNC machining centers, equipped with in-process probing and real-time thermal compensation. This allows us to machine complex geometries in a single setup, eliminating cumulative errors from multiple fixturing steps.
- Rigorous Quality Control: Every part undergoes 100% full inspection using our calibrated CMM, optical scanners, and surface profilometers. We maintain full traceability for every part, with detailed inspection reports available for every order.
- Industry Certifications: We are certified to ISO 9001:2015, AS9100D, and ISO13485, meeting the strictest quality requirements of the aerospace, medical, and defense industries. We can provide all required certification documentation for your compliance needs.
- Fast & Transparent Service: We provide 2-hour quick quotes for your projects, with transparent pricing and no hidden costs. We guarantee on-time delivery, with expedited options available for urgent projects.
Compliance & Industry Standards
All our high tolerance titanium machining services strictly adhere to international industry standards to ensure your parts meet the regulatory requirements of your industry:
Material Standards
- ASTM B348: Standard specification for titanium and titanium alloy bars and billets
- ISO 5832: Implants for surgery – Metallic materials (for medical grade titanium)
- AMS 4928: Aerospace material specification for Ti-6Al-4V alloy
Quality Management Standards
- ISO 9001:2015: General quality management system
- AS9100D: Aerospace quality management system
- ISO 13485: Medical device quality management system
Dimensional & Tolerance Standards
- ISO 2768-f: Fine precision tolerances for linear and angular dimensions
- AS9102: First Article Inspection (FAI) requirements for aerospace components
- ISO 1302: Indication of surface texture in product documentation
Performance Test Data
We have conducted extensive testing to validate our high tolerance titanium machining capabilities. The following data is based on our internal testing of Ti-6Al-4V (Grade 5) parts, to demonstrate the relationship between tolerance requirements, processing time, and cost.
Test Conditions: Machine: HAAS UMC-750 5-axis CNC Milling Center; Tooling: AlTiN coated carbide end mills; Material: Ti-6Al-4V (Grade 5); Part Size: 80mm x 60mm x 25mm
| Tolerance Level | Machining Time | Inspection Time | Tool Wear Rate | Cost per Part | First Pass Yield |
|---|---|---|---|---|---|
| ±0.005mm | 210 min | 35 min | 12% | $420 | 99.2% |
| ±0.01mm | 165 min | 20 min | 8% | $315 | 99.7% |
| ±0.05mm | 110 min | 8 min | 4% | $210 | 99.9% |
* Data for reference only, actual results may vary based on part complexity and specific requirements.

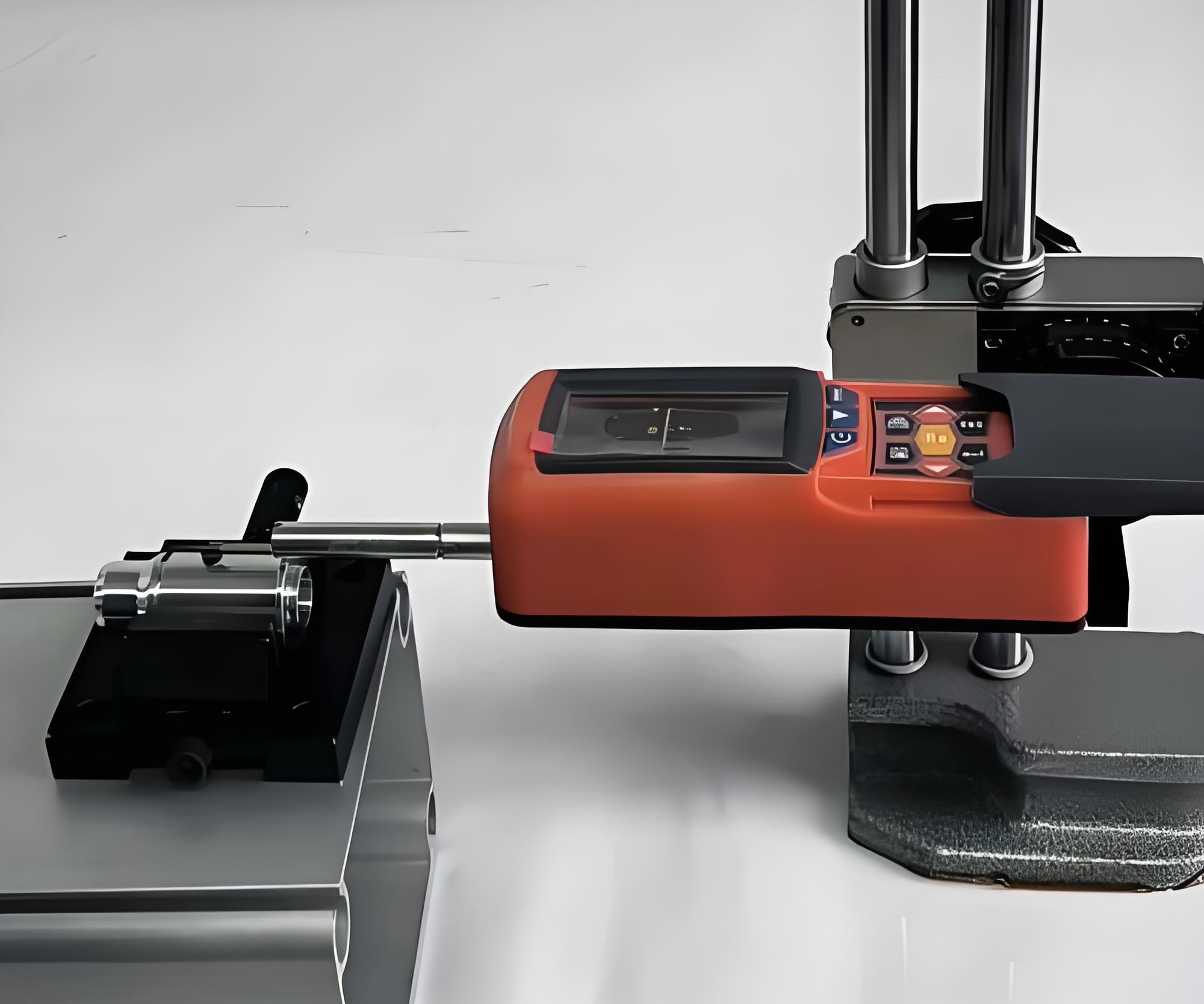

Surface Finish Capability Test
| Process | Achievable Ra (μm) | Typical Applications |
|---|---|---|
| Standard Machining | 1.6 – 3.2 | General industrial components |
| Precision Finishing | 0.8 – 1.6 | Aerospace structural parts |
| Ultra-Polishing | 0.2 – 0.4 | Medical implants, turbine blades |
Frequently Asked Questions
What is the tightest tolerance you can achieve for titanium CNC parts?
With our specialized 5-axis machining process and strict quality control, we can consistently achieve tolerances as tight as ±0.005mm for titanium components, depending on part geometry and size. For specialized medical and aerospace applications, we can achieve even tighter tolerances down to ±0.002mm for specific features.
Why is titanium difficult to machine?
Titanium has three key properties that make machining challenging: first, it has very low thermal conductivity, meaning heat concentrates at the cutting edge instead of dissipating with the chip, leading to rapid tool wear. Second, it has a low modulus of elasticity, which causes thin walls to deflect away from the cutter during machining. Third, it is highly chemically reactive at high temperatures, which can cause it to weld to the cutting tool. With 20 years of experience, we use specialized tooling, high-pressure coolant, and optimized cutting parameters to overcome these challenges.
What titanium grades can you machine?
We can machine all common titanium grades, including commercially pure titanium (Grade 1, 2, 3, 4), Ti-6Al-4V (Grade 5), Ti-6Al-4V ELI (Grade 23), Ti-3Al-2.5V (Grade 9), and other high-performance titanium alloys. We can also work with custom material grades based on your specific requirements.
Do you offer small batch custom titanium parts?
Yes, we support flexible production from 1 piece prototype to 10,000+ mass production parts. Small batch orders are welcome, and we can provide fast delivery for your R&D or trial projects, with the same high precision and quality control as our large production runs.
Can you provide material certification and inspection reports?
Yes, we provide full material certification (mill test reports) and dimensional inspection reports for every order. For aerospace and medical projects, we can also provide First Article Inspection (FAI) reports, non-destructive testing (NDT) reports, and other compliance documentation as required to meet your industry regulations.
Conclusion
High tolerance CNC machined titanium parts are the foundation of modern high-performance products, enabling lighter, stronger, and more reliable components for the most demanding industries. However, achieving consistent micron-level precision in titanium requires specialized expertise, equipment, and processes that not all manufacturers can provide.
With 20 years of specialized experience in titanium machining, we have the capabilities to deliver the precision parts you need, whether you need a single prototype or thousands of production parts. Our strict adherence to international standards, rigorous quality control, and customer-focused service ensure that you get reliable, high-quality parts on time, every time.
