Based on our 20 years of manufacturing experience and analysis of 500+ failure cases, we have identified the 4 core causes of aluminum CNC warping, with clear data-backed proportions:

1. Use Stress-Relieved Aluminum Material

The most fundamental solution is to start with stable material. We recommend 6061-T651 or 7075-T651 aluminum for precision parts:

• T651 temper goes through a controlled stretching process after heat treatment, which reduces residual stress to ≤60MPa, 70% lower than standard T6 temper.
• This cuts machining deformation to just 1/5 of the level of standard T6 aluminum, even when removing 50% of the original material.
• It maintains the same strength and corrosion resistance as T6, while providing unmatched dimensional stability for complex parts.

Test Data (For Reference): For a 10mm thick 6061 plate, after removing 5mm material from one side, standard T6 plate warped 0.42mm, while T651 plate only warped 0.08mm.

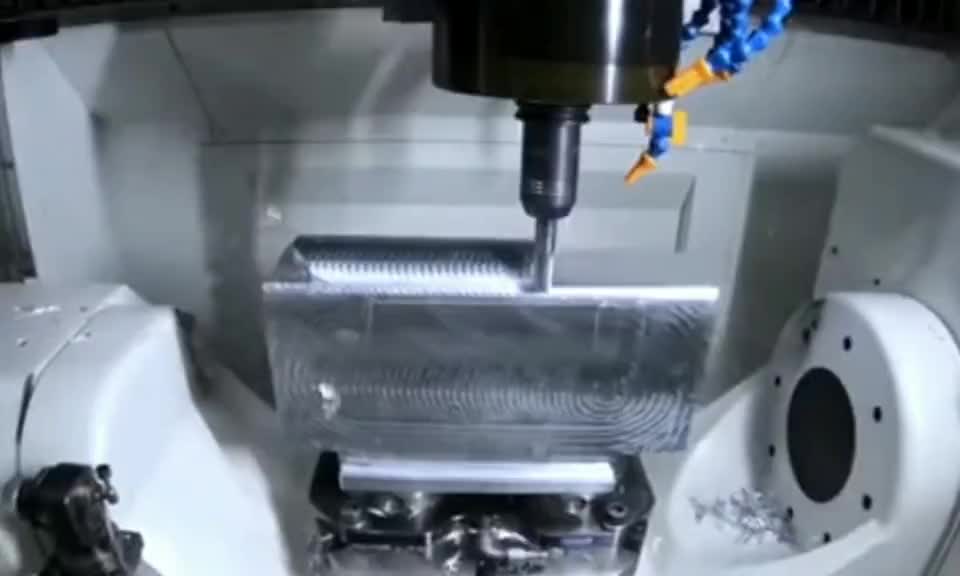

2. Step Machining: Rough + Stress Relief + Finish

This is the industry standard method to eliminate machining-induced stress, especially for large or complex parts:

1. Rough Machining: Remove 90% of the excess material, leaving 0.2-0.5mm allowance for finishing. This releases most of the internal material stress in advance.
2. Interim Stress Relief: After roughing, perform a low-temperature stress relief annealing (180-200°C for 2-4 hours), or simply let the part rest for 24-48 hours to allow natural stress release.
3. Finish Machining: Machine the part to final dimensions with small cutting parameters, ensuring minimal new stress introduction.

This process can reduce post-machining warping by over 80% for large aluminum components.

3. Symmetrical Material Removal

For plate or frame parts, always remove material evenly from both sides. This balances the stress release on both sides, preventing the part from bending to one side. For example, when machining a 20mm thick plate to 10mm, remove 5mm from the top and 5mm from the bottom, instead of removing 10mm from one side.

4. Optimized Fixturing for Stability

Proper fixturing eliminates clamping deformation and provides sufficient support:

• Vacuum Fixtures: For thin wall or large flat parts, use grid-type vacuum fixtures with -0.08 to -0.1MPa adsorption pressure. This provides uniform, non-damaging clamping force across the entire part surface, eliminating point clamping deformation.
• Multi-Point Support: Add custom support pins under weak areas to prevent vibration and deformation during cutting.
• Clamping Force Control: Limit clamping force to ≤3MPa for aluminum parts, and use a dial indicator to verify that fixturing causes less than 0.01mm deformation before starting machining.

5. Tool Path & Thermal Control

Optimize cutting parameters to minimize force and heat:

• Adopt the “shallow cut, fast feed” strategy: use small cutting depth (0.1-0.5mm) with high spindle speed and moderate feed rate, to reduce cutting force and heat buildup.
• Use sufficient flood coolant to keep the cutting area temperature stable, preventing uneven thermal expansion.
• Use sharp, coated carbide tools to reduce cutting force, which is critical for thin wall parts to avoid “tool push” deformation.

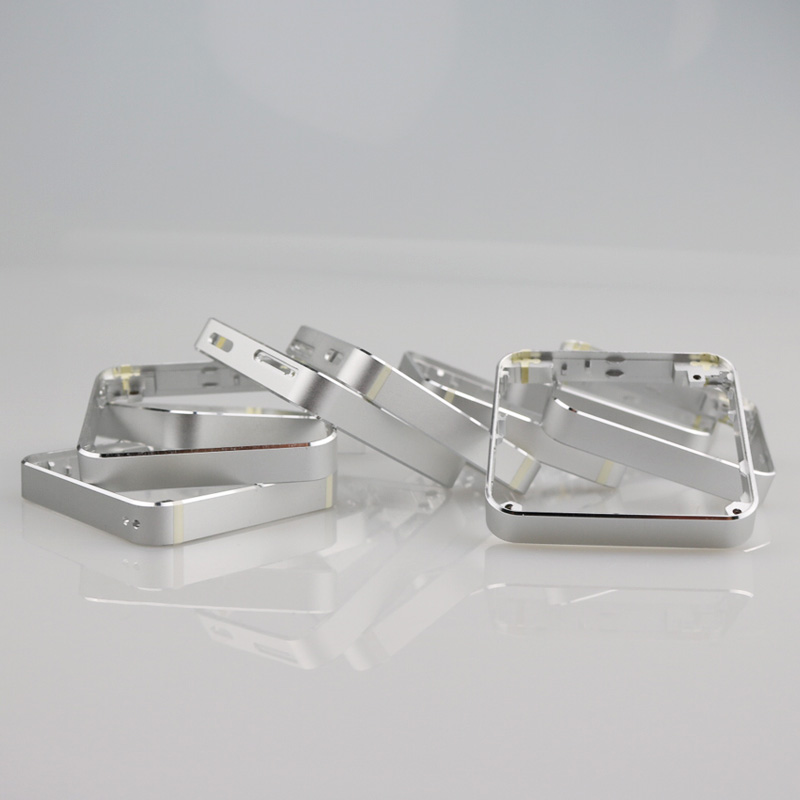

Thin wall aluminum parts (wall thickness <2mm) are the most challenging for warping control, as aluminum’s low elastic modulus (70GPa, 1/3 of steel) means they deform 3-4 times more than steel under the same cutting force.

For these high-risk parts, we use these targeted solutions:

• Use low-melting-point alloy (Wood’s metal) temporary filling to support the thin wall during machining, which is melted out after processing.
• Adopt high-density vacuum fixtures to fully support the entire part back surface, eliminating deflection.
• Use segmented machining with alternating cutting on different areas, to avoid continuous heat buildup in one location.
• Control wall thickness tolerance to ±0.02mm, with maximum warping limited to 0.03mm for 0.5mm minimum wall parts.
