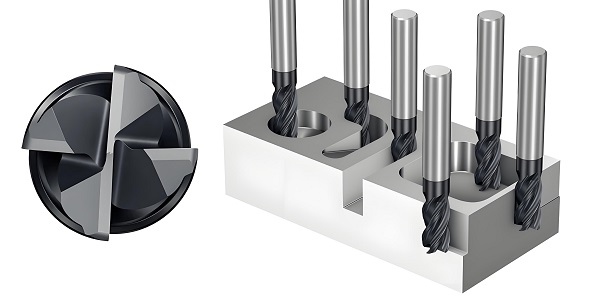

Customized End Milling Tools – Precision Solutions for Your Toughest Machining Challenges
Reduce Tooling Costs by 15–30% with Precision Custom End Mills Engineered for Your Application
From rapid prototyping to high-volume production, we deliver reliable, high-performance end milling tools tailored to aerospace, automotive, mold, and medical industries. Get the exact tool geometry, material, and coating you need—on time, every time.
12+ Years Experience
Reliable EU & US Shipping
Trusted by Leading Manufacturers
Why Choose Our Custom End Mills?
We solve the challenges that matter most to precision machining buyers: tool life, cost per part, and delivery reliability. Every end mill we make is built to your blueprint with rigorous process control.
Extended Tool Life
Achieve 20–40% longer tool life through optimized carbide grades and application-specific coatings. Reduced downtime means lower cost per component.
Superior Cutting Performance
Precise flute geometry and edge preparation deliver better surface finishes (Ra <0.8 µm achievable) and stable chip evacuation, even in deep cavity milling.
Consistent Part Quality
Strict adherence to tolerance—diameter tolerance down to ±0.005 mm, shank h6 tolerance as standard—ensures repeatable, high-precision machining.
Mastering Difficult Materials
Dedicated solutions for titanium alloys, stainless steel, Inconel, hardened mold steels (up to 62 HRC), and abrasive composites. No matter the challenge, we design for it.
Faster Proven Delivery
Prototype samples delivered in 2–3 weeks. Reliable production lead times keep your supply chain running without surprises.
Reduced Total Cost of Ownership
Our engineers analyze your operation to target the optimum balance of speed, life, and cost—often reducing overall tooling spend by more than 20%.
Our Customization Process
We work as an extension of your engineering team. The process is transparent, collaborative, and built around getting it right the first time.
Specification & Consultation
Share your application details, workpiece material, machine type, and current pain points. We turn your needs into a clear tooling concept.
Design & Engineering
Our application engineers determine the optimal tool geometry: flute count, helix angle, core diameter, neck length, and corner radius. You receive a full 3D CAD model for approval.
Rapid Prototyping & Testing
We manufacture prototype end mills exactly to specification and support your in-house testing. Quick iterations ensure performance meets targets before production ramp-up.
Rigorous Quality Inspection
100% inspection on critical dimensions using Zoller genius and Keyence vision systems. Coating thickness, edge radius, and microgeometry verified. Full inspection reports supplied.
Production & Logistics Support
Stable, scaled production with batch traceability. Flexible shipping via air/sea to the US and Europe. Dedicated account support throughout the lifecycle.
Material & Coating Options
We pair the right cutting material with the right coating—because tool performance depends on that synergy.
Tool Material Options
| Tool Material | Best Suited For | Key Advantages | Typical Applications |
|---|---|---|---|
| Micrograin Solid Carbide | Steel, stainless steel, cast iron, titanium alloys | Exceptional wear resistance, high hot hardness, stiff | Aerospace structural parts, automotive engine components |
| HSS-E (Cobalt) | Stainless steel, low-power machines, interrupted cuts | Superior toughness, lower cost for small batches | General job shop milling, repair operations |
| Carbide with Internal Coolant | Deep cavity milling, heat-resistant superalloys | Efficient chip flushing, extended tool life in high-heat environments | Mold & die deep pockets, Inconel blisks |
| PCD (Polycrystalline Diamond) | Aluminum alloys, composites, non-ferrous metals | Ultimate abrasion resistance, mirror finishes | Automotive powertrain, aerospace CFRP panels |
Advanced Coating Portfolio
| Coating | Key Properties | Recommended For |
|---|---|---|

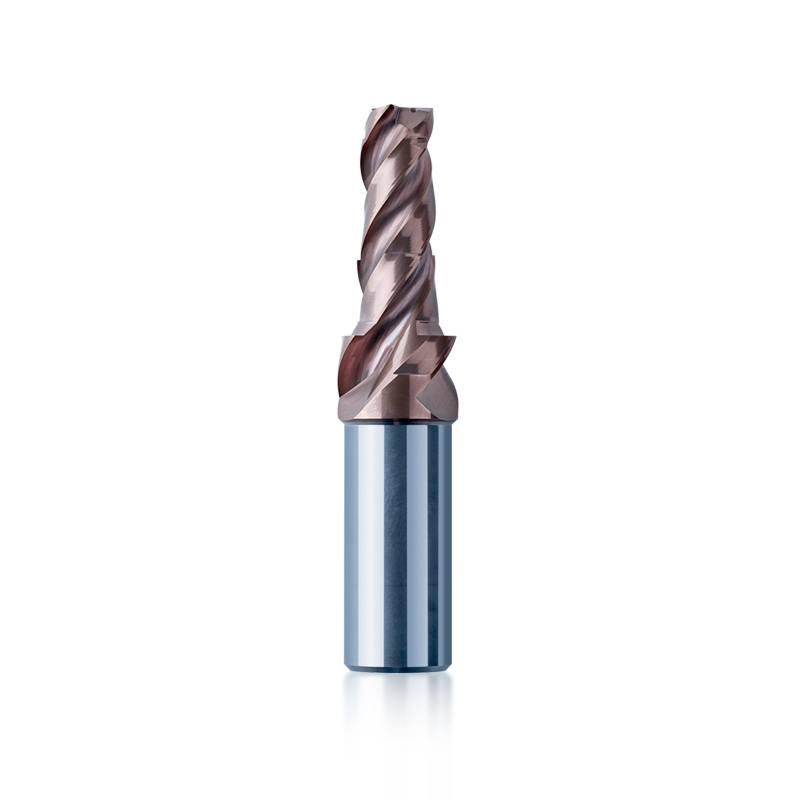

| AlTiN (Aluminum Titanium Nitride) | High oxidation resistance, hot hardness up to 900°C | Dry/high-speed milling of steels, especially in mold making |
| TiAlN (Titanium Aluminum Nitride) | Excellent wear resistance, universal | Broad range: alloy steels, stainless, cast iron |
| AlCrN (Aluminum Chromium Nitride) | Superior thermal stability, resists built-up edge | Milling titanium and Inconel, high-feed applications |
| TiCN (Titanium Carbo-Nitride) | High hardness, low friction | Finishing operations in steels, good for abrasive materials |
| nACo (Nanocomposite) | High toughness with extreme hardness | Hard milling (up to 62 HRC) in die & mold |
| DLC (Diamond-Like Carbon) | Extremely low friction, non-affinity to aluminum | High-speed machining of aluminum alloys, preventing BUE |
Available Specifications
Diameter range from 0.1 mm to 25.4 mm (micro to standard), 2–8 flutes, helix angles 25°/30°/35°/45°, corner radius from 0.1 mm, reach lengths per Din/ASTM. Full custom design welcomed.

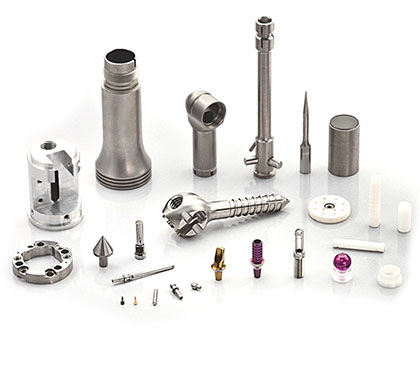

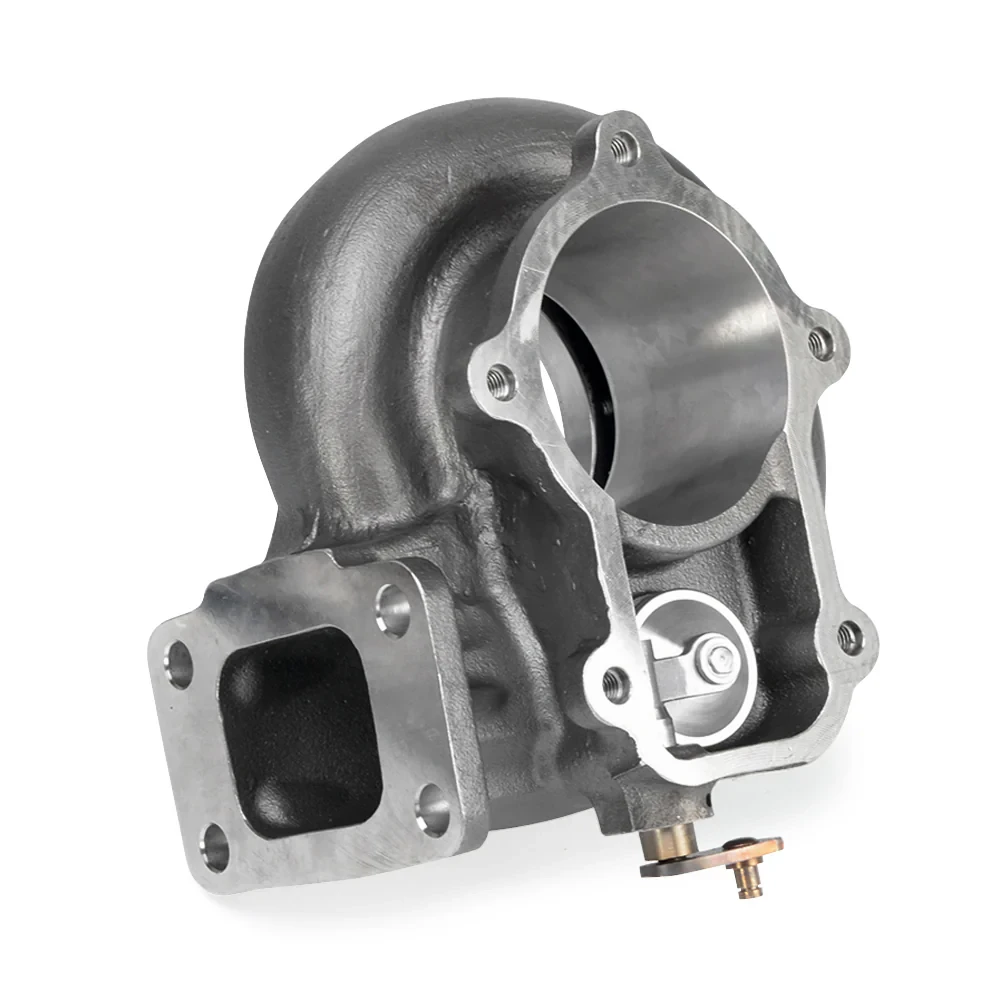

Applications & Proven Results
Frequently Asked Questions
What information do I need to provide to get a custom end mill quote?
Share the workpiece material (grade and condition), machine type/interface, operation (roughing/finishing), required diameters, reach length, and any current performance issues. A drawing or CAD model is ideal—we accept STEP/IGES/DXF files.
What is the typical lead time for custom end mills?
Prototype and small batch lead time is typically 2–3 weeks, with express options available for urgent projects. Production orders follow an agreed-upon delivery schedule, and we maintain strategic inventory buffers for call-off demands.
Do you offer reconditioning or re-coating for end mills?
Yes, we provide full re-grinding and re-coating services for carbide and HSS tools. This can extend tool life by 2–3 cycles, lowering your total cost by up to 50% compared to buying new.
What are your quality assurance and certification measures?
Manufacturing under ISO 9001:2015. Full traceability from carbide rod batch to final coating. We use Helicheck and optical measurement systems, and we supply inspection reports with every shipment. REACH/RoHS compliance confirmed for European customers.
What is the minimum order quantity (MOQ)?
MOQ depends on tool complexity: for standard custom designs, MOQ can be as low as 10 pieces. We support prototyping and then seamlessly scale to volume production.
How do you ship and handle customs for EU/US buyers?
We ship via DHL, FedEx, or forwarder by air (3–5 days) and sea. We handle all necessary export documentation. Our logistics team ensures duty-free treatment where applicable and reliable door-to-door delivery.
What if the tool doesn’t perform as expected?
We stand behind our engineering. Our application team provides troubleshooting and, if needed, regrinds or redesigns at no cost. Your success is the baseline of our partnership.
