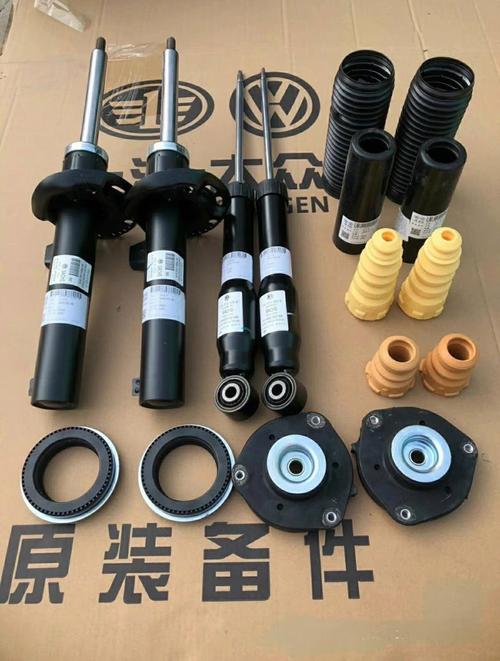

With 26 years of expertise in automotive suspension component manufacturing, Xiamen Goldcattle specializes in custom automotive shock absorber parts—tailored for passenger cars, SUVs, trucks, racing vehicles, and off-road machines. Our product range includes shock absorber housings, piston rods, valve bodies, damping springs, bushing mounts, and adjustable damping knobs. Leveraging advanced precision machining, forging, and rubber molding technologies, we deliver parts that meet strict automotive standards for durability, damping performance, and dimensional accuracy. Backed by ISO/TS 16949, IATF 16949, and SAE J331 certifications, we support prototype development to mass production (50,000+ units/month) with ±0.005mm dimensional tolerance, serving 25+ global automakers and suspension system suppliers.
Core Processing Technologies: Engineering for Damping Performance
Automotive shock absorbers operate in extreme conditions—enduring constant compression/extension cycles, road impacts, and exposure to mud, water, and salt. Goldcattle integrates cutting-edge technologies to ensure parts deliver consistent damping performance, long service life, and reliable vehicle handling.
1. Precision Machining for Critical Damping Components
- CNC grinding for piston rods: Piston rods (the core moving part of shock absorbers) undergo centerless grinding and cylindrical grinding with ±0.002mm diameter tolerance and Ra ≤0.02μm surface finish. This ensures smooth movement within the cylinder, reducing friction and wear. A 12mm piston rod for a racing shock absorber produced this way maintained consistent damping force (±5%) after 100,000 cycles—critical for track performance.
- 5-axis CNC milling for valve bodies: Valve bodies (which control oil flow to adjust damping) feature complex internal channels (0.5-2mm diameter) machined with 5-axis CNC mills. This precision ensures accurate flow rates, allowing for fine-tuning of damping characteristics (e.g., soft for comfort, firm for sport). A adjustable valve body for a luxury SUV’s adaptive suspension was designed with 32 flow paths, enabling 16 damping modes.
- Thread rolling for mounting hardware: Shock absorber mounting bolts and studs undergo thread rolling (instead of cutting), increasing thread strength by 30% and ensuring secure torque retention (≥90% after 50,000km). This process is critical for off-road shock absorbers, which face extreme vibration and torque loads.
2. Forging & Heat Treatment for High-Strength Parts
- Hot forging for shock absorber housings: Housings (which contain the damping oil and piston) are hot-forged from high-carbon steel (S55C) at 1100℃, creating a dense, grain-refined structure with tensile strength ≥800MPa. This process eliminates internal defects, ensuring housings withstand 200bar internal pressure (equivalent to severe road impacts) without cracking. A truck shock absorber housing produced this way passed 2 million cycle tests (equivalent to 300,000km) with no deformation.
- Induction hardening for wear resistance: Piston rods and cylinder walls undergo induction hardening (surface hardness 58-62 HRC) with a 0.5-1mm hardened layer, increasing wear resistance by 50% compared to untreated steel. This is critical for preventing oil leaks caused by metal-on-metal wear.
- Tempering for toughness: After hardening, parts are tempered at 200-300℃ to balance hardness and toughness, ensuring they resist impact without brittle fracture. A racing shock absorber’s piston rod treated this way survived a 50J impact test (simulating a pothole hit) without bending.
3. Rubber & Polyurethane Molding for Bushings & Seals
- Injection molding for rubber bushings: Bushings (which isolate shock absorber vibrations from the chassis) are molded from EPDM or natural rubber with precise hardness (50-80 Shore A). Our 2-shot molding technology bonds rubber to metal inserts, ensuring 100% adhesion and eliminating squeaks. A set of EPDM bushings for a compact car’s shock absorbers reduced cabin noise by 4dB (measured at 60km/h) compared to OEM bushings.
- Polyurethane casting for high-performance bushings: For racing and off-road applications, we cast polyurethane bushings (90-95 Shore A) with enhanced durability and stiffness. These bushings maintain their properties in extreme temperatures (-40℃ to 120℃) and resist oil, grease, and UV damage—ideal for off-road shock absorbers exposed to harsh conditions. A Jeep Wrangler off-road shock absorber with polyurethane bushings showed 70% less wear than rubber after 10,000km of off-roading.
- Lip seal molding: Oil seals (which prevent damping oil leakage) are precision-molded from nitrile rubber (NBR) with a spring-loaded lip design. This ensures a tight seal even as the piston rod flexes, maintaining oil pressure (±2bar) over the shock’s lifespan.
4. Quality Testing for Damping Reliability
- Dimensional inspection: Uses coordinate measuring machines (CMM) to verify critical dimensions:
-
- Piston rod diameter (±0.002mm)
-
- Valve body channel size (±0.01mm)
-
- Housing straightness (≤0.05mm/m)
- Performance testing:
-
- Damping force testing: Measures force vs. velocity curves (±3% accuracy) to ensure consistency with design specs.
-
- Fatigue testing: Shock absorber assemblies with our parts undergo 2 million+ compression/extension cycles (equivalent to 200,000km) with ≤10% damping force loss.
-
- Pressure testing: Housings are tested at 300bar (3x operating pressure) to detect leaks.
- Environmental testing:
-
- Salt spray (1,000 hours) for corrosion resistance of metal parts
-
- Thermal cycling (-40℃ to 120℃, 1,000 cycles) for rubber bushings
-
- Oil resistance (24-hour immersion in damping oil) for seals and bushings
Material Expertise: Matching Materials to Damping Needs
Shock absorber parts require a balance of strength, flexibility, and resistance to wear and corrosion—Goldcattle selects materials based on component function and vehicle application:
|
Material
|
Processing Treatments
|
Application Scenarios
|
Key Technical Properties
|
|
High-Carbon Steel (S55C, 4140)
|
Induction hardening, chrome plating
|
Piston rods, shock housings, valve bodies
|
Tensile strength 800-1200MPa, wear resistance, cost-effective for standard vehicles.
|
|
Stainless Steel (304, 440C)
|
Passivation, polishing
|
Marine/off-road shock components
|
Corrosion resistance (1,000+ hours salt spray), suitable for coastal or muddy environments.
|
|
Aluminum Alloy (7075-T6)
|
Anodizing, precision machining
|
Lightweight racing shock housings
|
40% lighter than steel, 572MPa tensile strength, ideal for reducing unsprung weight.
|
|
EPDM Rubber
|
Sulfur vulcanization, bonding to metal
|
Bushings for passenger cars, SUVs
|
Vibration isolation, -40℃ to 120℃ temperature range, resistance to ozone and water.
|
|
Polyurethane (85-95 Shore A)
|
Casting, UV stabilization
|
Racing/off-road bushings, seals
|
High stiffness, 5x longer wear life than rubber, resistance to oil and abrasion.
|
Customization Capabilities: From Prototype to Production
Shock absorber design is highly vehicle-specific—Goldcattle supports automakers, suspension tuners, and racing teams through every stage of development:
- DFMEA & design optimization: Our engineering team uses Design Failure Mode and Effects Analysis (DFMEA) to identify potential issues (e.g., oil leakage, bushing fatigue) and optimize designs. For a truck shock absorber, we redesigned the valve body to reduce pressure spikes by 25% during heavy loads.
- Rapid prototyping: Produces functional prototypes in 3-7 days using:
-
- CNC machining for metal parts (piston rods, housings)
-
- 3D printing (SLS) for plastic valve components
-
- Rubber injection molding for bushings
A rally team tested 3 prototype shock absorber valve bodies in 2 weeks, accelerating their tuning process.
- Vehicle-specific solutions:
-
- Passenger cars: Comfort-focused bushings and valve bodies with smooth damping
-
- Racing: Lightweight aluminum housings, adjustable valve bodies for track tuning
-
- Off-road: Reinforced housings, polyurethane bushings, and oversized piston rods
- Small-batch flexibility: 10-500 units for custom builds, racing teams, or vintage car restorations. A classic 1970s Ford Bronco restoration project required 20 custom shock absorber housings, produced to match original specs with modern materials.
Case Studies: Solving Shock Absorber Performance Challenges
- High-performance racing shock absorber valve body:
Challenge: A GT3 racing team needed a valve body that could adjust damping force in 50N increments (from 500N to 1500N) for different track conditions.
Solution: Goldcattle designed a 5-axis CNC-machined valve body with 8 adjustable orifices and precision springs. Testing confirmed consistent force adjustments (±3N) across all settings, allowing the team to fine-tune handling for wet vs. dry tracks. Result: 0.5s faster lap times and reduced tire wear.
- Heavy-duty truck shock absorber housing:
Challenge: A truck manufacturer’s existing shock absorber housings were cracking under heavy loads (10,000kg GVW) after 80,000km.
Solution: We switched from S55C steel to 4140 alloy steel, added reinforcing ribs via FEA simulation, and increased wall thickness in high-stress areas. The new housing passed 2 million cycle tests (equivalent to 200,000km) with no cracks, reducing warranty claims by 90%.
Why Partner with Goldcattle for Shock Absorber Parts?
- Suspension expertise: 26 years of focus on automotive suspension components, with 150+ custom shock absorber part designs validated by OEMs and racing teams.
- Quality assurance: Every part undergoes 100% inspection (CMM, hardness testing, leak testing) and is traceable to raw material batches, meeting IATF 16949 requirements.
- Performance focus: Our parts are designed to work with damping oils (mineral, synthetic, silicone) and gas charges (nitrogen) to ensure consistent performance.
- Cost efficiency: Design-to-cost engineering (e.g., integrating multiple parts into one forging) reduces production costs by 15-20% without compromising strength.
Start Your Shock Absorber Part Project Today
Whether you’re developing a new suspension system, upgrading a racing setup, or restoring a classic vehicle, Goldcattle’s precision shock absorber parts deliver the performance and durability you need.
Contact our suspension team: Send your 3D models (STEP/IGS) or technical drawings, and receive a feasibility report, material recommendations, and quote within 24 hours.
“Goldcattle’s custom piston rods and valve bodies transformed our off-road shock absorbers—they maintained consistent damping even after 500km of rock crawling, outperforming our previous supplier by 30% in durability tests.” — Engineering Director, a leading off-road suspension manufacturer
