Metal Injection Molding (MIM) is a precision manufacturing process that combines the design flexibility of plastic injection molding with the material strength of wrought metals. It enables cost-effective production of complex, high-density metal parts in large volumes, ideal for industries requiring intricate components with tight tolerances.

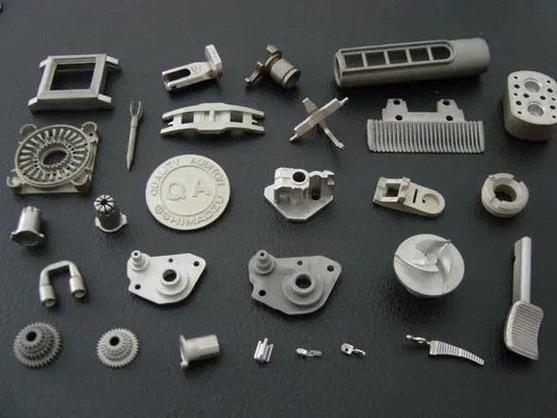

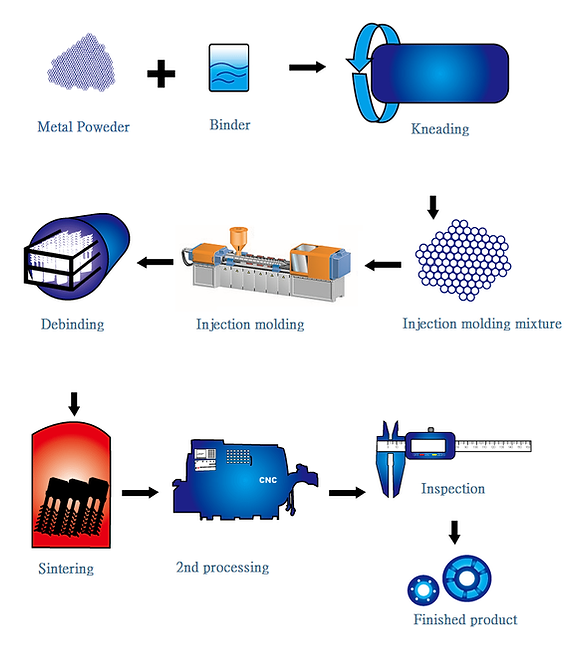

How Does This Process Work?
- Feedstock Preparation

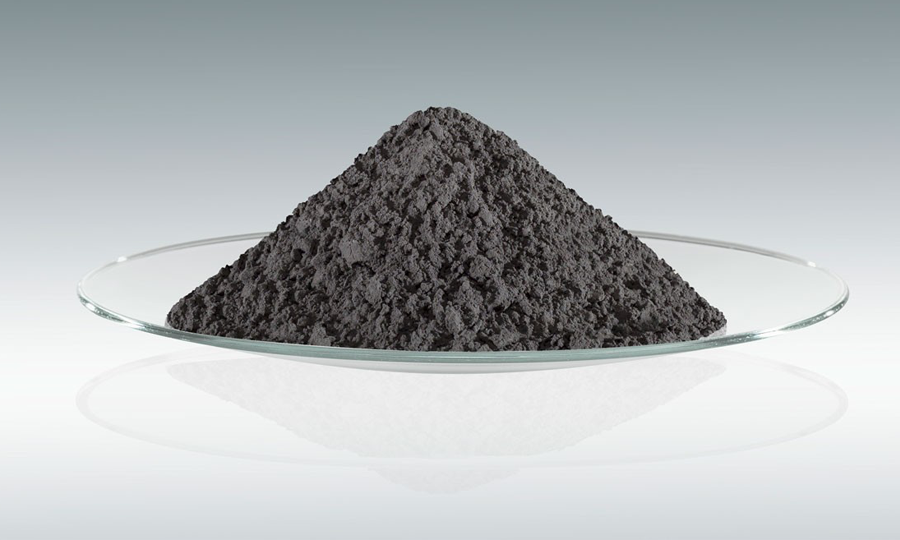

Fine metal powders are mixed with a thermoplastic binder system to form a homogeneous feedstock.
Parametric note: Typical powder size: 10-40μm, binder content: 8-15% by weight - Injection Molding
The heated feedstock is injected into a precision mold cavity under controlled pressure and temperature, forming a “green part” with the exact shape of the final component.
Process note: Injection temp: 150-200°C, pressure: 50-150MPa - Debinding
The binder system is carefully removed from the green part, either through solvent extraction or thermal degradation, leaving a porous “brown part” ready for sintering.
Critical step: Removes 90-99% of binder without part distortion - Sintering
The brown part is heated in a controlled atmosphere furnace to just below the metal’s melting point. This causes the powder particles to bond together, resulting in a fully dense, strong metal part.
Sintering note: Typical density: 95-99% of wrought material, shrinkage: 15-20%
MIM vs. Competing Manufacturing Processes
vs. CNC Machining
| Factor | Metal Injection Molding | CNC Machining |
|---|---|---|
| Complex Geometries | Excellent, can produce internal features, undercuts | Limited, requires multiple setups for complex shapes |
| Material Waste | Minimal, near-net shape process | High, up to 70% of material is removed |
| Production Volume | Cost-effective for 1,000+ parts | Best for low volumes, prototyping |
| Lead Time | 2-4 weeks for mass production | 1-2 weeks for small batches |
| Tolerance | ±0.3-0.5% of dimension | ±0.001-0.005mm for precision parts |
vs. Die Casting
| Factor | Metal Injection Molding | Die Casting |
|---|---|---|
| Material Options | Wide range: stainless steel, titanium, tool steel, tungsten | Limited to low-melting alloys: zinc, aluminum, magnesium |
| Part Strength | High, full density with excellent mechanical properties | Lower, porous structure with reduced strength |
| Wall Thickness | Can produce thin walls down to 0.5mm | Minimum wall thickness ~1.5mm |
| Surface Finish | Smooth, Ra 0.8-3.2μm as-sintered | Coarser, requires more post-processing |
| Heat Resistance | Excellent, suitable for high-temperature applications | Limited, low-melting alloys deform at high heat |
Common Materials Used
| Material | Common Grades | Key Properties |
|---|---|---|
| Stainless Steel | 316L, 17-4PH, 304L | Corrosion resistance, high strength, biocompatible |
| Low Alloy Steel | 4140, 4340, Fe-Ni | Hardenable, good wear resistance, cost-effective |
| Tool Steel | M2, H13, S7 | High hardness, heat resistance, wear resistance |
| Titanium | Ti-6Al-4V, Commercially Pure | Lightweight, high strength, biocompatible, corrosion resistant |
| Tungsten Alloys | W-Ni-Fe, W-Cu | High density, radiation shielding, high temperature resistance |
Each material can be tailored to meet specific industry requirements, with post-processing options like heat treatment, plating, and polishing available. We maintain ISO 13485 and IATF 16949 certifications to ensure material quality for medical and automotive applications.

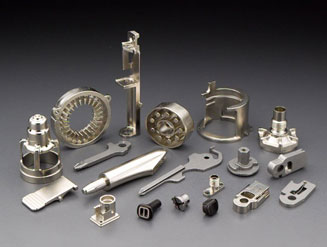

Key Industry Applications
Medical
- Surgical instrument components
- Dental implants & orthodontic parts
- Endoscope components
- Medical device housings
Automotive
- Turbocharger components
- Lock system parts
- Fuel system components
- Power transmission parts
Electronics
- Smartphone hinge mechanisms
- Connector pins & terminals
- Heat sink components
- Wearable device parts
Industrial
- Power tool components
- Gears & drive mechanisms
- Firearm parts
- Aerospace components
When Should You Choose This Technology?
Ideal For
- Complex geometries with internal features or undercuts
- Production volumes of 1,000 to 1,000,000+ parts annually
- Small to medium sized parts (typically <100mm)
- Applications requiring high material strength and density
- Projects where material waste reduction is a priority
Not Ideal For
- Very large parts (>150mm in any dimension)
- Ultra-low production volumes (<500 parts)
- Applications requiring extremely tight tolerances (<±0.1%)
- Simple parts that can be stamped or machined cheaply
- Projects with extremely short lead times (<1 week)
Our MIM Capabilities at Xiamen Goldcattle
As a national high-tech enterprise with 26 years of custom manufacturing experience, we deliver end-to-end Metal Injection Molding solutions that address your toughest production pain points.
Our Hardware & Processing Strength

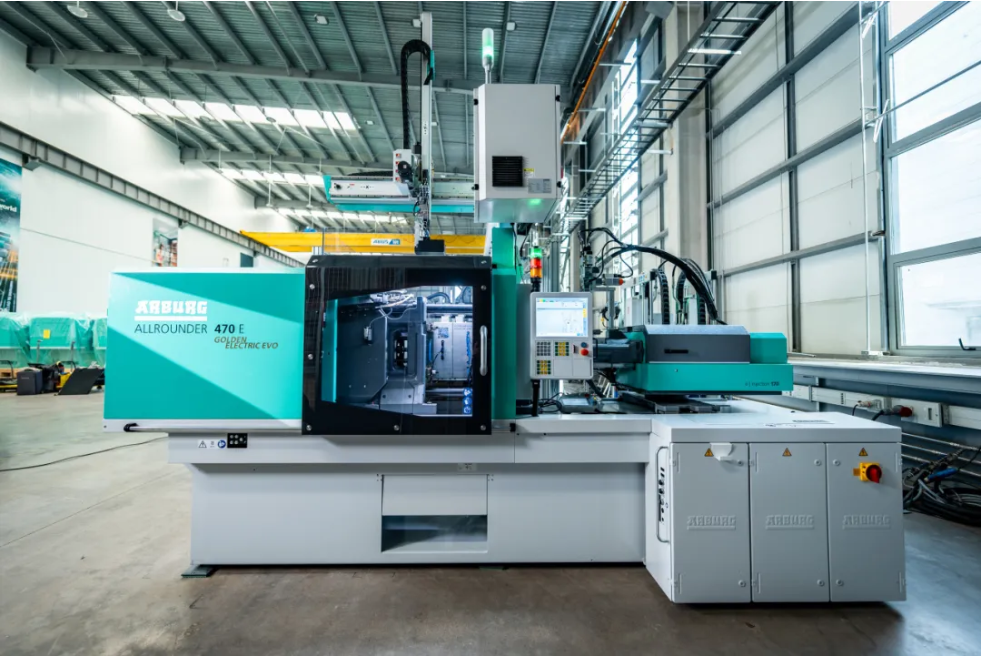

- Advanced precision injection molding machines & controlled-atmosphere sintering furnaces
