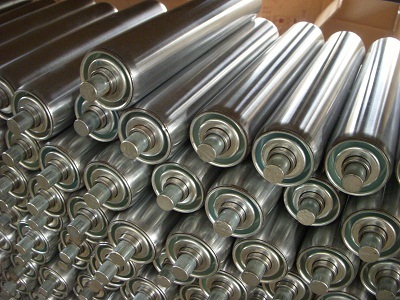

Custom Stainless Steel Roller Manufacturer for Precision Industrial Equipment
We manufacture high-precision CNC stainless steel rollers for conveyor systems, packaging equipment, food processing machinery, automation systems, and custom OEM industrial applications.
Common Stainless Steel Roller Manufacturing Challenges We Solve
Roller Runout & Concentricity Problems
Eliminate vibration and uneven wear with our precision concentricity control up to ≤0.01mm, ensuring smooth high-speed operation.
Bearing Fit Tolerance Control
Precision-machined bearing seats with matched tolerances to ensure perfect fit, preventing bearing loosening and premature failure.
Mirror Surface Finish for Low Friction
Achieve mirror polish up to Ra 0.2μm for low-friction applications, reducing material adhesion and improving product surface quality.
High-Speed Dynamic Balancing
Professional dynamic balancing service for high-RPM rollers, eliminating vibration and noise during high-speed operation.
Long Shaft Straightness Control
Specialized straightening processes for long shafts up to 1500mm, ensuring perfect straightness to prevent conveyor belt misalignment.
Heavy Load Deformation Prevention
Engineering optimization for heavy-load applications, selecting proper materials and structures to minimize shaft deflection under extreme loads.

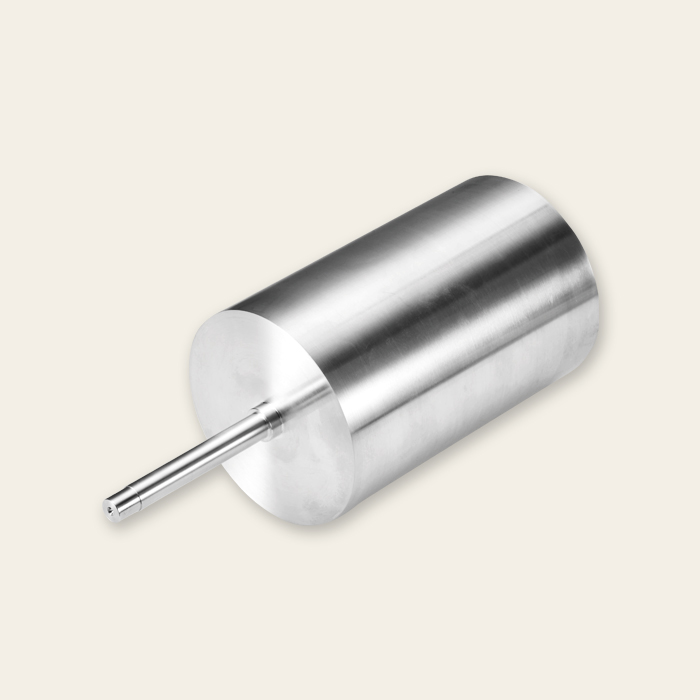

Our CNC Roller Machining Capabilities
With 26+ years of precision machining experience, we can meet your most demanding roller requirements with our advanced CNC turning equipment and ISO 9001 certified quality system.
| Diameter Range | 5–500mm |
| Max Length | 1500mm |
| Diameter Tolerance | ±0.005mm |
| Roundness | ≤0.005mm |
| Concentricity | ≤0.01mm |
| Surface Finish | Ra 0.2–1.6μm |
| MOQ | 1 PCS |
Recommended Stainless Steel Grades for Roller Applications
We help you select the right material based on your application environment to ensure optimal performance and cost-effectiveness with our professional stainless steel machining expertise.
| 304 Stainless Steel | General industrial applications, standard corrosion resistance, cost-effective solution |
| 316L Stainless Steel | Food processing, medical equipment, marine environments, enhanced corrosion resistance |
| 420 Stainless Steel | Wear resistance applications, hardenable for high-wear working conditions |
| 440C Stainless Steel | High hardness bearing surfaces, extreme wear resistance for heavy-duty applications |
Engineering Design Considerations for Precision Rollers
Shaft Deflection Control
In our 20+ years of manufacturing precision rollers, we’ve developed specialized processes to control shaft deflection even for long shafts up to 1500mm. We perform finite element analysis during the design phase to predict and optimize deflection, ensuring stable operation under heavy load conditions, preventing conveyor belt misalignment and product damage.
Bearing Seat Tolerance Matching
We understand that bearing fit is critical for roller performance. Our precision-machined bearing seats are matched to your specific bearing requirements with tight tolerances, ensuring proper interference or transition fit to prevent bearing loosening, slipping, or premature failure during long-term operation.
Dynamic Balancing for High RPM
For high-speed applications, we provide professional dynamic balancing service. We’ve solved vibration issues for many high-speed packaging machine rollers, reducing vibration to acceptable levels, extending service life, and improving the overall stability of your equipment.
Surface Finish Optimization
Based on your application, we optimize the surface finish to meet your specific needs. From standard machining finish to mirror polish, we can achieve Ra 0.2μm for food processing applications to prevent material adhesion, or textured finish for better friction in drive roller applications.
Wear Resistance Enhancement
For heavy-duty and high-wear applications, we provide various surface treatment options including passivation, polishing, and heat treatment to enhance wear resistance and corrosion resistance, extending the service life of your rollers and reducing your maintenance cost.

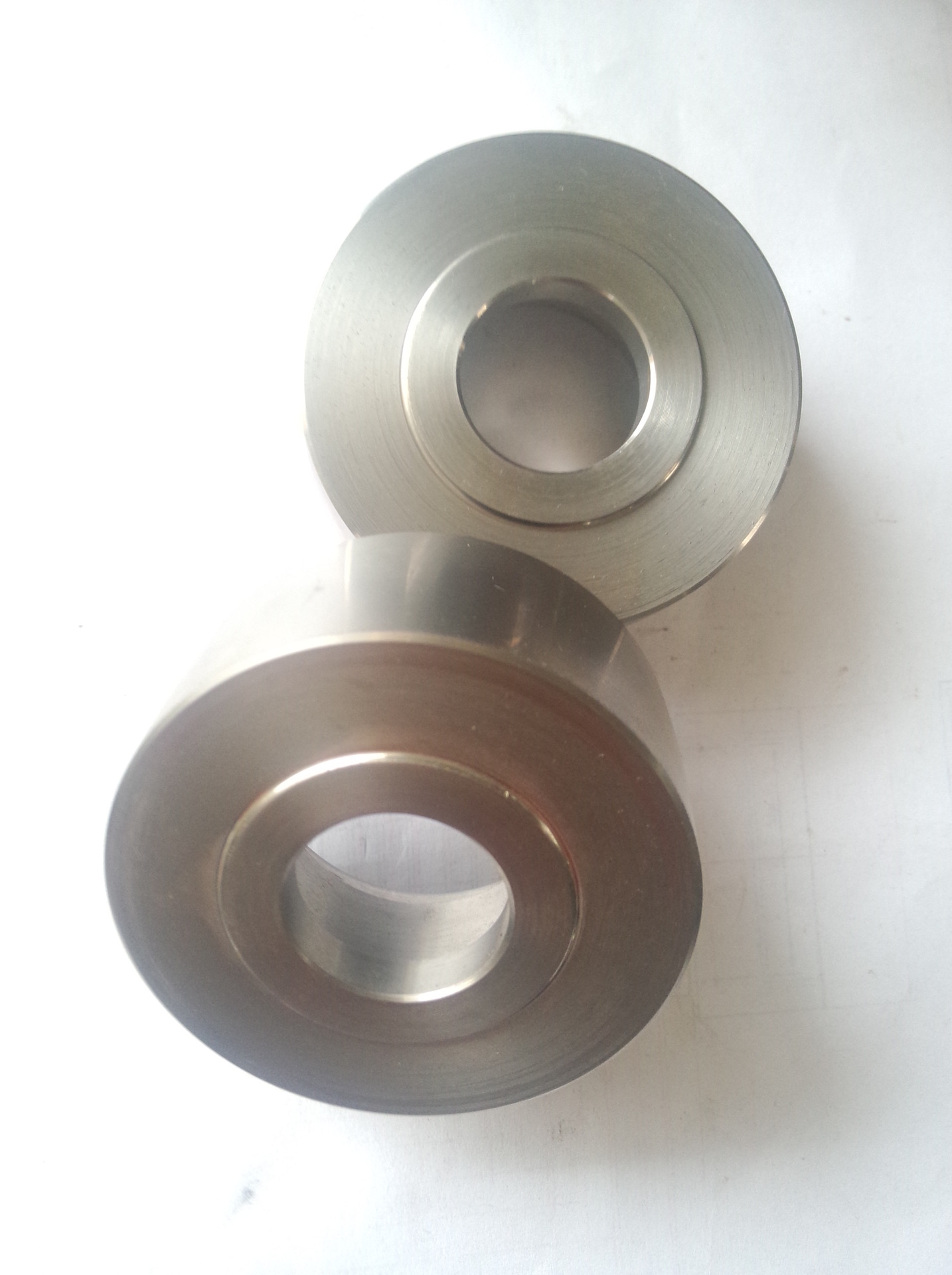

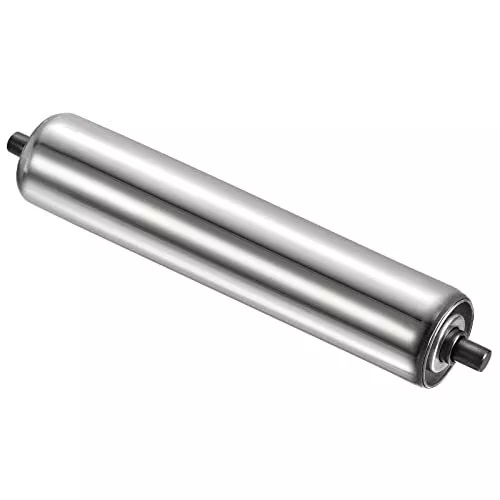

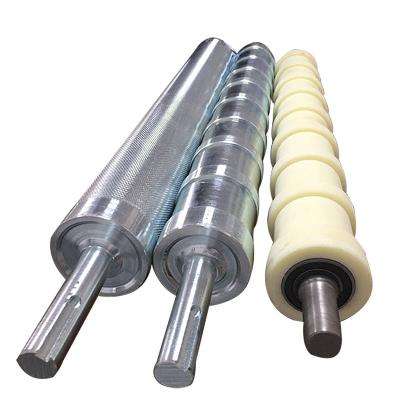

Recent Stainless Roller Manufacturing Projects
Frequently Asked Questions
What tolerance can you hold on stainless steel rollers?
We can hold diameter tolerance up to ±0.005mm, roundness up to ≤0.005mm, and concentricity up to ≤0.01mm, depending on your specific requirements and roller size.
Can you provide mirror-polished food-grade rollers?
Yes, we specialize in food-grade stainless steel rollers. We use 316L stainless steel and provide mirror polishing up to Ra 0.2μm, with passivation treatment to meet food safety standards.
How do you control roller concentricity?
We use multi-axis CNC machining with one-clamping processing to ensure concentricity, and perform 100% inspection with coordinate measuring machines (CMM) to verify the concentricity before delivery.
Can you manufacture long shaft rollers?
Yes, we can manufacture long shaft rollers up to 1500mm in length. We have specialized straightening processes to ensure perfect straightness, preventing deflection and misalignment during operation.
Can you provide balancing reports?
Yes, for dynamic balancing service, we can provide detailed balancing reports showing the before and after balancing data, to verify that the roller meets your balance requirements.
What file formats do you accept?
We accept all common CAD file formats including STEP, IGES, DWG, DXF, PDF, and also accept 2D drawings or sample parts for custom manufacturing.
Ready to Get Your Custom Roller Solution?
Get a free instant quote and professional DFM review within 12 hours. Upload your drawing now to start your project.
