Precision sheet metal parts, built to your drawing — from prototype to mass production.
Goldcattle delivers custom sheet metal fabrication for Western procurement teams who need ISO-grade quality, transparent pricing, and on-time delivery. Laser cutting, bending, welding, stamping and finishing — all under one roof in Xiamen, China.
Typical sheet metal specs
When Sheet Metal is — and isn’t — the right choice
Not every part belongs on a laser cutter. Here is how sheet metal compares against CNC machining and 3D printing across the criteria that matter to procurement teams.

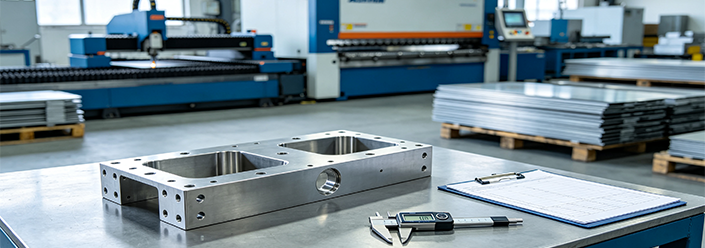

Sheet Metal Fabrication

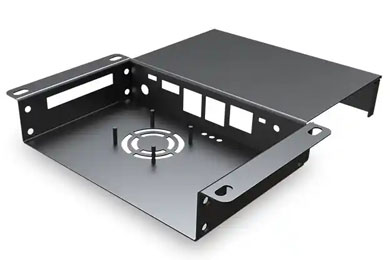

- Thin-walled enclosures, chassis, panels and brackets
- Wall thickness 0.5–6 mm in steel / stainless / aluminum
- Quantities from 50 to 100,000+ units per run
- Very large sheets up to 3000×1500 mm or longer
- Structural rigidity from formed geometry (not material mass)
- Local lead time: 15–25 days tooling-free; first article in 7–15 days

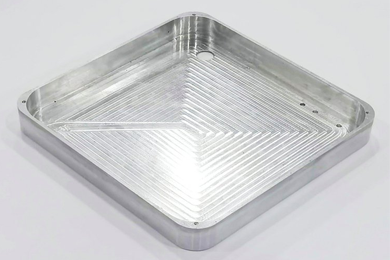

CNC Machining
- Tight-tolerance shafts, housings and complex 3D features
- Solid material — thicker walls, higher precision possible
- Low-to-mid volumes; setup cost repeats each batch
- Ideal where geometry cannot be formed from flat stock

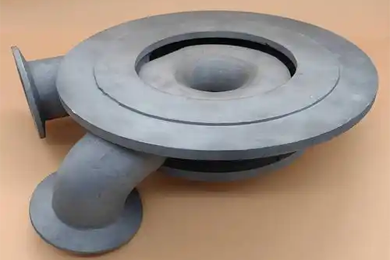

3D Printing (Additive)
- Prototypes, fit-checks, and low-volume complex geometries
- No tooling; design changes cost nothing between prints
- Material options growing but limited vs. metal stock grades
- Per-part cost does not scale well above ~200 units
| Criterion | Sheet Metal | CNC Machining | 3D Printing |
|---|---|---|---|
| Best volume range | 50 → 100,000+ pcs | 1 → 5,000 pcs | 1 → ~200 pcs |
| Typical wall thickness | 0.5–6 mm | 3–50 mm+ | Variable by process |
| Tolerance capability | ±0.05–0.20 mm | ±0.005–0.02 mm | ±0.10–0.30 mm |
| Tooling / setup cost | $0 (laser) / $2k–8k (die) | $200–800 programming | $0 |
| Per-part cost at 500 pcs | $2–12 typical | $15–80 typical | $20–120 typical |
| Lead time (first article) | 7–15 days | 5–10 days | 2–5 days |
| Design revision cost | $0 file change (laser) | $100–400 reprogram | $0 re-print |
| Strength-to-weight | Excellent via forming | Good (solid stock) | Moderate (anisotropic) |
| Surface finish out-of-box | Requires post-process | Machined surface ready | Layer lines visible |
Six In-House Processes, One Accountable Partner
From fiber laser cutting to powder coating, Goldcattle owns all six sheet-metal processes in one Xiamen facility — cutting, bending, stamping, welding, finishing and assembly. One accountable team handles your part from raw coil to finished carton.
Laser Cutting
Fiber laser up to 6 kW for clean, burr-free edges on steel, stainless and aluminum. No tooling, instant design changes.
CNC Bending
Press brakes with angle correction and offline programming for consistent bends across long runs.
Stamping & Punching
Progressive die stamping and CNC turret punching for high-volume parts with repeatability.
Welding
TIG, MIG and spot welding by certified welders for structural and cosmetic joints, with distortion control.
Surface Finishing
Powder coating, anodizing, zinc plating, passivation and brushing for protection and appearance.
Assembly & Packaging
Hardware insertion, riveting, sub-assembly and custom packaging with barcoded labeling.
What each process delivers — and the problem it solves for you
Beyond the machine list: here is the concrete capability we bring to every process, and the specific procurement pain it removes.
Fiber Laser Cutting
6 kW fiber lasers hold ±0.1 mm with no tooling. We nest to 80%+ material yield and turn a design change around the same day.
CNC Bending
320T press brakes with angle-correction and offline programming deliver ±0.5° across long runs, with first-article checks on every angle.
Stamping & Punching
200T progressive dies and 58-station turret punching give high-volume repeatability and formed features in a single hit.
Welding
Certified TIG/MIG/spot welders with fixturing and sequenced heat control keep thin gauges flat and dimensionally stable.
Surface Finishing
Powder coat (60–120 µm), anodize, zinc plate, passivation and brushing — all in-house with thickness and adhesion checks.
Assembly & Packaging
PEM insertion, riveting, sub-assembly and barcoded custom packaging turn loose parts into a ready-to-ship module.
Four risks every procurement team faces when sourcing sheet metal overseas — and how we eliminate them
Not another “we are professional” page. Below are the real pain points we hear from Western buyers, and the concrete safeguards Goldcattle puts in place before your PO is even issued.
The parts don’t match the drawing
Tolerance drift, wrong finish, or features placed incorrectly — discovered only after the container lands at your dock.
- DFM report within 4 hours of receiving your CAD — flagged issues with cost impact before we quote
- CMM spot-check on first article and every 500 pcs thereafter (report included with shipment)
- ISO 9001 QMS + SGS / ROHS / Rmbond certified — full traceability from coil to carton
Lead time slips — again
Your assembly line waits because the supplier “had a machine down” or “material delay.” No proactive update until you chase them.
- 99.8% on-time delivery measured across the last 12 months (not a marketing claim — it’s in our monthly KPI board)
- Buffer capacity: we run at ~75% utilization so rush orders don’t displace regular customers
- Milestone alerts at material-in / mid-production / QC-complete / ship-ready — you never have to ask
Communication black hole
Vague replies, time-zone silence, or an account manager who doesn’t understand GD&T. One ECO turns into three emails and two wrong parts.
- Dedicated English-speaking project engineer assigned to your account — not a sales rep, a technical owner who reads drawings
- 24-hour response SLA on all quotes, ECOs and quality inquiries (measured internally, penalized if missed)
- Structured handoff packet: DFM notes + process route + risk register sent with every quote
Hidden rework costs eat the margin
The quoted price looked great — then came tooling revisions, re-plating, expedited shipping, and a second production run because the first batch failed incoming inspection.
- Fixed-price quote with line-item breakdown (material / labor / finish / tooling amortization) — no surprise adders
- First-article approval required before mass production starts — sign-off via photos + CMM report
- ECO policy: changes after first article are quoted separately; batch them to avoid per-change fees
Your next step: Upload your CAD (STEP/PDF/DWG) through our RFQ form. Within 24 hours you will receive a fixed-price quote, a DFM checklist flagging any tolerance or design-for-manufacturability concerns, and a proposed lead time with milestone dates. No commitment required — use it as a benchmark against your current supplier.
A partner, not just a vendor
One accountable partner for Western procurement — in-house manufacturing, full material-to-shipment traceability, and a response culture that protects your schedule.
100% In-house
No outsourcing across cutting, forming, welding, finishing and assembly. Single accountability.
24h Response
Quotes and DFM feedback within one business day. A dedicated English-speaking project engineer per account.
ISO9001 Quality
Certified QMS plus SGS, ROHS and Rmbond compliance. Full dimensional reports on every order.
First-Article Sign-off
No mass run starts before you approve photos + a CMM report. Issues are caught at first article, not after the container ships.
26 years building a manufacturer buyers trust
Founded in 1999 in Xiamen, China, Xiamen Goldcattle Industrial & Trade Co., Ltd. began as a precision sheet metal workshop and grew into a national High-Tech Enterprise with six integrated processes under one roof.
Every order is owned end-to-end by an English-speaking project engineer — no hand-offs, no blurred accountability, and full dimensional reports on every shipment.
We are built for Western procurement: fixed-price quoting, proactive milestone updates, and a response culture that protects your schedule.
A Responsible Manufacturer You Can Trust — Every Process Owned, Every Part Traceable
We have run all six sheet-metal processes in-house since 1999, serving procurement teams across 20+ countries with delivered projects. Full traceability from raw material to finished shipment — no subcontractor handoffs, no quality blind spots, just a single accountable partner who takes responsibility for every part that leaves our floor.

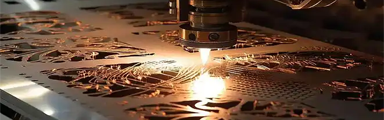

Fiber laser cutting
Burrs-free profiles straight from CAD — no tooling wait for prototypes and low-volume runs.
- Machine
- 6 kW fiber, 3015 bed
- Tolerance
- ±0.10 mm
- Max sheet
- 1525 × 3050 mm

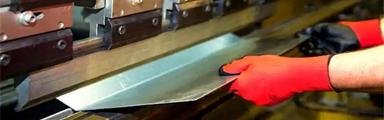

CNC press brake
Repeatable bends across long parts with in-process angle correction.
- Machine
- 320 T, 4 m bed
- Tolerance
- ±0.5° angle
- Max length
- 4000 mm

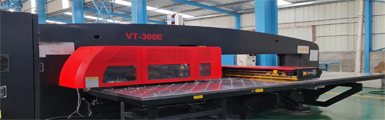

CNC turret punch
Forms, louvers, tabs and threads in one hit — faster than laser for vented panels.
- Machine
- 58 stations
- Tolerance
- ±0.10 mm
- Max sheet
- 1250 × 2500 mm

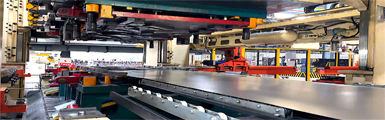

Progressive die stamping
High-rate output for mature parts once volume justifies the tooling investment.
- Machine
- 200 T press
- Tolerance
- ±0.05 mm
- Max size
- Die-dependent
TIG / MIG welding
Certified welders join frames and assemblies to AWS / ISO 9606 standards.
- Process
- TIG & MIG
- Cert
- ISO 9606 welders
- Materials
- SS / Al / CS

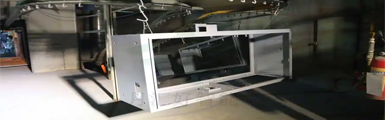

Powder coat & plating
In-house electrostatic powder booth plus verified anodize / plating partners.
- Process
- Powder coat
- Film
- 60–120 µm
- Max part
- 2000 × 1000 mm
How to read this: Match your part to its stage. Laser + bending cover most prototypes and low-volume enclosures with no tooling. Move to stamping only when annual volume clears ~10,000 pcs. In the DFM review we recommend the lowest-cost process that still meets your tolerance — before you pay for tooling.

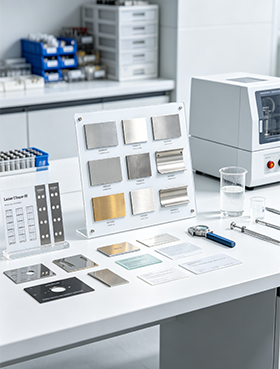

Stocked and ready to cut
Common alloys kept on-hand for fast turnaround. Specialty grades sourced through verified mills with material certificates.
Cold-rolled Steel
Smooth surface, ideal for painted parts. 0.5–3.0 mm typical.
Hot-rolled Steel
Thicker structural parts. 1.5–6.0 mm typical.
Stainless Steel
Corrosion-resistant for medical, food and marine. 0.5–4.0 mm.
Aluminum
Lightweight and corrosion-resistant. Anodizes well. 0.5–6.0 mm.
Galvanized Steel
Zinc-coated for outdoor and electrical enclosures. 0.5–3.0 mm.
Copper & Brass
Electrical and decorative applications. 0.5–3.0 mm.
Tinplate
Food-grade and packaging components. 0.2–0.5 mm.
Titanium
Aerospace and high-performance parts. Sourced on request.
Design for sheet metal — rules, costs and trade-offs your engineers need
A procurement-grade reference: what to specify, why it matters, and how each decision affects unit cost, lead time and quality risk.
We review every drawing before cutting metal
Our engineering team runs a structured DFM checklist against your CAD within 4 hours of receipt. You receive a written report with flagged issues, suggested revisions and cost-impact estimates — before we quote or cut anything.
This is not an automated check. A qualified engineer opens your STEP or PDF, walks through every feature against our process capability matrix, and flags anything that will drive up scrap, rework or tooling cost.

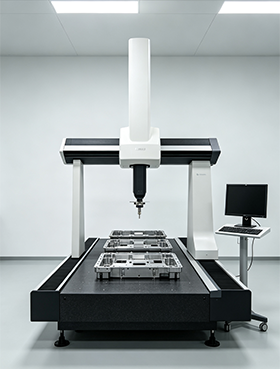

Choose the tolerance that matches your assembly need — not tighter than required
Tight tolerances drive up inspection time, scrap rate and per-part cost. We recommend ISO 2768-mK for most sheet-metal parts unless a mating interface demands finer control.
- General dimensions
- ±0.20 mm (ISO mK) — covers 80%+ of sheet-metal features at no premium
- Critical interfaces
- ±0.05–0.10 mm — add 8–15% to unit cost; requires CMM spot-check
- Hole position
- ±0.10 mm typical; ±0.05 mm on dowel / alignment holes

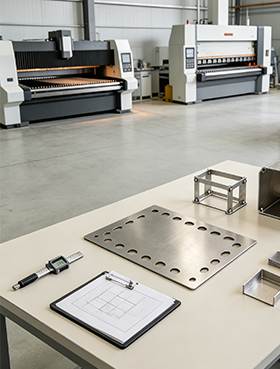

From PDF to metal prototype in 3–7 days
We cut single pieces or small batches (1–50 units) without hard tooling. Laser-cut flat patterns, hand-formed or CNC-bent, with full dimensional report. Ideal for fit-checks, assembly validation and customer demos before committing to production tooling.
- Laser-only flat parts
- 2–4 working days — no bending, direct from flat pattern nest
- Simple bent parts (≤3 bends)
- 4–6 working days — includes first-article bend inspection
- Welded assemblies
- 6–10 working days — TIG/MIG + dimensional CMM report included

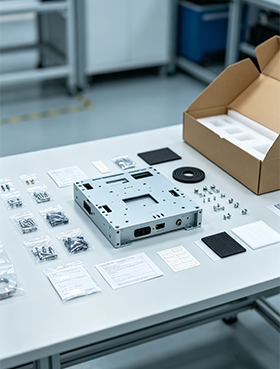

Ship a finished module — not a box of loose parts
We insert PEM standoffs, press-fit hardware, rivet sub-assemblies and package into barcoded kits. Your receiving dock gets one SKU instead of managing ten separate line items.
- PEM insertion (standoffs, nuts)
- In-house press; torque-tested per IFI standards; 500+ pcs/hour capacity
- Hardware kitting
- Sourced, bagged and labeled to your BOM — we handle multi-vendor consolidation
- Sub-assembly welding
- TIG/MIG with fixture-repeated accuracy; full sub-assembly FAI report
Not all finishes work on all materials — here is what we validate in-house
Powder coat works on steel and aluminum but skips titanium. Anodizing is aluminum-only. Zinc plating requires ferrous base. We stock these validated combinations and run process trials for new pairings.
- CRS / GI Steel
- Powder coat (RAL any), zinc plating, black oxide, passivation
- Aluminum 5052/6061
- Anodize (clear / color), powder coat, chromate conversion, brush
- SUS 304/316
- Passivation, electro-polish, PVD coating, bead blast
The five levers that most affect your quoted price
Understanding these drivers helps you optimize design-for-cost before tooling. Small decisions at the CAD stage compound into large unit-price differences at volume.
- 1. Material thickness & grade
- Thicker = higher laser/welding cost. Specialty alloys carry a 30–200% surcharge over CRS.
- 2. Tolerance stringency
- ±0.05 mm costs roughly 2× ±0.20 mm in inspection and sorting.
- 3. Quantity per order
- Setup is fixed; unit price drops ~35% going from 50 to 500 pcs via nesting efficiency.
- 4. Finish complexity
- Masking for two-tone powder coat or selective anodize adds 15–25% labor.
- 5. Drawing revision frequency
- ECOs after first-article incur re-setup fees; batch changes together to avoid repeated charges.
From drawing to delivery in 7 steps
A transparent, milestone-driven process. You see status at every stage and approve before we proceed.
Inspection at every stage, certified to ship
Quality is built into the process, not bolted on at the end. Every order ships with a dimensional inspection report.
Material certificates verified, thickness and alloy confirmed before any cutting begins.
First-article inspection after bending, weld visual and dimensional checks mid-run.
100% dimensional report on critical features, AQL sampling on cosmetic and secondary features.
What drives sheet metal part cost
Understanding these levers helps you optimize design for the best price-per-part before tooling.
Material
Alloy grade and sheet thickness dominate. Nesting efficiency recovers scrap value.
Cutting Time
Laser path length and pierce count. Simplify outlines and reduce internal cutouts.
Bending & Setup
Number of bends and setup changes. Group similar bend angles to cut handling.
Finishing
Powder coat and anodize carry fixed batch costs — larger runs amortize them.
Welding & Assembly
Labor-intensive; design for fewer welds and self-locating joints.
Inspection & Packaging
Largely fixed; negligible at scale but worth optimizing for low-volume runs.
Predictable timelines you can plan around
Samples in 7–15 days, production in 15–25 days. We commit to dates and flag risks early.
Problems we solve before they reach you
Two decades of sheet metal work means we catch the issues that derail less experienced shops.
Weld warping on thin gauges
Thin-sheet welds pull parts out of flat, ruining downstream assembly.
Our fix: Sequenced welds, heat sinks and fixturing, plus post-weld straightening on a press.
Bend angle drift across long runs
Material springback varies between sheets, causing angle inconsistency.
Our fix: Angle-correction press brakes with in-process measurement and per-batch compensation.
Surface scratches after handling
Parts mar between operations, rejecting finished goods at final QC.
Our fix: Protective film applied at cut, retained through bending and removed only at packaging.
Inconsistent powder coat thickness
Thin coats chip; thick coats crack at edges and waste material.
Our fix: Calibrated electrostatic guns with thickness checks at 60–120 um on every batch.
Trusted across demanding sectors
Sector-specific compliance and documentation, from medical traceability to automotive PPAP.
Automotive
Brackets, mounts, structural reinforcements
Medical Devices
Surgical instrument housings, equipment chassis
Electronics
Rack enclosures, EMI shields, chassis
Industrial Machinery
Guards, frames, control panels
Aerospace
Lightweight aluminum structural parts
Telecom
Base station enclosures, mounting hardware
Robotics
End-effectors, frames, cable management
Energy
Inverter enclosures, battery trays, supports
Parts we make every day
Representative geometries that match our equipment and process sweet spot.

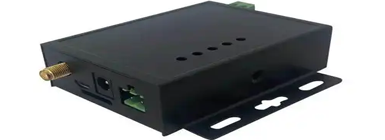

Electronics Enclosure
Folded steel or aluminum housing with punched ventilation, PEM inserts and powder coat.

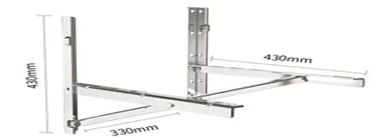

Mounting Bracket
Laser-cut and bent bracket with welded nut, used across automotive and machinery.

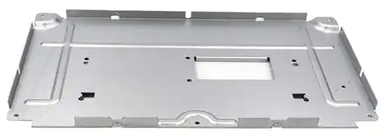

Equipment Chassis
Multi-piece welded assembly with internal rails, finished as a rigid structural frame.

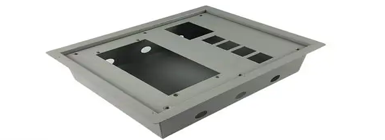

Control Panel
Front panel with cutouts for displays and switches, back-printed or engraved labeling.
EMI Shield
Formed shielding cans and finger stock for sensitive electronics assemblies.

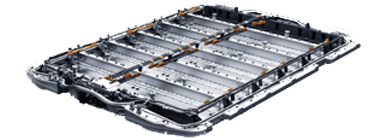

Battery Tray
Welded aluminum tray with drain holes and mounting feet for energy storage systems.
Real projects, real outcomes
A snapshot of how Goldcattle has helped Western OEMs hit cost, quality and schedule targets.
EV Battery Enclosure
Welded aluminum enclosure for an electric vehicle supplier, replacing a cast design to cut weight and lead time.

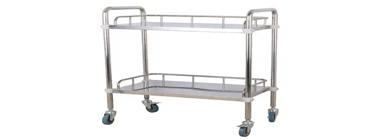

Surgical Cart Frame
Stainless steel welded frame for a mobile surgical cart, meeting medical cleanliness and traceability standards.

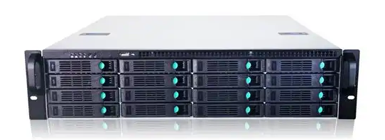

Rack Server Chassis
High-volume steel chassis with PEM inserts and powder coat, redesigned for nesting efficiency and faster bending.
A look at our sheet metal floor
From laser bay to packaged shipment — a glimpse of the in-house capability behind every order.
What procurement teams say
Straight from the buyers who run their supply chain through Goldcattle.
Goldcattle replaced a cast enclosure with a welded aluminum design — 38% lighter and two weeks faster to prototype. Their DFM feedback alone saved us a tooling mistake.
We ship 5,000 surgical cart frames a year. First-pass yield stays above 99% and every lot arrives with full traceability docs. That is rare at this price point.
The 24-hour quote turnaround and single point of contact made offshore sourcing feel local. Lead times are honest and they flag risk early.
Built in-house in Xiamen, China
A 100+ machine facility structured for Western communication and accountability, with every process owned under one roof.
Fiber Laser
6 kW · 3015 bed · 2 units
Press Brake
320T · 4m · 4 units
Turret Punch
58 stations · 1 unit
Stamping Press
200T · 2 units
Welding
TIG/MIG/Spot · 8 stations
Powder Booth
Electrostatic · 2000mm
We stay accountable after the shipment leaves
A partnership does not end at the dock. These are the supports every Goldcattle account can rely on.
Warranty & Rework
12-month workmanship warranty. Any non-conforming part is reworked or replaced at no cost, with root-cause analysis shared back to you.
Dedicated Support
Your project engineer stays on the account post-shipment. Reach us by email or call and expect a reply within one business day.
Spare Parts & Kits
We stock spares against your repeat orders and can kit consumables so your line never waits on a missing component.
Documentation Archive
Dimensional reports, material certs and RoHS/REACH declarations are archived and re-issued on request for the life of the program.
Engineering Follow-up
Design tweaks, ECOs and cost-down revisions are handled in the same DFM loop — no re-qualification surprises.
Logistics Recovery
If a shipment is delayed or damaged in transit, we coordinate the freight claim and expedite a replacement to protect your schedule.
Questions procurement teams ask
Straight answers to the most common questions before you send a drawing.
