We provide custom CNC sprocket machining services with high tooth accuracy, controlled pitch tolerance, and durable materials for reliable transmission performance.
What Problems We Solve For You
Poor sprocket performance can cause downtime, noise, and premature wear. We fix these common issues:
- Poor sprocket-chain meshing that causes jamming and damage
- Excessive wear and noise during operation
- Inconsistent pitch accuracy that reduces transmission efficiency
- Short service life that leads to frequent replacement
Key Challenges in Sprocket Machining
Accurate sprocket machining requires strict control of these core factors to ensure performance:
- Tooth profile accuracy: Precise tooth shape to ensure smooth chain engagement and reduce wear
- Pitch consistency: Uniform pitch across all teeth to maintain stable transmission
- Heat treatment deformation control: Prevent dimensional change after hardening to keep accuracy
- Surface roughness control: Smooth surface to reduce friction and extend service life
Our Professional Sprocket Machining Process
CNC Rough Machining
Shape the base part with high efficiency

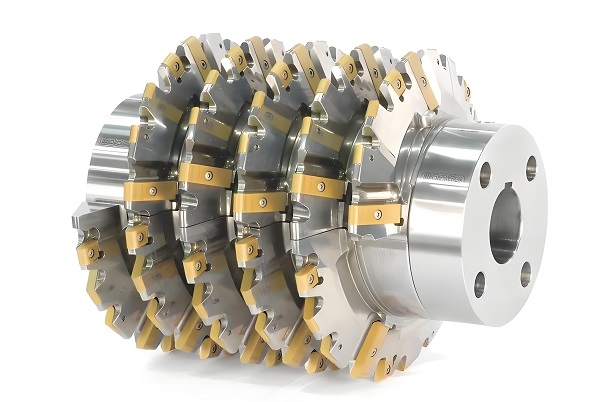

Tooth Cutting
Precision hobbing/milling for accurate tooth profile
Heat Treatment
Hardening to improve strength and wear resistance
Precision Finishing
Final grinding to meet tight tolerance requirements
Material Selection Guide for Sprockets
We help you choose the right material based on your application and load requirements:

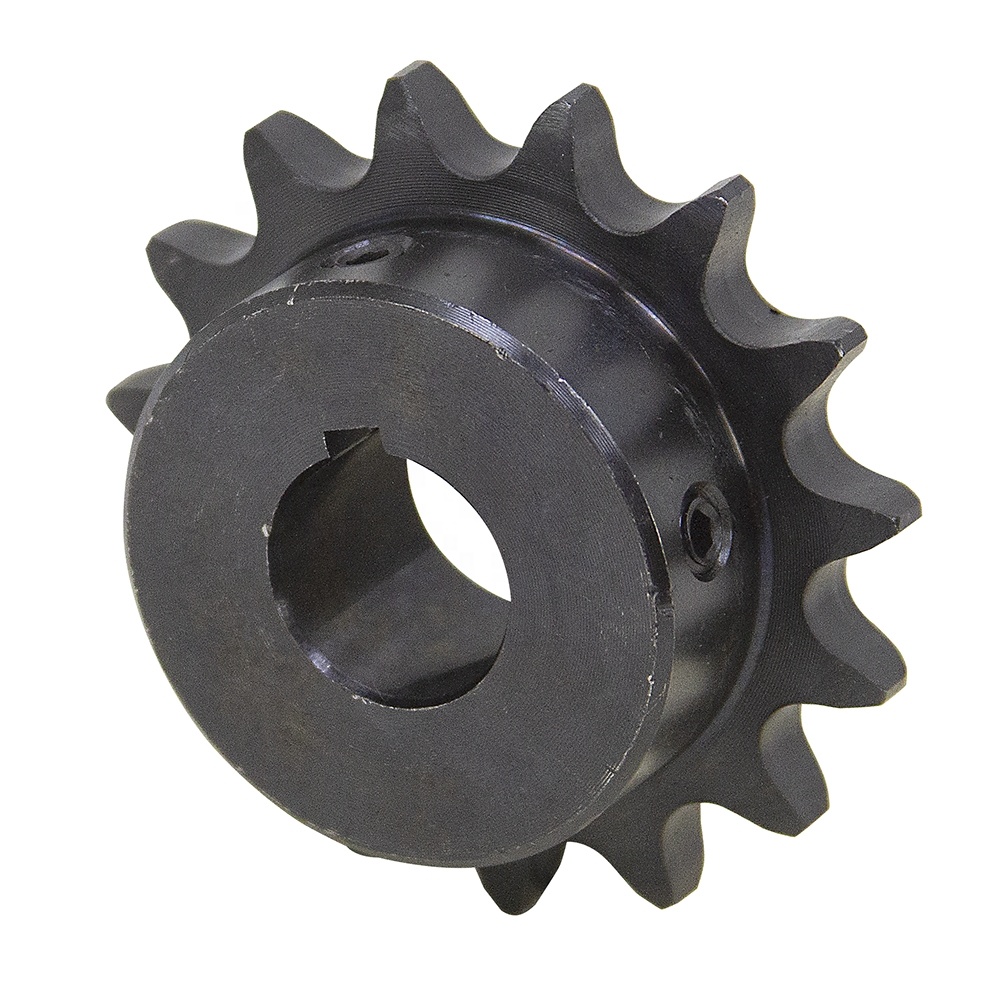

- Carbon Steel (1045) – Cost-effective, good strength, ideal for general industrial applications with normal load
- Alloy Steel (40Cr) – High strength and toughness, perfect for heavy-load transmission systems and high-speed operation
- Stainless Steel – Excellent corrosion resistance, suitable for food processing, medical, and wet environment applications

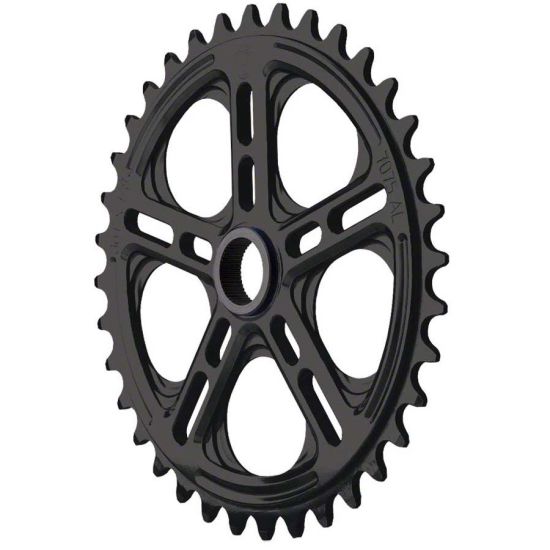

- Aluminum – Lightweight, good for low-load, high-speed applications like bicycle and motorcycle transmission
We also offer post-processing services: black oxide, anodizing, polishing, and plating to meet your surface requirements.
Tolerance & Quality Assurance
We maintain strict quality control to meet the requirements of North American and European clients, with industry-leading certifications:
- Tooth pitch tolerance: ±0.01–0.02mm to ensure perfect meshing
- Surface roughness: Ra 1.6–3.2μm to reduce friction and wear
- Concentricity tolerance: ≤0.01mm to ensure stable rotation
Our quality system includes:
- ISO 9001:2015, AS9100, and ISO 13485 certifications
- ITAR compliant for defense and government projects

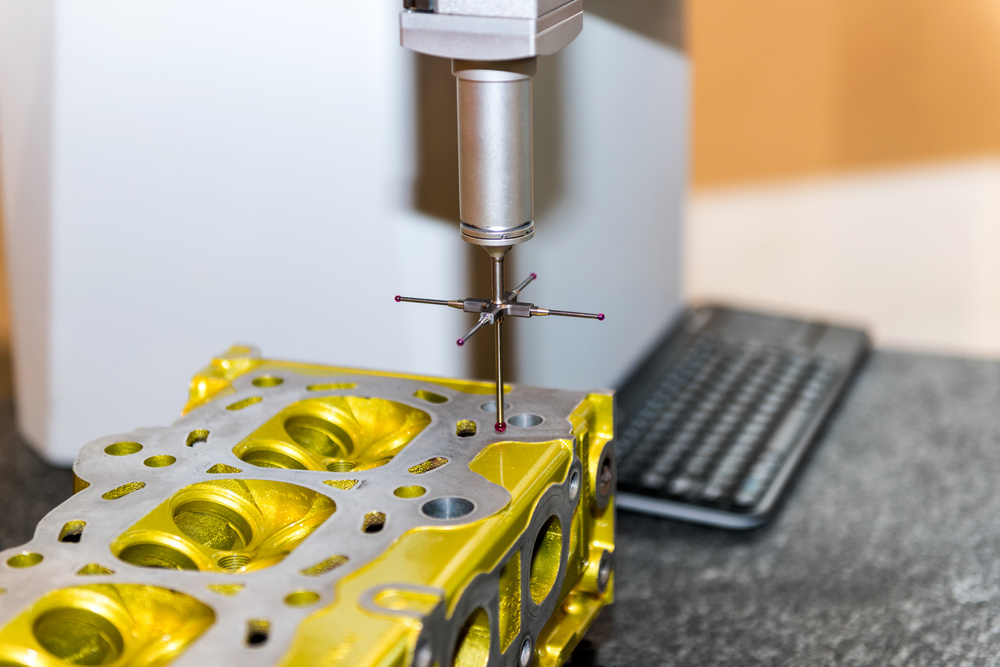

- CMM inspection for all critical dimensions
- First Article Inspection (FAI) and material certification reports
- Full traceability for all parts and materials
What Affects Your Sprocket Machining Cost?
We provide fully transparent quoting with no hidden fees. The main factors that impact your cost are:
- Material Type: Standard carbon steel is cost-effective, while stainless steel or alloy steel comes with higher material cost
- Part Size & Complexity: Larger sprockets or those with special tooth profiles require more machining time
- Tolerance Requirements: Tighter tolerances require more inspection and finishing steps, adding to the cost
- Order Quantity: We support orders from 1 piece up to 1000+ pieces, higher quantities lower the per-unit cost
- Post-Processing: Additional services like heat treatment, plating, or painting will add to the total cost
Application Scenarios
Our custom sprockets are widely used in various industries:
- Automotive transmission: Precision sprockets for engine and transmission systems
- Agricultural machinery: Durable sprockets for harvesters, tractors, and farm equipment
- Industrial conveyors: Reliable sprockets for assembly lines and material handling systems
- Motion & power transmission: High-performance sprockets for robotics and automation equipment
Free DFM Support & IP Protection
As your engineering partner, we provide free Design for Manufacturability (DFM) analysis to help you:
- Optimize your sprocket design to reduce cost and improve performance
- Identify potential manufacturing issues before production
- Shorten your project lead time
We also prioritize your intellectual property: we sign standard Non-Disclosure Agreements (NDA) for all clients to protect your confidential design information.
We offer seamless transition from prototype to low-volume production, so you don’t need to switch suppliers for your batch production, saving you time and cost.
Case Study: Agricultural Sprocket Upgrade
Client Challenge: A US agricultural machinery client had issues with their sprockets wearing out too fast, leading to frequent downtime and maintenance cost.
Our Solution: We analyzed their application, optimized the tooth profile to reduce wear, and upgraded the material to 40Cr alloy steel with quenching heat treatment to improve hardness.
Result: The new sprocket’s service life increased by 30%, reducing the client’s maintenance cost and downtime significantly.
Frequently Asked Questions
Q: What tolerance can sprocket machining achieve?
A: We can achieve tooth pitch tolerance as tight as ±0.01mm, and concentricity tolerance ≤0.01mm to ensure perfect meshing and stable transmission.
Q: How do you ensure sprocket accuracy after heat treatment?
A: We control the heat treatment process to minimize deformation, and we do precision finishing after heat treatment to restore the tight tolerance requirements.
Q: What material is best for sprockets?
A: It depends on your application. Carbon steel is good for general use, alloy steel for heavy load, stainless steel for corrosion resistance, and aluminum for lightweight applications.
Q: Can you customize sprocket based on my drawings?
A: Yes, we fully support custom sprocket machining based on your 2D/3D drawings, we can make any size, tooth profile, and material to match your exact requirements.
Q: Do you sign NDAs to protect my design?
A: Yes, we offer standard NDAs for all clients to protect your intellectual property, we never share your project details with third parties.
Q: What certifications do you hold?
A: We hold ISO 9001:2015, AS9100, and ISO 13485 certifications, and we are ITAR compliant to meet the regulatory requirements of North American and European markets.
Ready to Get Your Custom Sprocket?
Our engineering team is ready to help you. Get a free quote, DFM analysis, and transparent cost breakdown within 24 hours.
