Large scale CNC machining is a precision manufacturing process used to machine oversized metal or industrial components that exceed standard machining dimensions. It combines high-rigidity CNC equipment, thermal control, and advanced fixturing to produce large parts with controlled tolerances for industries such as aerospace, energy, heavy equipment, and automation.
✅ Oversized work envelope
✅ Precision at scale
✅ Heavy-duty machining
✅ Industrial applications
What Is Large Scale CNC Machining?
Large scale CNC machining is a specialized subtractive manufacturing process designed to process oversized, heavy workpieces that cannot be handled by standard CNC machines. Unlike standard machining, it requires high-rigidity machine structures, specialized fixturing, and advanced thermal compensation systems to maintain precision even for parts measuring several meters in size and weighing multiple tons.
Large Work Envelope
Extended machine travel to accommodate oversized workpieces up to 12 meters in length.
Precision Control
Advanced thermal and vibration compensation to maintain accuracy at scale.
Heavy-Duty Machining
High-power spindle and rigid structure for heavy cutting of hard materials.
Industrial Use
Specialized for heavy industry, energy, aerospace, and large equipment parts.
What Is Considered Large CNC Machining?
The term “large” in CNC machining is defined by the workpiece dimensions, with clear size classifications to help you understand the capabilities:
How Large CNC Machining Works
Large CNC machining follows a specialized engineering workflow to ensure precision and quality for oversized parts:
Engineering Challenges in Large CNC Machining
Machining large parts introduces unique engineering challenges that standard machining doesn’t face. Our team has years of experience addressing these issues:
Thermal Expansion
Small temperature changes can cause significant dimensional shifts across large parts. We use temperature-controlled workshops and real-time thermal compensation.
Machine Rigidity
Long machine travels require extreme structural rigidity to avoid deflection. Our heavy-duty gantry machines provide the necessary stability.
Tool Deflection
Long tool overhangs for deep cavities can cause deflection. We use specialized carbide tools and adaptive cutting parameters to minimize this.
Vibration & Chatter
Large thin-walled structures are prone to vibration. We use damped tool holders and optimized cutting parameters to eliminate chatter.

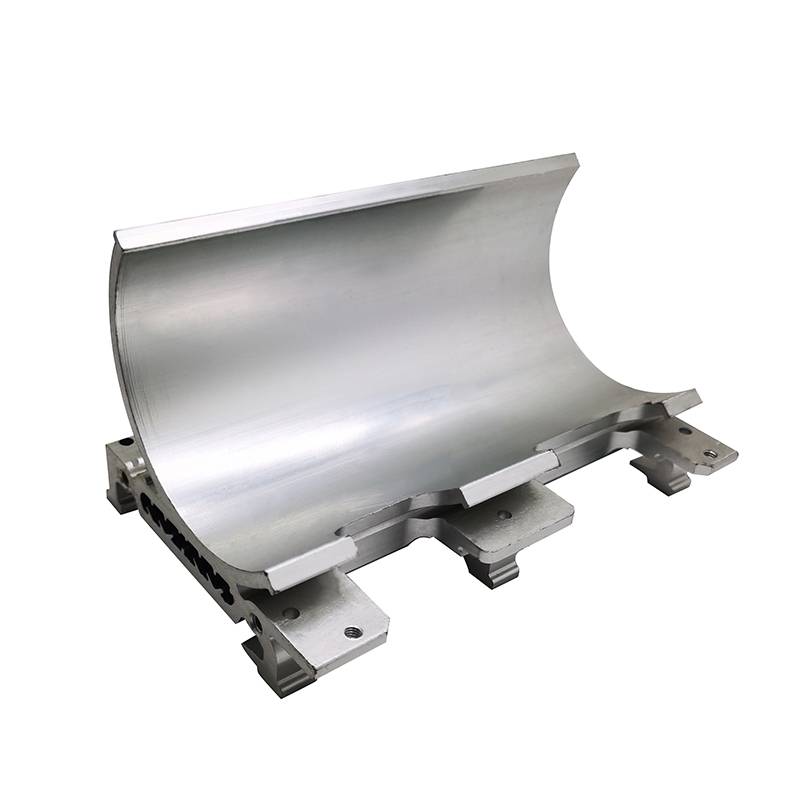

Typical Large CNC Machined Parts
Large CNC machining is used to manufacture a wide range of oversized precision parts for different industries. Here are the most common types:
Machine Frames
Structural frames for industrial equipment and machinery
Base Plates
Precision mounting plates for heavy machinery
Energy Components
Wind turbine hubs and pressure vessel parts
Large Housings
Oversized gearbox and equipment housings
Mold Bases
Large mold bases for automotive and industrial molds
Aerospace Structures
Large aircraft structural components
Large CNC Machining Tolerance and Accuracy
One of the biggest concerns for large part procurement is whether precision can be maintained at scale. Our capabilities show that we can deliver reliable accuracy, with tolerances adjusted to the part size:
Critical local features (such as bearing seats) can still achieve ±0.005mm tolerance, even on large parts, as the thermal and rigidity effects primarily impact long-distance dimensional errors.
Large CNC Machining vs Welding vs Casting
When manufacturing large parts, you have several options. We compare the three most common processes to help you choose the right one:
How to Choose a Large CNC Machining Supplier
Large part procurement has higher risks than standard parts. When choosing a supplier, you should evaluate these key factors:
Machine Travel Capacity
Verify the supplier’s actual work envelope to ensure your part fits without multiple setups.
Quality Inspection Capability
Ensure they have large CMM and laser tracker to verify full part dimensions.
Logistics & Handling
Large parts require specialized handling and shipping. Verify the supplier’s logistics capability.
Fixturing Expertise
Custom fixturing is critical for large parts. Ensure they have in-house fixture design capability.
Goldcattle’s Large CNC Machining Capabilities
As a professional precision CNC manufacturer, we have built full in-house capabilities for large part machining, with specialized equipment and engineering expertise:
Advanced Production Equipment

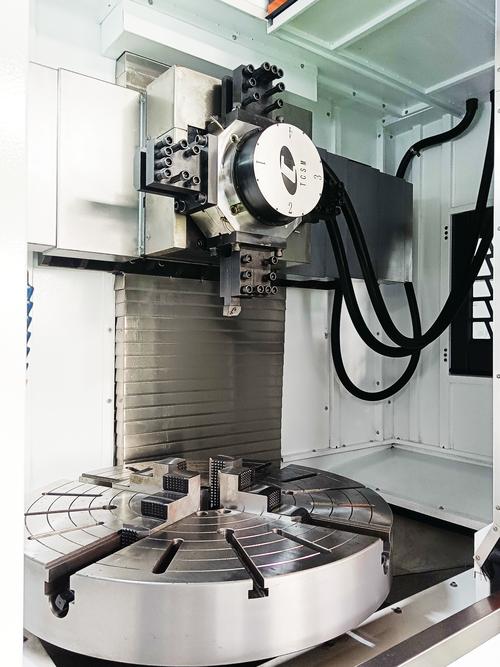

- Large gantry milling centers with up to 12m X-axis travel
- Turning-milling composite centers for 2.5m diameter rotating parts
- 5-axis vertical machining centers for complex large cavities
- Large CMM and laser tracker for full dimensional verification
Engineering & Technical Expertise
- Real-time thermal deformation compensation system
- 10+ years of large part DFM analysis experience
- Custom fixturing design to prevent part distortion
- Flexible capacity: from 1 prototype to 1000+ mass units
Global Quality Certifications
- ISO 9001:2015 Quality Management System
- ISO 13485:2016 Medical Device Quality Management
- IATF 16949:2016 Automotive Quality Management
- RoHS, REACH material compliance for global market
What Information Do We Need for Your Large CNC Quote?
To provide you with an accurate, fast quote for your large CNC machining project, we recommend preparing the following information. This helps us avoid back-and-forth communication and deliver your quote within 24 hours:
3D CAD File
Your part’s 3D model, preferably in STEP or IGES format.
Material Specification
The material of your part, such as steel, aluminum, etc.
Tolerance Requirements
Critical dimensional tolerances for your part features.
Production Volume
Your expected production quantity, to optimize pricing.
Frequently Asked Questions
What is large scale CNC machining?
Large scale CNC machining is a specialized manufacturing process for machining oversized, heavy workpieces that exceed standard machine capabilities, using high-rigidity equipment and thermal compensation to maintain precision.
How large can CNC machines machine?
Our large CNC machines can machine parts up to 12 meters in length and 2.5 meters in diameter, with weight capacity up to 50 tons, covering most large industrial part requirements.
Can large CNC machining maintain tight tolerances?
Yes. With thermal compensation and specialized processes, we can maintain ±0.05-0.1mm tolerance for large parts, with critical local features achieving ±0.005mm.
What materials are suitable for large CNC machining?
We support most common materials, including structural steel, aluminum, stainless steel, cast iron, titanium, and many other industrial materials.
Large machining vs fabrication: which is better?
CNC machining delivers higher precision and consistency, while welding is better for simple structures. For precision critical parts, CNC machining is the better choice.
How expensive is large CNC machining?
The cost depends on part size, material, complexity, and volume. We provide customized quotes based on your specific requirements, with optimized processes to reduce cost.
