Custom Wooden Wheels: Precision CNC Manufacturing & Material Guide
From educational toys to heavy-duty furniture casters, Xiamen Goldcattle combines 26 years of CNC precision machining expertise with premium hardwood processing. Delivering ±0.05mm tolerance wooden wheels for global brands.
26+
Years Experience
±0.05
mm Tolerance
1000+
Projects Delivered
ISO
Certified Facility

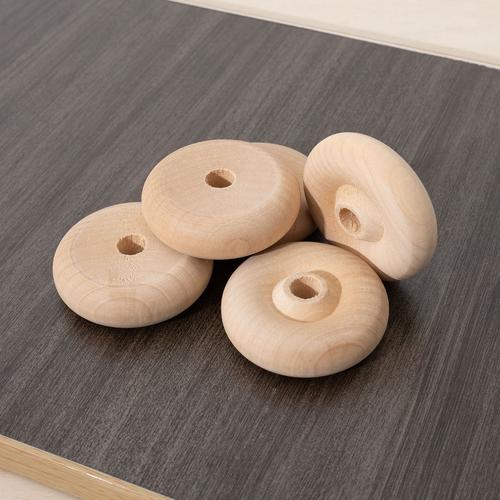

Types of Custom Wooden Wheels We Manufacture
Categorized by application requirements, load-bearing needs, and safety standards.
Why Xiamen Goldcattle for Wooden Components?

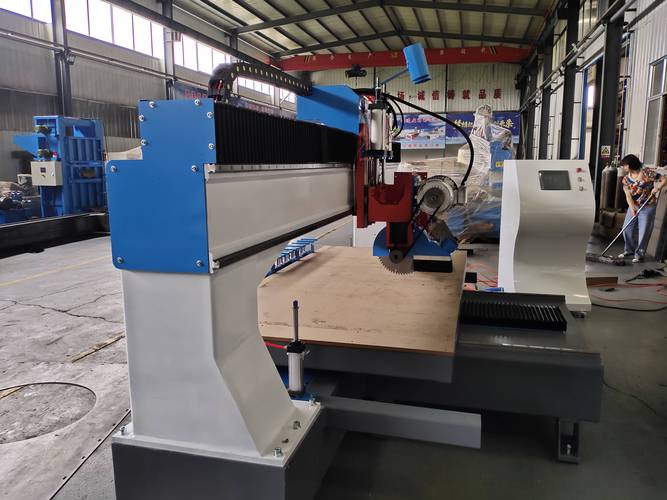

As a national high-tech enterprise specializing in CNC precision machining, we bring industrial-grade tolerances to woodworking. While traditional woodshops rely on manual lathes, our multi-axis CNC turning centers ensure every wheel in a 50,000-piece batch is identical.
CNC Precision
Tolerances held to ±0.05mm, eliminating assembly fit issues.
Rapid Turnaround
Samples in 7-10 days; mass production in 15-25 days.
DFM Engineering
Free design-for-manufacturability review to optimize costs.
Global Compliance
FSC materials, REACH, and EN71-3 certified processes.
Wooden Wheel Material Selection Guide
Selecting the correct hardwood species is critical for load capacity, machining quality, and environmental resistance.
💡 Engineer’s Note: Moisture Control
Regardless of species, all lumber is kiln-dried to 8%-12% moisture content before CNC machining. This prevents post-production warping and ensures dimensional stability during ocean freight.
How to Choose the Right Wooden Wheel
Quick decision matrix based on your primary project requirement.

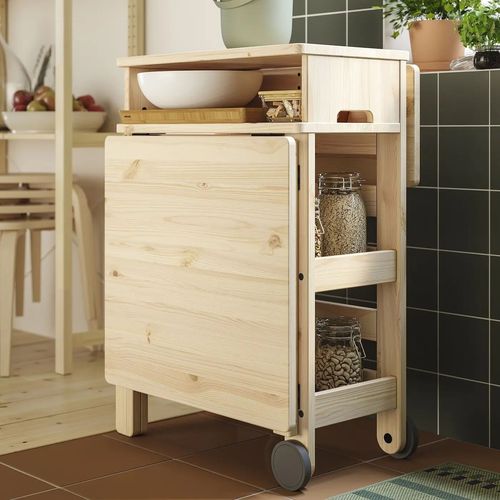

High Load Capacity
Heavy furniture, industrial carts
→ Recommend: Oak, Maple
→ Min thickness: 25mm+

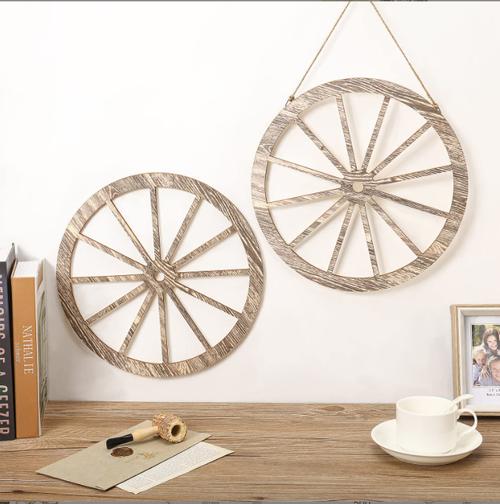

Decorative Appearance
Retail displays, luxury interiors
→ Recommend: Walnut, Oak
→ Finish: Clear oil or wax
Low Cost / High Vol
Mass-market toys, paint-grade
→ Recommend: Birch, Beech
→ Finish: Spray paint

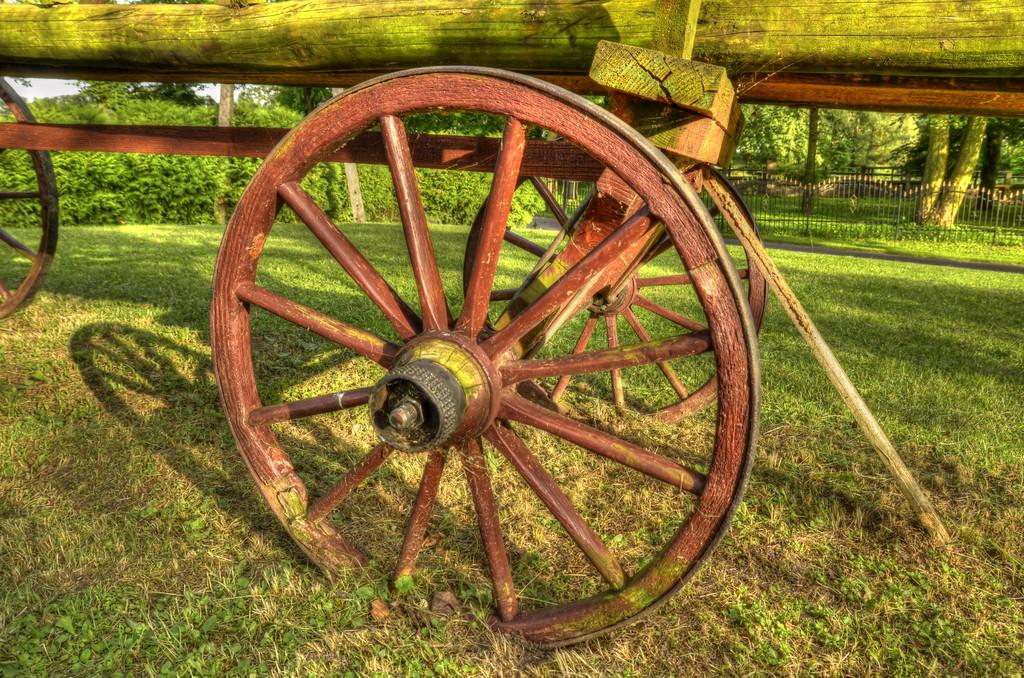

Outdoor Exposure
Garden decor, theme parks
→ Recommend: Oak + Marine Coat
→ Treatment: UV inhibitors
CNC Manufacturing Process & Parameters
Our 5-step production workflow ensures consistency from raw lumber to export packaging.
Material Preparation & Kiln Drying
Lumber is inspected and kiln-dried to target moisture levels. Stress-relieving prevents future cracking.

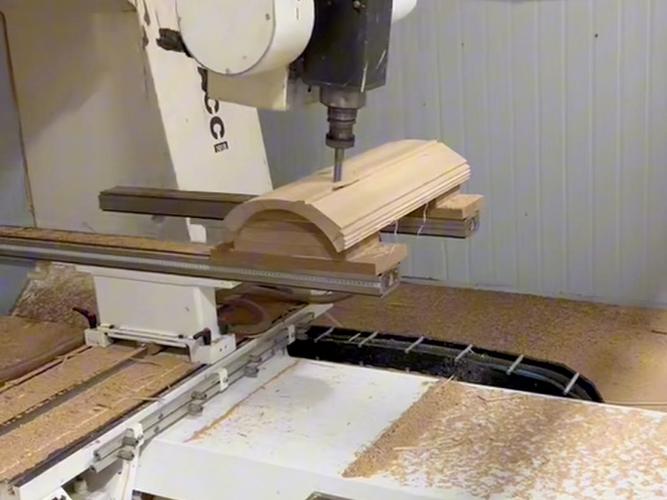

CNC Precision Turning & Milling
Multi-axis CNC lathes profile the wheels. Center holes and axle slots are machined in a single setup for perfect concentricity.
Automated Sanding & Edge Profiling
Progressive sanding ensures a flawless surface. Edges are chamfered or radiused according to safety standards (e.g., EN71 for toys).
Surface Finishing & Coating
Applied in a dust-free spray booth. Options include natural oils, water-based lacquers, or heavy-duty outdoor varnishes.
QC Inspection & Export Packaging
AQL sampling, CMM verification for critical dimensions, and humidity-buffered packaging to prevent transit damage.
Technical Capabilities
| Diameter Range | 20mm – 600mm |
| Thickness | 8mm – 80mm |
| Center Hole | Custom / Metal Insert |
| Tolerance | ±0.05mm |
| Surface Finish | Ra 1.6μm |
| Logo Engraving | Laser / CNC |
Common Customer Challenges We Help Solve
Addressing the most frequent pain points in global wooden component procurement. Our engineering team proactively implements preventative measures at every stage of the manufacturing lifecycle.
⚠ Cracking During Transportation
Cause: Improper moisture content control or extreme humidity shifts in shipping containers.
Goldcattle Solution: Strict kiln-drying to 8-12% MC. We use VCI bags and silica gel desiccants for all ocean freight shipments.
⚠ Batch Color Inconsistency
Cause: Natural variations in wood grain and inconsistent stain absorption across different production runs.
Goldcattle Solution: Spectrophotometer color matching (ΔE < 2.0) and strict material sorting by tone before machining.
⚙ Dimensional Variations
Cause: Manual lathe operation and tool wear leading to out-of-round wheels and poor axle fit.
Goldcattle Solution: Fully automated CNC turning with real-time tool compensation. Guaranteed ±0.05mm roundness.
⚙ Outdoor Durability Problems
Cause: Standard indoor finishes failing under UV exposure, rain, and temperature fluctuations.
Goldcattle Solution: Marine-grade spar varnish or penetrating outdoor oil systems with UV inhibitors and water repellents.
Selected OEM Case Studies
Real-world examples of how we solve complex manufacturing requirements for global brands.
Frequently Asked Questions
Technical and commercial answers for procurement teams.
What is the best wood for wooden wheels?
For heavy loads, White Oak or Hard Maple is ideal. For toys, Maple or Beech provides a smooth, splinter-free finish. For decorative luxury items, Black Walnut offers the best aesthetic.
Can wooden wheels be used outdoors?
Yes. We recommend Oak treated with marine-grade spar varnish or specialized outdoor penetrating oils. We also offer thermal modification services to enhance natural rot resistance.
What diameter sizes can be customized?

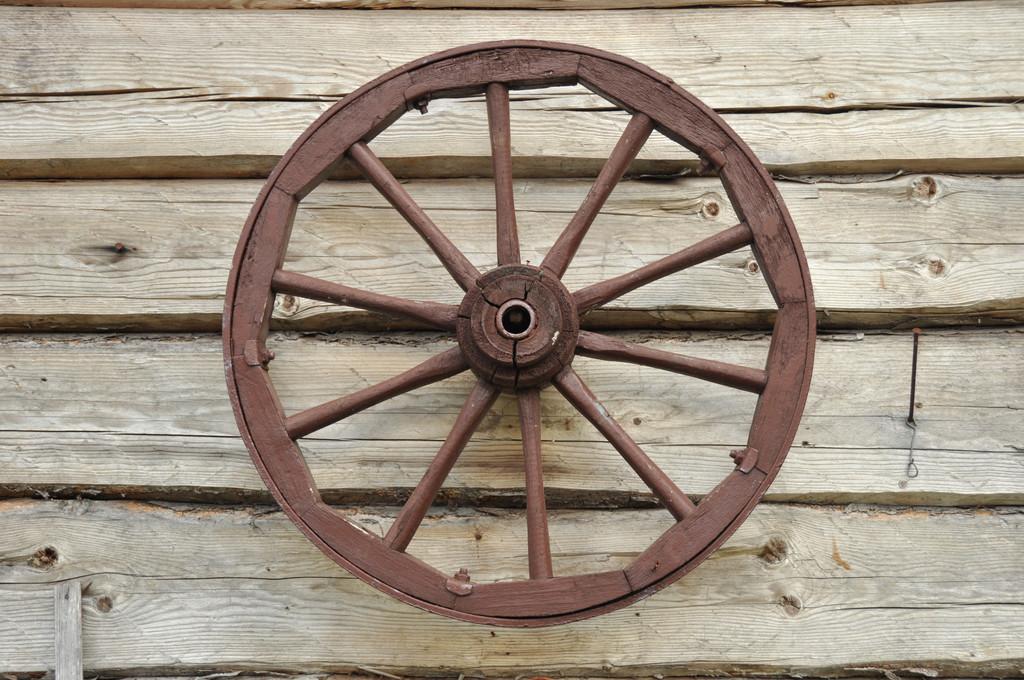

Our CNC equipment handles diameters from 20mm (miniature toys) up to 600mm (large wagons and architectural elements). Thickness ranges from 8mm to 80mm.
Can you manufacture wooden wheels from drawings?
Absolutely. We accept STEP, IGES, DXF, and PDF files. If you only have a concept sketch or physical sample, our engineering team will create 3D models and DFM reports for your approval.
Do you support OEM production and logo engraving?
Yes, we provide full OEM/ODM services. Logos can be applied via precision laser engraving, hot foil stamping, or CNC routing. Custom packaging is also available.
How do you prevent cracking during shipping?
We control moisture content strictly at 8-12% via kiln drying. For export, we use humidity-buffered packaging with silica gel and conduct 72-hour container simulation tests to ensure stability.
Start Your Custom Project
Send us your drawings or requirements. Our engineering team will provide a DFM review and quote within 24 hours.
Email:charlie@plasticmetalparts.com
Sample Lead Time: 10 – 15 Days
