Transparent fan blade spare parts from customized factory
| Attribute | Details |
|---|---|
| Product Name | Custom Fan Blades |
| Materials | ABS, PA66, PP, PC, PMMA, PSU, PCTG, TPE, TPU, PBT and other engineering plastics |
| Core Process | Injection Molding |
| Specifications | 5-leaf design, customizable size and shape |
| Surface Treatment | Transparent/colored injection, silk-screen printing for logos |
| Certifications | ISO 9001 |
| Minimum Order Quantity (MOQ) | 1 piece |
| Packaging | Single-piece packaging size: 8×8×3 cm, gross weight: 0.35kg |
| Lead Time | 1–100 pieces: 31 days; >100 pieces: Negotiable |
| Services | OEM customization, drawing-based processing (supports 2D/3D drawings) |
| Application Areas | Household appliances (fans, air conditioners), industrial equipment, ventilation systems, etc. |
| Origin | Fujian, China |
| Brand | JSD |
Description

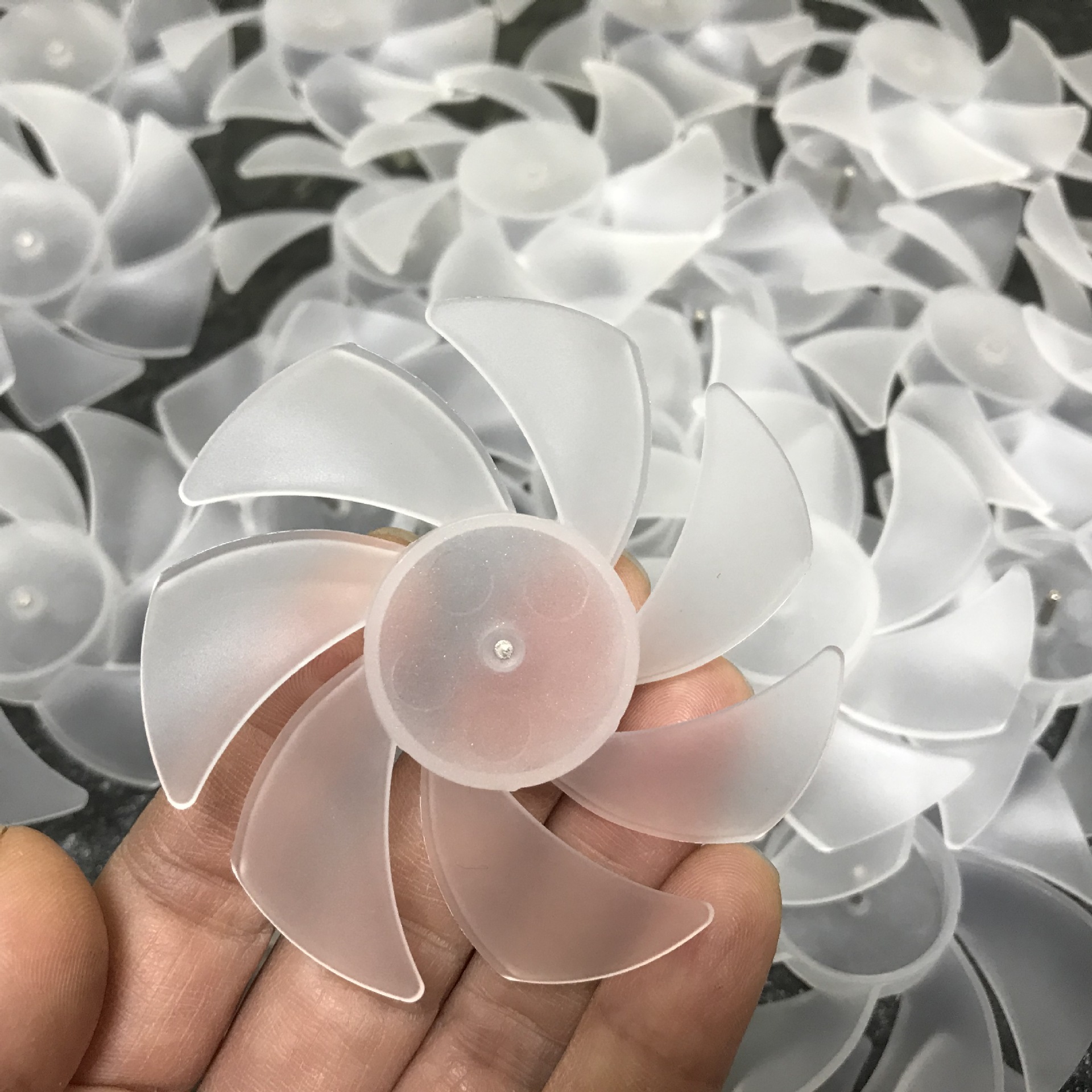

Transparent Plastic Fan Blades Manufacturer
OEM Injection Molded Fan & Impeller Components for Appliances, HVAC and Industrial Equipment
At Goldcattle, we specialize in OEM manufacturing of custom transparent plastic fan blades and impellers using precision injection molding. With over a decade of experience in transparent plastic processing, we deliver high-quality, balanced airflow components that meet the strict requirements of appliance, HVAC and industrial clients worldwide.
We support your entire project cycle, from initial prototyping to full mass production, helping you turn your design drawings or physical samples into ready-to-use, performance-tested parts with consistent quality.
Quick Capabilities
Transparent fan blades are typically manufactured by injection molding using clear engineering resins such as polycarbonate (PC) or acrylic (PMMA). For rotating airflow components, the critical engineering concerns are not only optical clarity but also blade balance, warpage control and process stability. Proper resin drying, gate design, mold polishing and cooling balance are key factors in reducing bubbles, flow marks and vibration during operation.
What Are Transparent Plastic Fan Blades?
Transparent fan blades are molded plastic airflow components used in appliances, HVAC systems, cooling equipment and specialty displays where both airflow performance and visual appearance matter. Unlike standard opaque blades, these clear components not only deliver reliable airflow but also enable visual inspection of internal components, support illuminated designs, or meet specific aesthetic requirements for your products.
Why Material Selection Matters
Choosing the right material is critical to ensure your fan blades perform reliably in their operating environment while maintaining the required clarity and mechanical properties.

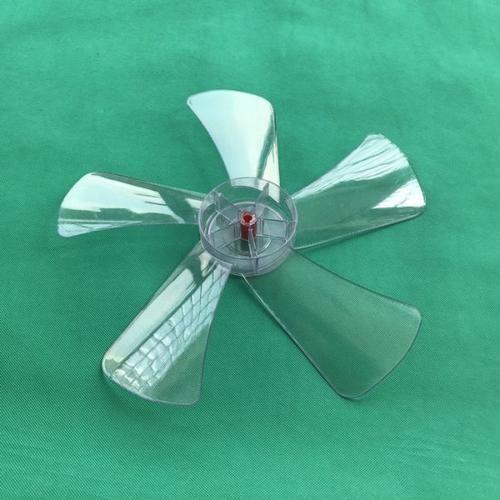

Injection Molding Process for Transparent Blades
Our Specialized Process Steps
- Resin Drying: Pre-drying transparent resins to remove moisture, preventing bubbles and splay marks in the final parts.
- Mold Polishing: Optical-grade cavity polishing when required, ensuring the highest possible surface finish and clarity.
- Gate Design: Custom gate location to ensure balanced melt flow, minimizing weld lines and flow marks.
- Controlled Packing: Precision packing pressure adjustment to prevent sink marks while maintaining part dimensions.
- Cooling Balance: Symmetric cooling system design to minimize warpage and ensure uniform blade thickness.
- Post-Mold Verification: Initial inspection and dynamic balance testing to validate part performance before full production.
Common Manufacturing Challenges & Solutions
Transparent fan blades have unique manufacturing requirements. Our engineering team has developed specialized processes to address these common challenges.

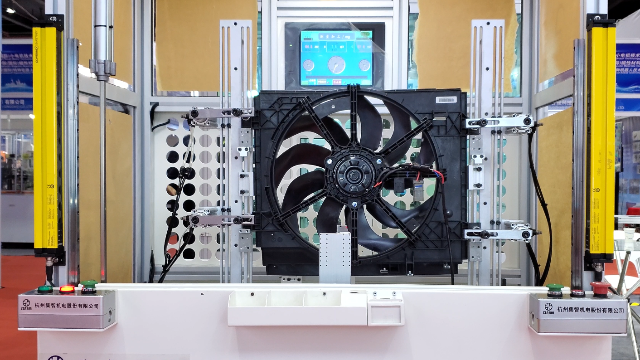

Quality Control for Rotating Parts
For rotating components like fan blades, quality control goes beyond simple dimensional checks. We implement a multi-step inspection process to ensure your parts perform reliably in operation.
- Visual inspection under controlled lighting to detect surface defects
- Dimensional measurement of critical blade geometry and hub dimensions
- Weight consistency checks to ensure uniform mass distribution
- Dynamic balance testing when specified, to eliminate vibration and noise
- Material traceability and incoming resin verification for full quality documentation
Industries & Applications
Our custom transparent fan blades are used across a wide range of applications, delivering both performance and visual benefits:
HVAC Systems
Blowers and cooling modules with heat-resistant clear materials

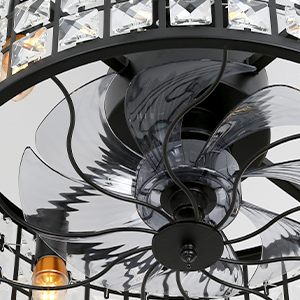

Home Appliances
Ventilation systems for household appliances with clean appearance
Display Products
Illuminated fan assemblies with high-clarity components
Industrial Equipment
Industrial airflow equipment with durable transparent parts
Prototype Development
Pilot production parts for new product validation
Specialty Cooling
Custom cooling solutions with visual inspection requirements
OEM Manufacturing From Drawings or Samples
We work with clients worldwide to manufacture custom fan blades based on your specific requirements, whether you have complete engineering files or just a physical sample.
What We Accept
- 2D engineering drawings
- 3D files: STEP / IGES / STL
- Physical samples for reverse engineering
- Prototype and production tooling options
Help Us Quote Accurately
- Fan diameter and overall dimensions
- Operating RPM and temperature range
- Balance or performance requirements
- Material preference and quantity forecast
Frequently Asked Questions
Can you manufacture transparent fan blades from drawings or samples?
Yes, we can produce custom blades from your engineering drawings, 3D files, or even physical samples through reverse engineering. We support both design validation and full production.
What materials are available for transparent fan blades?
We offer PC, PMMA, PETG, and SAN as standard options, and can work with other transparent engineering resins based on your specific application requirements.
Which is better for fan blades, PC or PMMA?
PC is better for high-temperature or high-impact applications like HVAC, while PMMA offers superior clarity for appearance or illuminated products. We can help you choose based on your use case.
How do you control bubbles and flow marks in transparent parts?
We use strict resin drying to eliminate moisture, optimized gate design for balanced flow, and precise process control to ensure consistent, defect-free transparent parts.
Do you perform dynamic balance checks?
Yes, we offer dynamic balance testing for rotating fan blades to ensure smooth, quiet operation, eliminating vibration and extending the service life of your products.
What is the typical tooling lead time?
Standard tooling lead time is 10-25 days, depending on part complexity. We also offer prototype tooling options for faster initial part delivery.
Can you support prototype quantities?
Absolutely. We have no minimum order requirement, and we regularly produce small prototype batches to help you validate your design before moving to mass production.
Can prototype tooling transition to production tooling later?
Yes, we offer a seamless transition path. We can first produce prototype parts with quick tooling, then build full production tooling that maintains the same part specifications for scalable manufacturing.
