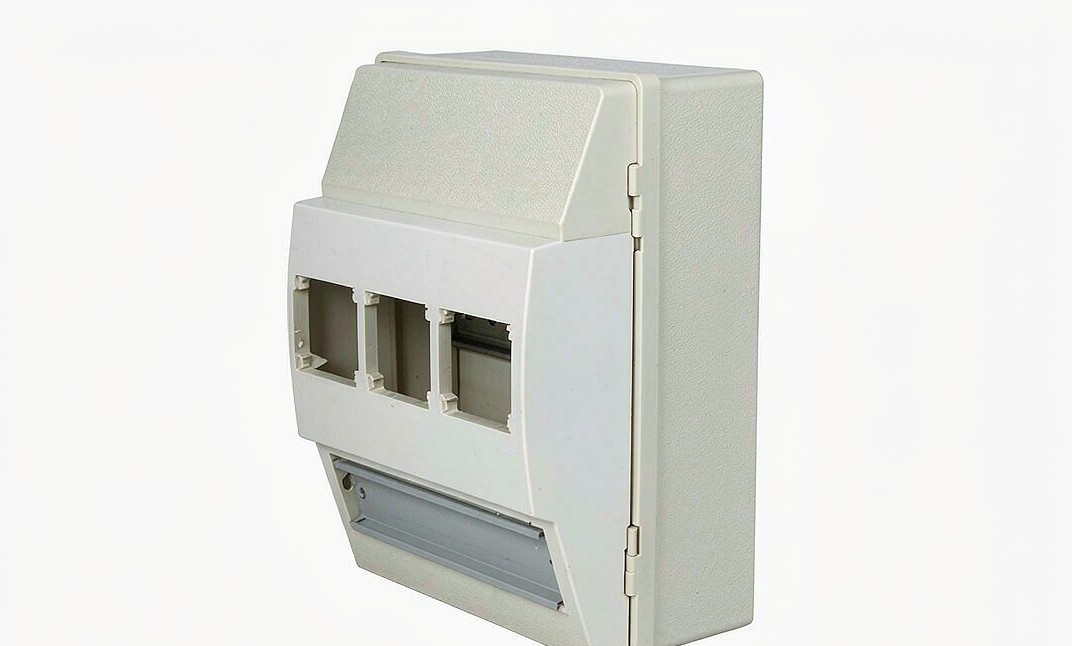

Custom PVC Electrical Enclosures & Control Boxes

Built to your drawing, not pulled from a catalog. CNC-routed cutouts, cable glands, internal DIN rails and mounting panels — engineered around the equipment the box has to protect.

Upload Drawing / Request Quote → Material Options →

• Founded in 1998OEM/ODM manufacturer
• 100+ MachinesAcross six processes
• ISO 9001:2015Quality system

What Is a Custom PVC Electrical Enclosure?

An electrical enclosure is the box that houses switches, terminals, controllers, sensors or power components. A custom PVC enclosure is one produced to a specific drawing: the outer shape, wall thickness, openings and internal fittings are all defined by the device it protects, rather than chosen from a fixed catalog of standard sizes.

Polyvinyl chloride (PVC) is a rigid thermoplastic. For enclosures it is valued because it is a good electrical insulator, resists many chemicals and cleaning agents, is light and easy to machine, and is inexpensive relative to metal. Those properties make it a common choice for control boxes, junction boxes, sensor housings and indoor equipment panels.

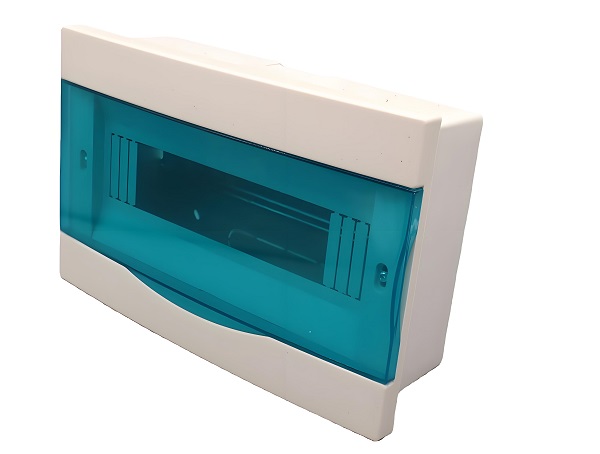

It is worth separating the product name from a common source of confusion: in North American wiring practice a "panel box" usually refers to a distribution panelboard built to NEC and UL requirements. The products described here are custom fabricated PVC enclosures — control boxes, junction boxes and housings — not certified panelboards. They are made to the buyer's specification, not to a fixed electrical-distribution standard.

Why Choose PVC for an Enclosure?

PVC is not the right material for every enclosure, but for a wide band of control and instrumentation applications it is a strong default. The reasons buyers select it:

What Can Be Customized?

A custom enclosure is defined by the equipment it holds. The list below is the usual set of variables a buyer specifies — or that we help define from a sketch.

• Overall dimensions — length, width, depth to suit the device and clearance
• Wall thickness — matched to stiffness and mounting method
• Color — gray, white, black or custom-matched
• Lid style — screwed, hinged or snap-fit
• Cable entries — knockouts, drilled holes or gland ports
• Internal mounting — DIN rails, panels, standoffs, brackets
• Hardware — hinges, latches, seals, feet
• Identification — engraved or printed labels, logos

Design the Enclosure Around Your Equipment

The most reliable custom enclosure starts from the inside out. Before fixing the outer shape, define what must live inside: the device footprint, the cable routes in and out, the mounting points, and the clearances needed for heat or service access. Designing around the equipment avoids the common failure of a "standard" box that is too small, poorly ventilated, or impossible to wire.

A practical sequence is: list every component and its dimensions → map cable and connector entries → decide how parts mount (rail, panel or standoff) → set the outer envelope with service clearance → then finalize wall thickness and lid style. Suppliers who ask for this information up front tend to deliver a box that fits the first time.

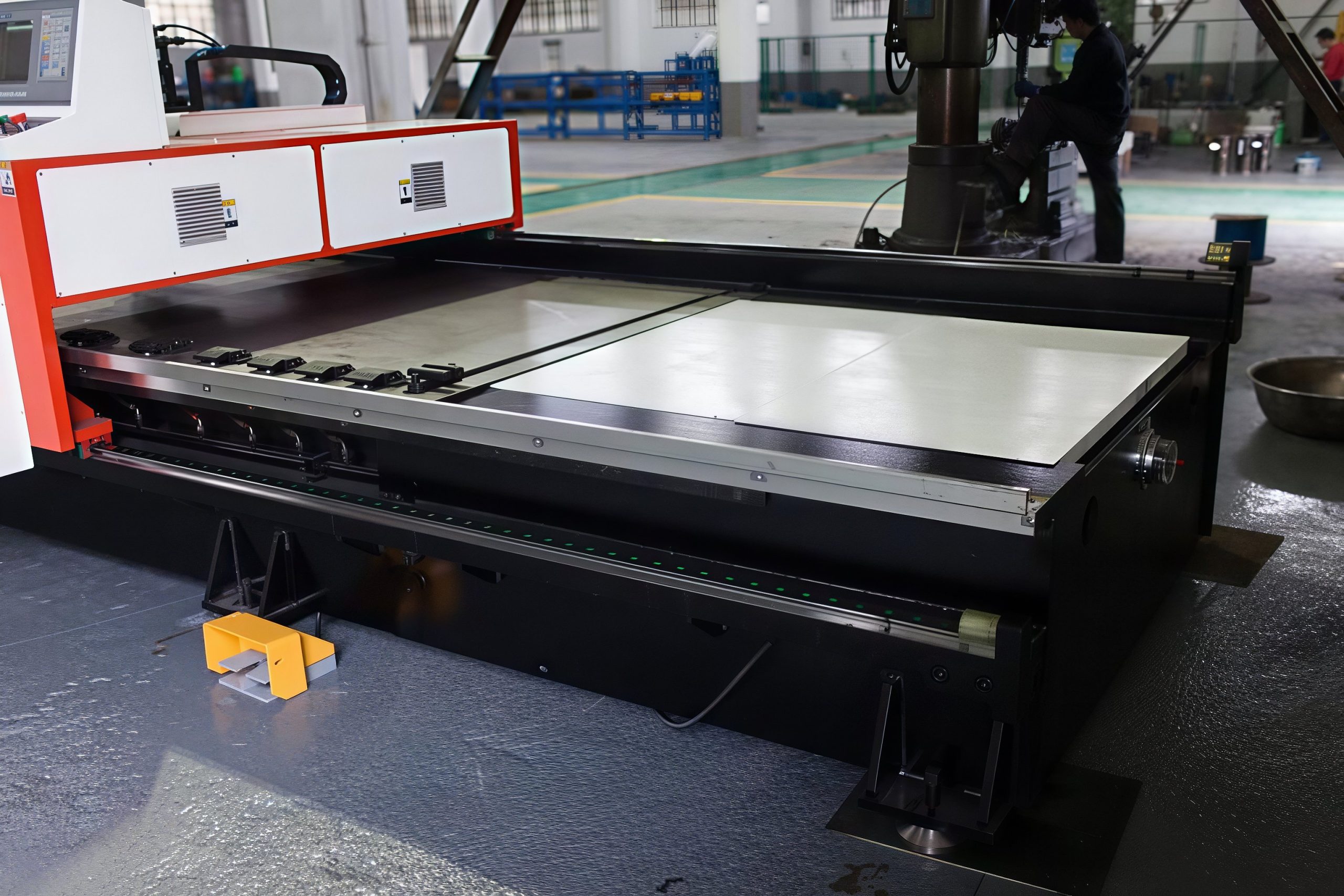

Cable Entry & Cutouts

Cable entry is where most enclosure problems originate, so it is worth specifying carefully. Options range from simple drilled holes to pre-formed knockouts and threaded ports for cable glands.

Internal Mounting

An enclosure is only useful if the equipment inside is held securely and serviceable. Common internal fittings we build in:

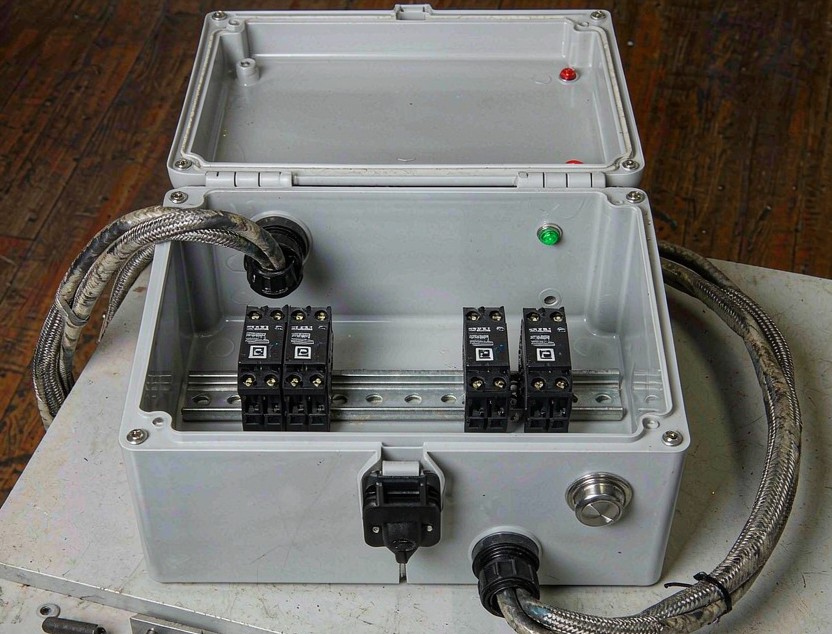

• DIN rails — for terminal blocks, relays and compact controllers that clip onto standard rails.
• Mounting panels — a flat plate (PVC, aluminum or steel) on which PCBs, displays or devices are fixed.
• Standoffs and bosses — molded or drilled bosses that let a board sit at a fixed height with clearance behind it.
• Brackets and clips — for batteries, modules or cables that need a defined position.

PVC Material Selection

"PVC" covers more than one formulation, and the grade should follow the environment:

PVC vs ABS vs Polycarbonate vs Aluminum

Choosing the enclosure material is a trade between environment, mechanical load and cost. The table sets out where each option wins.

IP vs NEMA: What the Ratings Mean

Two rating systems are used to describe how well an enclosure keeps out solids and water. They are not interchangeable, and understanding the difference prevents over- or under-specifying a box.

Outdoor & Environmental Considerations

PVC performs well indoors and in covered locations. For outdoor or harsh duty, three factors decide whether PVC is still the right call:

• UV exposure — standard rigid PVC can chalk and embrittle under prolonged sunlight; UV-stabilized grades or a shaded/coated installation address this.
• Temperature — PVC has a lower continuous-service temperature than metal or polycarbonate; warm environments call for CPVC or a different material.
• Moisture and chemicals — PVC resists many chemicals, but sustained immersion or specific solvents need grade verification and appropriate sealing.

For genuinely outdoor, high-impact or heat-intensive duty, polycarbonate or aluminum is usually the safer long-term choice. The material table above is the quick way to see where the boundary sits.

Compliance & Documentation

Xiamen Goldcattle Plastic & Metal Products Co., Ltd. operates an ISO 9001:2015 quality management system, with RoHS and third-party material test reports available on request. Documentation packages, inspection reports and material certificates can be provided under NDA where a project requires traceability.

Manufacturing Process

A typical custom enclosure moves from the buyer's drawing through fabrication and assembly to a verified first article.

Verification

Because an enclosure is a fit-critical part, verification is part of the process rather than an afterthought. We check critical dimensions against the drawing, confirm that cable entries and internal fittings line up, and — on request — produce a first-article inspection report. For buyers who need traceability, material certificates and test reports are supplied with the order.

Applications

Case Study

The example below shows the kind of parameters a custom enclosure project should specify — material, method, dimensions, mounting and verification — rather than vague claims of "perfect fit."

Custom Sensor Control Box

• MaterialUV-stabilized rigid PVC
• Outer size240 × 160 × 90 mm
• FabricationCNC-routed cutouts
• Cable entry4 × M20 gland ports
• InternalDIN rail + mounting panel
• SealingNeoprene lid gasket
• VerificationFirst-article inspection

Parameters shown are representative of a defined project, not a claimed standard product rating.

What We Need to Quote Your Enclosure

To quote accurately and avoid rework, send as much of the following as you can define:

1. Overall dimensions and wall thickness
2. 2D drawing or sketch with cutout positions
3. Cable entry count, size and type
4. Internal mounting requirements
5. Material grade preference
6. Color and lid style
7. Quantity (prototype / batch / production)
8. Environment and documentation needs

For guidance on preparing a precise request, see the CNC Machining RFQ Guide, which covers the same discipline of defining inputs before quoting.
