How CAM Programming Is Planned and Verified for Complex 5-Axis Parts

A practical walkthrough of how a 5-axis job moves from a 3D model to a verified, inspected first article — covering engineering inputs, toolpath strategy, simulation, and NC verification for impellers, blades, and complex surfaces.

Explore 5-axis machining services →

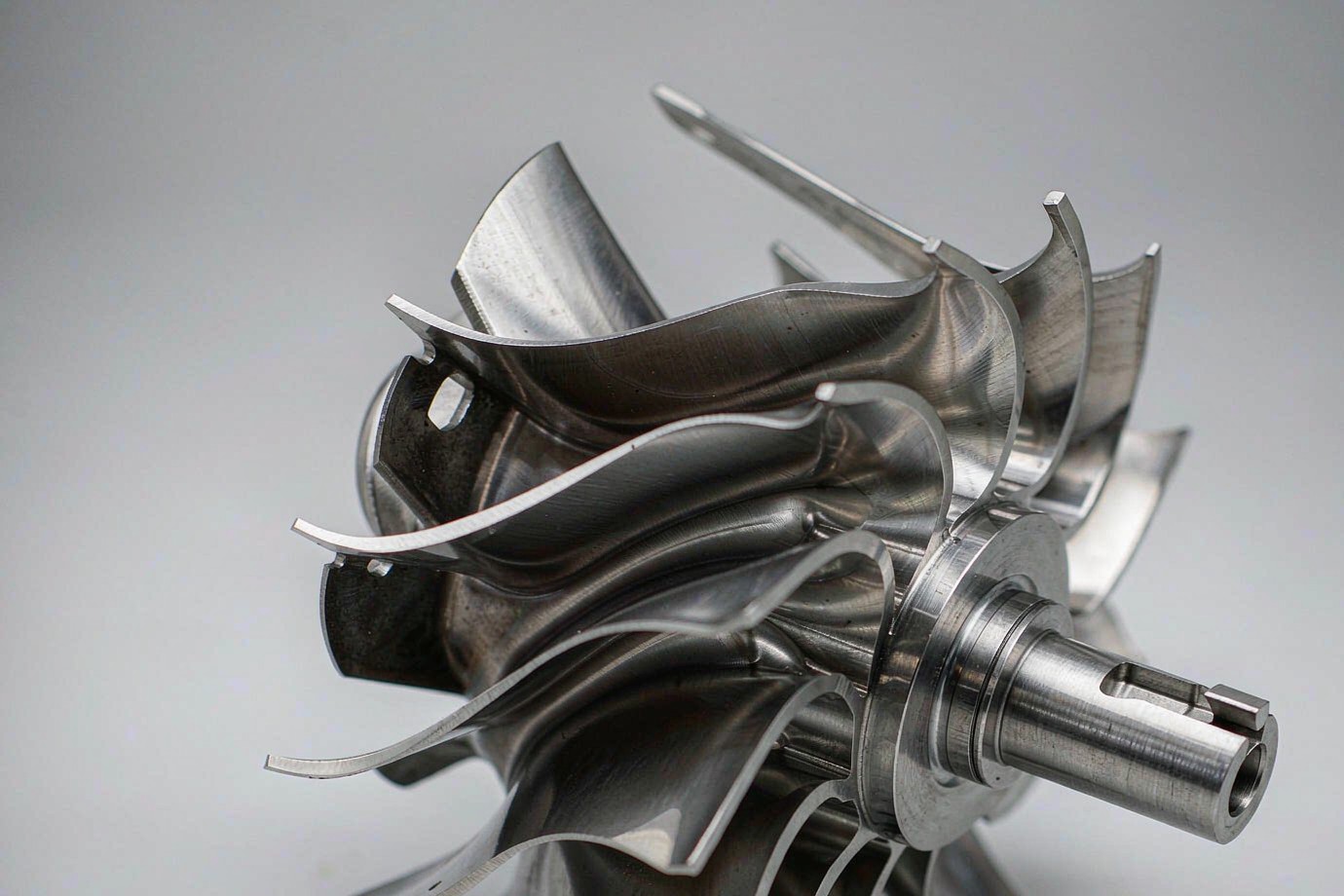

Precision 5-axis CNC machined impeller with curved twisted blades
Quick answer

Programming a complex 5-axis part is a staged process, not a single button. It starts with a disciplined review of the model and its requirements, moves through axis-mode and toolpath strategy, is checked at three distinct levels of simulation, and only then is machined and measured as a first article. Simulation reduces collision and overtravel risk but does not guarantee a perfect run — the first piece and its inspection close the loop.

At a glance

FormatTechnical guide
Focus partsImpellers · blades · complex surfaces
Stages4
Process steps12
Verification levels3
ManufacturerFounded in 1998

The four-stage flow

Every complex 5-axis program we plan passes through the same four stages. The boundaries are deliberate: a weak input in Stage 1 compounds through every later step, so the review up front is where most schedule and quality risk is actually removed.

Stage 1 Engineering Inputs Stage 2 CAM Strategy Stage 3 Simulation & Verification Stage 4 First-Piece & Inspection
Figure 1 — The four stages every complex 5-axis program moves through, from model review to a measured first article.

Stage 1 — Engineering inputs

Before any toolpath is created, the program is only as good as what it is built from. This stage turns a model and a drawing into a single, unambiguous definition of what "correct" means.

Module 1

Model & geometry review

The 3D model is checked for watertight surfaces, minimum radii, wall thickness and features that are impossible or uneconomic to reach. Gaps or ambiguous blends are resolved against the drawing before programming starts.

Module 2

Material & stock definition

The material grade, condition and stock form (solid billet, near-net forging or plate) set cutting forces, tool choice and coolant. Stock allowances are defined so roughing and fixturing are planned, not improvised.

Module 3

Tolerance, datum & finish

Critical dimensions, datums and surface-finish requirements are tagged from the drawing. These drive setup order, inspection points and which features are machined and measured in the same reference frame.

Stage 2 — CAM strategy

With the requirements fixed, the strategy decides how the metal comes off: which axes move, where the part is located, and which cutting methods suit the surfaces.

Module 4

Machine & axis-mode selection

The part is assessed for 3+2 positional work versus continuous 5-axis. Tilted fixed setups suit angled faces and holes; simultaneous five-axis is reserved for swept surfaces where the tool must follow a changing normal.

Module 5

Coordinate systems & setups

Work coordinate systems are built from the drawing datums, and the minimum number of setups is planned to hold positional tolerance across faces. Stock zero and rotary offsets are defined so each setup references the same frame.

Module 6

Tooling & cutting strategy

Tool diameters, lengths and materials are selected for reach and rigidity. Roughing clears stock efficiently; flank (swarf) and multi-axis flow passes suit impeller channels and blade airfoils; remainder passes clean tight radii.

Continuous 5-axis tool tilt tool axis curved surface Why tilt matters Shorter tool stick-out → stiffer cut Even tool contact along the surface Better finish, less deflection Avoids re-clamping between faces Tilt angle is set per surface — not a fixed rule.
Figure 2 — In simultaneous 5-axis work the tool axis is oriented to the local surface; the exact tilt is chosen per feature, not copied from a single universal value.

Stage 3 — Simulation & NC verification

This is the stage most often compressed or skipped — and the one that prevents damaged parts, broken tools and crashed machines. It is best understood as three separate checks, each catching different problems.

Module 7

Toolpath simulation

The tool and holder are checked against the part and remaining stock for gouging, overcut and unnecessary air cutting. This validates the cutting moves themselves, independent of any specific machine.

Module 8

Machine-kinematic simulation

The same program is run against the actual machine model — axis limits, rotary-table travel, collisions between part, fixture and head. This catches overtravel and reach problems a toolpath-only check cannot see.

Module 9

Post-processed NC verification

After the post-processor emits G-code, that posted output is verified against the real machine configuration. A clean CAM toolpath can still go wrong if the post or controller handles cycles differently.

5-axis CNC machining centre cutting a complex curved component

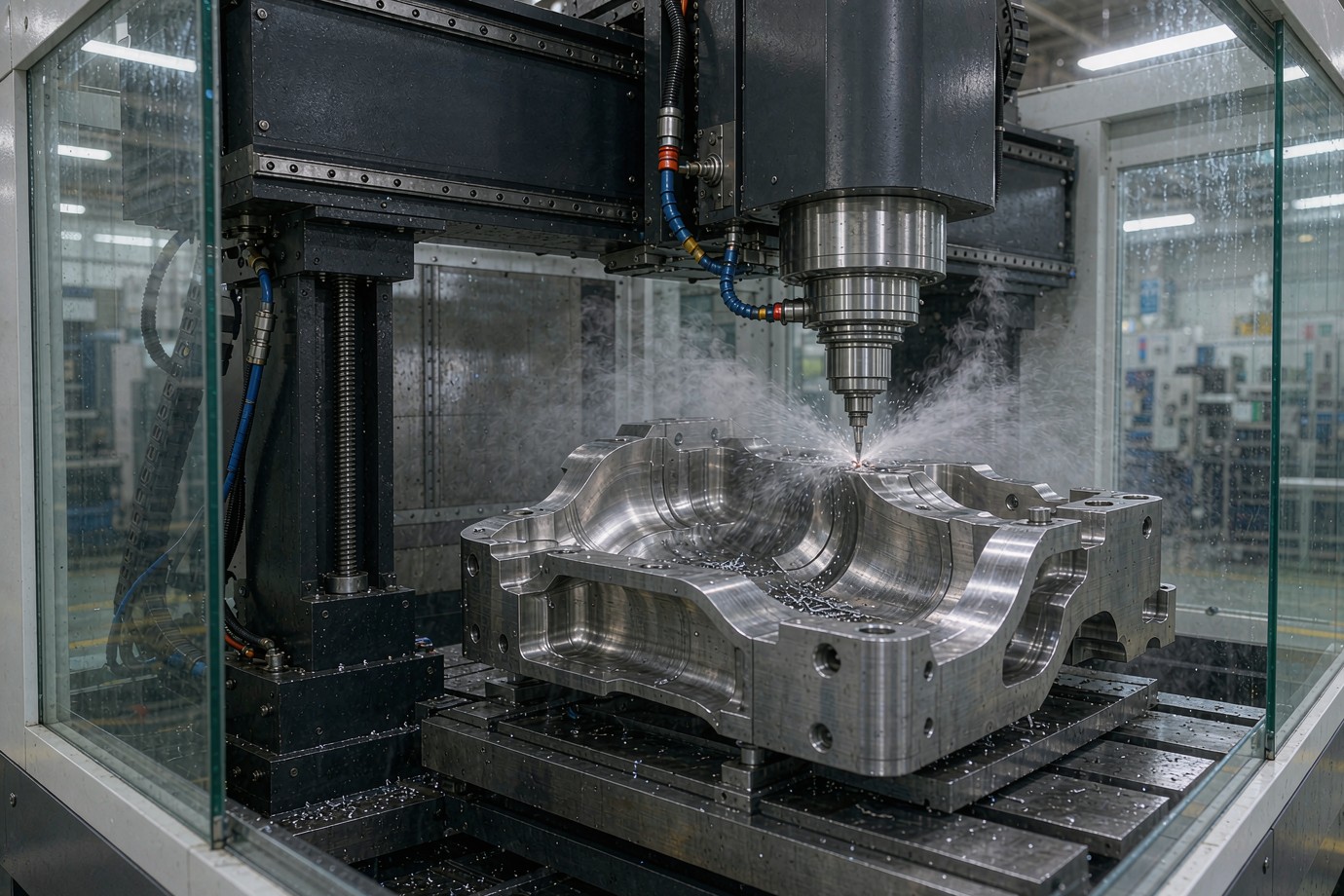

Figure 3 — The simulated program is proved on a real 5-axis machining centre, where machine-kinematic and NC verification meet the actual machine configuration.
Honest expectation: running all three levels removes the large majority of crash and overrun risk, but it is not a guarantee of a collision-free run. Fixture condition, tool wear, stock variation and setup error are not fully visible to software. The first article and its inspection remain the final confirmation — which is exactly why Stage 4 exists.

Stage 4 — First-piece & inspection

A verified program is still a theory until metal is cut and measured. This stage turns the plan into evidence.

Module 10

First-article machining

The setup is proved on a single part: datums set, offsets confirmed, feeds eased in. The goal is a clean, measurable first piece that confirms the program behaves on the real machine as the simulation predicted.

Module 11

Inspection & measurement

Critical dimensions and datums are measured — typically on a coordinate measuring machine, with surface-finish checks where specified. First Article Inspection per AS9102 is available on request for qualified programs.

Module 12

Closed-loop feedback

Measured deviation feeds back into toolpath, offsets or setup before release. Small corrections at this point prevent an entire batch drifting out of tolerance.

First-article impeller component on a coordinate measuring machine granite table during inspection

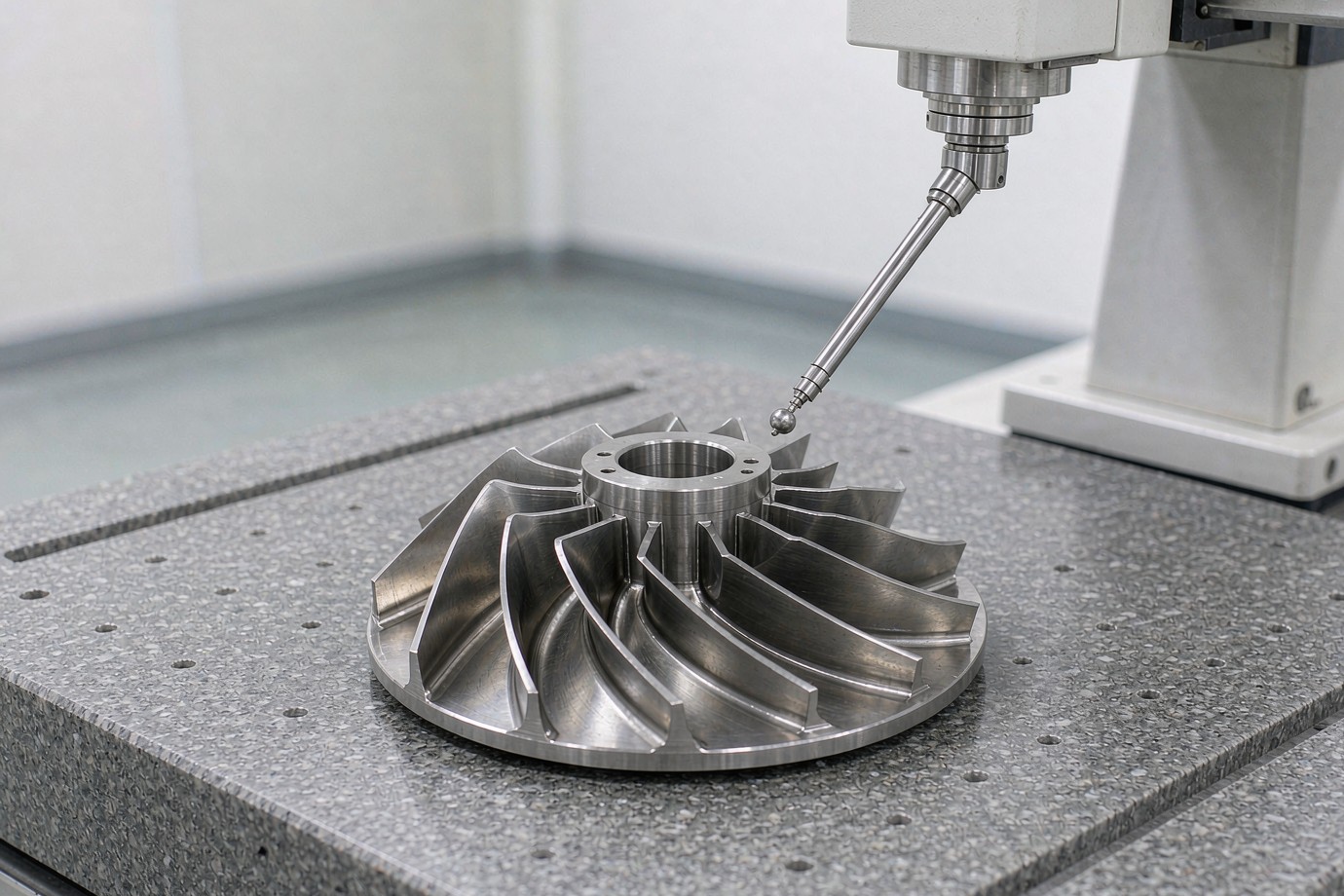

Figure 4 — The first article is measured against the drawing before production is released.

What to send for a feasibility review

A focused review returns faster, more accurate feedback. The table below lists what helps us assess a 5-axis part and why each item matters.

ItemWhy it mattersPreferred format
3D modelDefines geometry, reach and strategySTEP or IGES
2D drawingCarries datums, tolerances, finishPDF or DWG with GD&T
Material gradeDrives tool, coolant, cutting methodNamed alloy or spec
Critical featuresSets inspection and setup orderFlagged on drawing
QuantitiesAffects setup and process routePrototype to volume range
Documentation needsMaterial certs, FAI, reportsListed up front

Where a part is better served by another method, we will say so — see when 5-axis is the right choice and our custom 5-axis capability for the fuller picture.

Verification limits & honest expectations

Two points are worth stating plainly so buying decisions are made on fact, not assumption.

What simulation does
Toolpath, machine-kinematic and NC verification each catch a different class of error — gouging, overtravel, reach and post/controller mismatches.
What it cannot promise
No shop can honestly promise a collision-free run. Real fixtures, tool wear and stock variation are not fully modelled, so the first article stays the final authority.

Materials and achievable tolerances are discussed in our materials overview; typical CNC tolerance is about ±0.01 mm, with tighter values reserved for qualified features and confirmed per project.

Submit your 3D model for a 5-axis feasibility review

Send your STEP/IGES model and drawing and we will assess axis strategy, setups, achievable tolerance and a realistic timeline — with no obligation. For a faster quote, start from our instant CNC quote.

Submit 3D Model for 5-Axis Feasibility Review

Xiamen Goldcattle Plastic & Metal Products Co., Ltd. — Founded in 1998 · ISO 9001:2015 · AS9100- and ISO 13485-aligned process controls

Frequently asked questions

What is 5-axis CAM programming?
It is the process of turning a 3D part model into verified machine instructions for a machining centre that moves the tool or part along five axes. The work spans model and requirement review, axis-mode and toolpath strategy, simulation at three levels (toolpath, machine kinematics and posted NC), and first-article machining and inspection.
When should a part be programmed for 5-axis instead of 3-axis?
5-axis earns its place when a part has compound curved surfaces, deep or undercut features, tight positional tolerance across multiple faces, or thin walls that benefit from shorter, stiffer tool engagement. Impellers, blisks, turbine blades and mould cavities are common examples. Where a part is essentially prismatic, 3-axis or 3+2 may be simpler and faster.
What files and information should I send for a 5-axis feasibility review?
Send a 3D CAD model (STEP or IGES preferred), a 2D drawing with critical dimensions and datums, material grade and condition, required surface finish, quantities, and any inspection or certification needs. The more the drawing defines up front, the more accurate the feasibility and cost feedback will be.
Does simulation guarantee there will be no collisions on the machine?
No. Simulation markedly reduces risk, but it is not a guarantee. Toolpath simulation checks the tool and holder against the part and stock; machine-kinematic simulation checks axis limits, rotary-table travel and overtravel; NC verification checks the posted G-code against the machine configuration. Each level catches different problems, and a clean simulation still requires a careful first-piece setup and inspection.
What is the difference between 3+2 and continuous 5-axis machining?
In 3+2 (positional) mode the two rotary axes lock the part at a fixed tilt, then cutting happens on the remaining three linear axes — good for angled holes, pockets and accessible faces. Continuous 5-axis moves all five axes together, which suits swept surfaces such as impeller channels and blade airfoils where the tool must follow a changing normal direction.
How are tolerances and datums handled in the CAM setup?
Datums from the drawing define the work coordinate system; critical features are tagged so the program machines and inspects them in the same reference frame. Typical CNC tolerance is about ±0.01 mm, with tighter values reserved for qualified features. The achievable value depends on geometry, material, setup and measurement, and is confirmed per project rather than assumed.
Which materials can be machined with this workflow?
The same range used across our CNC services: aluminum, stainless and alloy steels, titanium, and engineering plastics, chosen for the part's strength, corrosion, thermal and mass requirements. Material behaviour guides tool selection, coolant and cutting strategy, so it should be specified on the drawing.
How long does programming and first-article validation take?
It depends on model complexity, the number of setups, and how completely the drawing defines requirements. Simple 3+2 parts can move quickly; complex continuous-5-axis impellers with multiple staged cuts and a first-article inspection take longer. A feasibility review returns a realistic timeline once the model and drawing are shared.
What inspection is performed on the first article?
The first piece is measured against the drawing — typically on a coordinate measuring machine for critical dimensions and datums, with surface-finish checks where specified. First Article Inspection per AS9102 is available on request. Results feed back into the toolpath and setup before production release.
Can you program from my existing STEP or IGES model?
Yes. A clean STEP or IGES model plus a 2D drawing is the preferred starting point. If only a physical sample exists, reverse-engineering and a confirming drawing should be agreed first, because the sample alone does not define material, tolerances, finish or inspection requirements.

Published by Xiamen Goldcattle Plastic & Metal Products Co., Ltd. (Founded in 1998). This page is a technical guide to 5-axis CAM planning and verification; it describes a workflow, not a guaranteed outcome for any specific part. Drawings and models define the actual requirements. Illustrative photography is used for context and does not depict a specific customer project.
