CNC Machining RFQ for Complex Parts – 5-Axis Precision & Engineering Support

Upload your complex part design and get expert DFM feedback + accurate quotation within 24 hours.

A complex CNC machined part is not just a part with many features. It refers to components that push the limits of standard machining processes, requiring specialized equipment, engineering expertise, and advanced process control to meet specifications. These parts typically include:

• Multi-surface & Complex Geometry: 3D contoured surfaces, undercuts, and irregular shapes that require multi-axis machining to access all features in a single setup.
• Deep Cavities: Narrow deep pockets with a length-to-diameter (L/D) ratio over 4:1, which requires specialized long-reach tools and rigidity control to avoid vibration.
• Ultra-thin Walls: Wall thickness less than 1mm, which is highly prone to deformation and vibration during cutting without specialized fixturing.
• Extremely Tight Tolerances: Critical dimensions with tolerances tighter than IT6 grade, often requiring GD&T (Geometric Dimensioning and Tolerancing) per ASME Y14.5 standard.
• Difficult-to-machine Materials: High-performance materials like Titanium, Inconel, and hardened steels that have low thermal conductivity and severe work hardening.

*Our processes fully comply with ISO 2768-f, ASME Y14.5, and DIN ISO 286 precision standards.

With 26 years of experience in precision manufacturing, we have developed specialized capabilities to tackle the most challenging complex parts. Our engineering team and advanced equipment allow us to deliver parts that ordinary suppliers cannot:

• 5-axis Simultaneous Machining: 12 sets of DMG MORI 5-axis machining centers enable one-setup machining for multi-faced complex parts, eliminating re-fixturing errors.
• Custom Fixture Design: In-house fixture design team to develop specialized workholding for thin-wall and fragile parts, controlling deformation within 0.003mm *Data for reference only.
• Toolpath Optimization: Advanced CAM software with dynamic machining technology to reduce cutting force and vibration, ensuring surface finish and precision.
• Multi-operation Integration: Combined milling, turning, and EDM processes to complete complex parts in-house, avoiding outsourcing delays and quality risks.

*Our precision testing shows that our 5-axis machining can stably maintain a position tolerance of ±0.001mm for complex geometries. Data for reference only.

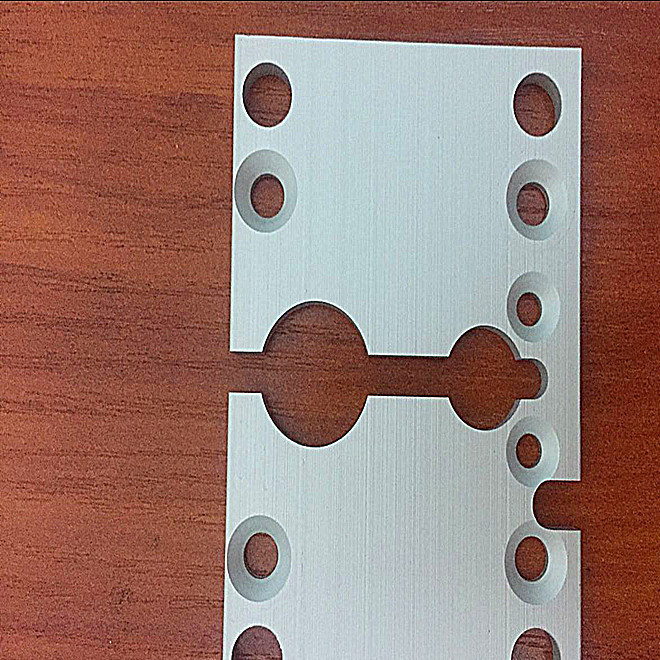

Unlike ordinary suppliers who only quote based on your drawings, our engineering team will first conduct a full Design for Manufacturability (DFM) review for your complex parts. This is our core differentiation to help you save cost and avoid production risks.

Our DFM feedback includes:

• Suggest radius adjustments to reduce tool wear and machining time
• Recommendations to reduce deep pocket machining difficulty and cost
• Tool accessibility improvement suggestions to avoid custom tooling cost
• Tolerance rationalization to reduce manufacturing cost without affecting function

Upload CAD Files

Send us your STEP, IGES, or SolidWorks files with requirements

Engineering Review

Our engineers conduct full feasibility and manufacturability analysis

DFM Feedback

Provide free DFM suggestions if there is optimization space

Accurate Quote

Deliver detailed quotation with process breakdown within 24 hours

Production Planning

Arrange production immediately after order confirmation

Aerospace Titanium Bracket

Challenge: 0.8mm thin wall feature, ±0.005mm position tolerance, high risk of deformation during machining. Ordinary suppliers failed to meet the tolerance requirement with 20% scrap rate.

Solution: Customized hydraulic fixture to support thin wall during cutting, high-pressure cooling system to reduce cutting heat, optimized trochoidal toolpath to reduce cutting force.

Result: Deformation controlled within 0.003mm, 100% pass rate for first article inspection, complied with AS9100 aerospace standard. *Data for reference only

Medical Orthopedic Implant Component

Challenge: Complex free-form surface, Ra≤0.2μm surface roughness requirement, strict biocompatibility and material traceability requirements per medical standard.

Solution: 5-axis simultaneous machining to achieve precise surface contour, electrolytic polishing to get ultra-smooth surface without residual stress, full material traceability system.

Result: Surface roughness reached Ra 0.18μm, passed ISO 13485 quality system inspection, provided full batch traceability report. *Data for reference only

5-axis CNC Milling

Simultaneous 5-axis machining for complex 3D geometries, one setup for multi-face features, tolerance up to ±0.001mm.

Turning + Milling

Combined turning and milling process for complex rotational parts, complete all features in one setup.

EDM Machining

Wire and sinker EDM for deep narrow slots, small holes, and hardened steel features that cannot be machined by cutting tools.

Surface Finishing

Anodizing, passivation, polishing, coating, and other surface treatments to meet your functional and aesthetic requirements.

Titanium Alloys (Ti-6Al-4V, Ti-6Al-4V ELI)

Challenge: Low thermal conductivity, severe work hardening, high elastic deformation risk.

Our Solution: Special AlCrN coated tools, high-pressure cryogenic cooling system, low-speed high-feed machining strategy. Our test shows tool life increased by 40%, cutting temperature reduced by 300℃. *Data for reference only

Inconel Alloys (718, 625)

Challenge: High hot hardness, severe work hardening, rapid tool wear.

Our Solution: Ceramic cutting tools, adaptive machining technology to adjust cutting parameters in real time, stable machining for high-temperature alloy parts.

Stainless Steels (304, 316, 17-4PH)

Challenge: Work hardening, easy to produce built-up edge, poor surface finish.

Our Solution: Sharp edge tools, optimized cutting parameters, passivation treatment to ensure corrosion resistance for medical and chemical parts.

Aluminum Alloys (6061, 7075, 2024)

Challenge: Thin wall deformation, burr formation, high surface requirement.

Our Solution: High-speed machining, sharp tooling, specialized fixturing to control deformation, can process 0.5mm ultra-thin wall parts stably.

Can you machine complex 5-axis parts?

Yes. We have 12 sets of 5-axis machining centers and a team of engineers with over 15 years of experience in complex 5-axis parts. We have successfully manufactured over 2000 complex parts for aerospace, medical, and defense industries.

How do you ensure tolerance on complex geometry?

We use CMM (Coordinate Measuring Machine) and blue laser scanning for full dimension inspection after machining. We also use in-process inspection to control the machining accuracy. All our processes are compliant with ISO 9001 quality system.

Do you provide DFM suggestions?

Yes, we provide free DFM feedback for all complex part RFQs. Our engineers will review your design and provide optimization suggestions to reduce cost, shorten lead time, and avoid production risks, at no extra cost.

What is your lead time for complex parts?

For prototypes, we can deliver within 3-5 working days. For small batch production, the lead time is 7-15 working days, depending on the part complexity. We also offer expedited service for urgent orders.

Can you process difficult-to-machine materials like Titanium?

Yes. We have specialized processing parameters and equipment for difficult-to-machine materials including Titanium, Inconel, Monel, and hardened steels. We have rich experience in these materials for aerospace and medical applications.

Do you offer NDA for confidential designs?

Absolutely. We strictly protect our customers’ intellectual property. We can sign NDA (Non-Disclosure Agreement) before we review your design files, and all your data will be kept confidential.
