Custom Stainless Automotive Parts | CNC Turning
Place of Origin : XiaMen, China
Brand Name : JSD
Model Number : JS-01
Process : moulding
Product name : moulding Parts
Name : Customized Machined
Application : Automotive
Service : OEM ODM
Item : OEM Precision
Material : Plastic
Surface treatment : Painting
Keyword : Plastic
Color : Customer’s Request
Description
Drawing-based manufacturing of custom stainless steel parts for automotive-related applications. Each project is reviewed against the specified grade, part geometry, critical dimensions, surface requirement and inspection scope before quoting.

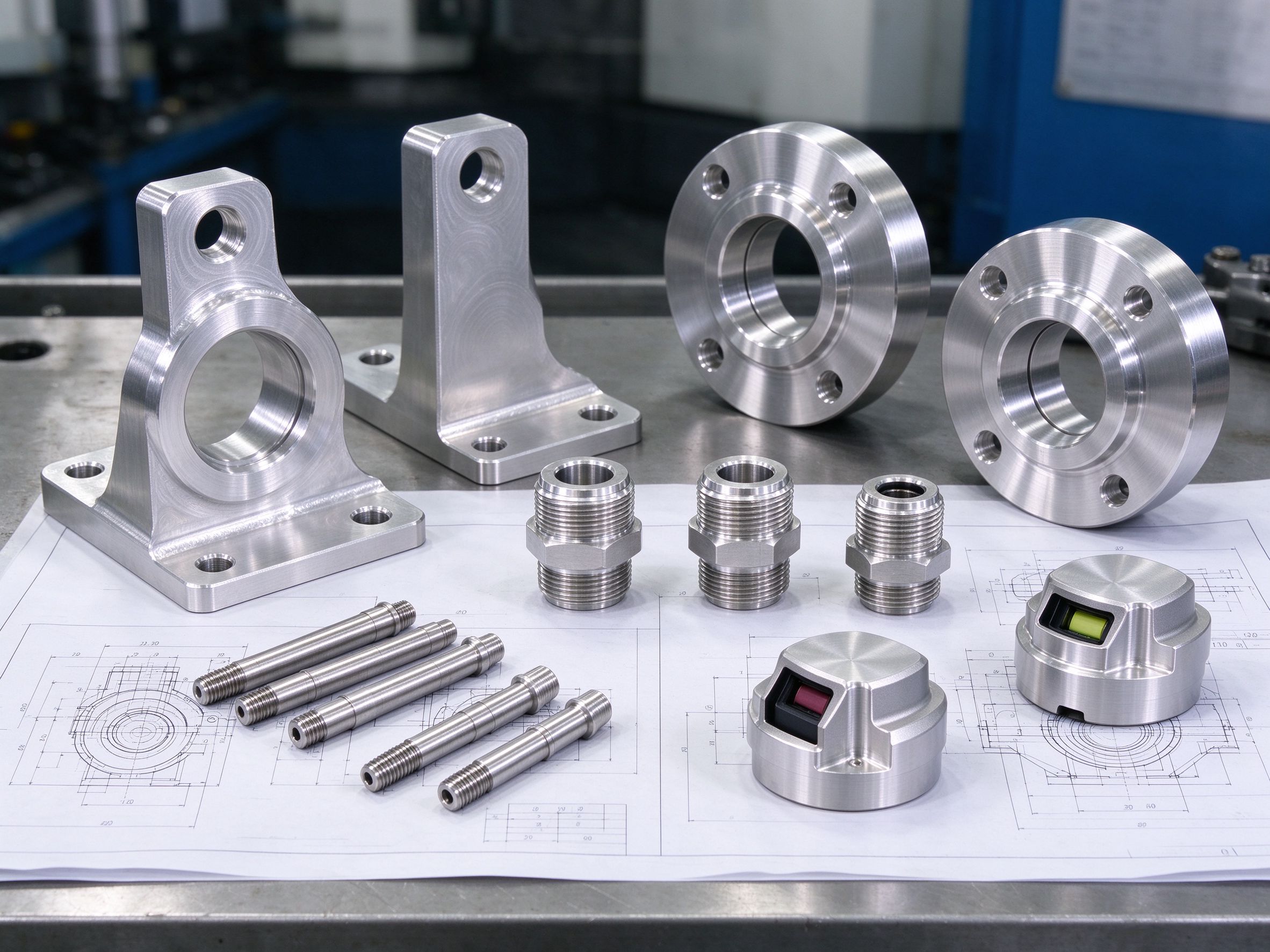

- CNC turning and milling for brackets, flanges, fittings, shafts and housings
- Grade selection matched to environment, temperature, load and corrosion exposure
- Passivation, polishing, knurling and other finishing options coordinated
- Material documentation and dimensional inspection planned per project agreement
Component families evaluated from drawings. Part type, function and working environment determine grade and inspection scope; this list is not a claim of covered vehicle programs.
Load-bearing brackets, gussets and clamp plates; hole pattern and fit surfaces reviewed against assembly loads.
Port flanges, adapters and threaded fittings; sealing faces and bolt circles checked per application.
Turned cylindrical parts, bearing journals and spacers with coaxial bores and finish requirements.
Protective housings and pockets for electrical or sensor components; sealing interface and thread engagement reviewed.
Custom threaded studs, standoffs and threaded inserts; thread class and engagement confirmed on the drawing.
Adapters, nipples and small manifold-style pieces; thread form, bore geometry and pressure use reviewed per project.
Grade follows function: corrosion exposure, temperature, mechanical load, machinability and the required finish. Available grades and stock condition are confirmed per order specification.
| Grade | Considered direction | Points to review |
|---|---|---|
| 304 | General brackets, fittings, housings, moderate corrosion exposure | Common and easy to machine; not the first choice for chloride or high-temperature conditions |
| 316L | Higher corrosion resistance, fluid-exposed and outdoor components | Better chloride resistance; lower machinability, cost and lead reviewed |
| 416 (free-machining) | Turned parts and shafts requiring good machinability | Less corrosion resistance than austenitic grades; load and environment checked |
| 17-4 PH / 630 | Higher-strength structural and fastener-type parts | Heat-treatment condition, dimensional movement and machining sequence reviewed |
| 430 (ferritic) | Lower-cost decorative or non-structural trim pieces | Good appearance, lower corrosion and strength than austenitic grades |

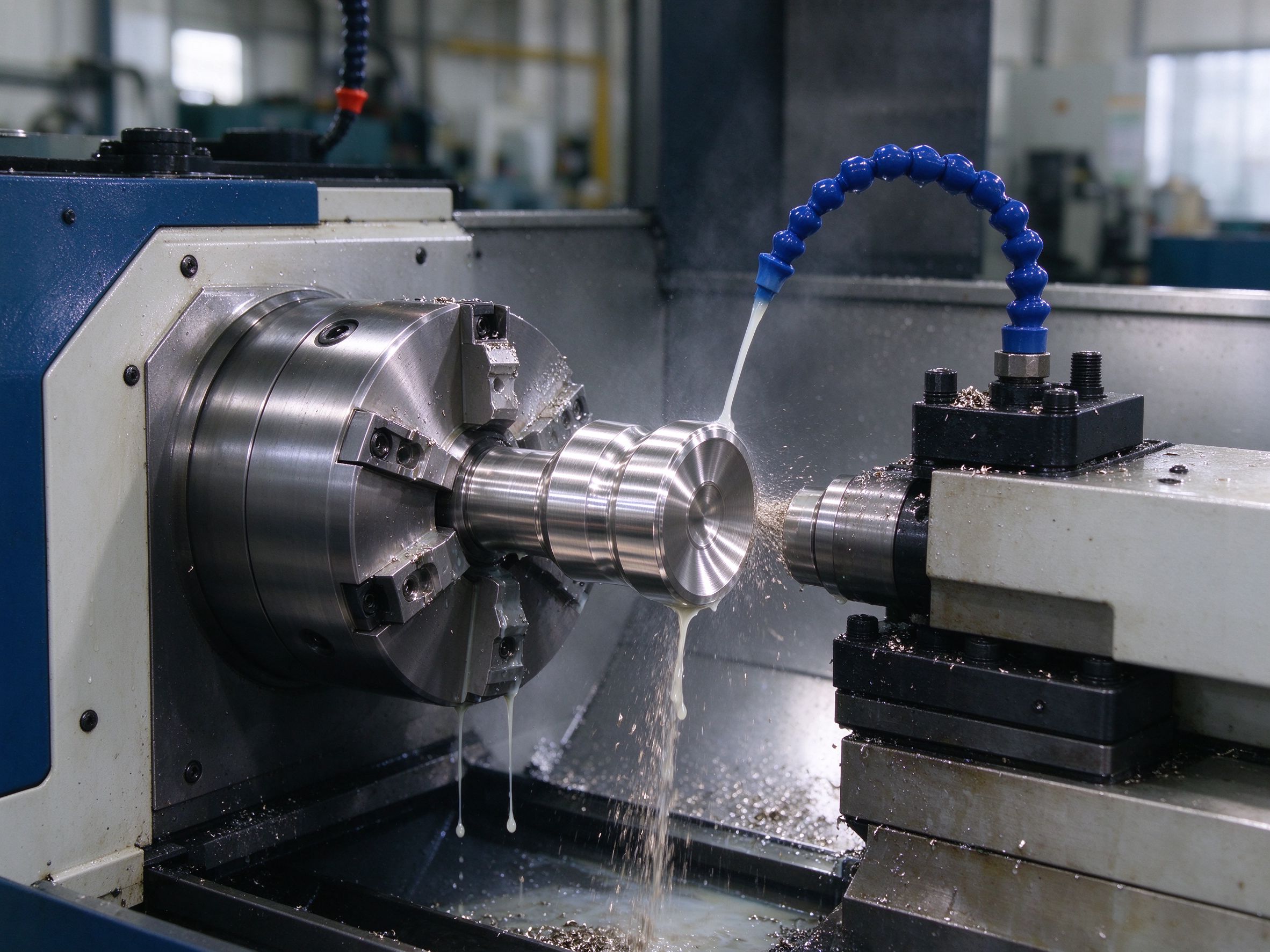

Rotational parts: shafts, sleeves, fittings, nipples; surface and thread run to drawing.
Brackets, flanges, housings and pocketed features; fixturing and tool access reviewed in DFM.
Hole patterns, threaded bores and thread classes matched to mating hardware.
Edge breaks and burr control on mating surfaces, threads and handling edges.
Post-machining chemical treatment to restore corrosion resistance; specification agreed before order.
Visual finish on exposed surfaces; knurled grip areas where specified.
2D / 3D reviewed for grade, geometry, threads and critical dimensions.
Machining sequence, fixturing, finish and inspection scope confirmed.
Turn/mill operations followed by agreed deburr, passivate or polish.
FAI where required, dimensional records, packaging and repeat-order tracking.

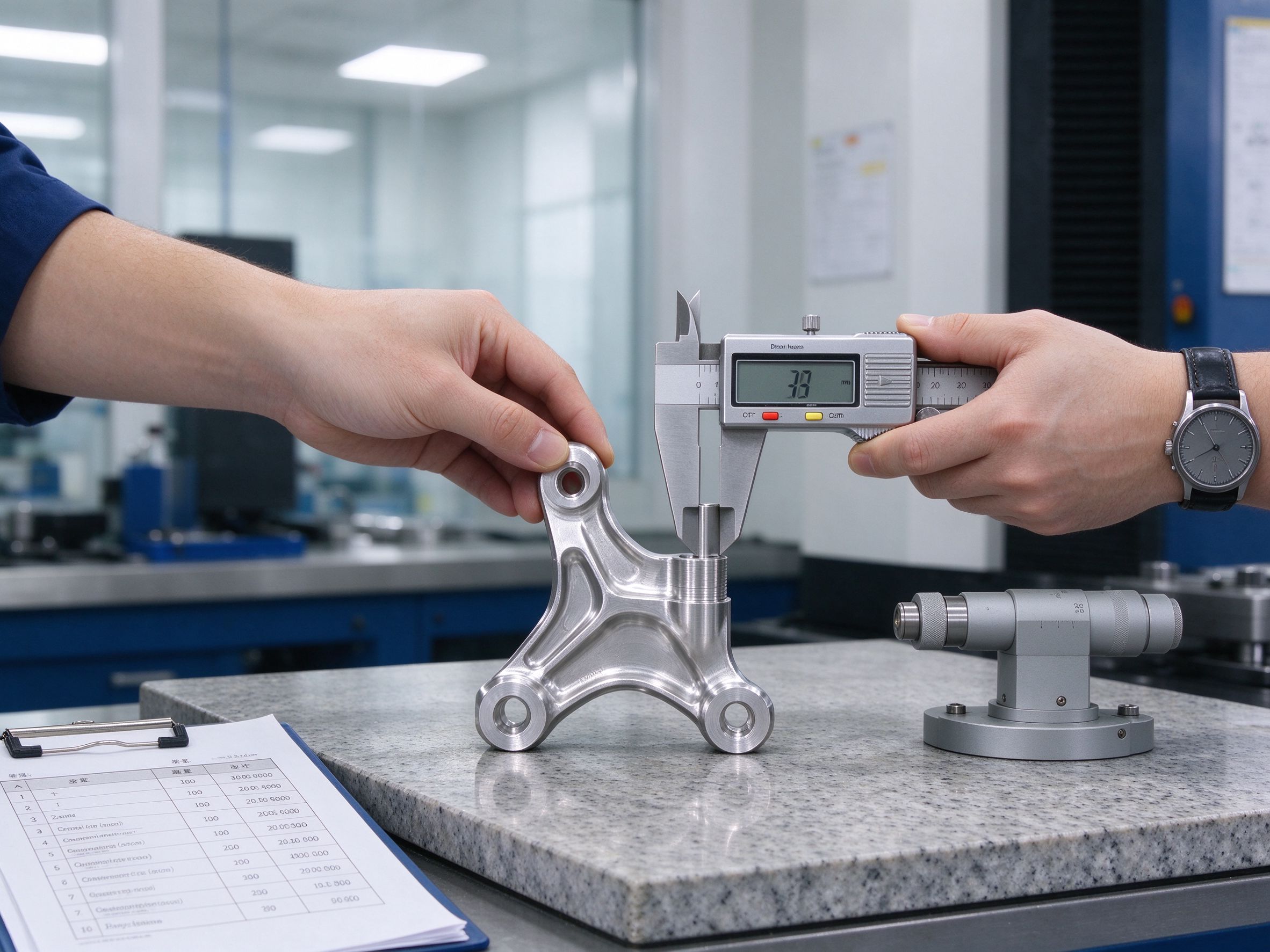

- Critical dimensions measured against the approved drawing
- Material grade recorded against supplied stock; material certificates per agreement
- First-article inspection before batch release when required
- Process studies, PPAP-style files or customer-specific documents scoped per program, not assumed from general machining capability
Stainless steel enters established metal recycling systems. Recycled-content percentage and environmental declarations require supply-chain documentation; they are not claimed here without supporting records.
- Part name, application or assembly location
- 3D CAD and 2D drawing with tolerances
- Stainless grade and condition / standard
- Critical dimensions, threads and mating surfaces
- Finish: as-machined, passivate, polish, knurl
- Sample, batch and estimated annual quantity
- Required documents: cert, FAI, inspection report
- Target delivery and packaging requirements
Share the drawing or sample, grade, critical dimensions, finish and estimated quantity. The review covers grade fit, machining approach, inspection documents and quote assumptions.
Can you manufacture custom stainless steel automotive parts from drawings?
Which stainless steel grades are available for automotive components?
What affects the cost of custom stainless steel parts?
Can material certificates and inspection reports be supplied?
Can you support automotive PPAP or IATF 16949 requirements?
Are the parts made from recycled stainless steel?
