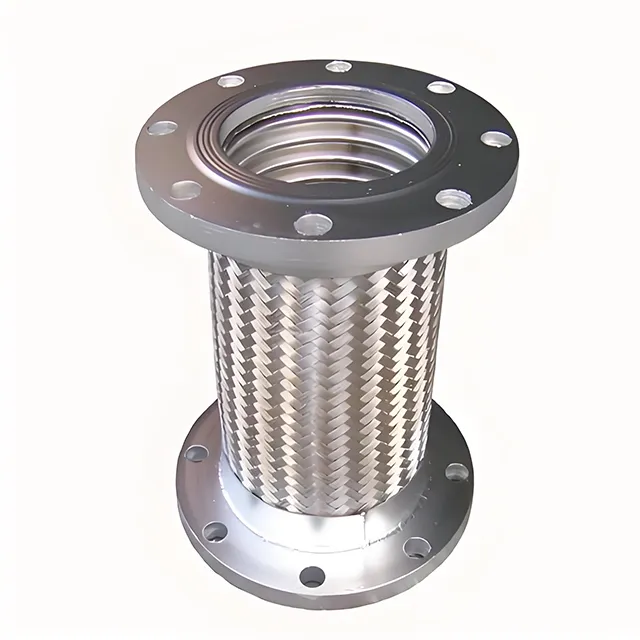

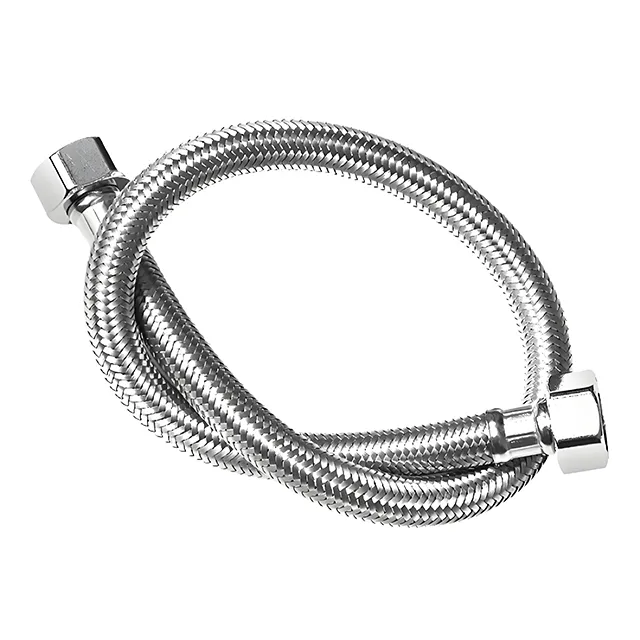

Custom CNC machined metal hose
Place of Origin : Fujian, China
Type : Milling, Turning
Micro Machining or Not : Micro Machining
Model Number : CMP-277
Brand Name : JSD
Product name : Customized metal hoses
Material : Customers’ Requirement
Surface treatment : Painting\Powder Coating\Plating\Polishing
Process : Cnc Machining + Surface Treatment
Service : Customized OEM
Equipment : 3/4/5 Axis CNC Machining Center
Drawing Format : 2D/(PDF/CAD/DWG/DXF)3D(IGES/STEP/VDA)
Size : Customer Size
OEM/ODM : OEM ODM Non-standard Processing
MOQ : 1 Piece
Description

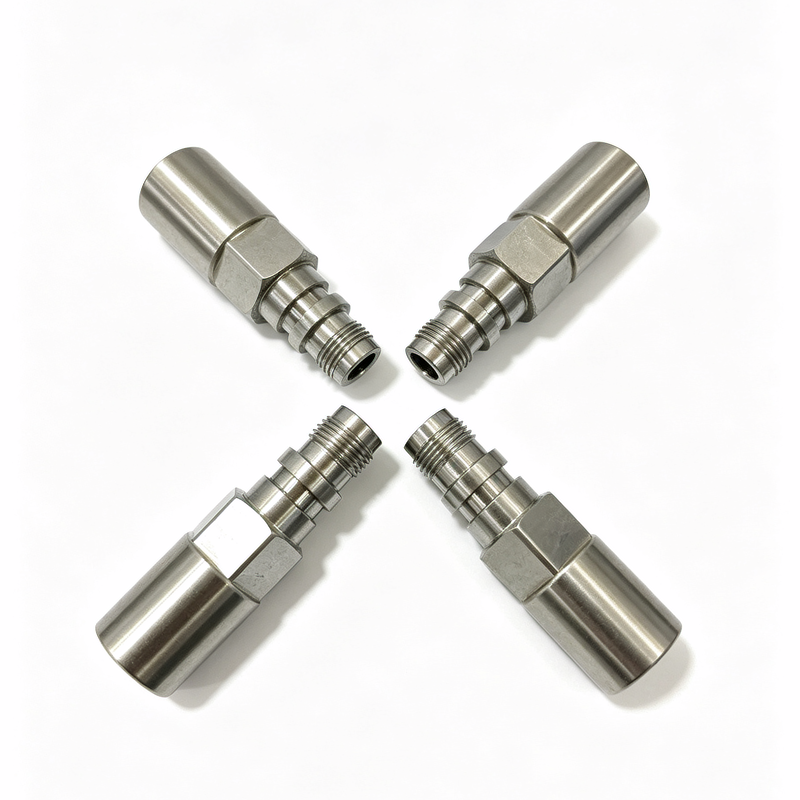

Custom CNC Machined Metal Hose Components
Precision Metal Hose Fittings and Connectors for Hydraulic, Chemical and Industrial Fluid Systems
Product Capability Snapshot
Complete range of hydraulic and industrial hose connection solutionsWhat Problems Do Metal Hose Components Solve?
High Pressure Fluid Transfer
For Hydraulic Systems, Oil & Gas Equipment, and Power Units requiring reliable pressure containment
Vibration Isolation
For Pumps, Compressors, and rotating equipment where vibration transmission must be minimized
Thermal Expansion Compensation
For Chemical Pipelines and High Temperature Equipment experiencing dimensional changes
Flexible Connection
For Moving Equipment and Industrial Automation requiring dynamic connection points

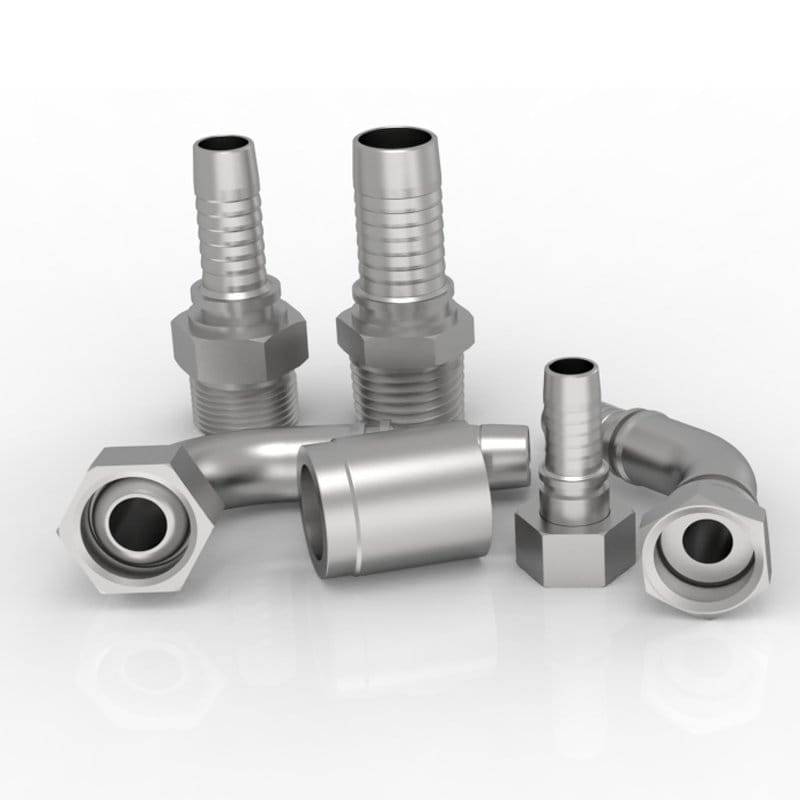

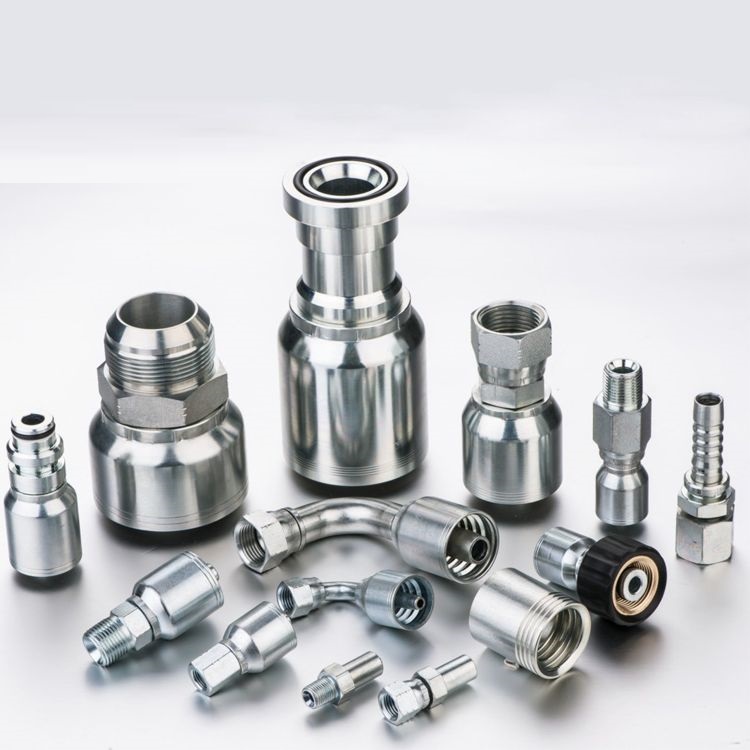

Types of Metal Hose Components We Manufacture
Hose Ferrules
Crimp sleeves for secure hose assembly
Hose End Fittings
Terminal connections for hose assemblies
Swivel Connectors
Rotating joints for dynamic applications
Flanges
Bolted connection interfaces
Adapter Fittings
Thread conversion connectors
Compression Connectors
Tube fitting compression assemblies
Straight, 45°, and 90° configurations available for all fitting types
Material Selection Guide
Select the optimal material based on your application’s corrosion resistance and pressure requirements.
Industry Applications
Hydraulic Equipment
Cylinder Systems, Power Units, Mobile Machinery
Chemical Processing
Corrosive Fluid Transfer, Process Piping
Oil & Gas
High Pressure Pipelines, Offshore Equipment
Food & Beverage
Sanitary Connections, Hygienic Processing
Medical Equipment
Precision Fluid Systems, Diagnostic Devices
Common Engineering Challenges We Solve
🔴 Leakage Problems
Challenge: Improper sealing surface finish causing fluid leakage
Solution: Precision CNC machined sealing faces with controlled surface finish
Result: 100% leak-free assembly guaranteed
🔴 Thread Damage
Challenge: Thread wear during repeated assembly cycles
Solution: Optimized thread profile with rolled thread technology
Result: 3x longer service life achieved
🔴 Corrosion Failure
Challenge: Aggressive chemical environments causing material degradation
Solution: SS316L or Titanium material specification
Result: Extended operating life in harsh environments

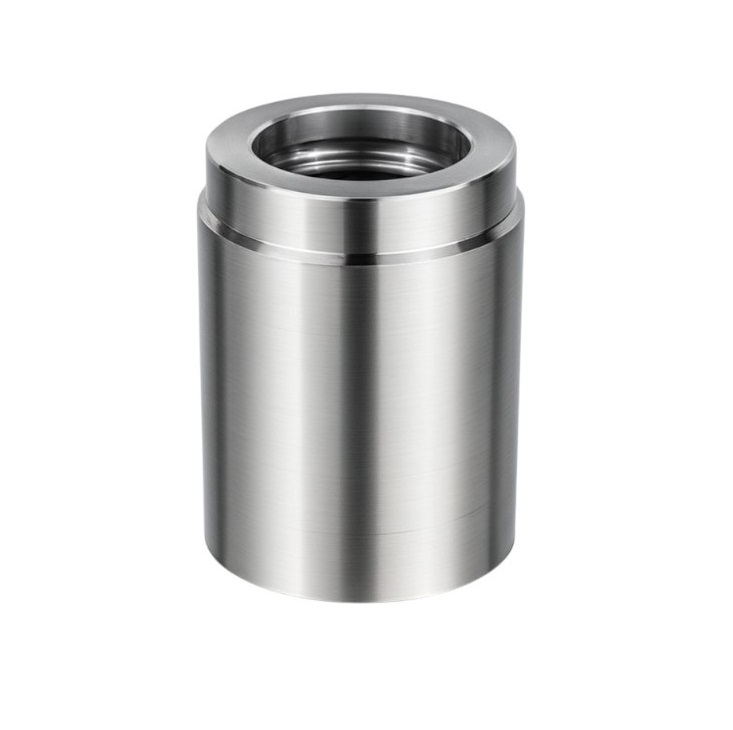

Precision machined hose ferrule with
controlled internal thread geometry

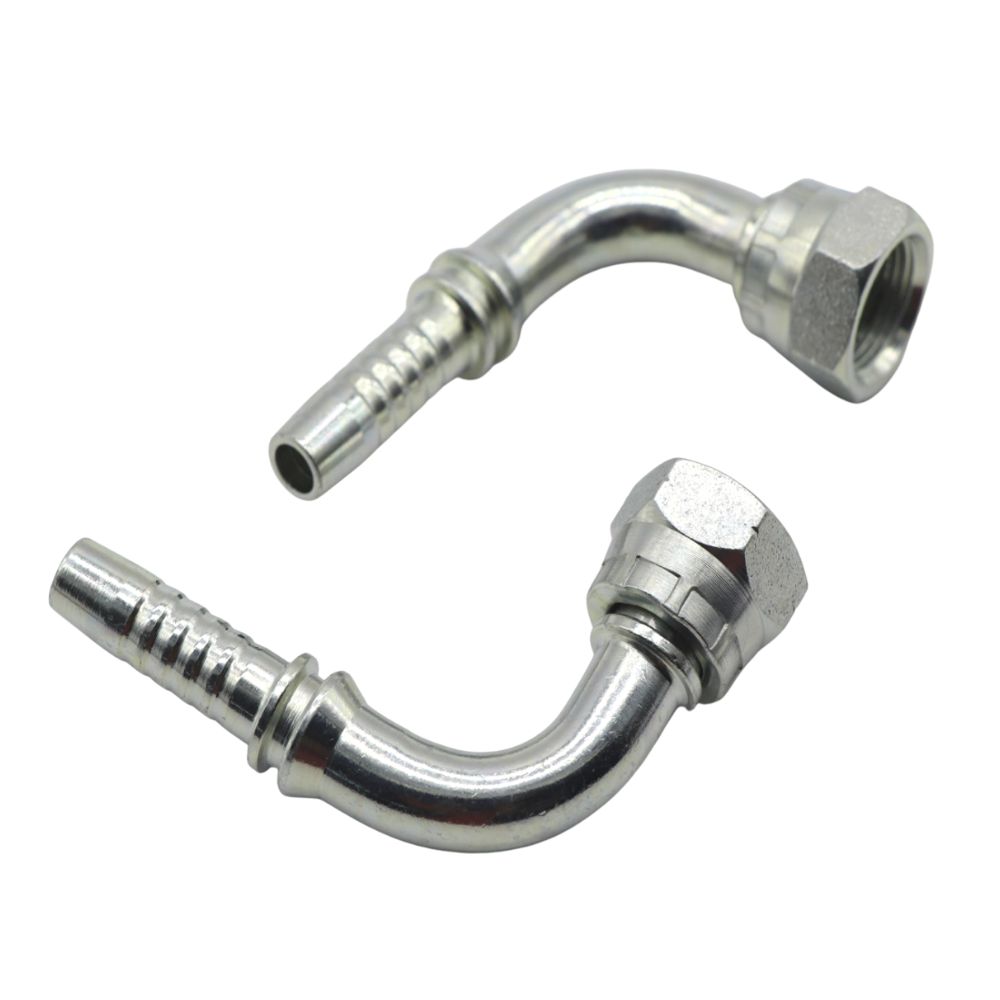

90° and 45° elbow configurations available for all fitting types
Case Studies

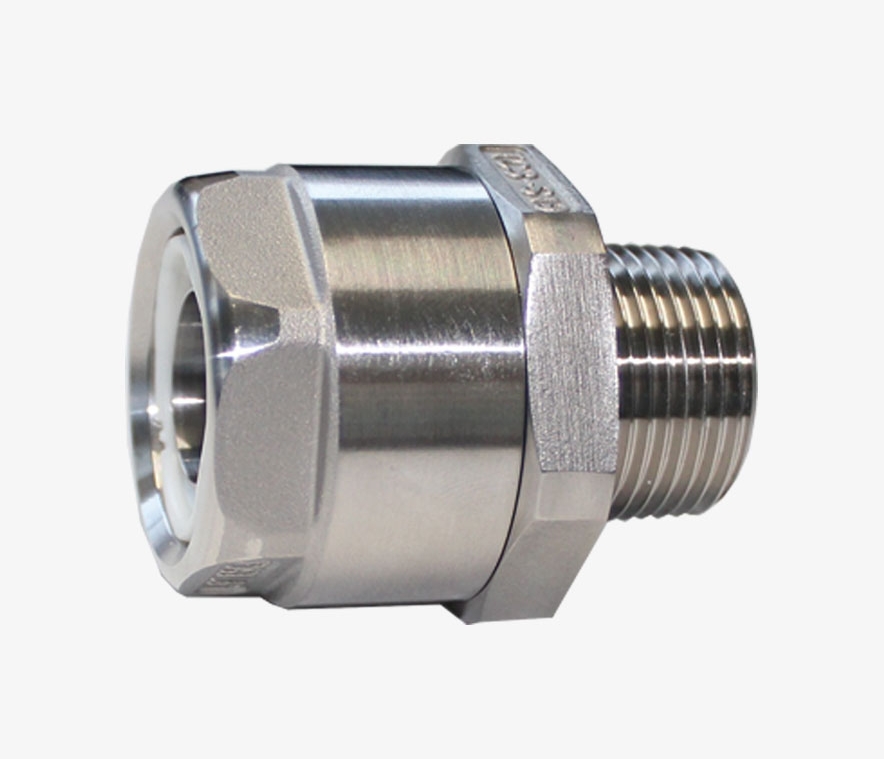

Chemical Hose Connector
Material: 316L Stainless Steel
Challenge: Sulfuric acid corrosion resistance
Solution: Passivated 316L with electropolish finish
✓ 3-year service life achieved

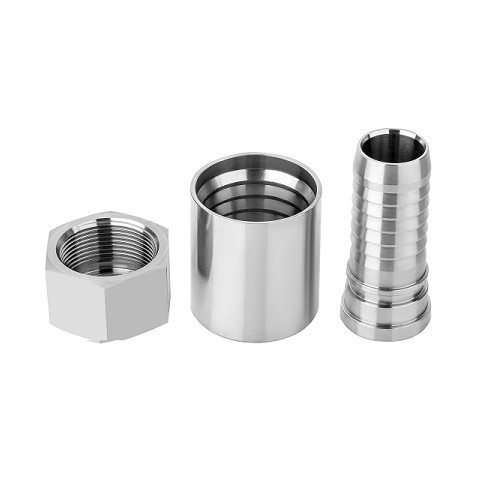

Hydraulic Hose End Fitting
Material: 17-4PH Stainless Steel
Challenge: 3000 PSI operating pressure rating
Solution: H900 heat treatment + precision machining
✓ Passed 1.5x burst pressure test
Food Processing Hose Adapter
Material: 316L Stainless Steel
Challenge: FDA hygienic requirements
Solution: Ra0.8 electropolish + no dead leg design
✓ Customer hygiene audit approved
Why Industrial Buyers Choose Goldcattle
Frequently Asked Questions
Q: What pressure ratings can you support?
A: From vacuum to 10,000 PSI, depending on material and size selection. Custom pressure ratings available.
Q: Can you manufacture custom thread standards?
A: Yes, we support NPT, BSP, JIC, Metric, DIN, SAE, ORFS, and custom thread specifications.
Q: Do you support both BSP and NPT threads?
A: Yes, both parallel and tapered thread forms are available with full gauge verification.
Q: Can you provide material certificates?
A: Yes, MTR (Material Test Reports) and 3.1B certificates available for all materials.
Q: What tolerance can you achieve on sealing faces?
A: ±0.01mm standard, ±0.005mm available for critical sealing surfaces.
Q: Can you support prototype and low-volume orders?
A: Yes, MOQ starts at 1 piece. 3-5 day prototype turnaround available.
Q: Do you provide pressure and leak testing?
A: Yes, hydrostatic and pneumatic testing available with test certificates.
Q: Can you manufacture SS316L hose fittings?
A: Yes, SS316L is our standard for chemical and sanitary applications with passivation.
About Xiamen Goldcattle
Xiamen Goldcattle Plastic & Metal Products Co., Ltd. specializes in precision CNC machined fluid connection components for global industrial markets. With over 26 years of manufacturing expertise, we deliver high-quality metal hose fittings, ferrules, adapters, and custom fluid system components that meet the most demanding performance requirements.
Our engineering team provides DFM analysis, material selection guidance, and thread specification consultation from the earliest design stages. We support projects from single-piece prototyping through high-volume production, all backed by ISO 9001 quality systems and complete material traceability.
Our Custom Manufacturing Process
- ✓ Drawing review & DFM analysis
- ✓ Material selection & certification
- ✓ CNC machining with CMM inspection
- ✓ Surface treatment & passivation
- ✓ Pressure testing (optional)
- ✓ Documentation & shipment
