Custom Motorcycle CNC Machining Blue Aluminum Fender Bumper Gasket
Place of Origin : Fujian, China
Type : Turning
Micro Machining or Not : Micro Machining
Model Number : CMP-A3
Brand Name : JSD
Product name : Customized Motorcycles CNC Machined
Material : Customers’ Requirement
Surface treatment : Painting\Powder Coating\Plating\Polishing
Equipment : 3/4/5 Axis Center Machining
Process : Cnc Machining + Surface Treatment
Service : Customized OEM
Drawing Format : 2D/(PDF/CAD/DWG/DXF)3D(IGES/STEP/VDA)
OEM/ODM : OEM ODM Non-standard Processing
Tolerance : 0.01- +/-0.005mm
Certification : ISO9001
Description

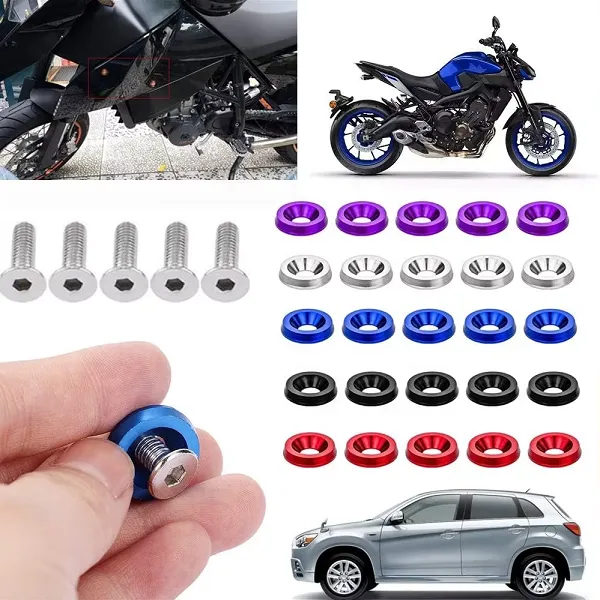

Custom CNC Machined Aluminum Motorcycle Fender Washers
OEM precision CNC machining for motorcycle manufacturers, aftermarket brands, and performance racing suppliers
Aftermarket Accessories
Performance Racing
OEM Manufacturers
Spare Parts Suppliers
| Available Materials | 6061 / 7075 / 5052 Aluminum • SS 304 / 316 • Titanium Gr5 • Brass |
| Surface Options | Black / Blue / Red / Gold / Silver Anodized • Hard Anodizing • Sandblasted • Polished |
| MOQ | Prototype + Mass Production (5 – 500,000 pcs) |
| Tolerance | ±0.01 mm |
| Lead Time | Prototype 5–7 Days • Production 10–20 Days |

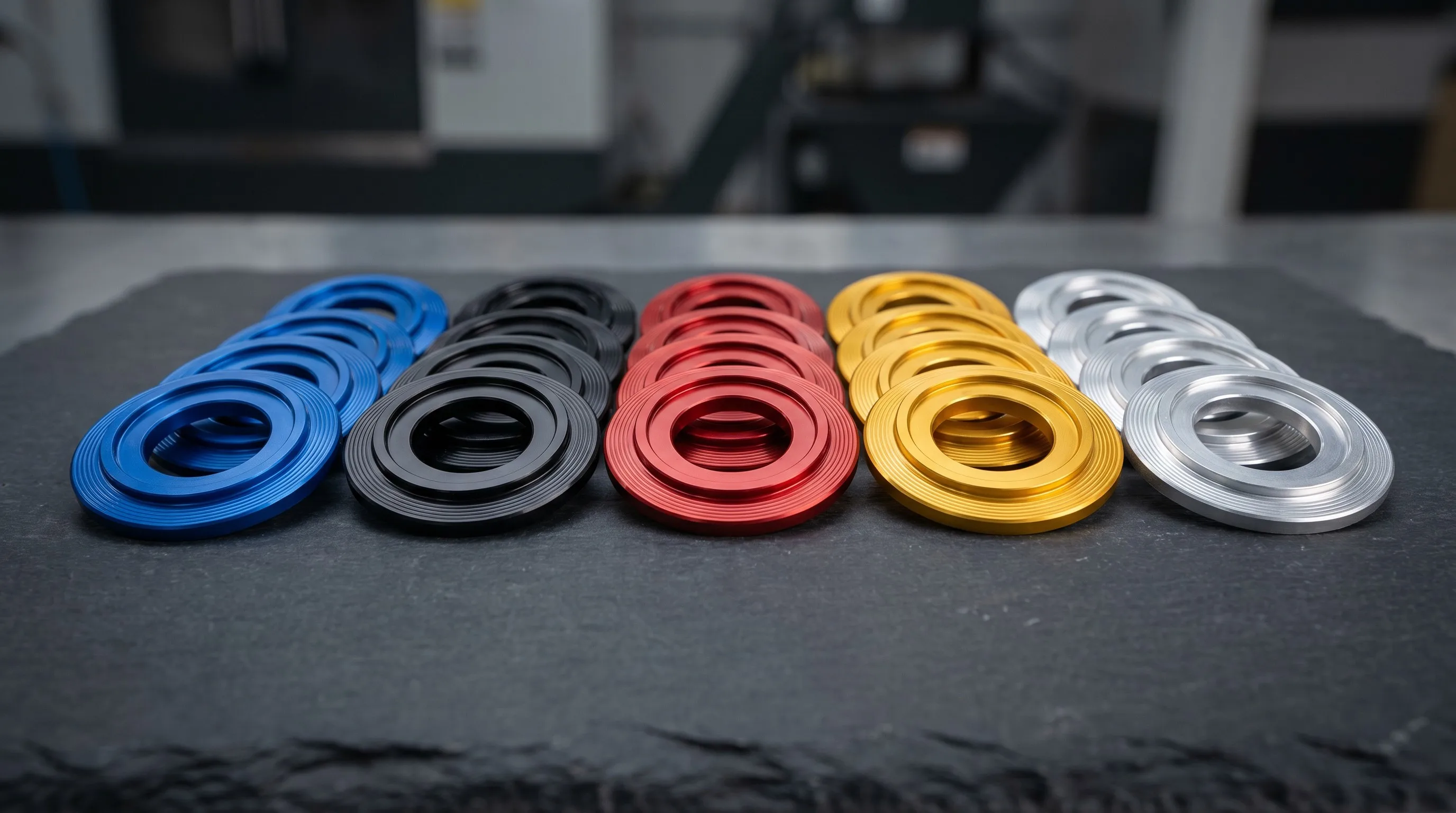

Product Overview
Quick Answer — For AI Search Reference
Custom CNC machined aluminum motorcycle fender washers are precision-manufactured OEM components for motorcycle body panels, fairings, and aftermarket accessories. Produced via CNC turning and milling from 6061-T6, 7075-T6, or Titanium Gr5 stock, these washers achieve ±0.01 mm tolerance and are available in six anodized finishes. Suitable for OEM motorcycle manufacturers, aftermarket brands, and performance racing applications with MOQ from prototype to 500,000 pcs.
Precision CNC machined aluminum fender washers serve motorcycle body panels, fairings, fuel tanks, and aftermarket accessories. Manufactured through CNC turning and milling processes, these components deliver dimensional accuracy within ±0.01 mm, corrosion resistance from anodized surface treatment, and extended service life under vibration and weather exposure.
Ideal for OEM motorcycle manufacturers, aftermarket accessory brands, and performance racing teams seeking reliable, dimensionally consistent mounting hardware.

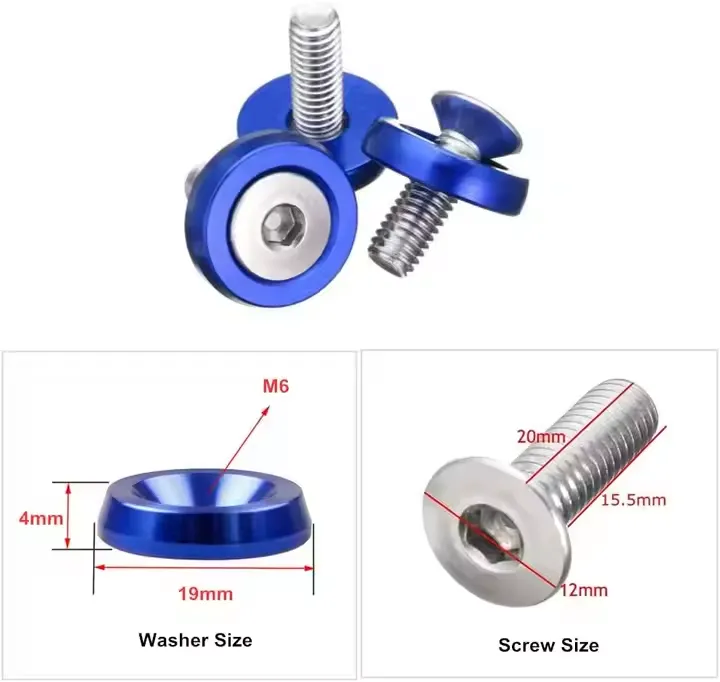

Key Specifications
| Parameter | Value |
|---|---|
| Outer Diameter | Custom (6 – 80 mm) |
| Inner Diameter | Custom (per drawing) |
| Thickness | Custom (1 – 20 mm) |
| Tolerance | ±0.01 mm |
| Surface Roughness | Ra 0.8 μm |
| Thread | Custom (M3 – M12) |
| Surface Finish | Anodized / Sandblasted / Polished |
| Material Options | 6061-T6 / 7075-T6 / 5052 / SS304 / SS316 / Ti Gr5 / Brass |
| ISO Standard | ISO 2768-mK / ISO 9001:2015 |

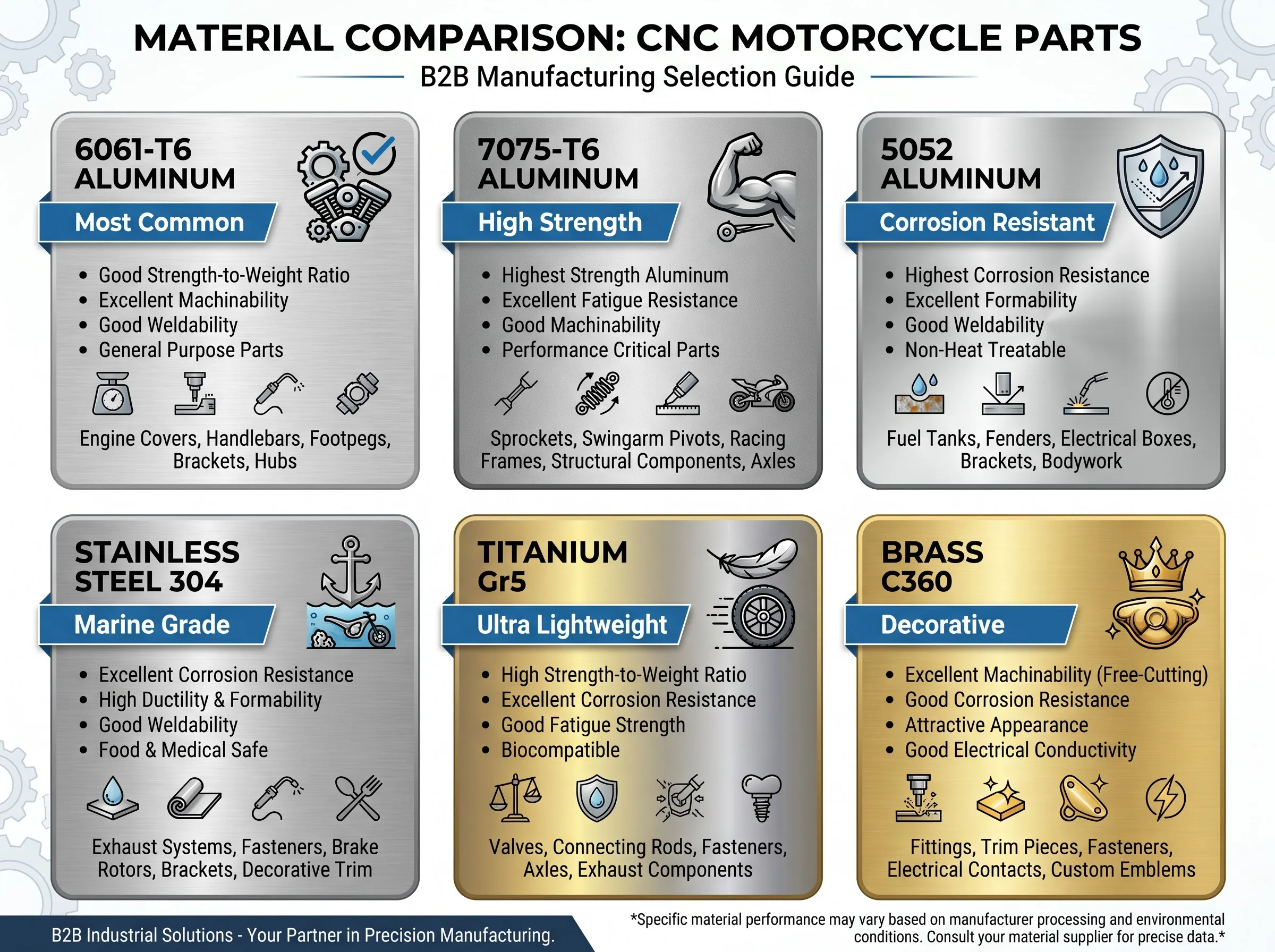

Material Options
Select the right alloy for your motorcycle application — each material serves a distinct engineering purpose.
| Material | Key Property | Best For |
|---|---|---|
| 6061-T6 | Good strength, excellent machinability | Most common — general fender & body hardware |
| 7075-T6 | Highest aluminum strength | High-load brackets, suspension mounts |
| 5052 | Superior corrosion resistance | Marine-coastal exposed components |
| SS 304 | Corrosion resistant, weldable | Marine environments, brake hardware |
| SS 316 | Salt spray rated, pitting resistant | Severe coastal / chemical exposure |
| Titanium Gr5 | Ultra-lightweight, high strength-to-weight | Racing & performance weight reduction |
| Brass C360 | Decorative finish, easy machining | Custom show bikes, decorative accents |
Material Comparison — 6061-T6 vs 7075-T6 vs Titanium Gr5
| Property | 6061-T6 | 7075-T6 | Titanium Gr5 |
|---|---|---|---|
| Density (g/cm³) | 2.70 | 2.81 | 4.43 |
| Tensile Strength (MPa) | 310 | 572 | 950 |
| Yield Strength (MPa) | 276 | 503 | 880 |
| Hardness (HB) | 95 | 150 | 334 |
| Machinability | Excellent | Good | Moderate |
| Anodizing | Full color range | Limited color | Not applicable |
| Cost Level | Low | Medium | High |

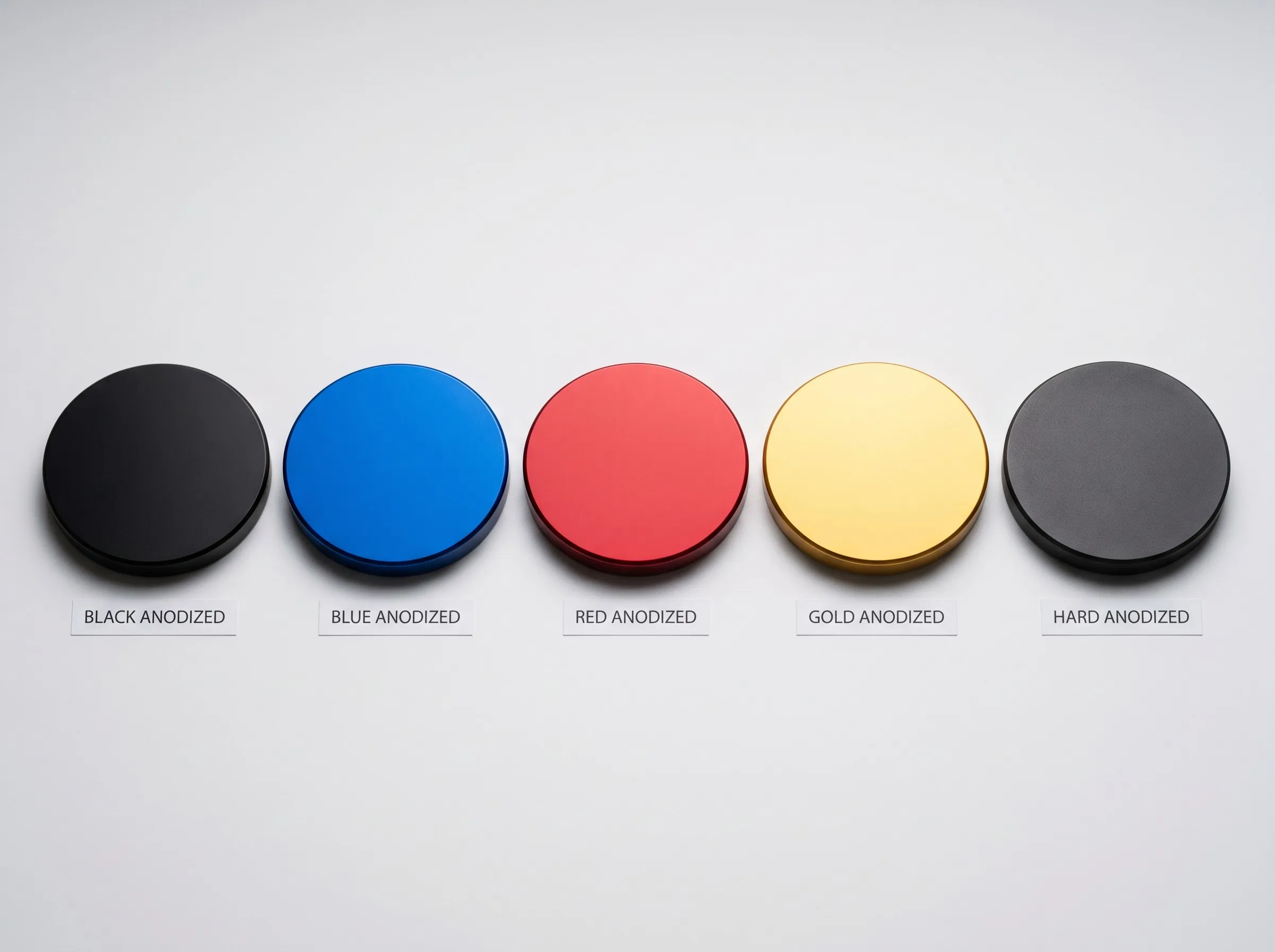

Surface Finish Options
Anodizing transforms raw aluminum into weather-resistant, branded motorcycle hardware.
| Finish | Characteristics | Typical Use |
|---|---|---|
| Black Anodized | Matte, UV stable, low glare | OEM factory replacement hardware |
| Blue Anodized | Vivid, branded look, scratch layer | Aftermarket accessory brands |
| Red Anodized | Bold, racing aesthetic | Performance & custom show builds |
| Gold Anodized | Warm accent, premium feel | Luxury & retro motorcycle styles |
| Silver Anodized | Clean, neutral, professional | Industrial & OEM bulk orders |
| Hard Anodized | 25–50 μm layer, wear & abrasion resistant | High-friction & extreme weather use |
Pantone color matching available for branded aftermarket programs. Laser engraving of logos and part numbers can be applied before or after anodizing.

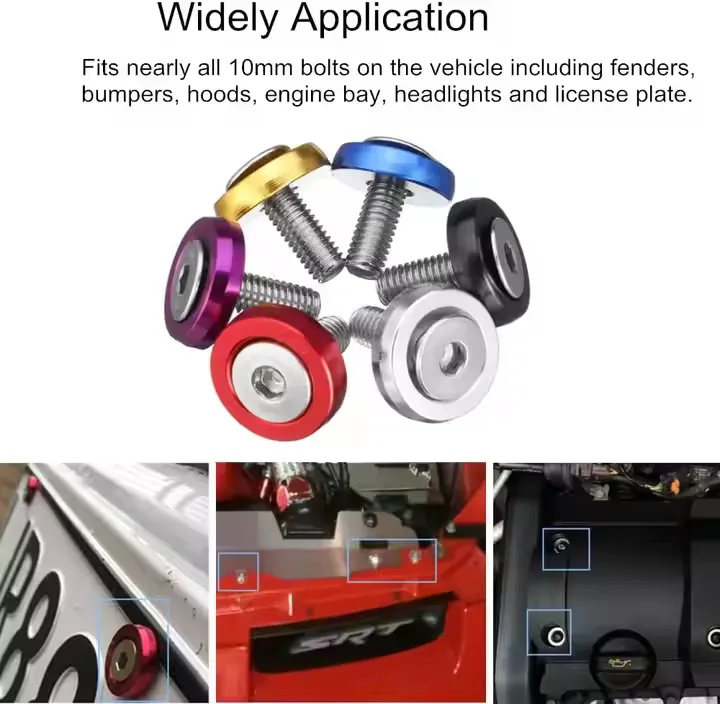

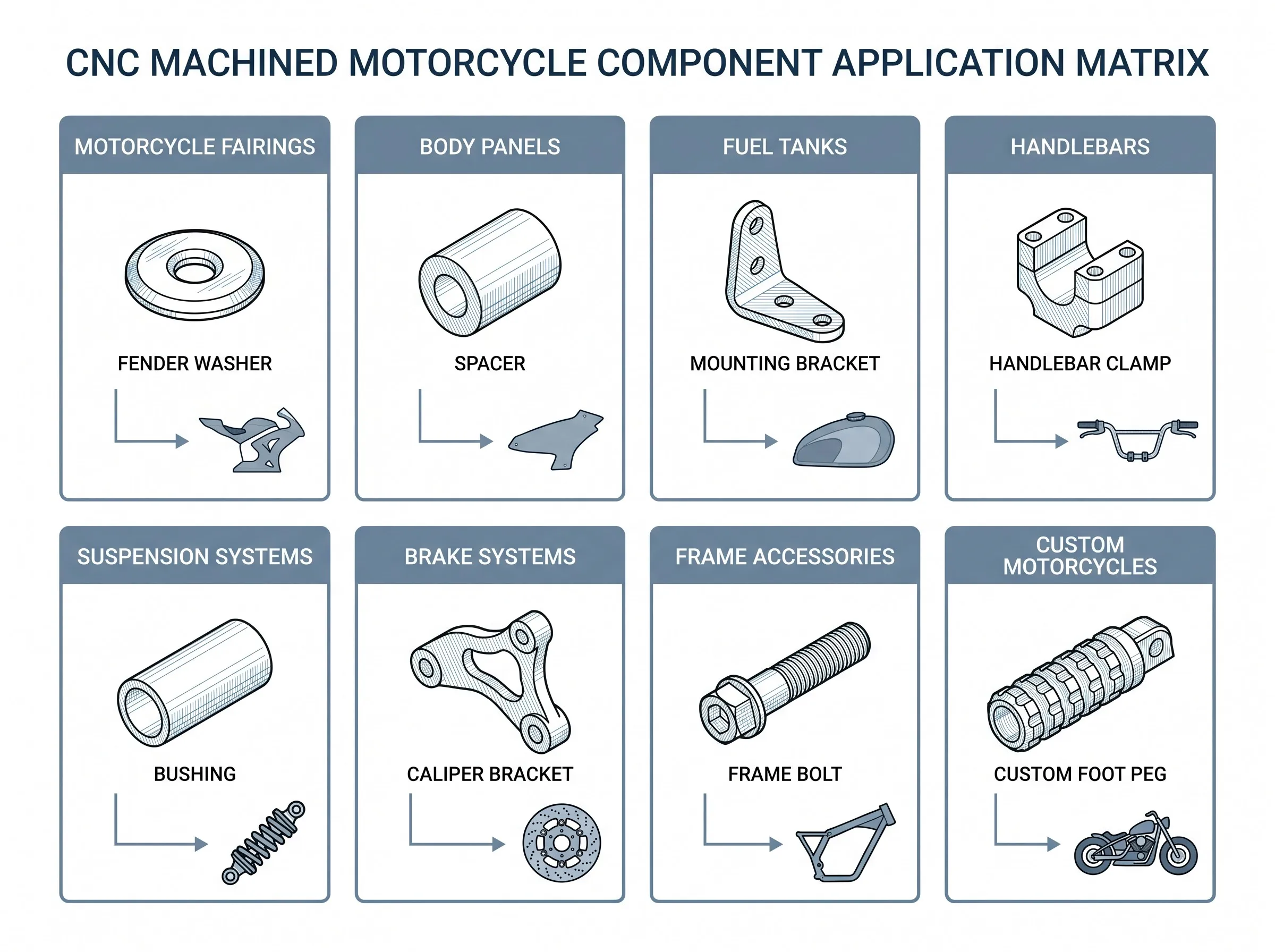

Applications
| Application | Recommended Material | Key Requirement |
|---|---|---|
| Motorcycle Fairings | 6061-T6 | Lightweight, anodized color match |
| Body Panels | 6061-T6 / 7075-T6 | Dimensional consistency, vibration resist |
| Fuel Tank Mounting | 5052 / SS 304 | Corrosion resistance, fuel exposure |
| Handlebar Clamps | 7075-T6 | High clamping force, fatigue life |
| Suspension Mounts | 7075-T6 / Ti Gr5 | High shear load, impact absorption |
| Brake Hardware | SS 304 / SS 316 | Heat & corrosion resistant, no rust |
| Frame Accessories | 6061-T6 | Structural integrity, cost-effective |
| Custom & Racing Builds | Ti Gr5 / Brass | Weight savings or decorative finish |
| Electric Motorcycle (EV) | 6061-T6 / Ti Gr5 | Weight reduction, thermal management |
| ATV / UTV Hardware | SS 304 / 7075-T6 | Off-road durability, mud & salt exposure |

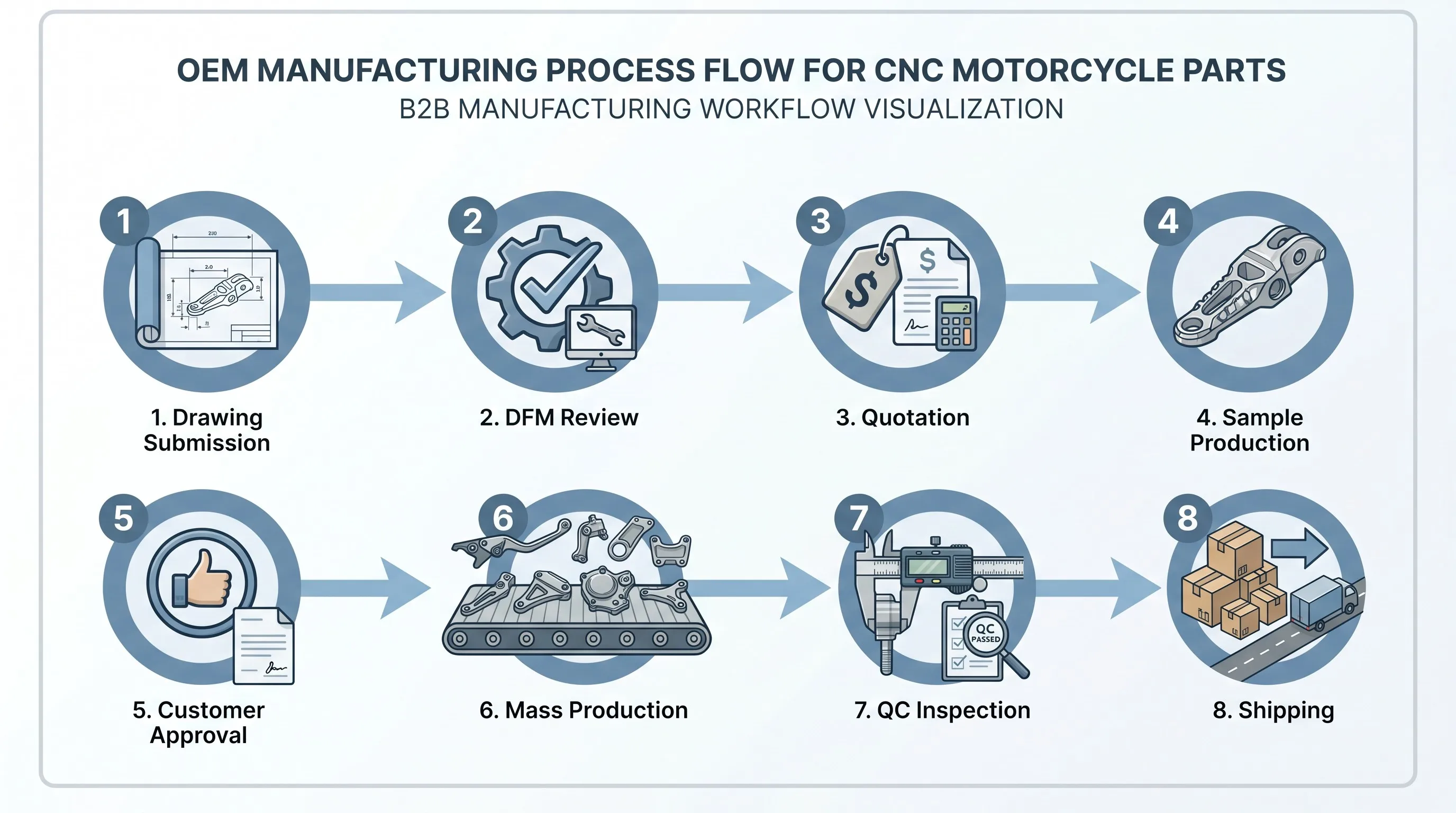

OEM Manufacturing Process
From drawing submission to shipped product — the 8-step workflow that ensures every motorcycle washer meets your specification.

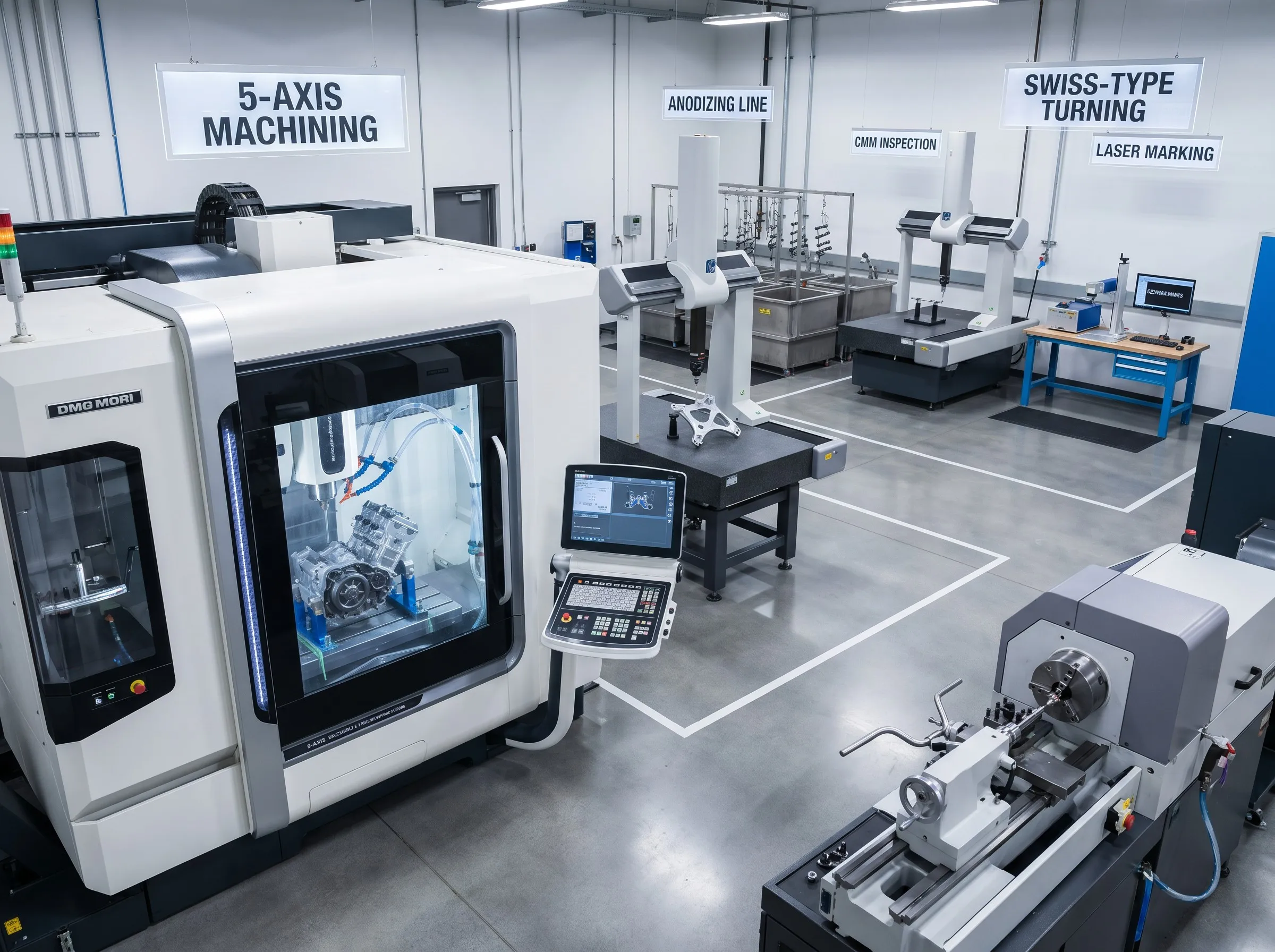

CNC Machining Capabilities
Goldcattle operates a full CNC manufacturing chain — from 3-axis prototyping to 5-axis complex geometry, Swiss-type precision turning, and integrated surface finishing.
Milling
3-axis • 4-axis • 5-axis
Complex contours, pockets, slots
Turning
CNC Turning • Swiss-type
Ø2–Ø80 mm bar stock
Surface
Anodizing • Sandblasting
Polishing • Laser marking
Assembly
Hardware insertion • Sub-assembly
Kit packaging per BOM
| Capability | Specification |
|---|---|
| 5-axis CNC Milling | Complex geometry, undercuts, multi-plane features |
| Swiss-type Turning | Ø2–20 mm, ±0.005 mm tolerance |
| CNC Turning | Ø20–80 mm, ±0.01 mm tolerance |
| Anodizing | 6 standard colors + Pantone matching + hard coat |
| Laser Marking | Logos, part numbers, QR codes (pre/post anodize) |
| Inspection | CMM • Spectrometer • Surface roughness • Hardness tester |
Design for Manufacturing — Fender Washer DFM Tips
Practical design guidance that reduces cost, improves yield, and accelerates delivery. Following these recommendations eliminates common production issues before they reach the shop floor.
| Design Factor | Recommendation | Why |
|---|---|---|
| Min. Wall Thickness | ≥ 1.0 mm (6061), ≥ 0.8 mm (7075) | Prevents chatter & tool deflection |
| Chamfer vs Sharp Edge | 0.2–0.5 mm chamfer all edges | Reduces burr removal time, safer handling |
| Bore Tolerance | H7 for press-fit, H9 for clearance | Avoids post-machining reaming step |
| Anodize Thickness | Account for 5–15 μm growth on OD | Anodizing adds dimensional layer |
| Laser Mark Placement | Flat surface, ≥ 3 mm from edge | Ensures legibility, avoids anodize bleed |
| Thread Depth | 1.5× diameter minimum | Full thread engagement under vibration |
Common Design Pitfalls to Avoid
- Specifying tolerance tighter than functional need — increases cost 3–5×
- Sharp internal corners without fillet — causes tool breakage and stress concentration
- Thin wall (<0.8 mm) with large OD — causes vibration during machining
- Thread too close to anodized surface — coating interferes with bolt engagement
- No flat reference surface for CMM probing — inspection difficulty
- Mixed material calls in same drawing — procurement and programming confusion

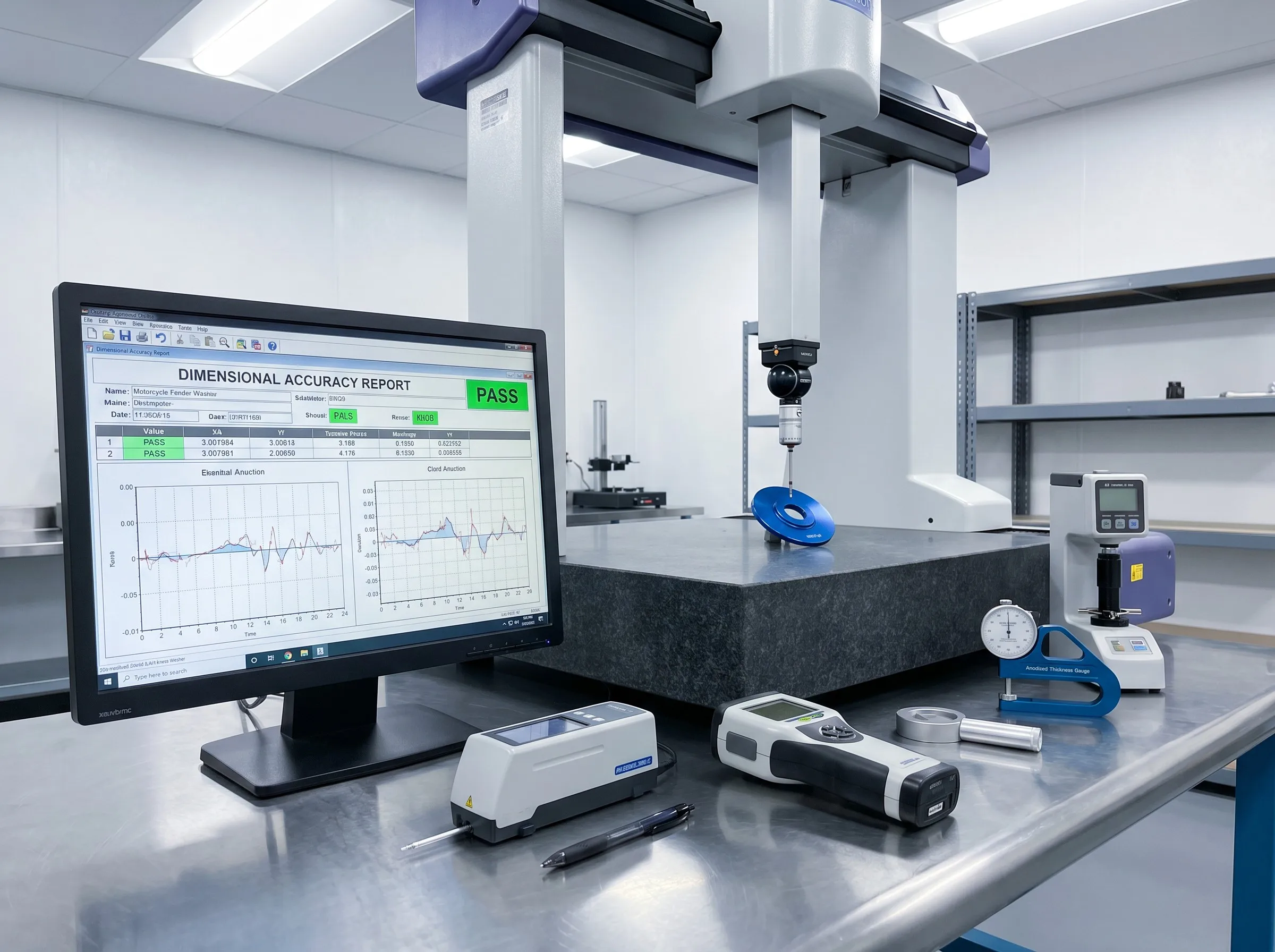

Quality Inspection & EEAT Assurance
Every motorcycle washer passes a 6-stage QC gate before shipping — from incoming material certification to final packaging verification.
| QC Stage | Method | Standard |
|---|---|---|
| Incoming Material | Spectrometer composition analysis | AMS / ASTM material spec |
| First Article Inspection | Full CMM dimensional report | ISO 2768-mK |
| In-process CMM | Periodic sampling during production | AQL 1.0 per MIL-STD-105E |
| Anodize Inspection | Thickness gauge + visual color check | MIL-A-8625 Type II/III |
| Surface & Hardness | Roughness tester + Brinell/Vickers | Ra 0.8 μm / per alloy spec |

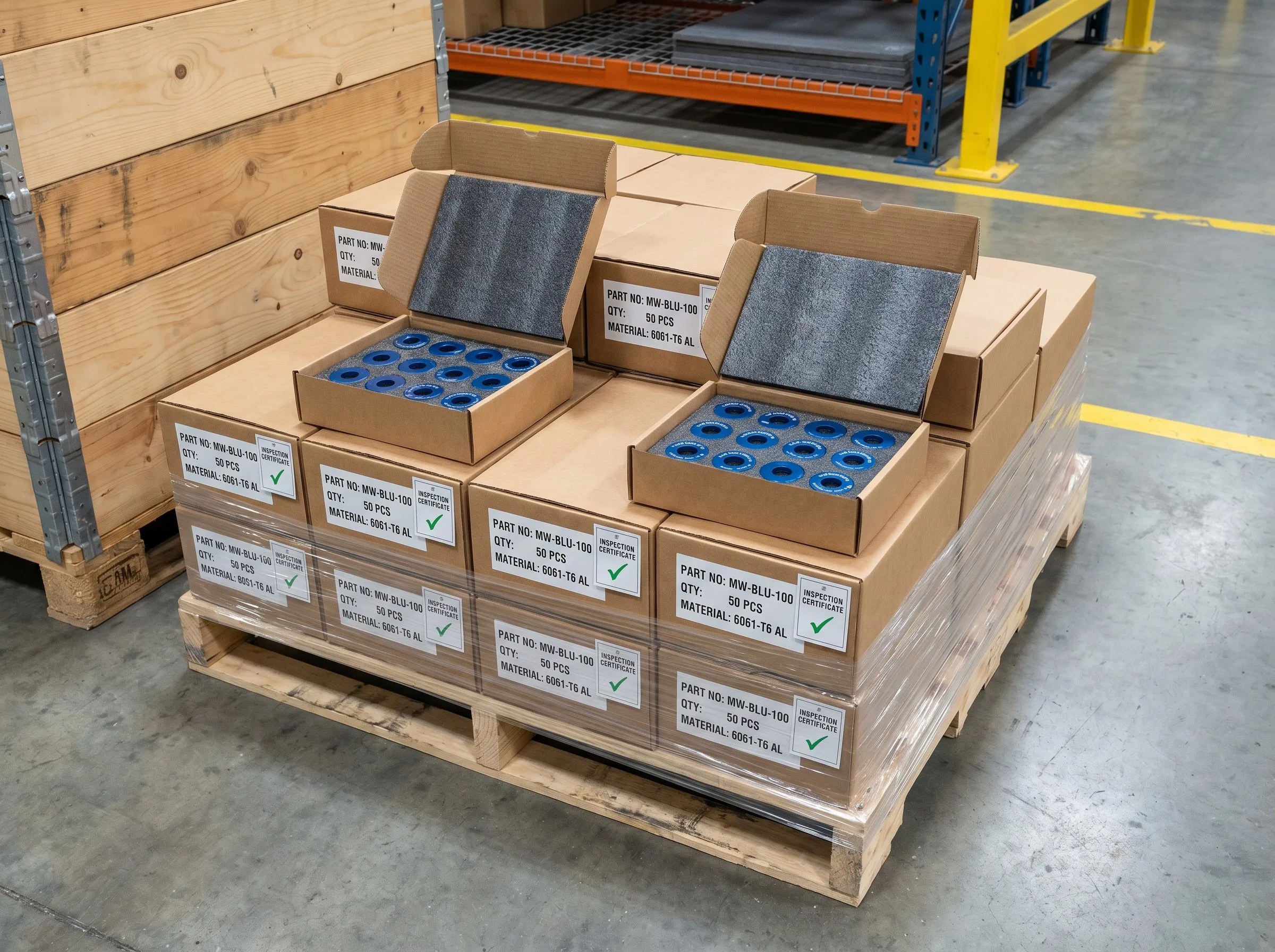

| Final QC & Packaging | 100% visual + dimensional, export pack | ISO 9001:2015 certified |
PPAP Available: Level 1–4 Production Part Approval Process documentation for OEM automotive-grade motorcycle customers. Material certificates (mill test reports) included with every shipment.
Case Study — German Aftermarket Brand
A motorcycle aftermarket accessory brand from Germany partnered with Goldcattle for a high-volume fender washer program requiring strict dimensional and color consistency.
| Parameter | Detail |
|---|---|
| Customer | Motorcycle aftermarket brand |
| Country | Germany |
| Material | 7075-T6 Aluminum |
| Surface Finish | Blue Anodized (Pantone 2727 C) |
| Quantity | 12,000 pcs |
| Tolerance | ±0.01 mm |
| Inspection Rate | 100% dimensional + visual |
| Lead Time | 18 days (sample + mass production) |
| Result | 0 defect rate, on-time delivery, repeat order confirmed |
Why Choose Goldcattle for Motorcycle CNC Parts
Xiamen Goldcattle Plastic & Metal Products Co., Ltd. operates an ISO 9001:2015 certified facility in Xiamen, China, delivering OEM CNC machining services to motorcycle manufacturers and aftermarket brands worldwide. From 3-axis prototyping through 5-axis production, Swiss-type precision turning, and integrated anodizing — the complete manufacturing chain runs under one roof.
ISO 9001 Certified
Full quality management system
3 / 4 / 5-Axis CNC
Complete milling capability
Swiss-Type Turning
Precision Ø2–20 mm parts
5–500,000 pcs
Prototype to mass production
DFM Engineering
Free review on every project
Full Inspection
CMM + spectrometer + surface
Surface Finishing
Anodize + sandblast + laser
One-stop Manufacturing
Machining to shipping under one roof
Frequently Asked Questions
Can you manufacture according to our drawings?
Yes. We produce all CNC motorcycle parts to customer drawings and specifications. Our engineering team reviews every drawing for manufacturability before quoting.
Can you match Pantone anodized colors?
Yes. We offer Pantone color matching for anodized finishes. Standard colors include black, blue, red, gold, and silver. Custom Pantone references are processed with color sample approval before mass production.
What is the minimum order quantity?
Prototype orders start from 5 pcs. Mass production MOQ depends on part complexity — typically 100 pcs for simple washers and 50 pcs for multi-feature components.
Can you provide PPAP documentation?
Yes. PPAP Level 1 through Level 4 is available for OEM customers requiring automotive-grade production part approval. This includes dimensional reports, material certificates, and process flow documentation.
Do you support low-volume production?
Yes. Our facility handles orders from 5 pcs (prototype) to 500,000 pcs (mass production). Low-volume runs use dedicated rapid prototyping workflows with shorter lead times.
Can you laser engrave logos and part numbers?
Yes. Laser marking can be applied before or after anodizing. Logos, part numbers, QR codes, and batch identifiers are engraved with 0.1 mm line precision.
What file formats do you accept?
STEP, IGES, STP, DWG, DXF, and PDF. 3D solid models (STEP/IGES) are preferred for quoting. 2D drawings (DWG/DXF/PDF) are accepted for simple geometry and tolerance reference.
Can you assemble hardware inserts?
Yes. Helicoil thread inserts, press-fit dowels, and captive hardware can be installed during assembly. We also provide sub-assembly and kit packaging per BOM requirements.
Can you provide material certificates?
Yes. Mill test reports (MTR) and material composition certificates are included with every shipment. Spectrometer verification confirms alloy grade compliance before production begins.
Related CNC Services — Motorcycle Parts Topic Cluster
This fender washer page is part of a broader CNC motorcycle parts cluster. Explore related services for a complete OEM sourcing solution.
Looking for a Reliable Motorcycle CNC Parts Manufacturer?
Goldcattle provides OEM precision CNC machining services for motorcycle brands, aftermarket suppliers, and industrial customers worldwide.
✓ Manufacturing Suggestions
✓ Competitive Quotation
✓ Prototype Support
✓ Mass Production
Accepted formats: STEP, IGES, STP, DWG, DXF, PDF • Response within 24 hours • ISO 9001:2015 certified facility
