Customization Plastic Blow Molding/Injection Moulding Parts
| Attribute | Specifications |
|---|---|
| Process | Injection Molding / Blow Molding |
| Material Options | PP, PE, ABS, PC, PVC, PET, POM, TPE, Nylon, etc. (Biodegradable materials available) |
| Mold Type | Single/Multi-cavity; Hot/Cold Runner (Custom mold development supported) |
| Size Range | Injection: 0.5g – 5kg; Blow Molding: 10ml – 30L |
| Tolerance | ±0.1mm (ISO 2768 standard, adjustable) |
| Surface Finish | Sandblasting/Polishing/Texturing, UV Coating, Electroplating, Silk Printing, Laser Engraving |
| Color Customization | Pantone/RAL color matching, masterbatch precision blending |
| Certifications | RoHS, REACH, FDA (Food Grade), ISO 9001:2015 |
| MOQ | Injection: 5,000 pcs; Blow Molding: 1,000 pcs (Low-volume prototyping supported) |
| Lead Time | Prototypes: 7-15 days; Mass Production: 15-30 days (complexity-dependent) |
| Applications | Automotive, Medical Devices, Appliance Housings, Packaging, Industrial Components, Consumer Goods |
Description
Custom Plastic Blow Molding & Injection Molding Services (From Prototype to Mass Production)
We provide custom plastic molding solutions using both blow molding and injection molding processes to match your project needs.
- ✓ Blow molding for hollow parts (containers, tanks, ducts)
- ✓ Injection molding for high-precision solid components
- ✓ Full-service from mold design to mass production
- ✓ Support from prototyping to full-scale production
Blow Molding vs Injection Molding: How to Choose
Choosing the right molding process is critical for your project’s cost and performance. Below is a clear comparison to help you make the decision:
| Feature | Blow Molding | Injection Molding |
|---|---|---|
| Part Type | Hollow parts | Solid/complex parts |
| Geometry Complexity | Medium | High |
| Dimensional Precision | Medium (±0.2mm) | High (±0.1mm) |
| Tooling Cost | Low ($1,000-$5,000) | High ($5,000-$50,000) |
| Minimum Order Quantity | 1,000 pcs | 5,000 pcs |
| Size Range | 10ml – 30L | 0.5g – 5kg |
| Best For | Containers, bottles, tanks, ducts | Engineering parts, housings, components |
Applications of Plastic Molding

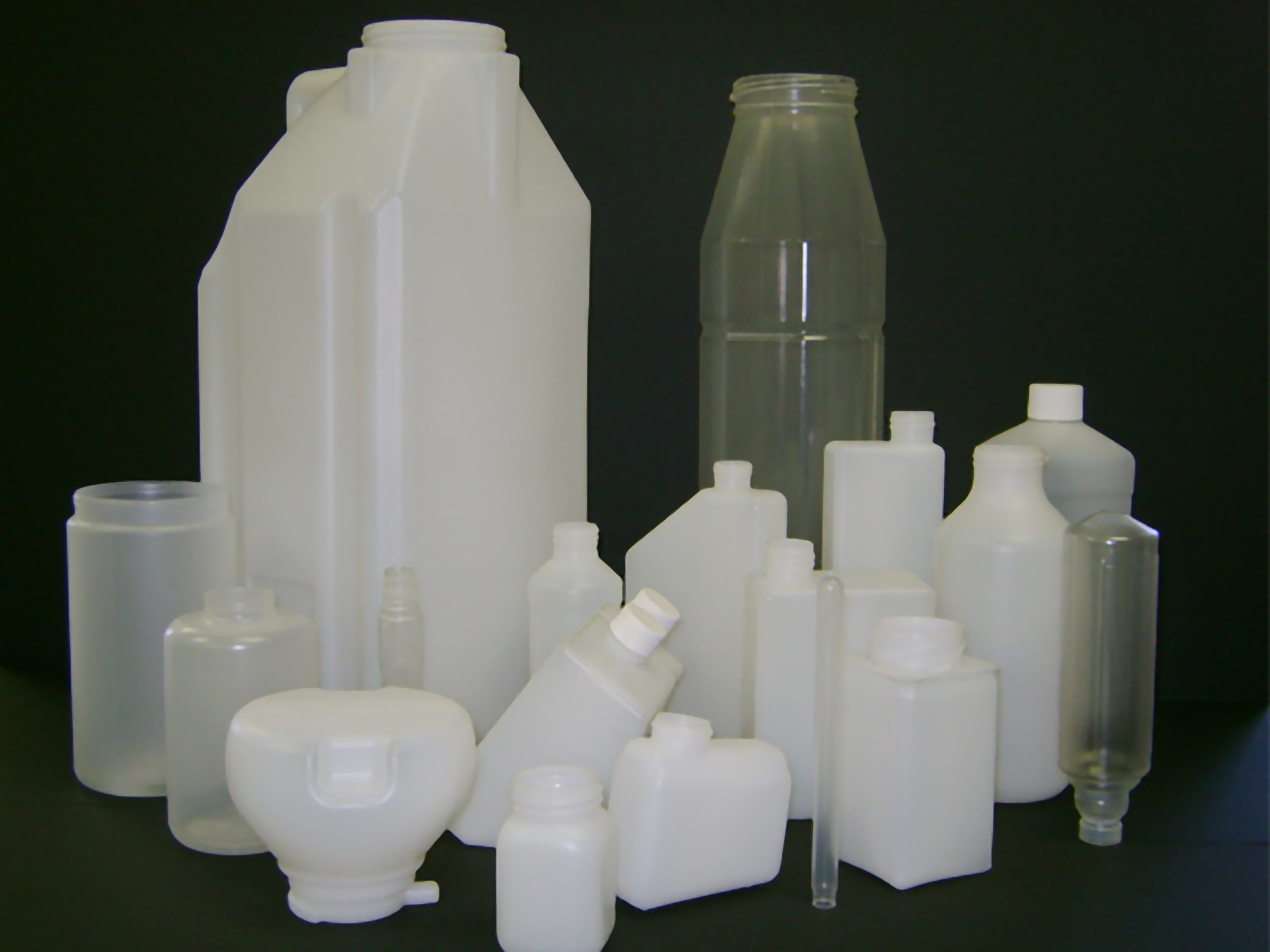

Blow Molding Applications
- ▸ Custom plastic bottles & containers
- ▸ Industrial fluid tanks & drums
- ▸ Automotive air ducts & fluid containers
- ▸ Medical & food-grade packaging
- ▸ Consumer packaging & cosmetic containers

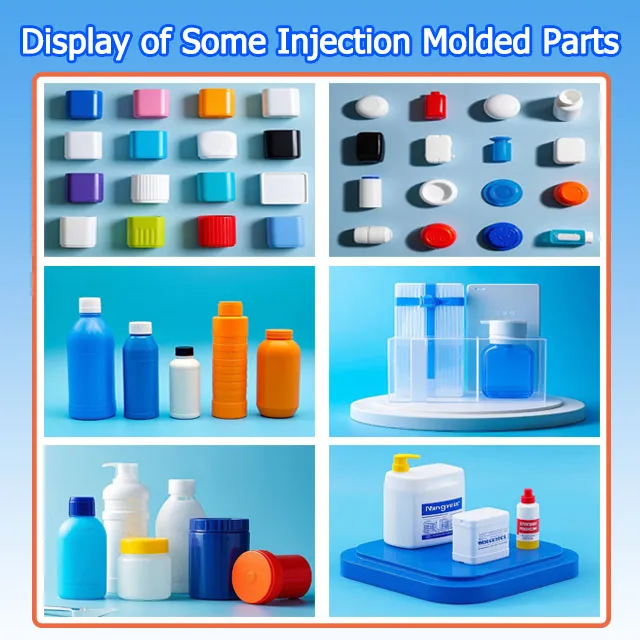

Injection Molding Applications
- ▸ Automotive interior & engine components
- ▸ Electronic device housings & enclosures
- ▸ Industrial machinery components
- ▸ Medical device parts & housings
- ▸ Consumer appliance casings & parts
Available Materials
We support a wide range of engineering and commodity plastics to match your performance requirements, including food-grade and high-temperature options:
HDPE
PP
ABS
PC
PVC
PET
POM
Nylon
TPE
Biodegradable

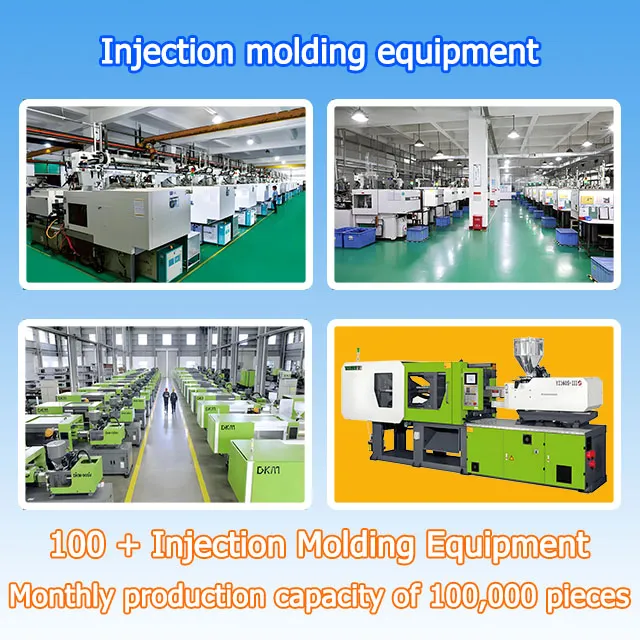

Manufacturing Capabilities
| Blow Molding | Hollow parts production, thin-wall capability |
| Injection Molding | High precision solid components, tight tolerance |
| In-house Mold Making | Single/multi-cavity molds, hot/cold runner |
| Secondary Processing | CNC machining, surface finishing, printing |
We are certified with RoHS, REACH, FDA and ISO 9001:2015, ensuring all products meet global quality and compliance standards.
From Design to Production
Design Review & DFM
Mold Design & Making
Rapid Prototyping
Mass Production
Inspection & Delivery
Prototyping lead time: 7-15 days | Mass production lead time: 15-30 days, depending on part complexity.
Cost Comparison: Blow vs Injection Molding
Blow Molding Cost Model
- Tooling Cost: Low, typically $1,000-$5,000
- Unit Cost: Medium, consistent across volumes
- Best For: Low to medium volume projects (1,000-10,000 units)
- Ideal For: Projects with limited initial budget or small demand
Injection Molding Cost Model
- Tooling Cost: High, typically $5,000-$50,000
- Unit Cost: Drops significantly for large volumes
- Best For: High volume projects (5,000+ units)
- Ideal For: Long-term mass production with stable demand

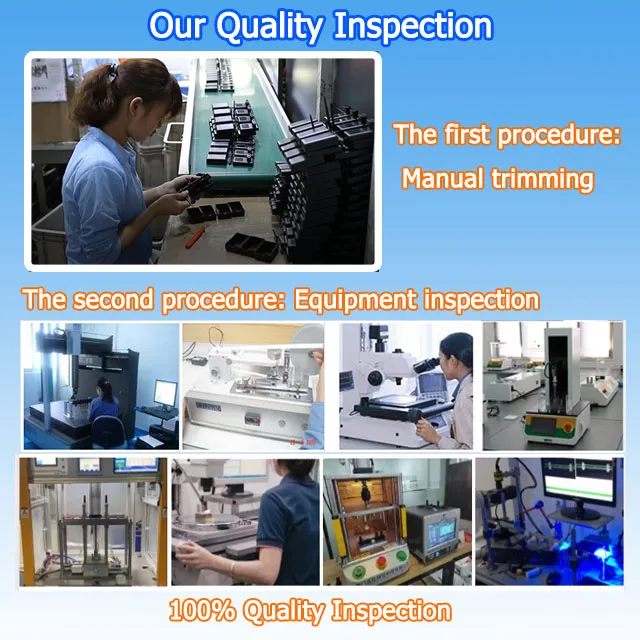

Quality Control
We implement full inspection process to ensure every part meets your specifications:
- ▸ Dimensional inspection with precision tools
- ▸ Material composition verification
- ▸ Leak testing for hollow blow molded parts
- ▸ 100% visual and functional inspection
- ▸ Full quality report provided with each batch
Frequently Asked Questions
What is blow molding used for?
Blow molding is a manufacturing process used to produce hollow plastic parts, such as bottles, containers, tanks, and ducts. It is ideal for applications that require lightweight, thin-walled, and sealed hollow structures, especially for packaging and fluid transfer components.
Injection molding vs blow molding: which is cheaper?
It depends on your production volume. Blow molding has lower tooling cost, making it more cost-effective for small to medium production runs. Injection molding has higher initial tooling cost, but the unit cost drops significantly for large volume production, making it cheaper for long-term mass production.
Which process is better for my product?
It depends on your part type, volume and performance requirements. If you need hollow parts with low to medium volume, blow molding is usually the better choice. If you need high-precision solid complex parts with large volume, injection molding is more suitable. You can upload your drawing and we will help you analyze and choose the best process.
Do you support prototyping before mass production?
Yes, we support rapid prototyping service, which allows you to test the part design and performance before investing in mass production tooling. The prototyping lead time is usually 7-15 days, and we can provide functional prototypes for your validation.
Get a Custom Plastic Molding Quote
Upload your drawing, tell us your requirements, and we will help you choose the right process and get back to you within 24 hours.
