CNC Machining vs Injection Molding — Which Is Cheaper?
CNC machining is usually more economical for prototypes, low-volume orders and designs that are still changing because it requires little or no dedicated tooling. Injection molding usually becomes more economical as production volume increases because the mold cost is spread across many parts. The actual break-even point depends on part geometry, material, mold cost, CNC cycle time and expected quantity.
Note: This comparison focuses on thermoplastic parts. For metal components, CNC is typically compared with die casting or other metal processes.
CNC Machining vs Injection Molding at a Glance
Use this matrix as a fast filter. The middle-volume range is where a project-specific comparison matters most — not a fixed rule.
| Requirement | CNC Machining | Injection Molding |
|---|---|---|
| 1–10 pcs | Strong fit | Rarely economical |
| Prototypes | Strong fit | Rapid tooling only |
| 50 pcs | Strong fit | Compare carefully |
| 100 pcs | Strong fit | Compare carefully |
| 500 pcs | Compare | Compare |
| 1,000 pcs | Compare | Often attractive |
| 10,000+ pcs | Usually higher unit cost | Strong fit |
| Frequent design changes | Strong fit | Mold revisions costly |
| No tooling budget | Strong fit | Tooling required |
| Lowest unit cost at high volume | Higher per-part cost | Strong fit |
| Very tight dimensions | Strong fit | Secondary ops often needed |
| Complex plastic geometry | Case by case | Case by case |
| Production-ready molded texture | Hard to replicate | Strong fit |
Why CNC Machining and Injection Molding Have Different Cost Structures
The right question is rarely "which process is cheaper?" It is "which cost structure fits your volume and design maturity?"

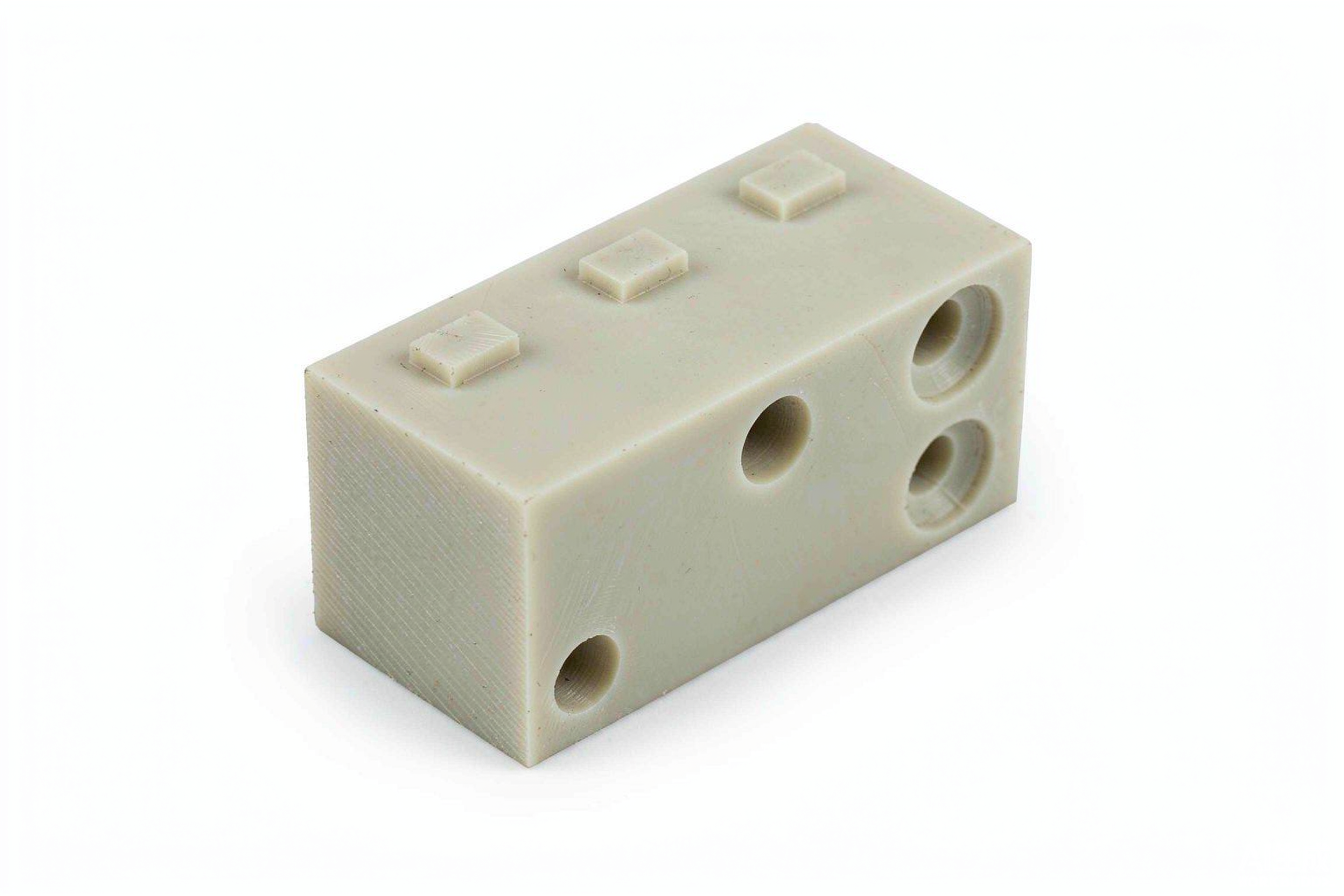

CNC Machining Cost Structure
Total Cost = Setup + Material + Machine Time + Tooling/Consumables + Finishing + Inspection
CNC has a relatively low entry cost but generally higher variable cost per unit. No injection mold amortization is required, but each additional part requires machining time.
- Low upfront tooling
- Each part is machined individually
- Cost scales roughly with machine time
- Design changes are program changes

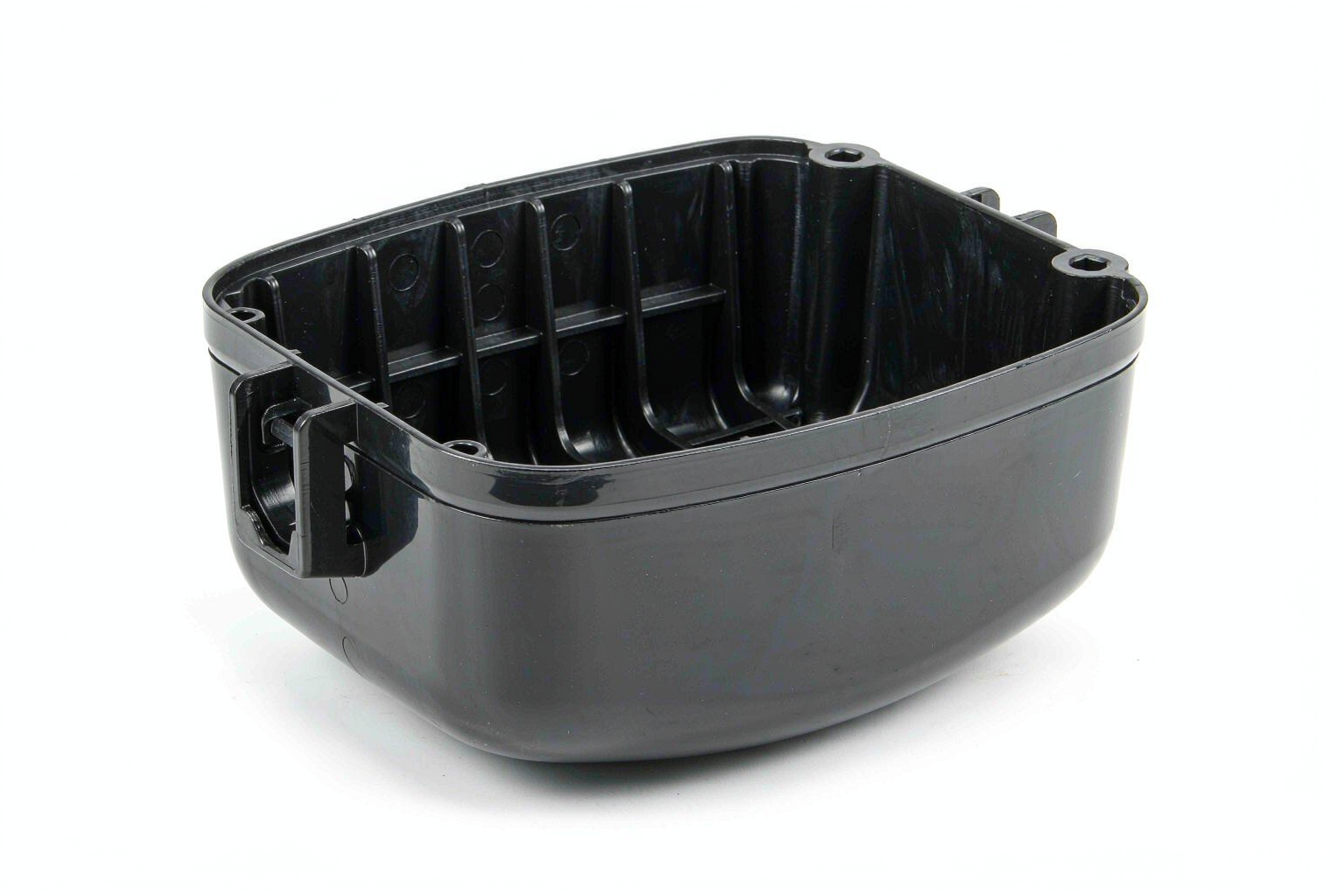

Injection Molding Cost Structure
Total Cost = Mold + Material + Injection Cycle + Finishing + Inspection + Mold Maintenance
Injection molding has a higher entry cost but a much lower marginal cost at sufficient production volume. Once the tool is running, the per-shot cost is low.
- High upfront mold cost
- Very low cycle cost per part
- Tooling cost amortized over volume
- Design changes require steel changes
CNC vs Injection Molding Total Cost
Before the break-even point, CNC may have the lower total project cost. After the break-even point, injection molding can become substantially cheaper.
At What Quantity Does Injection Molding Become Cheaper?
Estimate your crossover point. This calculator is illustrative — use your own supplier quotations for real procurement decisions.
Break-Even Calculator
Formula: Break-even = Mold Cost ÷ (CNC Unit Cost − Injection Unit Cost). Example values shown above are illustrative only.
Which Process Is Cheaper at Different Production Volumes?
These volume bands are screening ranges, not universal rules. Real projects may cross over at 300 pieces or remain CNC-favorable past several thousand.
Why CNC Cost Does Not Drop as Quickly With Volume
Every CNC part still requires material, machining, setup, cutting, deburring and inspection. Batch efficiencies exist — setup amortization, optimized toolpaths, better material purchasing — but they do not produce the steep per-part drop that a one-time mold investment enables.
- Variable cost remains per part
- Machine time is the main driver
- Batch savings flatten at higher volumes
Why Injection Molding Becomes Cheaper at Scale
One mold enables thousands of repeatable cycles. The mold cost is divided by quantity, so the per-part mold contribution falls rapidly.
100 parts
$10,000 mold ÷ 100 = $100/part mold share
10,000 parts
$10,000 mold ÷ 10,000 = $1/part mold share
Design Stability: CNC vs Injection Molding
A low molded-part price is not necessarily cheaper if the design is likely to change and the mold will need modification.
| Situation | Better Option | Why |
|---|---|---|
| CAD changes every week | CNC | Program update, no steel change |
| Prototype testing | CNC | First parts fast, iterations cheap |
| Design still under validation | CNC | Avoids premature tooling spend |
| Final design approved | Injection Molding | Tool for stable production |
| Long-term production | Injection Molding | Low unit cost over life |
| Stable annual demand | Injection Molding | Tool amortization works |
CNC Prototype to Injection-Molded Production
CNC and injection molding do not have to be competing processes. CNC can be the fastest path to prototype validation, while injection molding becomes the production process once the design and demand are stable.
When Is CNC Machining Cheaper?
- Very low volume
- Prototypes and engineering samples
- Frequent design changes
- No mold budget
- Tight functional dimensions
- Metal parts (injection molding is for thermoplastics)
- Complex machined details
- Short time-to-first-part requirement
When Is Injection Molding Cheaper?
- Stable, finalized design
- High production volume
- Plastic component
- Repeated geometry
- Thin-wall housings
- Ribbed structures and bosses
- Snap-fit features
- Large production runs
CNC Machining vs Injection Molding Tolerance
Injection-molded dimensions are affected by material shrinkage, mold design, cooling, processing conditions and geometry. CNC machining starts from a solid stock and therefore offers greater direct dimensional control for many features.
| Requirement | CNC Machining | Injection Molding |
|---|---|---|
| Very tight dimensions | Strong | More challenging |
| Prototype dimensional validation | Strong | Requires mold |
| Consistent production dimensions | Strong | Strong when process is stable |
| Shrinkage | Minimal process shrinkage | Important design/process factor |
| Warpage | Machining-related deformation | Important consideration |
| Critical bores | Excellent | Often needs secondary machining |
Important: Specific tolerance capability must be confirmed per drawing. Do not treat generic tolerance ranges as guarantees.
CNC vs Injection Molding Material Options
CNC machining covers metals and plastics. Injection molding is limited to thermoplastics. This difference alone often decides the process.
| Material | CNC | Injection |
|---|---|---|
| ABS | ✓ | ✓ |
| PC | ✓ | ✓ |
| POM | ✓ | ✓ |
| Nylon | ✓ | ✓ |
| PEEK | ✓ | ✓* (confirm capability) |
| Aluminum | ✓ | ✗ |
| Stainless Steel | ✓ | ✗ |
| Titanium | ✓ | ✗ |
| Brass | ✓ | ✗ |
*PEEK injection molding availability depends on grade, part geometry and lot size — confirm during RFQ.
CNC vs Injection Molding for Complex Geometry
Injection molding gives you geometry that may be expensive or impossible to machine efficiently, but the part must be designed for moldability.
CNC Advantages
- Fast iteration
- No mold draft requirement
- Easy design modifications
- Excellent precision
- Direct machining of pockets and holes
Injection Molding Advantages
- Ribs and bosses
- Snap fits
- Thin walls
- Complex molded contours
- Part consolidation
DFM Differences Between CNC and Injection Molding
This is where the comparison moves from "cost" to "engineering decision."
| Design Factor | CNC | Injection Molding |
|---|---|---|
| Draft angle | Usually not required | Usually required |
| Uniform wall thickness | Less critical | Very important |
| Shrinkage | Minimal concern | Critical |
| Parting line | No | Yes |
| Ejection | No | Required |
| Undercuts | Possible with appropriate tooling | May require slides/lifters |
| Ribs | Machining cost may increase | Very suitable |
| Snap fits | Possible | Excellent |
| Deep cavities | Tool access limits | Mold depth/design limits |
CNC vs Injection Molding Lead Time
CNC's main advantage is shorter first-part lead time; injection molding pays back through cycle-based production once the tool is qualified.
| Stage | CNC | Injection |
|---|---|---|
| First prototype | Usually faster | Mold must be built first |
| Design iteration | Fast | Mold modification required |
| Production launch | Fast for small batches | Slower initially |
| Repeated production | Moderate | Very fast cycle-based |
CNC vs Injection Molding Quality Risks
Understanding failure modes helps buyers see why mold trial and process validation matter.
CNC Risks
- Dimensional variation
- Tool wear
- Workholding
- Machine condition
Injection Molding Risks
- Shrinkage and warpage
- Sink marks and weld lines
- Flash and short shots
- Dimensional stability
CNC vs Injection Molding Surface Finish
For highly cosmetic plastic parts, injection molding provides repeatable molded textures that would be difficult or expensive to machine individually.
CNC Finishes
- Machined finish
- Polishing
- Bead blasting
- Brushing
- Anodizing (on metal)
- Plating
Injection Molding Surfaces
- Mold texture / SPI finish
- EDM texture
- Polishing
- Material-driven appearance
- Processing conditions
When CNC Machining and Injection Molding Work Together
For many products, the most economical strategy is not CNC versus injection molding — it is CNC for prototype and validation, followed by injection molding for stable high-volume production, with secondary CNC machining for critical features where necessary.
Common hybrid example: Injection-molded body + CNC-finished precision bores, mounting surfaces, threads and datum features.
Real-World Cost Comparison Examples
Three realistic scenarios showing how volume, design stability and material drive the recommendation.
50 Plastic Housings
Material: ABS
Quantity: 50 pcs
Design: Still changing
No mold investment; parts in hand fast.
20,000 PC/ABS Housings
Material: PC/ABS
Quantity: 20,000 pcs/year
Features: Cosmetic surface, snap fits
Stable design; tool amortization drives low unit cost.
2,000 PEEK Components
Material: PEEK
Quantity: 2,000 pcs
Challenge: Tight dimensions, expensive mold, high material cost
Compare Mold Cost + Cycle Cost vs CNC Cost.
Should You CNC Machine or Injection Mold Your Plastic Part?
Follow the decision tree. If you reach "Compare tooling ROI," that is the right time to send us your CAD and volume for an engineered recommendation.
Is the Injection Mold Investment Worth It?
Mold ROI depends on tooling cost, unit-cost savings and real-world factors like maintenance and rejects.
Break-even Quantity = Mold Cost ÷ (CNC Unit Cost − Injection Unit Cost)
Inputs
CNC = $25/part
Injection = $3/part
Mold = $11,000
Result
Saving = $22/part
Break-even ≈ 500 pcs
Reality check: Real-world ROI must include mold maintenance, modifications, rejects, secondary machining and inspection.
Compare Total Cost, Not Just Cost Per Part
A $2 molded part is not necessarily cheaper than a $20 CNC part if you only need 50 units.
CNC
50 × $20 = $1,000
Injection Molding
$10,000 mold + 50 × $2 = $10,100
Takeaway: Unit price alone can be misleading. Always model total project cost at your actual quantity.
One Supplier for CNC Machining and Injection Molding
You do not need two suppliers to complete the product lifecycle. Goldcattle runs both processes in-house.
| Requirement | Goldcattle Capability |
|---|---|
| CNC prototyping | Available |
| Plastic CNC machining | Available |
| Injection mold making | Available |
| Plastic injection molding | Available |
| Tight-tolerance machining | Available |
| Secondary CNC after molding | Available |
| Surface finishing | Available |
| Dimensional inspection | Available |
| CMM inspection | Available on request* |
| Low-volume production | Available |
| Mass production | Available |
*CMM and specific inspection scope are confirmed per project.
How to Choose the Right Process
Use this checklist to score your project before requesting a quote.
Ask First
- Is the part plastic?
- Is the design finalized?
- What is the annual volume?
- Which tolerances are truly critical?
- Is there a tooling budget?
- How soon do you need first parts?
Then Compare
- CNC total cost at quantity
- Injection molding total cost at quantity
- Tooling payback period
- Risk of design changes
- Secondary operations needed
- Lead time to first approved parts
