Custom CNC Precision Components

Custom CNC-Machined Fittings & Connector Bodies

Precision turned and milled small components in brass, stainless steel and aluminum — built for fluid, pneumatic and electrical interconnect applications where thread integrity, sealing and dimensional repeatability decide whether an assembly works.

Brass C360 Stainless 304 / 316 Aluminum 6061 / 7075 Copper C110 Threaded & sealed
MOQ1 piece (prototypes)
Tolerance±0.01 mm typical · ±0.005 mm qualified features
Lead timePrototypes 3–7 working days
QualityISO 9001:2015
Request a Quote / DFM Review

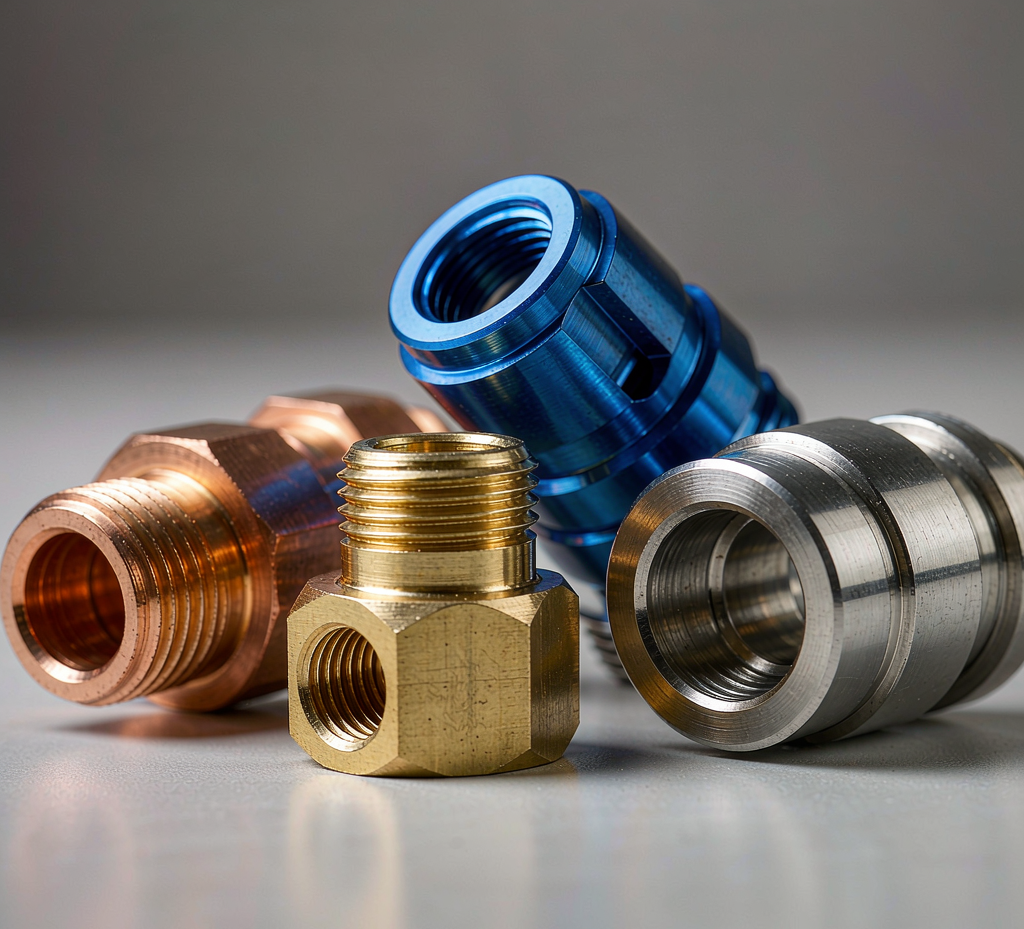

CNC machined brass, stainless steel, anodized aluminum and copper fittings and connector bodies arranged on a studio surface

Which parts belong on this page

This page covers small, often rotational interconnect components — the fittings, adapters and connector bodies that join lines, carry fluids or signals, and must seal and align repeatedly. If your part threads, seals, passes a bore through its axis, or carries pins/contacts, it fits here.

These are the part types we most often produce in this family. Each is defined by a feature that drives the manufacturing method, not by a generic "metal part" label.

Hydraulic & pneumatic fittings

Adapter, elbow, tee and union bodies with threaded ports, hex drives and cross-drilled passages for fluid and air lines.

Threaded adapters & unions

Port transitions between standards (metric/UN/BSPT/NPT) where thread class and sealing face flatness decide leak performance.

Electrical connector bodies

Housings and shells with milled cavities, threaded retention rings and locating features for pins, contacts and inserts.

RF & coaxial connectors

Threaded, often plated bodies where concentricity of the bore and the outer thread governs signal integrity.

Medical fluid connectors

Small 316 stainless parts with polished bores, O-ring grooves and clean finishing for sterile or biocompatible assemblies.

Sensor & valve fittings

Thin-wall bodies with precision threads and locating seats that position a sensor or valve element in an assembly.

Process selection — turning vs milling

Rotational geometry (bore, OD, threads, faces on one axis) is turned; bodies with milled flats, ports, cavities or multi-face features use mill-turn or 4/5-axis milling. Picking the wrong process adds setups, cost and error — the table shows how geometry maps to method.

Part geometryPrimary processWhyRisk if mis-selected
Round body, concentric bore, external threadCNC turningSingle setup holds bore-to-OD concentricityMulti-setup milling accumulates repositioning error
Hex / flange body with threaded portTurning + milled flats/portsTurns the axis, mills the non-rotational featuresPure turning cannot form the flat or cross-port
Housing with cavities & retaining threadsMill-turn / 4-axisAccesses internal features without re-fixturingManual flips add runout and lead time
Compound-angle or contoured shell5-axis simultaneousMachines complex surfaces in one setup3-axis needs fixtures and loses accuracy
Spline, keyway or broached featureTurning + broaching/EEGMAdds the axial feature after the round bodyOmitting the operation leaves the part non-functional

Capability scope

All six core processes — CNC machining, injection molding, mold making, 3D printing, die casting and sheet metal fabrication — are performed in-house under one ISO 9001:2015 quality system. This page addresses the CNC-machined metal portion; mating plastic or die-cast housings can be sourced from the same facility.

Material selection by application

Material is chosen for the media, pressure, temperature and signal environment — not by a default list. Brass for machinability and conductivity, stainless for corrosion and cleanliness, aluminum for weight. Confirm the grade and any substance restrictions during DFM.

Material (typical grade)Best-fit applicationKey propertyWatch-outs
Brass C360Plumbing, pneumatic, EMI-sensitive bodiesFree-machining, good conductivity, corrosion resistanceNot for potable/food without confirmation; dezincification grade if specified
Stainless 304General industrial fittingsCorrosion resistance, weldableWork-hardens; needs correct tooling and speeds
Stainless 316Medical, food, marine, sterile linesHigher corrosion resistance, cleaner finishSlower machining; confirm passivation and cleanliness
Aluminum 6061-T6Lightweight connector housingsLight, non-magnetic, anodizableSoft threads need correct class and torque limits
Aluminum 7075-T6High-strength structural connectorsHigher strength than 6061Lower corrosion resistance; anodize for protection
Copper C110Electrical terminal / contact bodiesExcellent conductivitySoft; finish and plating selected for contact performance

Standard materials vs available grades

The grades above are the standard set we quote against. Other alloys (e.g. specialty stainless, beryllium-copper, lead-free brass) are available on request — the exact grade is confirmed from your drawing and any regulatory requirement before quotation.

Critical features & how tolerance is held

For fittings and connectors, a handful of features decide function: the thread, the sealing face, bore concentricity, and locating holes. Each is controlled by setup strategy and verified by a defined method — the acceptance basis is the feature, not a blanket precision claim.

Critical featureHow it is heldVerification
External / internal threadSingle setup turning; correct tool geometry and thread standard (metric, UN, NPT, BSPT)GO/NO-GO thread gauges to specified class
Sealing face / O-ring grooveTight control of flatness and groove diameter in the same setupSurface and groove measurement; visual sealing check on sample
Bore-to-OD concentricityBore and OD turned in one chucking; runout verifiedRunout / concentricity check on turned feature
Pin holes / alignment seatsPositioned by mill-turn or indexed 4-axisCMM position tolerance to drawing GD&T
Cross-holes / keyway / splineDrilling or broaching after the round bodyDimension and feature check per drawing
Thin wall / small-sectionBalanced roughing, support and cooling to limit deflectionWall and roundness measurement after machining

Tolerance language we use

Typical dimensional tolerance is ±0.01 mm, with ±0.005 mm achievable on qualified critical features (e.g. bearing bores, sealing surfaces, alignment holes). Tighter values are confirmed by engineering review against your drawing and GD&T callouts — we do not quote a single fixed tolerance for every dimension.

Surface treatment & finishing

Finishing is matched to the base material and the operating environment, not applied by default. The choice affects corrosion resistance, insulation, appearance and contact performance — confirm it in the RFQ so it is planned, not added later.

  • Anodizing (Al): type II for general corrosion resistance, type III (hard) for wear; color options available.
  • Passivation (SS): removes free iron to improve corrosion resistance; standard for 304/316.
  • Electroless / electro nickel: uniform coating on brass or steel for wear and corrosion.
  • Zinc plating: sacrificial corrosion protection on steel and some alloys.
  • Polishing / brushing / bead blast: surface preparation or cosmetic finish before plating.

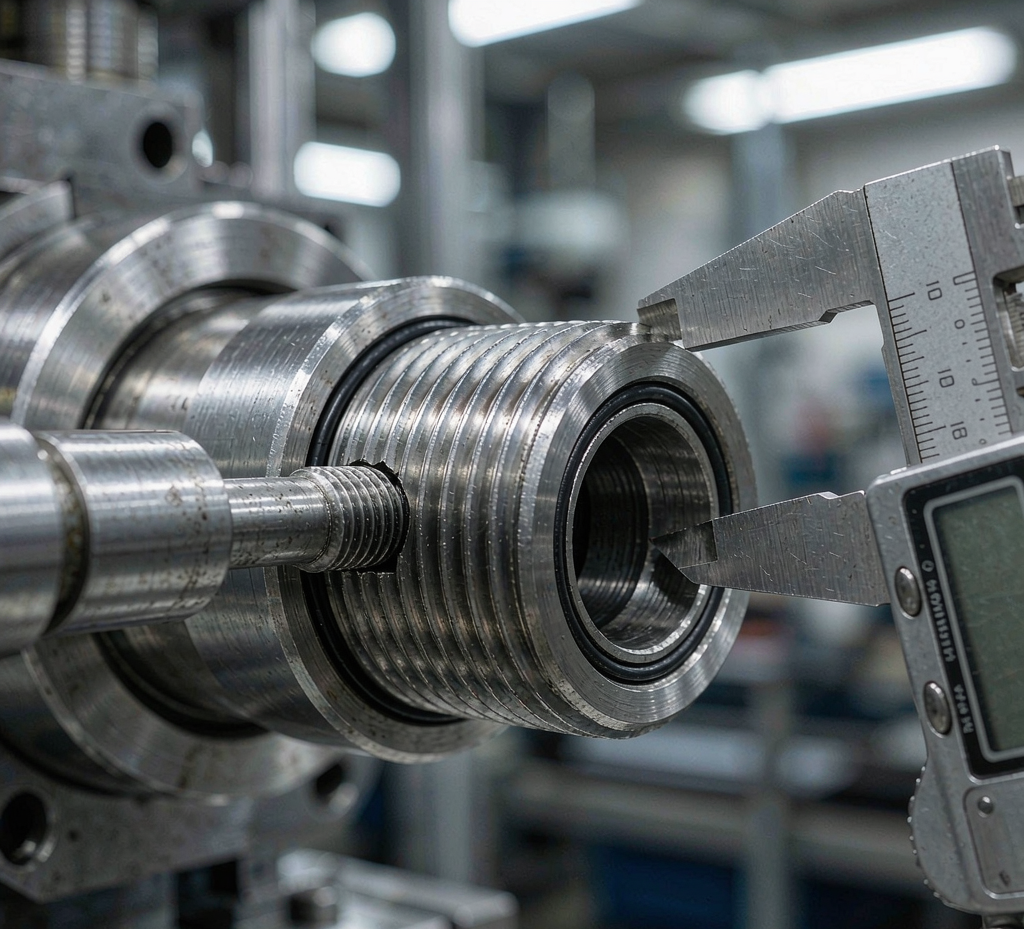

Stainless steel turned fitting with external threads and an O-ring groove measured by a digital caliper during inspection

Finishing boundaries

We list only finishes applied to the CNC-machined metal portion. Conversion coatings, specialty platings or cosmetic color matches are confirmed per material and project; we will tell you during DFM when a finish is not advisable for a given alloy or environment.

Quality control & inspection

Inspection is built around the part's critical features: threads by gauge, dimensions by caliper/micrometer/CMM, and bore runout on the turned feature. The level of documentation (FAI, material cert, RoHS report) is set by your requirement and confirmed at order.

  • Thread verification: GO/NO-GO gauges to the specified standard and class on every threaded feature.
  • Dimensional check: calipers, micrometers or CMM for critical diameters, lengths and positions.
  • Concentricity: runout verification on the bore-to-OD relationship of turned parts.
  • Surface finish: Ra checked where the drawing calls it out.
  • First Article Inspection: FAI per AS9102 available on request to document the approved configuration.
  • Material & compliance docs: mill / material certificates and RoHS test report TQT7737B1373EC available on request; SGS (SZIN2409001808ML09_EN) and Rmbond (XMML24030283_EN) reports can be supplied under NDA.

What is verified at the part level — not assumed

Leak, pressure or electrical-continuity performance are properties of the assembled product, not of the machined shell alone. The fitting design supports a sealing or contact target, but those ratings are confirmed by testing the finished assembly. We supply the dimensional and material evidence for the machined component and will state clearly what is and is not covered.

From drawing to delivery

One continuous path from your file to inspected parts — the same DFM feedback carries through prototype and production so decisions are not re-litigated at volume.

1

Upload drawing

STEP / IGES / DWG with material, quantity and critical callouts.

2

DFM review

Feasibility, material and tolerance feedback returned with the quote.

3

Sample

Prototype in 3–7 working days after sign-off; inspected to drawing.

4

Production

Small batch 7–20, mass 15–25 working days; process locked from sample.

5

QC & ship

Inspection record, then secure packaging and worldwide delivery.

Illustrative part types

The table shows representative part types in this family to illustrate how material, feature and process combine. These are capability examples of the kinds of components produced — not customer references or project claims.

Part typeMaterialDefining featureProcessVerification
Hydraulic adapterBrass C360Threaded ports + hex bodyTurning + broachingThread gauge + CMM
Inline medical fitting316 stainlessPolished bore + O-ring grooveTurningBore runout + passivation cert
Connector housing6061-T6 aluminumMilled cavity + anodizeMill-turn / 5-axisCMM + anodize spec
Copper terminal bodyC110Drilled cross-holesTurning + drillingDimension + thread check
Sensor fitting304 stainlessThin wall + locating threadTurningWall + concentricity check

Request a quote — what to send

A complete package shortens the DFM review and prevents late surprises on thread class, sealing or compliance.

1 · Drawing

STEP / IGES / DWG file with all critical dimensions and GD&T.

2 · Quantity & stage

Prototype, small batch or mass production volume and repeat cadence.

3 · Material

Grade or specification; note any regulatory restriction.

4 · Thread

Standard and class (metric / UN / NPT / BSPT) for every threaded feature.

5 · Critical dimensions

Which features are functional and their tolerance bands.

6 · Finish & environment

Surface treatment and the media / temperature / cleanliness the part sees.

7 · Logistics

Target lead time and Incoterms (EXW / FOB / DAP).

8 · Compliance

RoHS, material certs, cleanliness or other documentation needs.

Upload drawing → DFM + quote in 24h

Frequently asked questions

What information do you need for a CNC fitting or connector quote?

Send a CAD file (STEP/IGES/DWG), quantity and build stage, material grade, thread standard and class, critical dimensions with tolerances, surface finish and operating environment, and any RoHS or cleanliness requirements. A DFM review is returned with the quote so gaps are flagged before production.

Should I choose brass, stainless steel, or aluminum for my fitting?

Brass suits plumbing, conductive and EMI-sensitive parts where machinability and corrosion resistance matter. Stainless 316 is preferred for medical, food and marine environments; 304 covers general corrosion resistance. Aluminum 6061/7075 is chosen when weight or non-magnetic behavior is required. The final choice depends on media, pressure and temperature, confirmed during DFM.

How are threaded features and tolerances verified?

External and internal threads are checked with GO/NO-GO thread gauges to the specified standard and class. Critical diameters, lengths and positioning are measured with calipers, micrometers or CMM depending on the feature. Tight tolerances are confirmed against the drawing and reported on the inspection record.

Can you hold tight bore concentricity on turned fittings?

Yes. Concentricity between the bore and the outer diameter is held by machining the bore and OD in a single setup where geometry allows, and by verifying runout on the turned feature. Typical dimensional tolerance is ±0.01 mm, with ±0.005 mm achievable on qualified critical features. Final values are confirmed against your drawing.

What surface treatments are available for aluminum connector bodies?

Aluminum connector bodies are typically type II or type III anodized for corrosion resistance and insulation, with color options. Bead blasting or brushing prepares the surface, and chemical film can be specified for specific environments. Finishing is selected per material and application during DFM.

Do you support RoHS and material certifications for electronics connectors?

Yes. RoHS compliance is supported with test report TQT7737B1373EC, and material certificates are available on request. SGS and Rmbond test reports can also be supplied. Certificate copies are provided under NDA as needed.

What are the typical prototype and production lead times?

Prototypes are typically produced in 3-7 working days after DFM sign-off; small batches in 7-20 working days; mass production in 15-25 working days. Exact timing depends on material, complexity, finishing and order quantity, confirmed at quotation.

Can a part be evaluated for both prototype and production?

Yes. The same drawing and DFM feedback apply from the first sample to volume production, so dimensional and process decisions made at prototype are carried into the production plan. First Article Inspection (FAI) per AS9102 is available on request to document the approved configuration.

Ready to specify your fitting or connector?

Send the drawing and the eight items above. You get a DFM review and a quote with the critical features, material and inspection plan spelled out — not a generic capability list.

Request a Quote / DFM Review
