Custom Aluminum Automotive Door Hinges
Place of Origin : Fujian, China
Type : Broaching
Micro Machining or Not : Micro Machining
Model Number : CMP-316
Brand Name : JSD
Product name : Automotive Exterior Front and Rear Door Hinges
Material : Customers’ Requirement
Surface treatment : Customer’s Request
Process : Cnc Machining + Surface Treatment
Equipment : 3/4/5 Axis CNC Machining Center
Service : Customized OEM
Drawing Format : 2D/(PDF/CAD/DWG/DXF)3D(IGES/STEP/VDA)
OEM/ODM : OEM ODM Non-standard Processing
Color : Customized Color
Certification : ISO9001
Description

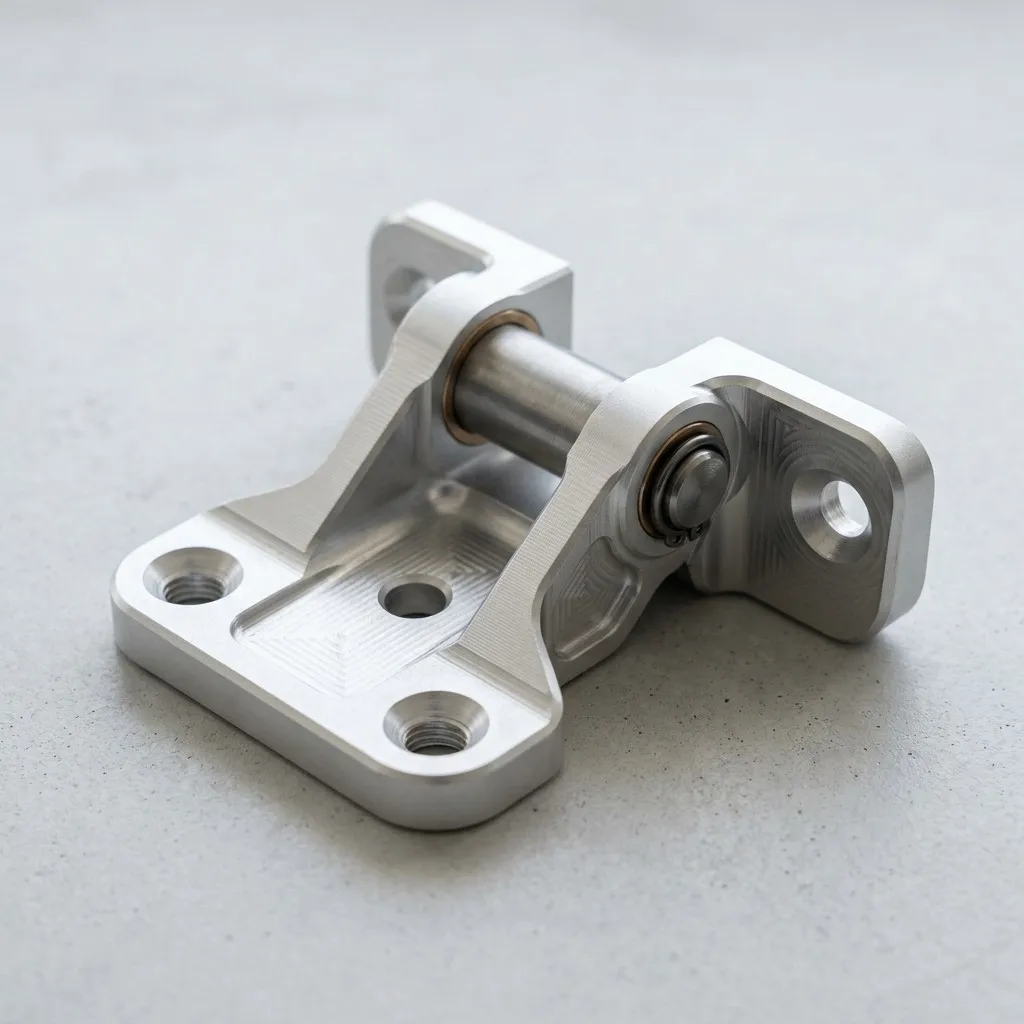

Custom Aluminum Automotive Door Hinges Manufacturer OEM Precision Machining & Assembly
We manufacture custom aluminum door hinge components for OEM automotive suppliers and Tier-1 engineering partners. Based on your drawings, CAD models, or samples, we deliver complete solutions from material selection through CNC machining, surface treatment, and dimensional inspection.
±0.005mm Capability
Prototype to Volume
DFM Analysis Included
Automotive Door Hinge Manufacturing Capability
| Manufacturing Process | CNC machining, 5-axis milling, precision drilling, tapping, surface finishing |
| Material Options | 6061-T6 Aluminum, 7075-T6 Aluminum, 5052 Aluminum, Stainless Steel 304/316, Alloy Steel |
| Tolerance Range | ±0.01 mm standard; ±0.005 mm achievable for critical features |
| Surface Treatment | Anodizing (clear/color), hard anodizing, powder coating, electroless nickel plating, passivation |
| Production Volume | Prototype (1–10 pcs) → Small batch (50–500) → Volume production (1,000+) |
| Inspection Equipment | CMM, optical measurement, height gauge, thread gauge, surface roughness tester |
| Engineering Support | DFM feedback, material recommendation, tolerance stack-up analysis, FAI report |
Product Overview

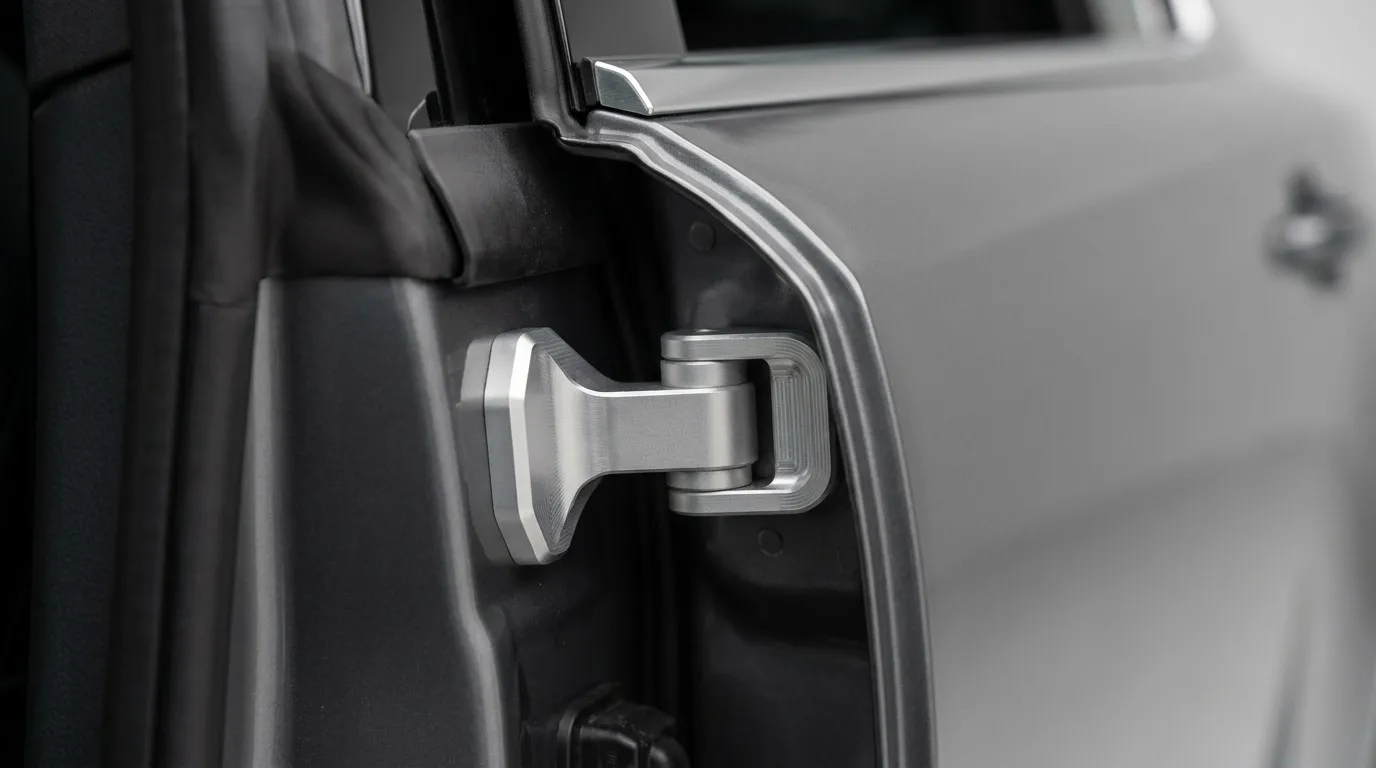

Automotive door hinges serve as critical structural components that endure repeated opening and closing cycles throughout vehicle operation. They must deliver consistent strength, dimensional stability, and corrosion resistance across a wide range of environmental conditions — from arctic cold to desert heat, from highway salt spray to coastal humidity.
Our custom-manufactured hinges are produced to customer specifications, supporting door weight requirements, mounting geometry, and cycle-life targets defined by your engineering team. Every batch ships with dimensional inspection data and material certification.

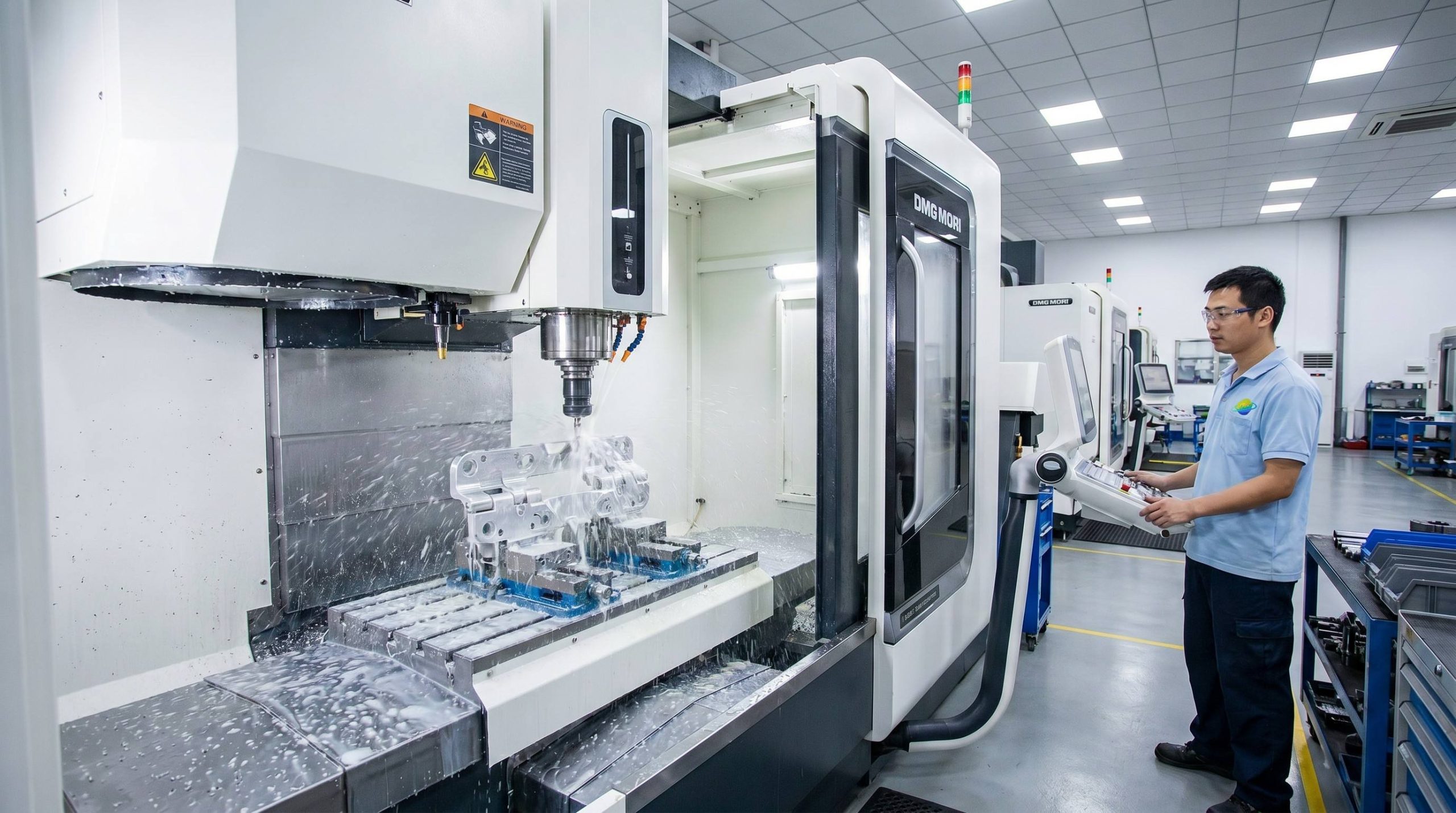

Manufacturing Process

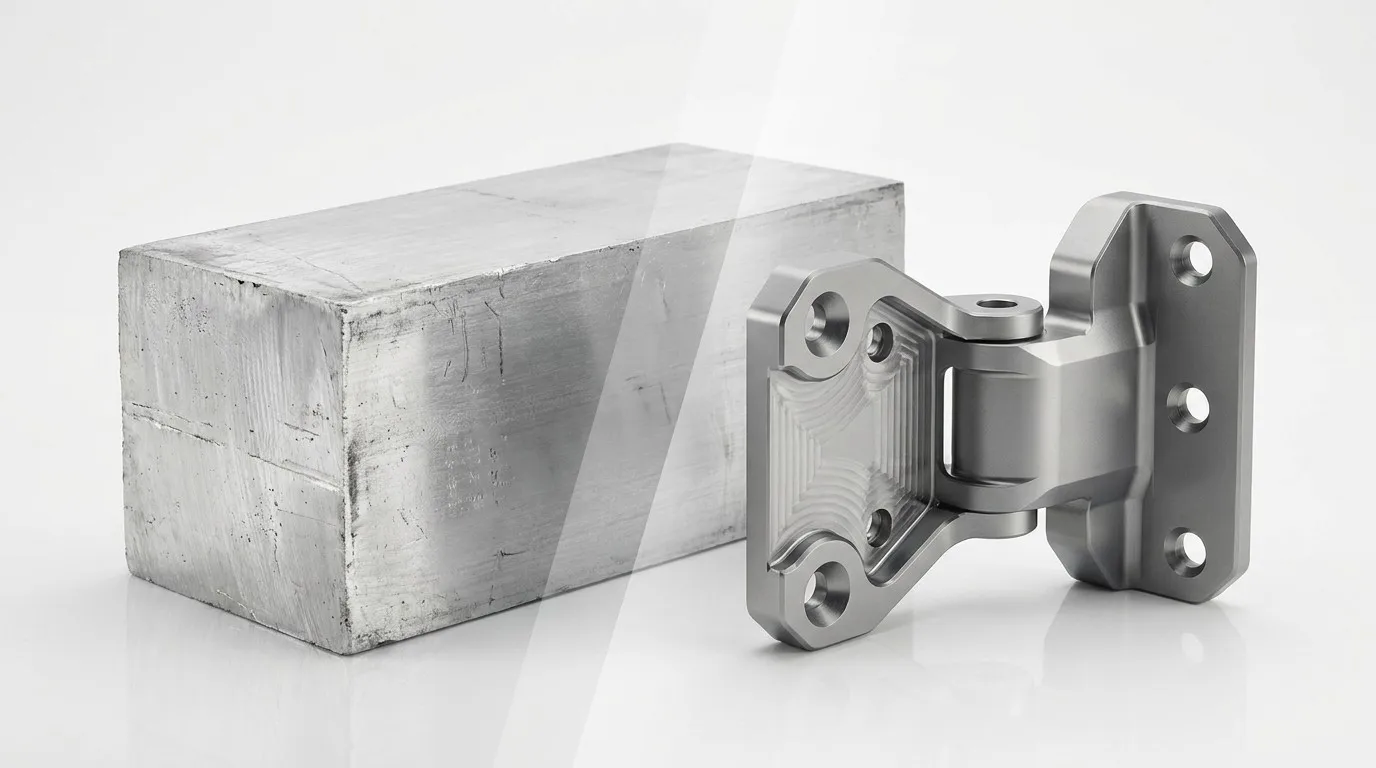

From raw material to finished automotive hinge — a production workflow engineered for repeatability.
Material Selection for Automotive Hinges
Material choice directly impacts hinge cycle life, corrosion resistance, and weight. Our engineering team helps match alloy grade to your application requirements before production begins.
| Material | Key Advantage | Typical Use |
|---|---|---|
| 6061-T6 | Strength-to-weight ratio, corrosion resistance, machinability | Passenger vehicle hinges, general structural components |
| 7075-T6 | High tensile strength, fatigue resistance | Performance & heavy-duty applications, commercial vehicles |
| 5052 | Excellent formability, marine-grade corrosion resistance | Salt-spray environments, coastal region vehicles |
| SS 304/316 | Superior corrosion resistance, high strength | Harsh environment, chemical exposure, heavy load |
| Alloy Steel | Ultra-high load capacity, wear resistance | Heavy-duty truck & special vehicle hinges |
Upon request we supply mill test certificates (MTC) verifying chemical composition and mechanical properties. For 6061-T6 and 7075-T6 alloys, certificates confirm conformance to ASTM B221 / AMS-QQ-A-200 standards applicable to your region.
Why Aluminum for Automotive Door Hinges
Aluminum hinges weigh approximately 60% less than equivalent steel parts. This directly reduces vehicle curb weight, contributing to lower fuel consumption and extended EV range — a growing priority across OEM platforms.
Aluminum naturally forms a protective oxide layer. Combined with anodizing or powder coating, hinges withstand years of exposure to humidity, road salt, and temperature cycling without structural degradation.
Aluminum’s excellent machinability enables cost-effective production of complex hinge geometries — integrated stops, lightweight pocketing, and custom mounting boss patterns — that would be prohibitively expensive in steel or titanium.
Aluminum alloys maintain dimensional stability across the operational temperature range vehicles encounter (-40°C to +85°C). This ensures consistent hinge operation and door alignment under extreme conditions.
| Property | 6061 Aluminum | 7075 Aluminum | Mild Steel | SS 304 |
|---|---|---|---|---|
| Density (g/cm³) | 2.70 | 2.81 | 7.85 | 8.00 |
| Tensile Strength (MPa) | 310 | 572 | 400–550 | 515 |
| Corrosion Resistance | Excellent | Good | Poor (needs coating) | Excellent |
| Machinability | Excellent | Good | Moderate | Difficult |
| Weight Reduction vs Steel | ~65% | ~64% | Baseline | +2% heavier |
Values are typical; actual properties depend on temper and processing. Consult our engineering team for your specific grade requirements.

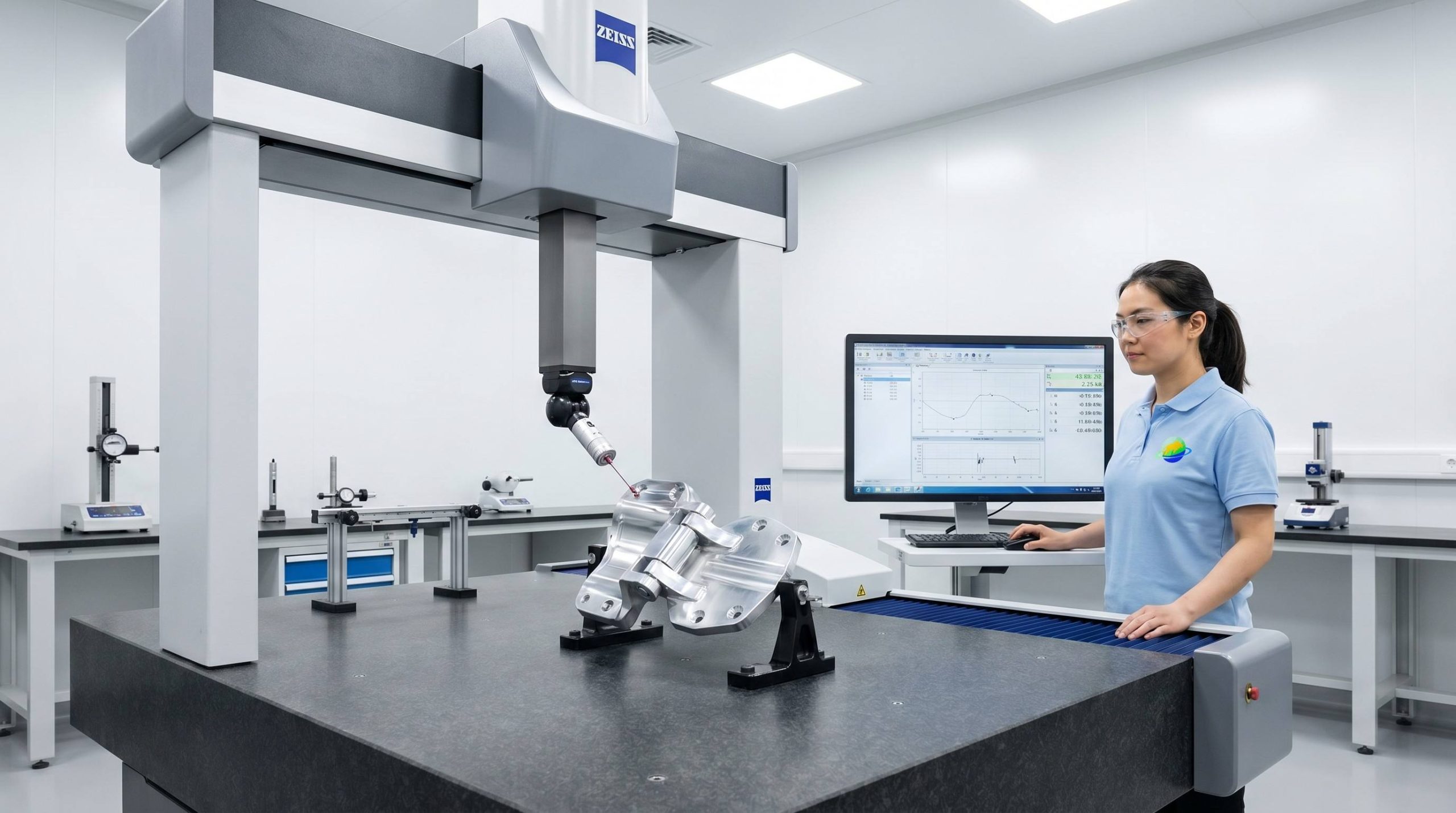

Quality Control & Assurance
Every production batch undergoes a structured quality gate before shipment. Our inspection protocols are designed to meet automotive supply chain expectations for dimensional accuracy, surface integrity, and material traceability.
Chemical composition verification against mill certificates; hardness testing per ASTM standards.
First-article inspection (FAI) at machine setup; in-cycle probing for critical dimensions on volume runs.
Coating thickness measurement, adhesion testing, salt spray evaluation per customer requirements.
CMM full-dimensional report; sampling rate defined per AQL level agreed with customer.
Automotive Applications
Our custom aluminum hinge components serve across multiple vehicle segments. While the core manufacturing process remains consistent, material grade, surface treatment, and inspection protocols are tailored to each application’s performance requirements.
Door hinges for sedans, hatchbacks, and SUVs — emphasis on NVH performance and long-term durability under daily-use cycling.
Lightweight aluminum hinges contributing to overall vehicle mass reduction — a key lever for extending EV driving range per charge.
Heavy-duty hinge assemblies for vans, light trucks, and fleet vehicles — higher load ratings and reinforced mounting geometry.
Custom hinge solutions for vehicle restorations, performance modifications, and specialty conversions where OEM parts are unavailable.
Low-volume specialty vehicles, agricultural equipment doors, and marine access panels requiring corrosion-resistant hinge solutions.
Xiamen Goldcattle Plastic & Metal Products Co., Ltd.
Goldcattle is a China-based contract manufacturer specializing in precision CNC machining, metal stamping, injection molding, and die casting for international OEM customers. Our engineering team supports projects from prototype validation through volume production across automotive, industrial equipment, and consumer product sectors.
We operate 3-axis, 4-axis, and 5-axis CNC machining centers alongside complementary processes — injection molding, stamping, and die casting — enabling us to deliver multi-process assemblies from a single source. Our quality system follows ISO 9001 framework with documented inspection protocols at each production stage.
Frequently Asked Questions
Request a Custom Automotive Hinge Quote
Send us your drawing, material specification, and quantity target. Our engineering team returns a DFM assessment and quotation within 2–3 business days.
Material grade & surface finish
Annual quantity estimate
Target cost (if known)
Process recommendation
Unit price by quantity tier
Lead time estimate
