Exclusive customized solutions for special-shaped automotive parts
Place of Origin: Fujian, China
Type: Broaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
Micro Machining or Not: Micro Machining
Model Number: CMP-06
Brand Name: JSD

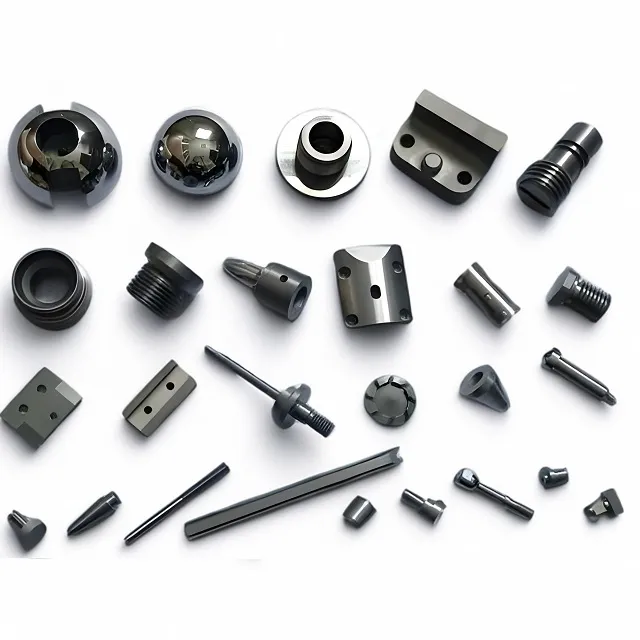

Product name: Automotive Stainless Steel Accessories
Material: Stainless Steel
Tolerance: +/- 0.005mm
QC: 100% inspection before delivery
Service: OEM
Surface Treatment: anodizing, sandblasting, metal plating, polishing, brushing etc.
Machinable accessory types: All
Packaging Details: Carton, wooden box, or depend on customer requested
Certification: ISO 9001
Application: Car
Description
We provide CNC machining solutions for complex and irregular automotive components, including non-standard geometries, deep cavities, and multi-surface structures, ensuring high precision and batch consistency for your projects.

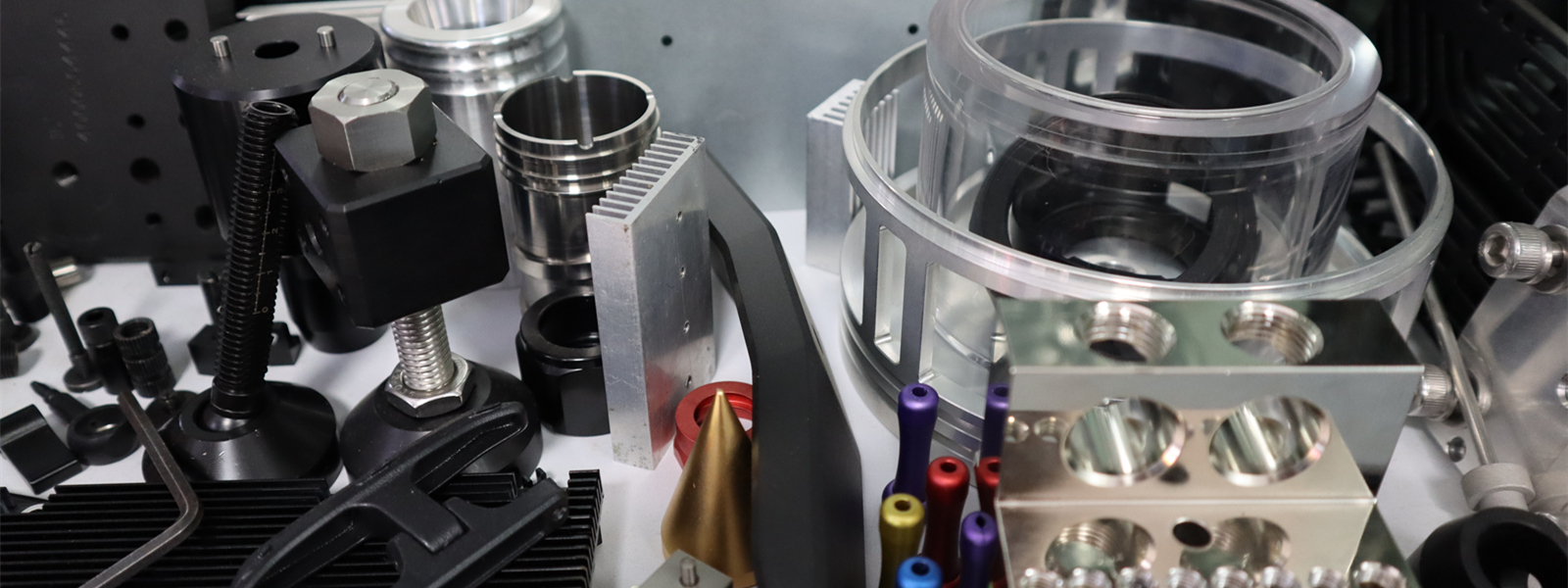

What Are Special-Shaped Automotive Parts?
- Irregular geometry components
- Multi-axis machined structures
- Complex surface parts
- Lightweight structural components
Automotive Applications
- Engine components
- Suspension systems
- Transmission housings
- Structural brackets
- EV lightweight components
Challenges in Machining Irregular Automotive Parts
| Challenge | Description |
|---|---|
| Complex curved surfaces | Requires multi-axis联动 machining to reach all surfaces |
| Difficult fixturing | Irregular shapes can cause errors from multiple setups |
| Thin wall deformation | Cutting forces can affect dimensional stability |
| Batch consistency | Complex processes require strict process stability |
Our Engineering Solutions
| Issue | Solution |
|---|---|

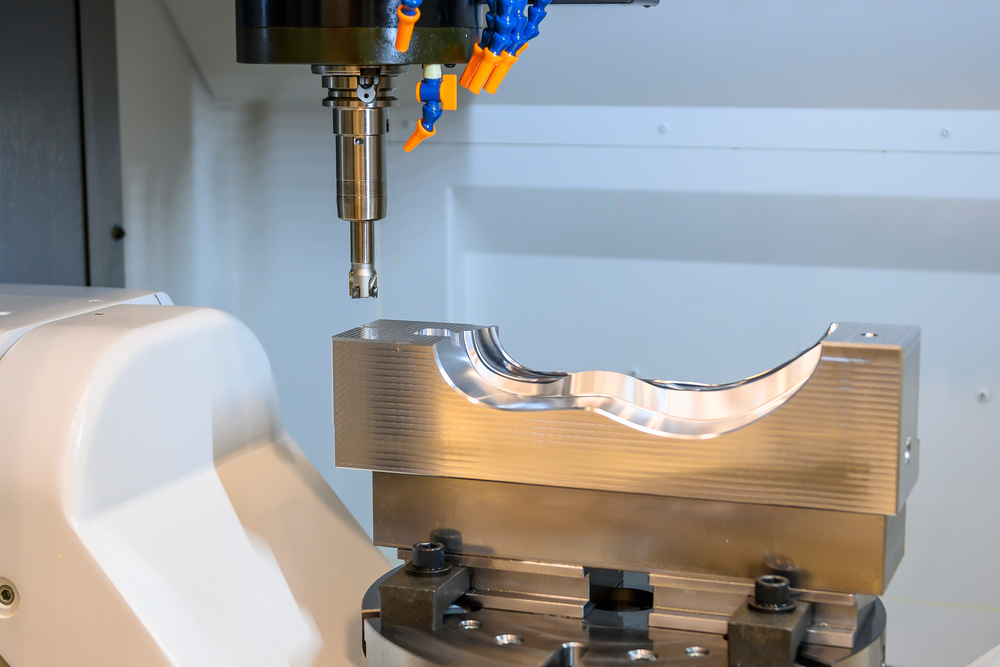

| Complex surfaces | 5-axis CNC machining |
| Fixturing errors | Single setup machining |
| Deformation control | Stress-relief process |
| Batch consistency | Process standardization |
Machining Capabilities
| Item | Specification |
|---|---|
| Tolerance | ±0.005 mm |
| Surface Roughness | Ra 0.8 μm |
| Machining Method | 3/4/5 axis CNC |
| Minimum Order Quantity | 1 pcs |
| Lead Time | 3–15 days |
Available Materials
- Aluminum alloys (for lightweight applications)
- Stainless steel (for corrosion resistance)
- High-strength steel (for structural parts)
- Engineering plastics (for insulation components)
All materials are selected based on your requirements, with options for lightweight, high strength, and heat resistance to meet automotive performance needs.
Our Manufacturing Process
- DFM (Design for Manufacturing) analysis
- Toolpath simulation to avoid collision & errors
- Multi-axis precision machining
- Custom surface finishing
- Full dimensional inspection
Our simulation process ensures we identify and resolve potential issues before production, reducing risks and ensuring on-time delivery.
Quality Assurance

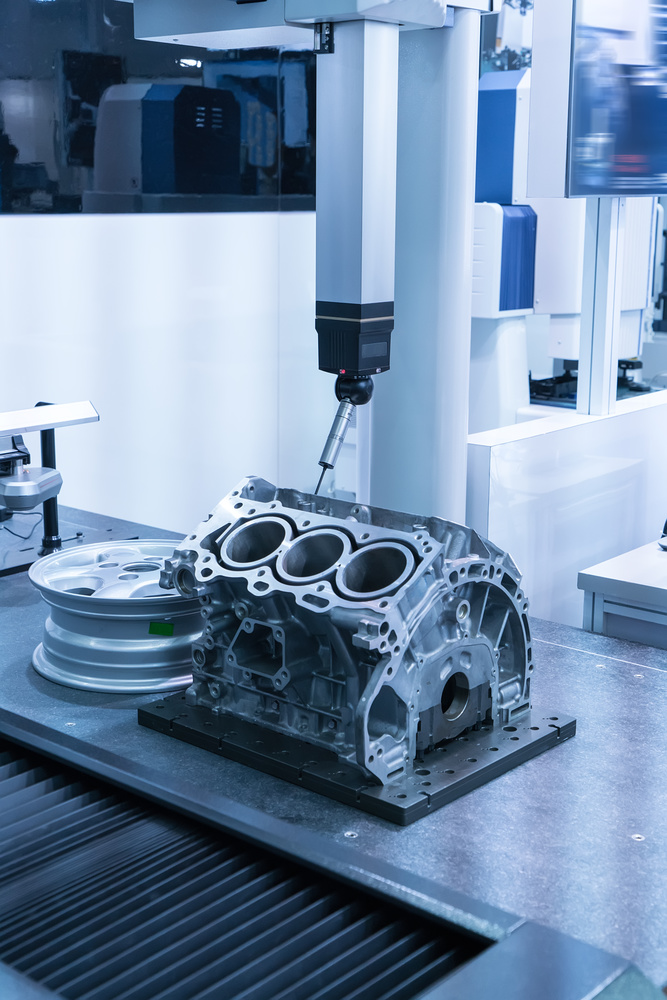

- CMM inspection for full dimensional verification
- GD&T control for geometric tolerances
- Batch consistency verification for mass production
We ensure every part, even the most complex ones, meets your strict dimensional and functional requirements.
Cost Factors
- Part geometry complexity
- Material type & properties
- Tolerance & precision requirements
- Order batch size
Case Study
Part: Irregular aluminum automotive bracket
Tolerance: ±0.006 mm
Process: 5-axis CNC machining
Result: Reduced assembly error by 30%
This project demonstrates our capability to solve complex machining challenges, delivering high-precision parts that improve your product performance.
Advanced Engineering Capabilities
- Professional DFM analysis to optimize your part design
- Full toolpath simulation to avoid machining risks
- Strict batch stability control to ensure consistent quality for mass production
Frequently Asked Questions
Q: What are complex automotive parts?
A: Complex automotive parts refer to components with irregular geometries, curved surfaces, or multi-axis features that require advanced machining methods, unlike standard simple parts.
Q: Can CNC machine irregular shapes?
A: Yes, with 5-axis CNC machining, we can machine almost any irregular or complex shape in a single setup, ensuring high precision and no setup errors.
Q: How do you ensure consistency in batch production?
A: We use standardized processes, toolpath simulation, and batch inspection to ensure every part in your order has consistent dimensions and quality.
Q: What tolerance can be achieved for complex parts?
A: We can achieve tight tolerances up to ±0.005mm even for complex irregular parts, meeting the strict requirements of automotive manufacturing.
Ready to Process Your Complex Automotive Parts?
5-axis CNC machining is the most effective method for manufacturing complex automotive parts with high precision and consistency.
We also offer Free DFM analysis to help you optimize your design before production!
