At a Glance

Programme rolePrototype → PPAP → series production

Machining scope3 / 4 / 5-axis milling, turning, turn-mill

MaterialsAluminium, steel, stainless, cast iron, brass, magnesium

WorkholdingModular fixtures, tombstones, pallet automation

LocationXiamen, China

Quality systemISO 9001; automotive controls aligned to IATF 16949

Automotive certificationsConfirmed against the programme requirement

Submission documentationScoped per programme; PPAP level agreed

DocumentationDFM, control plan, capability study, inspection reports

TraceabilityLot marking linked to material and process records

Change ruleWritten notification before any approved change

Quick Answer

An automotive CNC machining supplier is not selected on a tolerance figure. It is selected on four things: whether the process is capable of holding the tolerances on your named features, demonstrated by data rather than by a claim; whether change is controlled in writing; whether parts stay traceable to material, process and inspection records after delivery; and whether the supplier will state plainly what it cannot do.

The rest of this page explains how each of those four is defined, measured and verified on a machining programme — capability and Cpk, measurement systems, control plans, marking and substance reporting, change notification, and the gates between prototype and series production.

Automotive Parts We Machine

Short answer: precision components, and the machined interfaces of castings and forgings. The table below is the range quoted most often, grouped by vehicle system — with the boundary stated where a component carries a safety function rather than only a dimensional one.

Part family	Typical components	What the machining decision usually turns on

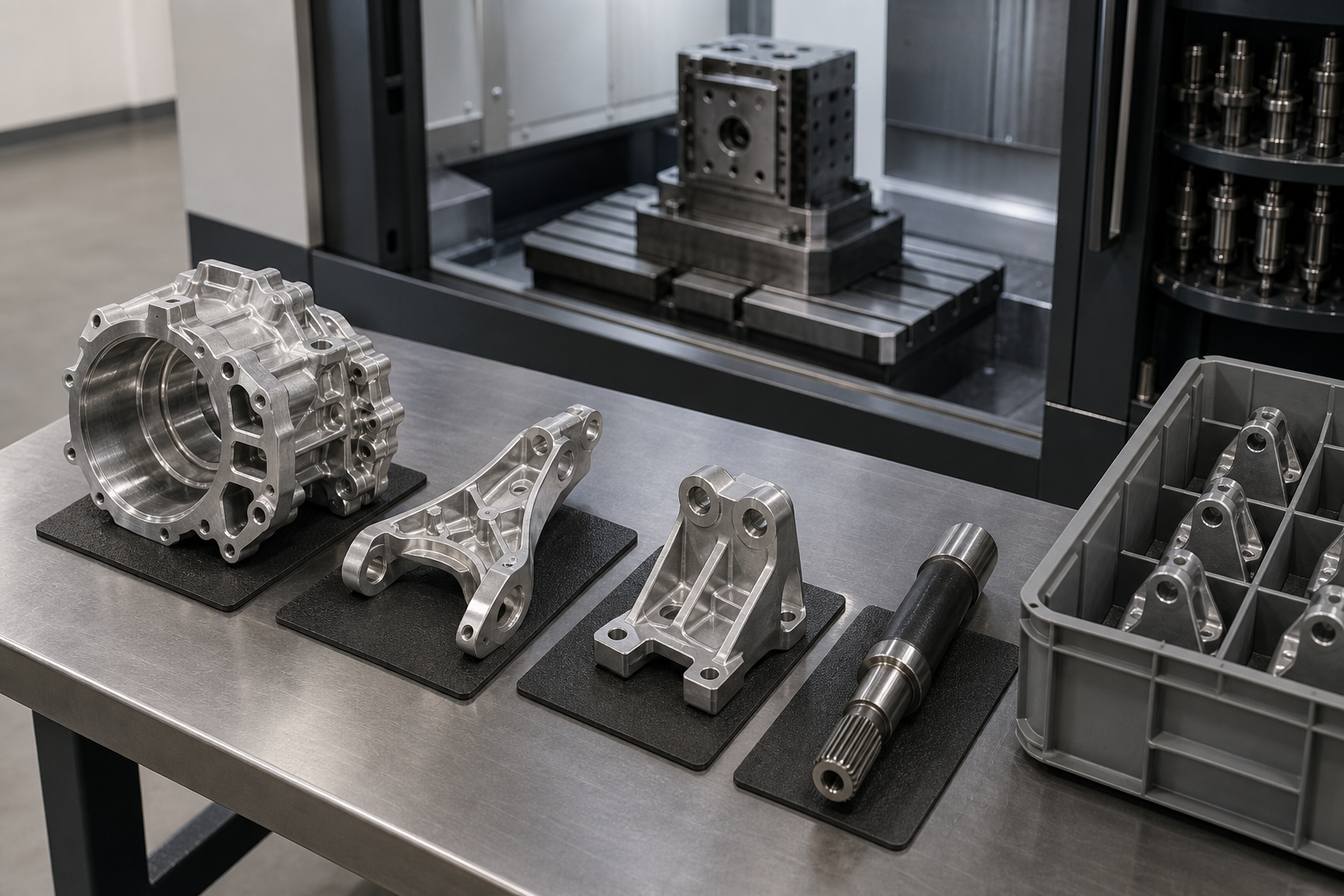

Powertrain & mechanical	Shafts, bushings, bearing housings, valve bodies, brackets, covers, flanges, transmission-related housings, engine components	Fits and concentricity, bore roundness and taper, and the heat-treatment condition — including the sequence of finishing relative to it

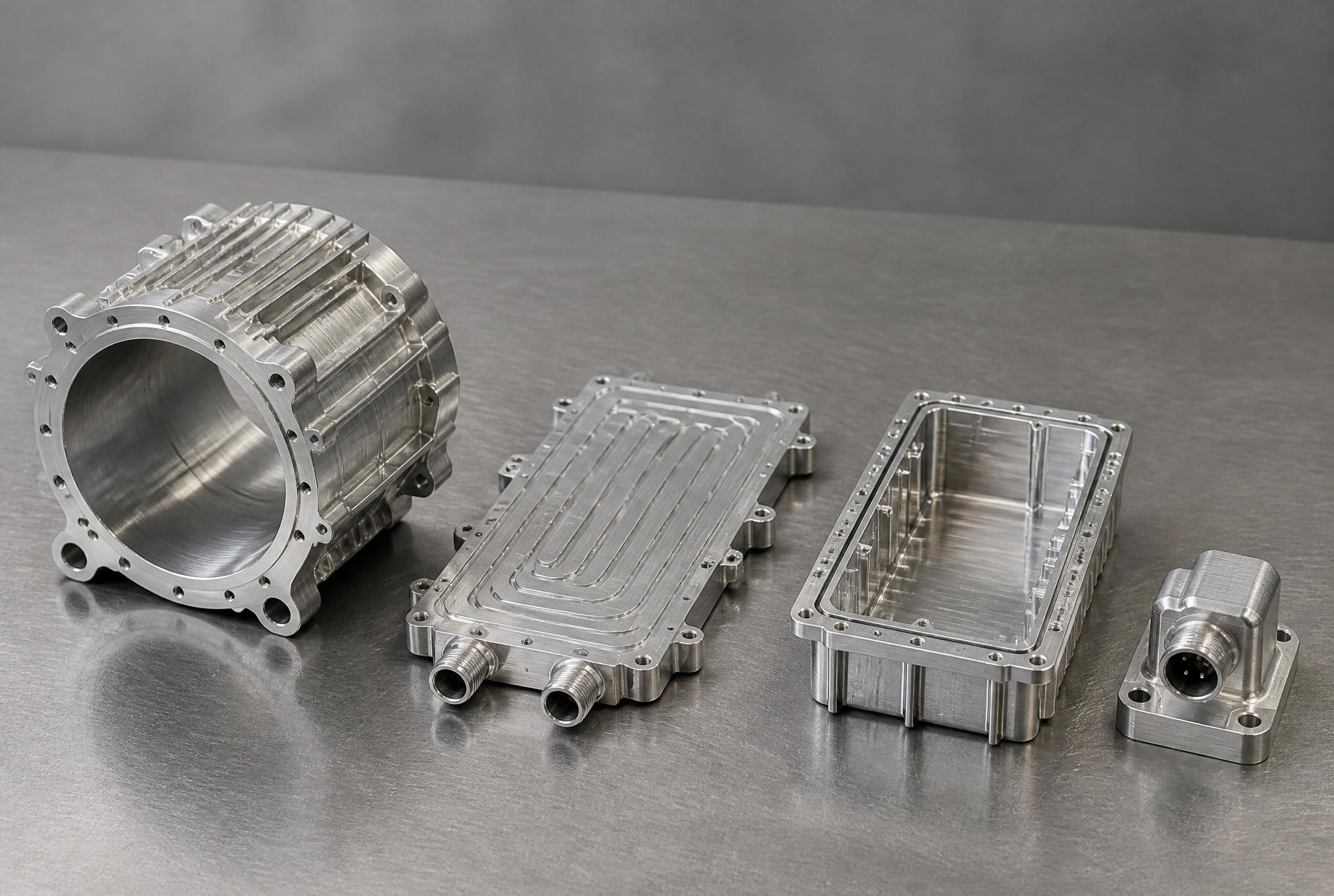

EV & e-mobility	Motor housings and covers, reducer and gearbox components, battery-related mechanical parts, cooling and thermal management parts, aluminium brackets and mounts, connectors and enclosures	Sealing faces and flatness over long spans, thin-wall distortion, thermal interface flatness, and material removal from a casting rather than from solid
Chassis, braking and suspension interfaces	Brackets, mounts, housings, machined mounting interfaces, fixture bodies	Load-path components are accepted only where the programme defines the critical characteristics and validation — see safety-critical boundaries. Machining the interface around a safety part is a different decision from machining the part itself.
Electronics, sensors and ADAS	Sensor housings, mounting brackets, thermal components, connector bodies, electronic enclosures	Sealing surface flatness and finish, connector bore position, dimensional stability around the mating faces, and burr control near sealed volumes
Tooling, fixtures and gauges	Jigs, fixtures, locating blocks, assembly tooling, inspection fixtures	Repeatability, datum strategy and wear — a fixture is a precision part whose function is to keep other parts in tolerance
Performance and motorsport	Intake components, brackets, mounts, housings, custom shafts and lightweight aluminium parts	Feature density, small batch sizes and a design that may still be moving — see performance and motorsport

Which Automotive Projects We Support

Short answer: the programme stage matters as much as the part. A development part, a pilot build and a recurring series order need different things from a supplier, and they should be quoted and planned differently.

Programme stage	Typical situation	What we provide	What we need from you
Prototype & development	Vehicle or system development, engineering validation, test fixtures, prototype housings and brackets	Machining to the drawing from solid or from a blank, DFM review, dimensional report, fast revision turnaround	3D model and drawing, the current revision, the function of each critical feature, and what the part has to prove
Low-volume & pilot	Validation builds, pilot runs, specialty and low-volume vehicles, motorsport, aftermarket, engineering programmes	Repeatable fixturing, first-article inspection, material certificates, documented process parameters	Expected quantity, whether the design is frozen, the inspection and documentation level, and the target date
Repeat production	Recurring components, replacement parts, equipment components, repeat automotive orders	A held process route and tooling, lot traceability, per-lot records, and change control	The revision to be held, the repeatable inspection plan, the packaging method and a volume indication
Customer-specific programmes	Programmes carrying a customer or OEM requirement set, including submission documentation	Programme review against the applicable quality, documentation and supplier-qualification requirements, with documentation prepared from the real process	The requirement set, the submission level, the CTQ list, the change-notification rules and the approval route

What an Automotive CNC Machining Programme Actually Requires

Short answer: a machine shop can produce parts to a drawing and still not be an automotive supplier. The difference is not the machine — it is four commitments that must exist before the first production shipment, and each one produces documents you can audit.

Commitment	General machining order	Automotive programme	Evidence you should receive
Capability	Parts are measured and found to be within the drawing limits	The process is demonstrated to be capable on the named critical characteristics, with data from more than one run	A capability study on the agreed characteristics, and control chart data from series production
Process definition	An experienced operator sets the machine and makes good parts	The process is written down: parameters, tooling, inspection points, reaction plan and who has authority to stop the process	A process flow, a PFMEA, a control plan and the recorded parameter sheet
Change control	Improvements and substitutions are made when convenient	Material, sub-supplier, process, inspection method and production location are all controlled topics requiring notification and often approval	A change log, customer notification records and deviation permits where used

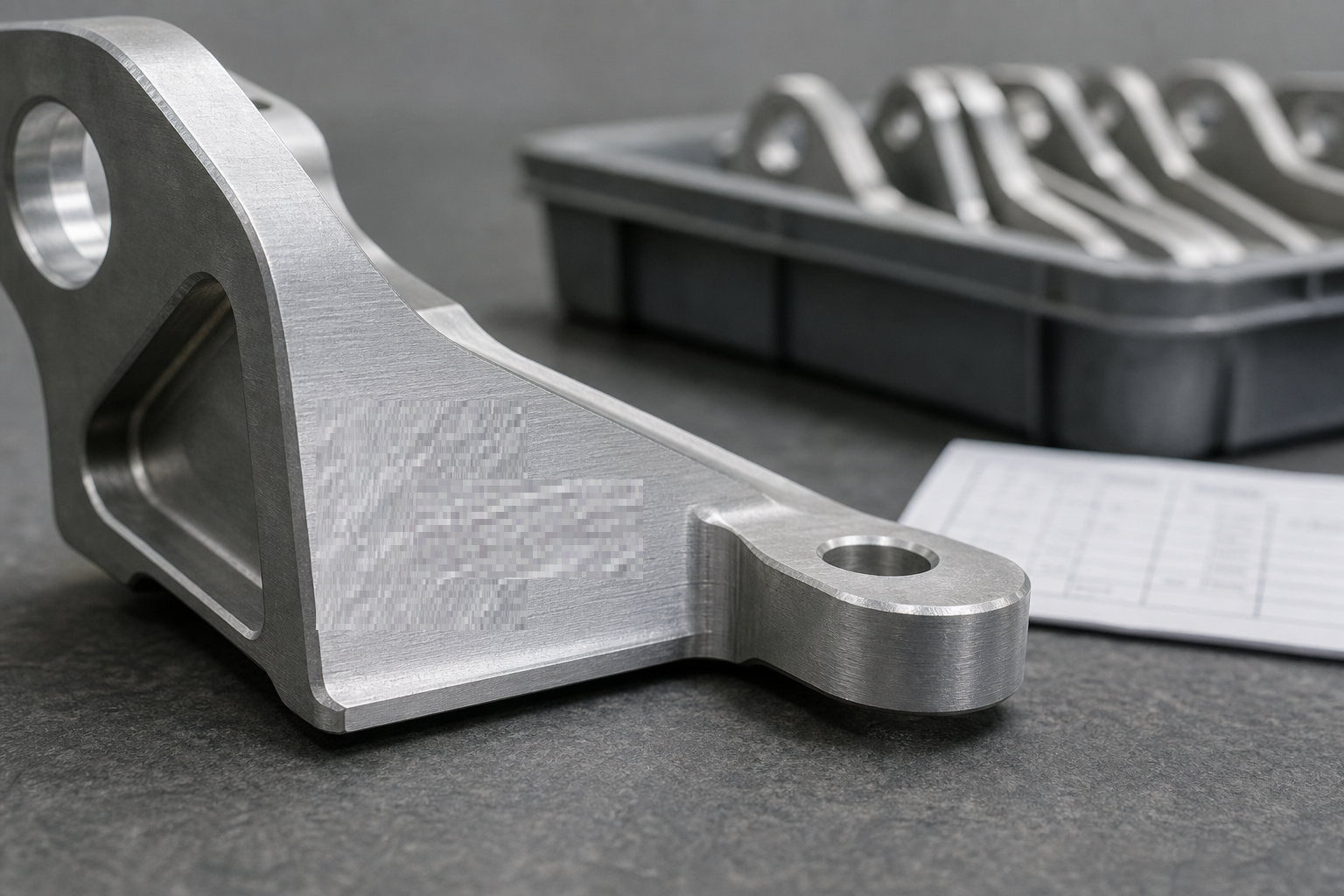

Traceability	Parts leave in a box	Each lot is identified and linked to the material certificate, process records and inspection results, and the records are retrievable later	A marking scheme, lot records, material certificates and a stated retention period

Which Parts Belong on a CNC Machining Programme

Short answer: CNC machining is at its most valuable where production volume does not justify tooling and where dimensional interfaces decide whether the assembly works. Sending the wrong part family to the wrong process is a cost decision, not a capability decision.

Part or situation	Most effective route	Why
Prototype and pre-launch validation parts	CNC from solid or from a cast blank	No tooling commitment, and the parts are made of the real material so the validation means something
Low and medium volume functional parts	CNC	The process cost is in the setup, which is amortised over a volume that is often too small to justify tooling

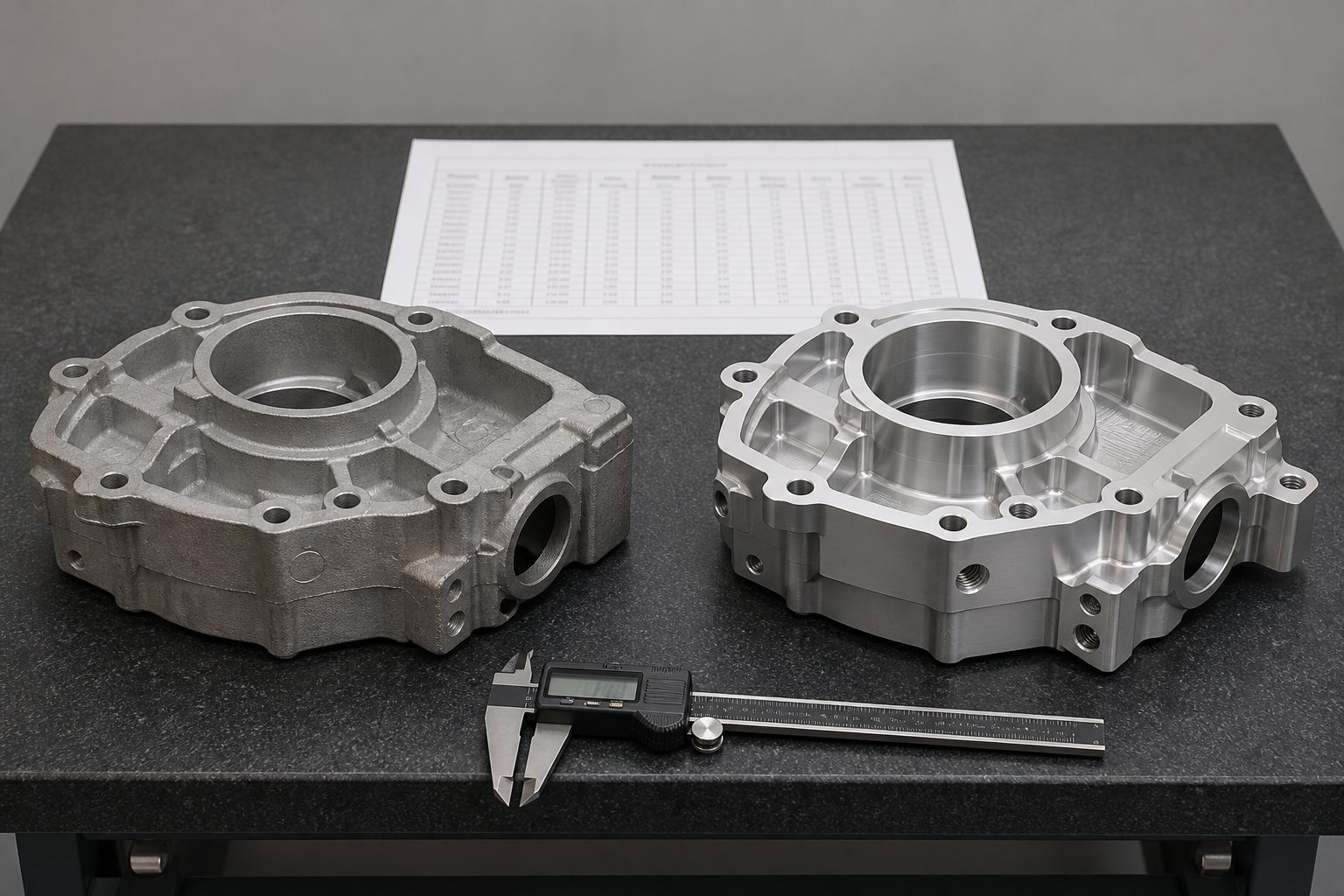

Machined interfaces on castings or forgings	Cast or forged blank, then CNC finishing	Machining is used for the sealing faces, bores and bolt patterns where the dimensional interface actually matters
High-volume simple geometry	Casting, forging or stamping with finish machining	Once the geometry stops changing, tooling cost per part drops below the cost of removing material from solid
High-volume plastic housings and covers	Injection moulding	See injection moulding for the tooling routes and their commercial consequences
Large structural parts with a stiffness requirement	Cast or forged structure with machined interfaces	Machining from solid can leave a part that meets the drawing but not the stiffness or fatigue behaviour of the intended process

Tier-1, OEM-Direct and Aftermarket: Different Requirement Sets

Short answer: the words “automotive part” cover programmes with very different obligations. Buying a Tier-1 requirement set at an aftermarket price — or the reverse — is one of the most common reasons a programme breaks down at the third shipment rather than at the first.

Dimension	Tier-1 / OEM-direct programme	Aftermarket & performance programme
Specification ownership	The customer controls the drawing and specification; changes flow through their change process	The buyer normally owns the drawing and changes are commercial agreements
Quality framework	APQP with a PPAP submission and customer approval before production shipments	Dimensional verification against the drawing; no formal submission
Capability expectation	Capability demonstrated on named critical characteristics, with a reaction plan when they drift	Parts accepted on measured conformance to the drawing
Change control	Material, process, sub-supplier, inspection method and production location are controlled; notification is mandatory and approval is often required	Changes agreed directly between buyer and supplier
Traceability	Lot marking plus records retained for the period the programme requires, retrievable for a containment or recall	Lot and material records accompanying each shipment
Substance reporting	Material and substance data normally required, typically through IMDS	Rarely required beyond a material certificate
Commercial structure	Volume commitment or capacity reservation, price-down expectations, containment and warranty terms	Order by order, often smaller and more variable batches

Safety-Critical Components: Where the Boundary Is

Short answer: components that form part of a safety-related system can be machined by a capable supplier, but only inside a programme that specifies the critical characteristics, the validation and the documentation. The legal responsibility for the finished system never moves to the machine shop.

Components that normally carry a safety function

• Braking — caliper bodies, pistons, mounting brackets and components that carry hydraulic pressure.
• Steering — knuckles, rack components, tie rod ends and their housings.
• Suspension — control arms, ball joint housings, spring seats and structural attachments.
• Restraint systems — seat structures and belt anchorage components.
• Fuel and high-voltage systems — fuel-side components, and battery restraint or high-voltage structural parts on electrified vehicles.

What must be defined before such a part is quoted

Item	Why it cannot be assumed
The list of safety- or regulation-relevant characteristics	Without a named list, “critical” is decided by whoever is machining, and the wrong feature gets the attention
The validation required	Dimensional checks, non-destructive testing, leak or proof-pressure testing and functional tests all change the process and the price
The documentation level	Determines what is submitted, approved and retained — and it is set by the customer’s programme, not by the supplier
The deviation and change rules	Defines what may be adjusted, by whom, and what needs approval before parts ship
The responsibility split	Design validation and regulatory compliance stay with the manufacturer placing the vehicle or system on the market

Automotive DFM Review: What We Check Before Quoting

Short answer: the DFM report is where the critical characteristics get agreed. If they are not identified there, they will be decided later by whoever is standing at the machine — which is the same as not controlling them.

What we review	Why it matters on an automotive part	Typical outcome
Datum strategy	The datum scheme has to travel from the drawing to the fixture and then to the measuring machine; if it changes on the way, the part is measured against something it was not made from	A datum scheme confirmed on the drawing and replicated in the fixture and the inspection plan
CTQ identification	Inspection effort is finite, so it has to land on the characteristics that carry function rather than on the ones that are easy to measure	A named CTQ list agreed with you before production — see CTQ features
Bearing and shaft fits	An over-tight fit is as much a defect as a loose one, and it usually surfaces as an assembly problem rather than as a dimensional one	Fits checked against the mating bearing or seal, with the tolerance placed on the functional dimension
Sealing features	O-ring grooves, gasket faces and seal seats fail by flatness, finish or a burr — not by a missing dimension	Sealing faces identified with flatness, roughness and burr requirements stated rather than implied
Hole position and arrays	On a multi-hole pattern, position tolerance matters more than the individual hole diameter, because assembly fails on position	Position tolerances treated as CTQs, with the datum reference frame pinned down
Thin walls	Thin sections deflect under clamping and cutting load, so the part measures correctly in the fixture and moves after release	Support strategy agreed, and the measurement state (free or constrained) confirmed
Deep cavities and tool access	Deep pockets force long, slender tools that deflect, changing both the achievable size and the surface finish	Strategy agreed: deeper roughing, multi-axis access, or a design change to shorten the reach
Threads	Non-standard threads increase cost and risk, and thread depth is often specified without a functional reason	Standard forms preferred, with depth and engagement defined by function
Surface finish	A finish requirement applied to every surface multiplies cost without adding function	Roughness specified only on functional surfaces — seals, bearing seats, sliding faces
Workholding and repeatability	Automotive parts are usually needed more than once, and a one-off solution cannot be repeated	A fixture concept that locates identically every cycle, quoted with the repeat order in mind

Critical-to-Quality Features in Automotive CNC Parts

Short answer: a CTQ is a characteristic whose failure is not caught by the assembly, but by the customer. Identifying them is what turns a drawing into an inspection plan.

Feature	Why it matters	How it is normally verified
Bearing bore	Sets fit and rotational accuracy; roundness and taper matter as much as the diameter	CMM or bore gauge, with roundness and taper checked rather than assumed
Shaft diameter and concentricity	Bearing and seal fit; run-out appears as vibration or leakage	Micrometer or CMM, with run-out measured on or between the datum features
Hole position	Assembly alignment; position error stops a joint going together even when every hole is the right size	CMM evaluated as true position against the datum reference frame
Sealing surface	Leakage prevention; flatness, roughness and burr condition decide whether the seal holds	Flatness and roughness measurement, and leak testing where fluid is present
Threads	Fastener engagement and torque capability	Thread gauges, with depth and position confirmed against the drawing
Datum features	Part-to-part positioning in the assembly; every other measurement depends on them	CMM datum establishment, and confirmation that the fixture uses the same scheme
Flatness	Assembly and mounting; a bowed face loads a joint unevenly	Surface plate, indicator or CMM scanning across the face
Surface roughness	Friction, sealing and contact behaviour — the difference between a seal that holds and one that weeps	Roughness tester at defined positions and directions

Where Machining Capability Actually Comes From

Short answer: a machine’s positioning specification is one input among eight. Most tolerance problems on automotive parts are caused by tool deflection, workholding, thermal state and process sequencing — not by the machine being insufficiently accurate.

Factor	How it moves the result	What a buyer can ask for
Feature geometry and tool access	Deep pockets, long reach and small internal radii force slender tools that deflect under cutting load	The tooling plan for the critical features, and whether a longer reach forces a change in strategy
Part stiffness and wall section	Thin walls deflect under clamping force and cutting pressure, so the part measures correct in the fixture and springs back afterwards	How the wall is supported and where the clamps act, and whether the part is measured free-state
Workholding stiffness and datum strategy	A soft fixture or too many setups introduces error at every transfer between them	The number of setups, the fixture design and how datums are re-established between operations
Thermal state	Spindle growth, coolant temperature and shop temperature all move the tool relative to the part during a run	Warm-up routine, coolant temperature control, and whether critical features are probed in-process
Tool condition and wear management	A worn tool changes both size and surface finish, so the process drifts within a run and between runs	The tool-life management rule and how offsets are corrected
Machine kinematics and control	Contoured surfaces and rotary-axis work depend on servo response and look-ahead, not just on linear accuracy	The machining strategy for contoured features — simultaneous, indexed or a mix
Process sequencing	Roughing, stress relief and finishing in the right order is what makes tight tolerances repeatable	The process plan, and where the stress-relief or re-datuming step sits

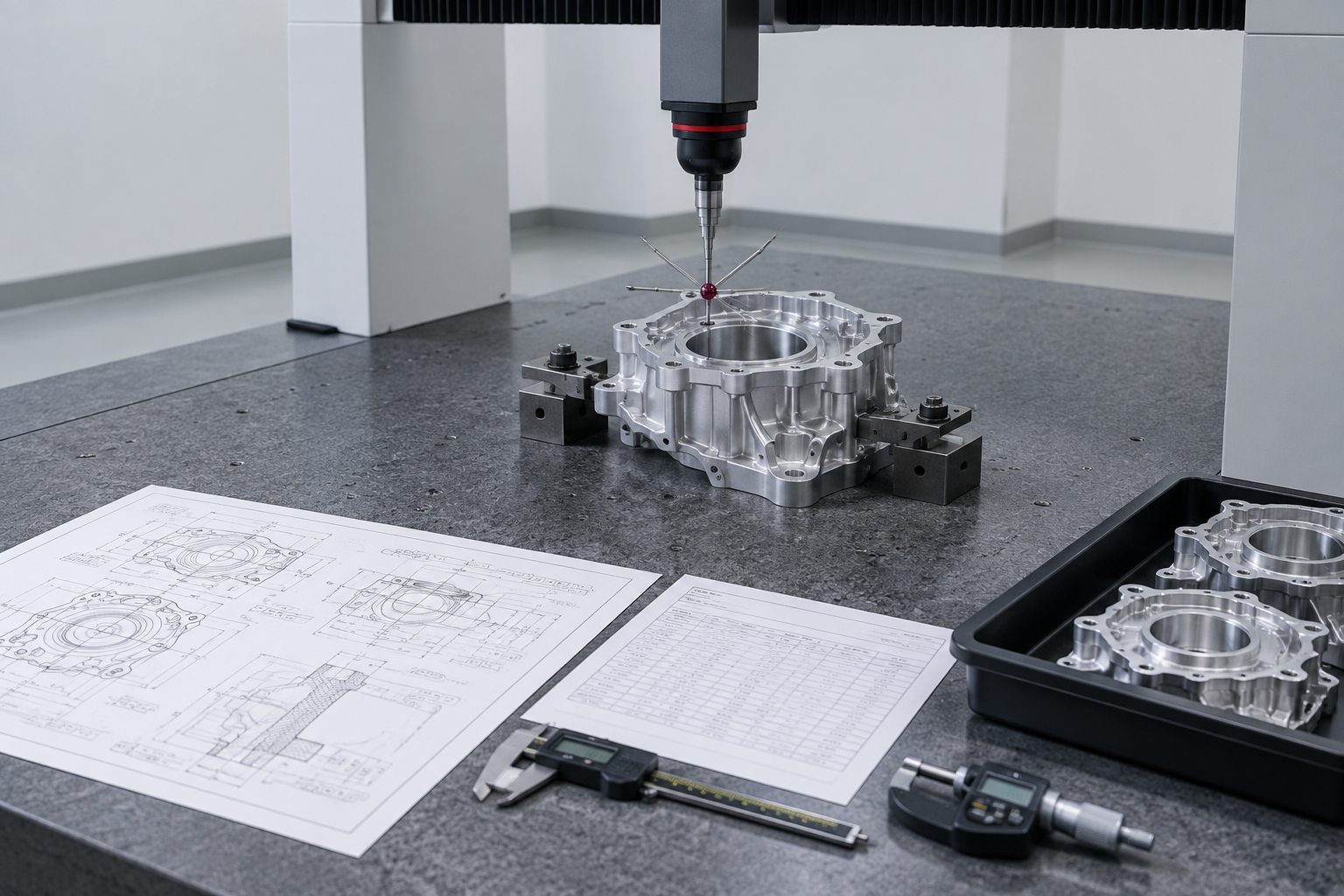

Measurement capability	A tolerance cannot be controlled by an instrument that cannot resolve it — see measurement system analysis	The instrument and method proposed for each critical characteristic

Why This Page Does Not Publish a Single Tolerance Number

Short answer: because a tolerance without its part, feature, material and measurement method is not information you can use. A number that is not tied to those four things cannot be verified, and it becomes a promise the shop has to defend on a part it has never seen.

What a headline figure hides	Why it changes the achievable result
Part size	Geometric and thermal error scale with size, so a tolerance across a 500 mm casting is a different problem from the same tolerance across a 40 mm fitting
Feature type	A bored bore, a milled pocket, a contoured surface and a bolt-hole pattern each have different dominant error sources
Material and condition	Aluminium, hardened steel, stainless and cast iron behave differently in cutting force, heat and residual stress
Wall stiffness	Thin sections move after clamping is released, so the measurement method becomes part of the specification
Quantity and control	A one-off part can be tuned into tolerance; holding it across thousands demands in-process control, offsets and probing
Measurement method	The reported value depends on the instrument, the fixturing of the measurement and the temperature at which it is taken

Materials on a Machining Programme

Short answer: the material decision on a machined automotive part is three decisions: the alloy, the stock form, and the condition it arrives in. The third one is the most often forgotten and the most expensive to correct.

Material	Typical automotive use	Stock form	What governs its machining behaviour
Aluminium 6061 / 6082	Housings, brackets, covers, structural parts	Extruded bar, plate, or a casting	Free machining and stable; the stock form decides how much material has to be removed and how much stress it releases
Aluminium 7075	High-strength brackets and structural fittings	Plate or bar	Higher strength but less forgiving; more prone to distortion after heavy material removal
Alloy and carbon steel (1045, 4140, 4340)	Shafts, hubs, gears, studs, couplings	Bar or a forging	The heat-treatment condition dominates: pre-hardened stock machines differently and distorts less, while parts hardened after machining may need finishing in the hard state
Stainless 303 / 304 / 316L / 17-4PH	Fittings, fasteners, sensor bodies, fluid-side parts	Bar or forging	Work hardening and heat retention; 17-4PH behaves very differently depending on the supplied condition
Cast iron (grey and ductile)	Housings, bearing supports, machine-side structural parts	Casting	Free machining, but cast skin, parting-line stock and internal porosity determine the fixture and inspection plan
Brass and bronze	Bushings, fittings, small turned components	Bar or casting	Very good machinability; chosen where bearing behaviour or corrosion resistance matters rather than strength
Magnesium (AZ31, AZ91)	Lightweight structural and housing parts	Bar or casting	Excellent machinability with strict chip handling and fire-safety controls in the process

We Do Not Substitute Automotive Materials Without Approval

Short answer: on an automotive part, “equivalent material” is not a synonym for the specified material. A substitution changes mechanical behaviour, machining behaviour, corrosion performance, dimensional stability after heat treatment and, frequently, the substance data your customer reports upstream.

Common substitution	Why it is not equivalent by default
6061 → 6063, or the reverse	Different strength and, on extrusions, different section behaviour; both machine easily, so the difference appears in service rather than on the shop floor
7075 → 6061	Gives up a significant part of the strength while gaining machinability and corrosion behaviour, and it changes how the part distorts after heavy material removal
304 → 316 or 316L	Changes chloride and corrosion performance, and often the behaviour of the assembled joint
Pre-hardened → post-hardened steel	Changes the process sequence: a part hardened after machining distorts afterwards, which can move every critical dimension
Coating or plating change	Changes substance reporting data as well as function, and can invalidate a leak or conductivity assumption
Cast blank → machined from solid	Changes properties, weight distribution and sometimes fatigue behaviour — not only the cost

How a substitution is handled

1. Material unavailable or unsuitable — identified at quoting, at material receipt, or during the run.
2. Engineering review — the alternative is assessed against the drawing, the function and the process.
3. Proposed alternative — named by grade and supplier, never described as “equivalent”.
4. Technical and commercial impact — stated in writing: properties, machinability, distortion risk, substance data, price and schedule.
5. Customer approval — your written decision, recorded against the revision.
6. Release — only after approval, with the change log and material documentation updated.

Distortion and Residual Stress: The Problem Most Pages Skip

Short answer: the hard part of automotive machining is not making a good first part. It is holding the tolerance after the part is released from the fixture, after heat treatment, and six months later in the field. That is a process-planning problem, and it is where a programme is usually won or lost.

Where the movement comes from

• Residual stress in the blank — castings, forgings and extruded bar all arrive with internal stress from their own forming process. Removing material unbalances it, and the part relaxes.
• Unbalanced material removal — machining one side of a section and not the other pulls the part in the direction of the remaining material.
• Clamping force — a part held hard enough to resist cutting forces is often held hard enough to be deformed while it is measured.
• Cutting heat — local heating expands the workpiece and the tool, and the error appears once everything cools.
• Heat treatment — hardening and tempering move the part and change its dimensions, which is why the sequence relative to machining matters.
• Machine thermal drift — spindle growth over a long run moves the tool relative to the part without any change in the program.

How a process plan controls it

Control	What it does	Question to ask
Separate roughing and finishing	Lets the part relax and cool before the finishing passes set the final size	“Is roughing separated from finishing on the critical features?”
Stress relief between operations	Releases stress deliberately, under control, instead of during the finish cut	“Where is the stress-relief step in the plan, and is it thermal or natural?”
Symmetrical removal and light finish passes	Keeps the load balanced and the final cut gentle so the part is not driven out of tolerance	“How much material is left for the finishing passes on the critical features?”
Fixturing on rigid features with support at thin sections	Reduces clamp-induced deformation and lets the part be measured in a released state	“Where do the clamps act, and is the critical feature measured in the fixture or free-state?”
Re-datuming and in-process probing	Re-establishes the datum after a transfer instead of carrying accumulated error across operations	“How are datums re-established between operations?”
Machining after heat treatment where geometry allows	Puts the critical cuts after the dimensional change rather than before it	“Which features are machined after heat treatment?”
Thermal control and warm-up	Reduces drift within a run and between shifts	“What warm-up and temperature control applies to the critical operations?”

Volume, Fixturing and Automation

Short answer: volume does not just change the price per part — it changes the workholding, the inspection strategy and what limits the cycle time. On a series programme the fixture is as much a part of the process as the machine, which is why the fixturing concept is worth reviewing before the geometry is frozen.

Quantity band	Workholding	Inspection strategy	What dominates the cost
1–10 parts, prototype	Vise or soft jaws, one part at a time, manual load	Every feature inspected on the first-off, then sample check	Programming, setup and CAM simulation
10–100, pre-launch	Soft jaws or a simple dedicated fixture with repeatable location	First-off laid out to the drawing, then sampling per the plan	Setup amortisation and the first fixture
100–1,000, pilot	Modular fixture or a two-station tombstone	In-process probing becomes economic and continuous	Fixture investment, cycle time and tool life

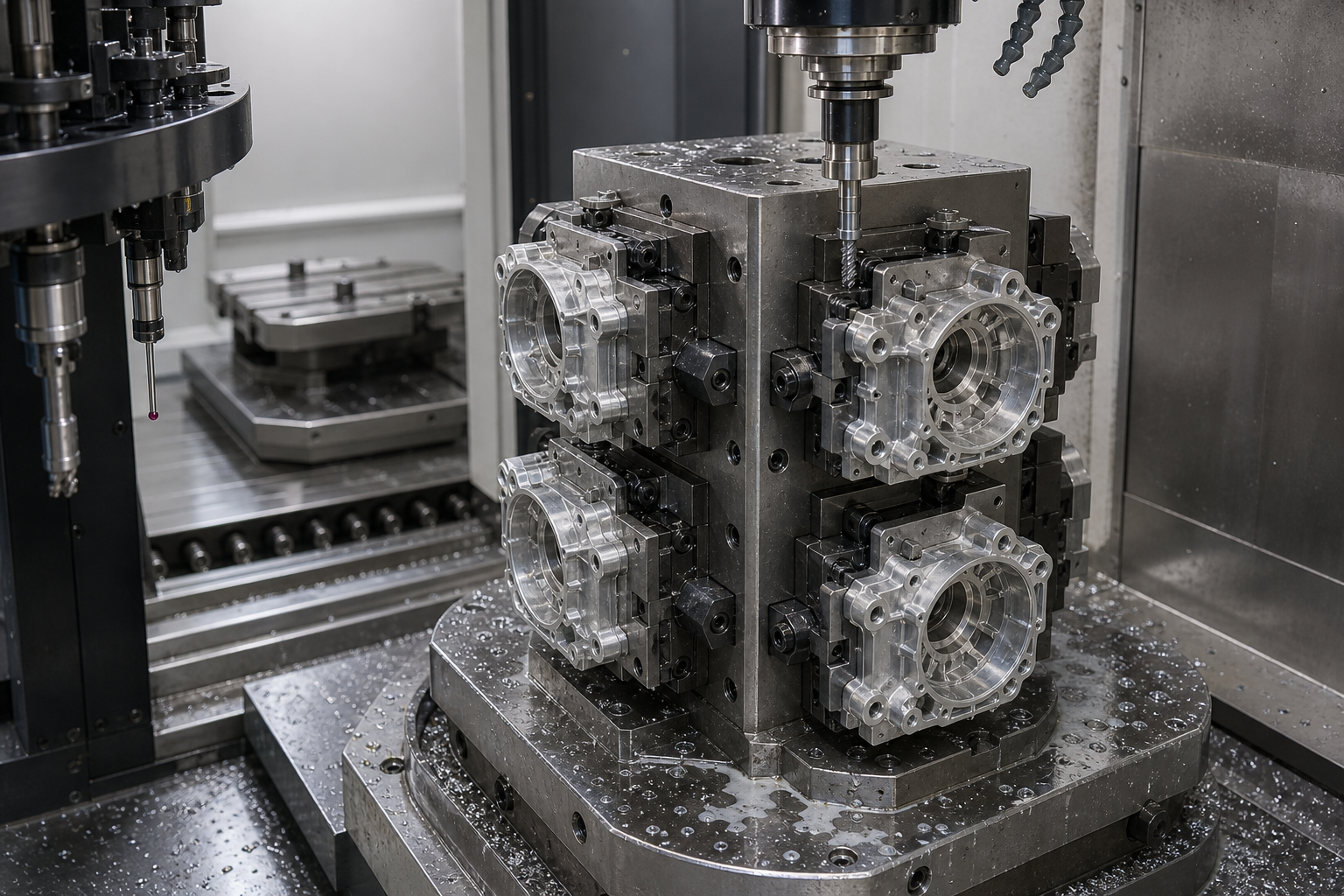

1,000+, series	Dedicated fixture or tombstone with pallet automation and unattended running	In-process probing plus scheduled verification and capability monitoring	Cycle time, tooling consumption and fixture throughput

Why high-volume machining automation matters to a design

• Fixture repeatability sets the capability. A part located in the same place every cycle measures the same; a part re-located from a vise each time does not.
• Pallet exchange changes the economics. Cutting while another pallet is loaded is what makes unattended and lights-out running possible on a series programme.
• In-process probing replaces sampling risk. Re-establishing the datum inside the cycle catches drift during a run instead of after it.
• Tool-life monitoring protects the batch. A tool policy that replaces or compensates before wear reaches the limit is what keeps the last part as good as the first.
• The fixture constrains later geometry changes. A boss that lands under a clamp, or a surface the probe cannot reach, is a fixture problem long after the design was “frozen”.

Burrs, Washing and Cleanliness

Short answer: a burr is a functional defect, not a cosmetic one. It can restrict a passage, prevent a seal from seating, interfere with a fit, or come loose inside an assembly after the part has been accepted. Cleanliness is therefore a specification with a measurement method — not a promise that the parts were washed.

Where burrs form on machined parts

• Hole exits and interrupted cuts, where the tool leaves the material.
• Thread ends and the start of tapped holes.
• Cross-drillings and intersecting bores, where the burr is inside the part and cannot be seen.
• The edges of chamfers and countersinks, where the chamfering tool itself can leave a feather edge.
• After surface treatment, where anodising, plating or coating can leave a raised edge or a partially attached fragment.

Deburring method	Suitable where	What to agree
Manual deburring with scraper, file or brush	Mixed geometry, low volume, visible edges	The acceptance standard and who checks it — manual deburring is operator-dependent by nature
CNC or robotic brushing and chamfering in cycle	Repetitive geometry, medium and high volume	The tool, its life and how the edge condition is verified
Thermal energy method	Inaccessible internal edges and intersecting passages, in batch	Whether the material and geometry suit the process, and the surface effect it leaves
Abrasive flow or media finishing	Internal galleries and passages where a tool cannot reach	The resulting edge radius, because the process removes material by design
High-pressure water or spray washing	Removing chips and machining residue after deburring	Pressure and direction for blind holes, and how the part is dried

Specifying cleanliness instead of requesting it

Element	What to define in the RFQ
What must be removed	Chips, cutting fluid residue, polishing or lapping media, coating overspray, dust from packaging
Acceptance method	Visual inspection, wipe test, or particle extraction with a defined method — the method decides what is measurable
Particle criteria, where the application needs them	Fluid passages, hydraulic and fuel-side parts and high-voltage insulation can require a particle size class and a maximum mass per part
Where the checks happen	After washing, before packaging, and on a sample basis in series production — not only on the first-off
How it stays clean	Packaging that does not introduce contamination, and handling rules between washing and packing

PPAP, APQP and the Core Tools in Plain Terms

Short answer: the automotive quality tools are not paperwork for its own sake. Each one answers a specific question a programme has to be able to answer before parts are committed to a vehicle. Here is what each tool asks a machining supplier to prove.

Tool	The question it answers	What it asks the machine shop to prove	What you should receive
APQP	How is quality planned before production rather than inspected afterwards?	That the programme runs in phases, with defined deliverables and reviews between them	The phase plan with the gates and what was signed off at each one
Process flow	What are the actual steps, including the outsourced ones?	That the documented sequence matches the shop floor, including heat treatment, coating, washing and subcontracted operations	A process flow diagram consistent with the control plan
PFMEA	What could go wrong in the process, and what prevents it?	That failure modes are analysed per operation with severity, occurrence, detection and actions — not copied from a template	A PFMEA with actions closed or dated, naming the machining risks
Control plan	What is controlled, how often, by whom, and what happens if it fails?	That every operation has a characteristic, specification, method, frequency, reaction plan and named responsibility	A control plan matching the flow and the PFMEA, including outsourced steps
MSA	Can the measurement itself be trusted?	That gauge capability and method adequacy were studied for the critical characteristics	Gauge study results with the acceptance rule applied to them
SPC	Is the process stable and capable over time, not just on the approval run?	That critical characteristics are charted in production with limits, sampling and a reaction plan	Control charts and capability results from series production
PPAP	Is the process ready for production, and can it be demonstrated?	That the submission package is assembled from the real process, at the level the customer requires	The submission at the agreed level, with samples and dimensional results

Cpk and Capability Studies: How to Read One

Short answer: Cp and Cpk compare the width of your process spread with the tolerance you specified. Cp tells you whether the process is narrow enough. Cpk tells you whether it is also centred. A process can be extremely consistent and still have a poor Cpk, because consistency and centring are two different things.

The same process spread, two different capability results

Index	Formula	What it answers	What it does not tell you
Cp	(USL − LSL) / 6σ	Is the process spread narrower than the tolerance window? This is the process potential.	Nothing about centring. A badly off-centre process can still show a good Cp.
Cpk	min[(USL − μ) / 3σ, (μ − LSL) / 3σ]	Is the spread narrow and is the mean positioned away from the nearer limit? This is the process performance against your specification.	Nothing about stability over time, and nothing about the measurement system that produced the numbers.
Pp / Ppk	Same structure, using the overall standard deviation instead of the short-term one	How the process actually behaves across the period the data came from, including shifts and setup changes	Whether the variation is common cause or a specific event — that needs the charts.

How a capability index is actually used

• To predict fallout. The index is a statement about how often a characteristic will fall outside the limits, which is the scrap, rework and inspection cost you carry.
• To decide between changing the process and changing the tolerance. A poor Cp means the process is too wide for the tolerance; a poor Cpk with a good Cp usually means an offset, a datum problem or a fixture issue that may be cheaper to fix.
• To move inspection from sorting to controlling. Once a characteristic is charted and capable, sampling can replace 100% inspection — which is where the cost saving is.

Measurement System Analysis: Why Your CMM Reading Is Not the Truth

Short answer: every reported dimension contains measurement error, and the only question is whether that error is small enough to be irrelevant. When the tolerance is tight, the measurement system can consume a large share of it — and then nobody can tell a good part from a bad one.

Concept	What it means on a machining programme
Repeatability	The same operator measuring the same part with the same instrument and getting slightly different answers — the instrument and fixturing component of the error
Reproducibility	Different operators or shifts measuring the same part and getting different answers — the technique component, which training and written method reduce but do not remove
Gauge R&R study	A structured study using several parts, several operators and repeated measurements to separate those two components from the real part-to-part variation
Acceptance rule	Programme requirements normally express gauge capability as a percentage of the tolerance and as a percentage of the process spread, with a limit above which the measurement method must be changed
Measurement uncertainty	The practical consequence: a tolerance roughly comparable to the uncertainty of the method cannot be verified reliably, however good the process is

What is specific to measuring machined parts

• Free-state or constrained? A thin-wall part measured in the fixture and the same part measured free on a plate can give different answers. The drawing should say which, because the process has to be capable in that state.
• Datum replication. A CMM that establishes datums differently from the machining fixture is measuring a different part. The datum scheme has to travel from the drawing to the fixture to the CMM.
• Feature fitting. Bores, cylinders and planes are calculated from probed points, so the number and distribution of points and the fitting method affect the reported value.
• Temperature and probe calibration. Both move the result, and both are controllable — but only if the report says what was done.

Control Plan, SPC and the Reaction Plan

Short answer: statistical process control has value only when someone is authorised to act on it. A chart that is plotted but not reacted to is decoration; a reaction plan with no named authority is a paragraph.

Element of the control plan	What it looks like on a machining programme
Characteristic and specification	The critical characteristics identified on the drawing, with their limits, and the general tolerances handled as such
Evaluation method	The instrument and method per characteristic — which is where the gauge study connects to the plan
Sample size and frequency	How many parts, how often, and what triggers a check — a new setup, a tool change, a shift handover
Control method	Control chart, in-process probing, or first-off plus periodic verification, matched to the characteristic
Reaction plan	What happens when a point goes out of control or a characteristic is out of specification: who stops the process, what happens to parts produced since the last good check, who decides segregation, who is notified

What is usually missing

• A reaction plan without a named authority, so the decision waits until someone senior arrives.
• Control limits used as if they were specification limits — a process can be in control and still produce non-conforming parts.
• Charts kept for the file rather than reviewed, so the trend is only visible during a customer audit.
• Sampling frequency chosen so the paperwork passes rather than so drift is detected.
• Outsourced operations such as heat treatment or coating excluded from the plan entirely, despite being a common source of arrival defects.

Repeat Production: Can You Make the Same Part Again?

Short answer: precision is a property of one batch; repeatability is a property of a programme. Every automotive buyer has a version of the same story — the prototype was perfect, and the second delivery was different. The cause is almost never the machine.

What must stay the same	How it is held	What breaks it
Drawing revision	The revision is stated on the quotation, the order confirmation and the inspection report	A part made correctly to a superseded revision and shipped without anyone noticing
Process route	A documented operation sequence, held for the life of the programme	Re-sequencing to save a setup, or moving the job to another machine
Critical tooling	Named cutters and a tool-life policy with offset management	A substitute cutter, or a tool run past its wear limit
Material specification	Grade and condition fixed on the drawing, with a certificate per lot — see substitution control	An “equivalent” grade, or a different heat-treatment condition
Inspection method	The same instrument, method and datum scheme as the approved baseline	Verifying a repeat order with a quicker method, which makes the new numbers incomparable with the approved ones
Lot traceability	Lot records linking material, run and inspection to the shipment	Merging two runs in one carton, or a partial lot left in the machine
Change control	A change log reviewed with the customer — see change notification	Improvements made quietly between orders

Part Marking and Traceability: Passing the Recall Test

Short answer: traceability is not a folder of records. It is a link between the part in someone’s hand and the records that produced it. Marking is the physical key that makes the link work.

Marking method	Typical use	What to consider
Laser marking	Fine, permanent, machine-readable codes on machined and finished surfaces	Needs a defined contrast on the material, and an accessible surface; verify readability after coating or anodising
Dot peen	Robust marking on cast, forged or rough surfaces	Displaces material, so it is normally kept off fatigue-critical and sealing surfaces
Chemical etching	Smooth and tight areas where raised metal is unacceptable	Process control, masking and waste handling
Stamping	Legacy parts and heavy sections	Can deform thin sections and create a stress raiser — increasingly replaced by laser marking
Label or tag on packaging	Where the part itself must not be marked	The tag must follow the part to the point of use, and the rule must survive repacking at a distributor

What to specify, and what the record chain must connect

• Code and content — whether the marking is human readable, a 2D Data Matrix code, or both, and what it encodes (part number, lot, date code, serial reference).
• Position, orientation and surface — defined on the drawing, and chosen so the code survives the rest of the process and stays readable in service.
• The unit of traceability — whether it is the individual part, a bag, a box or a pallet, because that decides how fine the records have to be.
• The chain itself — material certificate and lot, the production run and its parameters, the inspection results, the shipment, and then your own line.
• Retention — how long the records are kept, in what form, and how they are retrieved after the people who made them have moved on.

IMDS, ELV and Substance Reporting

Short answer: an automotive part carries a data obligation as well as a physical one. The obligation is usually held by whoever supplies the part into the vehicle manufacturer’s chain, and the machining supplier’s job is to provide accurate material and process data so that obligation can be met.

Requirement	What it is	What a machining supplier provides	What it cannot decide
IMDS material reporting	The automotive industry system for reporting the substances contained in parts, broken down by material	The composition data for the material, the coatings and the process chemicals used, with masses per material	Who files the entry and at what level — that follows the supply chain and the customer’s instruction
Restricted substances in vehicles	The automotive end-of-life framework restricts certain substances in vehicles and their components	A declaration of the substances introduced or retained by the chosen material, coating and process	The vehicle-level assessment, which depends on the whole bill of materials
Coatings and platings	Surface treatments are a common source of substance findings because they sit between the base material and the finished part	Supplier declarations for the plating, anodising or coating chemistry, and process inputs such as sealants and dyes	Whether your customer accepts the coating specification — that is a programme decision
Electrical and electronic parts	Where a machined part is also a component of electrical or electronic equipment, additional substance restrictions and information duties can apply	Material data and process inputs for the part as supplied	Whether your product falls inside the scope of those rules in your market

Change Notification: What Must Never Change Silently

Short answer: on an automotive programme the process that was approved is the process that ships. Improvements, cost reductions and convenient substitutions all pass through the same rule: notify in writing first, and get approval where the programme requires it.

Change	Why it is controlled	Typical obligation
Material, grade or condition	Changes mechanical properties, machining behaviour, heat-treatment response and substance data	Notify; approval commonly required, with updated material documentation
Sub-supplier, including heat treatment and coating	Introduces variables that were never assessed and cannot be audited against the approved process	Notify; approval commonly required before parts are made
Production location or machine	Changes the process the capability was demonstrated on, including its thermal and fixture behaviour	Notify; normally requires re-verification and often a new submission
Machining process or operation sequence	The sequence is what controls distortion and datum integrity on the critical features	Notify; re-verification on the affected characteristics
Fixture, workholding or clamping points	Alters how the part is located and released, which moves measured results on thin sections	Controlled internally, and notified where a critical characteristic is affected
Tooling, tool geometry or tool-life policy	Changes size control, surface condition and the drift pattern within a run	Controlled internally; notified if it changes demonstrated capability
Inspection method or instrument	Changes what the accepted numbers mean, so the previous records are no longer comparable	Notify; gauge study repeated for the affected characteristics
Packaging	Affects cleanliness, corrosion and damage rates in transit	Agreed with the customer as part of the specification

Deviation permits, and where they stop being useful

A deviation permit allows a defined quantity of parts to ship against a known non-conformance, for a limited time and a named part number. It is a controlled document with an expiry, not a standing arrangement. When the same deviation is requested for the second or third time, the process is not conforming and the honest answer is a change to the process or the drawing — a repeated permit is a problem that has been given a document number.

Drawing Revision and Engineering Change Control

Short answer: the most expensive defect on an automotive programme is a part made correctly to the wrong revision. It passes inspection, it looks right, and it is discovered at assembly.

Document or change	Who owns it	The rule we work to
Customer drawing revision	The customer	Every quotation, order confirmation and inspection report names the revision it was made against
CAD model revision	The customer	Model and drawing are treated as one revision; where they disagree, work stops until it is resolved
ECO / ECN	The customer, or us where the change originates internally	Implemented only after the change is issued, acknowledged and dated
Process change	Us	Notified before implementation where it can affect a characteristic, a datum or a demonstrated capability
Material change	Customer approval	Handled through substitution control, never as a purchasing decision
Tooling change	Us	Recorded, and re-verified on the affected characteristics before the next shipment
Inspection update	Agreed	The method change is approved and the gauge study repeated, so the new numbers stay comparable
Packaging change	Agreed	Treated as a specification change, because it affects cleanliness and damage rates

How revision control works in practice

• Superseded revisions are withdrawn from the shop floor rather than filed beside the current one.
• Programs, fixtures and inspection plans carry the revision they were released against.
• The first-off after any revision change is verified against the new revision before the run continues.
• Parts already made to the previous revision are identified, quarantined and dispositioned with you — not mixed into the next delivery.
• The change log is available at programme reviews, and it is the document that shows whether change control is real.

From Prototype to SOP: Gates and Their Exit Criteria

Short answer: each stage of an automotive programme exists to produce what the next stage needs. Programmes rarely fail by failing a gate; they fail by skipping one, and the cost arrives a few shipments later.

Six stages, one exit document each

EV and E-Mobility CNC Components

Short answer: electrified vehicles moved the machining work away from engine internals and towards housings, thermal parts and structural interfaces — which suits a machining-led supplier, because most of those features are machined rather than cast to final form.

EV component group	Typical parts	Machining focus
Motor and drive unit	Motor housings and covers, end plates, reducer and gearbox housings	Stator bore roundness and concentricity, bearing seats, mounting faces, cooling jacket channels
Battery pack mechanical parts	Trays, frames, end plates, module supports, busbar supports	Sealing grooves and flatness across long spans, hole patterns built on a shared datum, thin-wall control
Thermal management	Cold plates, cooling jackets, coolant manifolds and ports	Channel form and depth, port threads, flatness of the thermal interface, leak integrity
Sensing and power electronics	Current, temperature, position and inverter housings with their mounting brackets	Connector bore position, sealing faces, dimensional stability around the mating plane
Structure and mounts	Aluminium brackets, crossmember interfaces, high-voltage component mounts	Lightweight sections with adequate stiffness, and interface flatness for bolted joints

What is different on the machining side

• Sealing dominates. A large sealed perimeter is unforgiving: flatness and roughness across a long span decide whether the joint holds, and a burr inside a sealed volume becomes a leak or a loose fragment.
• Thin walls and thin floors. Weight-driven designs remove material aggressively, which raises distortion risk and makes the process plan — not the machine — the limiting factor.
• Castings rather than solid stock. Most EV housings begin as a casting, so the machining scope is normally the interfaces, bores and sealing faces on a near-net blank.
• Leak testing. Where a part carries coolant or oil, a pressure or leak test is often a programme requirement, and it should be named in the RFQ rather than assumed.

Performance and Motorsport CNC Parts

Short answer: development-led automotive work — motorsport, performance and low-volume special vehicles — is the segment where a machining-led supplier is strongest, because the value sits in the features rather than in the volume.

Segment	Typical parts	What matters most
Motorsport and track	Intake and manifold components, brackets, mounts, housings, lightweight structural parts, custom shafts	Feature density, weight, short lead times and frequent revisions
Performance and aftermarket	Intake components, adapters, brackets, covers, drive components	Fit to an existing vehicle, appearance expectations and small batch sizes
Vehicle development	Prototype housings, test-rig parts, brackets, fixtures for validation builds	Revision turnaround, dimensional honesty, and willingness to state when a feature cannot be held
Low-volume and special vehicles	Repeated small batches of the same component	Repeatability across batches when annual volume is far below a series programme

Why this segment suits an engineering-led supplier

• The customer is usually the designer, so the DFM conversation happens directly with the person who can change the geometry.
• Revisions are frequent and expected, which puts revision control to work instead of treating it as overhead.
• Quantities are small enough that a fixture worth building once is worth building properly.
• Materials are chosen for performance per unit weight, which is where the distortion and residual stress controls matter most.

Capacity, Programme Commitment and Scheduling

Short answer: a capacity claim is not a capacity commitment. What matters is which machine, how many hours and in which period — and what the supplier does when demand moves faster than the plan.

What to agree	Why it matters	Question to ask
Machine and shift allocation	Determines achievable throughput and whether the process is run consistently across shifts	Which machine, and which shifts, are committed to this part number?
Volume band and ramp	A stated band is what makes the tooling, fixturing and automation decisions rational instead of optimistic	What volume band do you commit to, and what happens if we run below it?
Peak handling	A spike covered by moving the job to another machine may change the process the parts were approved on	What is the plan for a significant demand spike, and does it involve a second machine or fixture?
Continuity of tooling and fixtures	A damaged fixture or a worn tool can stop a programme as effectively as a machine breakdown	What is the plan if the fixture is damaged, and are spare inserts or a spare fixture held?
Reservation model	Reserved capacity is a commercial commitment and normally costs something, one way or another	Is capacity reserved for us, competed for, or prioritised by order value?
Escalation	Decides whether you learn about a capacity problem a week before the shipment or a month before	When and how do we hear that the schedule is at risk?

Packaging, Preservation and Delivery Documentation

Short answer: once a part is machined to tolerance, washed and coated, the packaging becomes part of the specification — because the most common damage between the machine and your line is contact damage, corrosion and contamination, not machining error.

Element	The options	What to agree
Container	Expendable cartons, or returnable bins and racks	Returnables suit steady programmes but need a container pool, a return flow and a cleaning rule; expendable packing needs a documented specification so it stays the same order to order
Dunnage and separators	Moulded trays, layer pads, dividers, custom nests	Machined and coated surfaces are the vulnerable ones; the requirement is no metal-to-metal contact and no movement in transit
Preservation	VCI film or paper, desiccant, protective oil film	Uncoated steel and cast iron rust in transit; the choice depends on the destination climate, the shipping mode and how long the parts sit before use
Cleanliness protection	Bagging or sealing after washing	The handling rule between washing and packing, because contamination is usually introduced by handling rather than by the wash
Packaging identification	Part number, lot, quantity, date code, handling marks	The label must carry the same lot reference as the records, so the box and the documents can be reconciled at receiving
Documentation per shipment	Material certificate, inspection report, packing list, declarations	The document list is part of the programme specification, not something retrieved after the fact — see traceability

Buying Automotive CNC Parts from China: What to Verify

Short answer: verify the mechanism, not the country. Every item below can be checked with a specific document or question, and each one is a place where an overseas programme normally goes wrong.

What to verify	Why it matters	How to verify it
Who actually machines the part	A trading office and a factory answer questions differently once a problem arrives	Ask for the production address and a video or audit visit at the machine
Real manufacturing capability	The machine list matters only if it includes the processes your part needs	Which machine and which fixture concept for your geometry, named in the quotation
Certificate scope	A certificate without its scope does not tell you whether your process is covered	The certificate, its scope, its validity, and how it maps to the work you are buying
Material traceability	The cheapest way to fail a programme is to machine the right geometry from the wrong material	A material certificate per lot, and a batch record linking it to the run and the inspection
Inspection equipment and method	Reported values are only useful if the method can resolve the tolerance	Instrument and method named per critical characteristic, with the gauge study where it applies
Drawing revision control	Prevents a correct part being made to the wrong revision	Ask them to state the revision the quotation was based on, then send a revision change and watch what happens
Subcontracting policy	Heat treatment and coating are common outsourced steps and common defect sources	A named list of subcontracted operations and the qualification of that supplier
Submission documentation	Determines whether an approval can be closed without a second round	The submission level and element list agreed in writing before tooling or production
Production capacity	A capability claim is not a schedule commitment	The machine and shift commitment for your part number, and the plan for a demand spike
Packaging and preservation	Machined, washed and coated parts are damaged by contact, corrosion and contamination	A written packaging specification, including separators, preservation and labelling
Continuity and second-sourcing	Single-source tooling and undisclosed single-source processes are a programme risk	What happens if the fixture is damaged, and whether a duplicate can be made
Engineering communication	Decides whether a technical problem takes a day or a month to resolve	A named engineering contact and a response commitment, tested with a real technical question

Total Cost of Ownership for an Automotive CNC Part

Short answer: a low unit price is not automatically a low total cost. On an automotive programme, the lines that decide the winner are usually inspection strategy, engineering-change handling and the cost of a defect that reaches your line.

How to compare two automotive quotations properly

• Normalise the scope first: the same drawing revision, the same CTQ list, the same inspection method, the same documentation level, the same packaging and the same Incoterm.
• Then compare the total of part, inspection, secondary operations, packaging, freight, duty and inventory, not the unit price alone.
• Then weigh the two risk lines — containment if a defect escapes, and the change-handling rate when your drawing moves.
• Finally ask what the quote excludes. A quotation that omits inspection, documentation or marking has not offered a lower price; it has offered a smaller scope.

Automotive CNC vs General CNC Machining

Short answer: the machine is the same; the obligations are not. This is the table to use when someone asks what actually makes automotive machining different.

Dimension	General CNC machining	Automotive CNC machining	What it changes for you
Accuracy	Part meets the drawing on the parts measured	Part meets the drawing and the process is capable of continuing to	Shifts cost from inspection to process control
Inspection	Standard dimensional check	CTQ-based, customer-defined where the programme requires it	Decides what appears on the report and how often it is measured
Material	A certificate for the stock	Certificate plus lot traceability and controlled substitution	Makes a recall question answerable
Drawings	The current drawing	The current revision, controlled and recorded	Prevents parts made correctly to the wrong revision
Lifecycle	One order	Prototype → pilot → repeat production	Rewards a supplier who can hold a process, not just hit a number
Documentation	A quality report	Customer-defined documentation, scoped as a submission	Removes an approval round that was not planned for
Changes	Agreed informally between buyer and supplier	Notified, and approved where the programme requires it	Protects the approved process and the demonstrated capability
Delivery	An order date	A project or production schedule with a capacity commitment	Makes a ramp achievable instead of optimistic
Cost	Unit price	Total cost of ownership plus quality risk	Changes which supplier is actually cheaper

Automotive CNC Supplier Qualification Checklist

Use this before awarding a programme, and ask for the document behind every box. It is deliberately organised the way an audit is: engineering, manufacturing, quality, supply and commercial.

Engineering

• Can they read and work to GD&T, including datum reference frames?
• Do they perform a DFM review before quoting, and issue it in writing?
• Can they identify the critical characteristics on a drawing, and do they agree with your list?
• Do they control drawing revisions, and can they state the revision a quotation was based on?
• Will they state in writing when a feature cannot be held by the proposed process?

Manufacturing

• 3 / 4 / 5-axis milling, turning and mill-turn as the part requires?
• A named fixture concept with repeatable location, not a one-off setup?
• A process plan that addresses distortion and residual stress?
• Tool-life management and offset control on the critical features?
• In-process probing or an equivalent method for re-establishing datums?

Quality

• ISO 9001 certificate, and the certification that your programme specifically requires if any
• CMM and the instrument/method named per critical characteristic
• Gauge study results where the tolerance is tight relative to the method
• First-article and dimensional reports in a defined format
• Material certificates with lot traceability back to the run
• Submission documentation, if the programme requires it

Supply

• Repeat production with a held process route and revision
• A capacity and shift commitment, and a stated plan for a peak
• Lead-time control and an escalation route when the schedule is at risk
• A written packaging and preservation specification
• Export documentation, Incoterms and labelling
• A continuity plan if a fixture, tool or sub-supplier fails

Commercial

• Quotation states its assumptions, the drawing revision and what is excluded
• Quantity bands and the logic behind any price break
• Tooling, fixture and gauge ownership terms
• Change-order rules: what counts as a change, and who pays
• Payment terms, Incoterms and a named technical contact

Published Applications and the Case Fields We Can Supply

Short answer: we do not publish customer names, drawings, volumes or order values, and this page contains no performance figures taken from a customer order. What we can do is answer the same set of fields for a comparable part, redacted and with the customer’s permission.

Field	What it describes
Application	The vehicle system the part serves, not the customer’s name — for example a drive-unit housing or a sensor housing
Material	The grade and condition as specified on the drawing
Annual volume	The volume band the programme runs at, as agreed with the customer
Process	The machines and operations used, and the fixture concept
Key CTQ	The characteristics that were actually controlled, and how they were chosen
Surface finish	The functional requirement on the specified surfaces, rather than a blanket value
Inspection	The instrument and method per characteristic, and the report supplied
Documentation	What was delivered: dimensional report, material certificate, first-article, and the agreed submission level
Lead time	Measured from a stated start point, so it can be compared with another supplier’s number
Result	What the programme achieved, stated to the extent the customer permits

What We Will Show You Before You Commit

Short answer: instead of asking you to trust a capability claim, this is the set of documents we will produce for a programme — and the set you are entitled to ask any supplier for before awarding the work.

Document	What it demonstrates
A DFM report from a comparable part, redacted	That mouldability and machinability issues are identified before tooling or programming, not discovered on the first part
Process flow, PFMEA and control plan for a previously run part	That the quality tools describe a real process rather than a template, including outsourced operations
A capability study on a machined characteristic	How capability is calculated, over what sample and period, and how it is reported
A gauge study result for a critical characteristic	That the measurement method was assessed against the tolerance before it was used to accept parts
A sample dimensional report	That each characteristic is reported with the instrument and method named, against the drawing limits
A marking and lot scheme example	How a part is linked to its material lot, process records and inspection results — the recall test in practice
A change notification record	That changes are written down and communicated before they happen
Current certificates and their scope	What is actually certified, listed on the quality and certifications page, with any interpretation settled before an audit

Direct Answers

Short, self-contained answers to the questions automotive buyers ask before a programme starts.

The Automotive RFQ Pack

The first six items are the minimum for a quotation that means anything. The rest are what convert a quotation into a programme that runs without surprises.

• 3D model in STEP or native format
• 2D drawing with dimensions, tolerances and GD&T
• The drawing revision you are working to (Rev A, Rev B, or the current released revision)
• Critical characteristics (CTQs) identified on the drawing, or the intent behind each critical feature
• Mating parts or the assembly the component fits into
• Inspection requirement: which characteristics, by which method, and at what frequency
• Whether a leak, pressure or functional test applies to the part
• Material specification, heat-treatment condition and any approved source
• Annual volume, first-order quantity and expected ramp
• Required documentation level, including the PPAP level if applicable
• Surface treatment, coating and masking requirements
• Marking requirement: code type, position and data content
• Cleanliness requirement and the method by which it is verified
• Packaging specification and whether containers are returnable
• Datum scheme and whether parts are measured free-state or constrained
• Substance reporting requirement, including IMDS
• Change-notification expectations and the approval route
• Delivery terms and destination

Ten questions to ask before awarding the programme

1. Which characteristics do you consider critical on this drawing, and do you agree with the ones we marked?
2. What is your process plan for distortion on this part, and where does the stress-relief step sit?
3. How many setups, on which machine, with which fixture concept?
4. Which instrument and method will measure each critical characteristic, and what does the gauge study say?
5. What capability will you demonstrate, on which characteristics, over what sample and period?
6. What is your reaction plan when a critical characteristic goes out of control on the night shift?
7. Which operations are subcontracted, and how are those suppliers qualified?
8. What does the part marking encode, and how do you retrieve the records from it eighteen months later?
9. What changes would you notify us about before making them, and in writing?
10. What capacity are you committing, on which machine, and what happens at the peak?

Automotive CNC Machining FAQ

Author & technical reviewer

Wei Lin

Automotive Programme Engineer · Xiamen Goldcattle Plastic & Metal Products Co., Ltd.

• Aluminium & cast-iron machining
• Fixture & process planning
• Capability studies & PPAP
• Distortion control

Wei Lin runs automotive machining programmes from the first DFM review through capability studies and submission. He plans the fixture and operation sequence for distortion-prone parts such as thin-wall housings and cast components, assigns the inspection method to each critical characteristic, and owns the change log for parts in series production.

He works directly with Tier suppliers and OEM-tier buyers on the points that are usually settled last and matter most: which characteristics are critical, how capability will be demonstrated and reported, what the part marking must encode, and what constitutes a change that requires notification before it happens.

Before a quotation is issued, he reviews the drawing for characteristics the proposed process cannot control — and says so in writing, rather than letting the risk arrive in the first production shipment.

Technical review is by the Goldcattle machining engineering team. This page is maintained as process, materials and automotive documentation requirements change; updated September 2026.

Start with the Drawing

Send the 3D model, the drawing and the volume expectation. The engineering team returns a DFM report naming the critical characteristics, a process route with the fixture and inspection concept, a documentation level matched to your programme, and a quotation that states its assumptions instead of hiding them.

Upload CAD / Request a Quote →

DFM before quoting · NDA available on request · Automotive documentation agreed per programme

See machining capability and equipment →

Founded in 1998, Xiamen Goldcattle Plastic & Metal Products Co., Ltd. machines metal components and produces molded plastic parts and tooling for international buyers, including automotive programmes. Technical review is by the Goldcattle automotive machining engineering team. For any order, the governing documents are the drawing, the specification and the agreed quotation; confirm material, heat treatment, tolerances, marking, cleanliness, documentation and change-notification requirements for your programme before production.
